PCM Connector C3

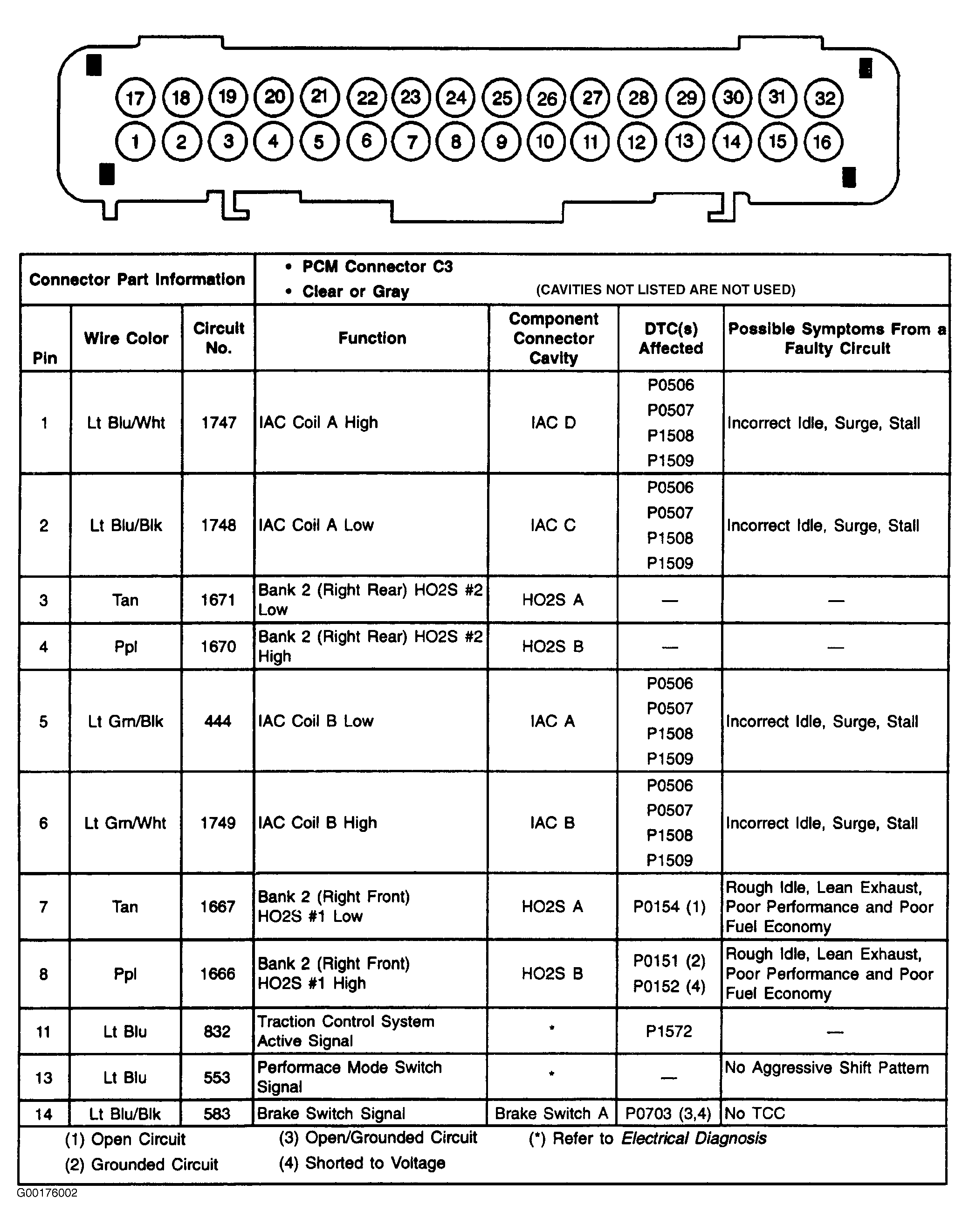

Fig 1: PCM C3 32-Pin Connector (Clear Or Gray) - Terminal Identification & Legend (1 Of 3)
G00176002Courtesy of GENERAL MOTORS CORP.

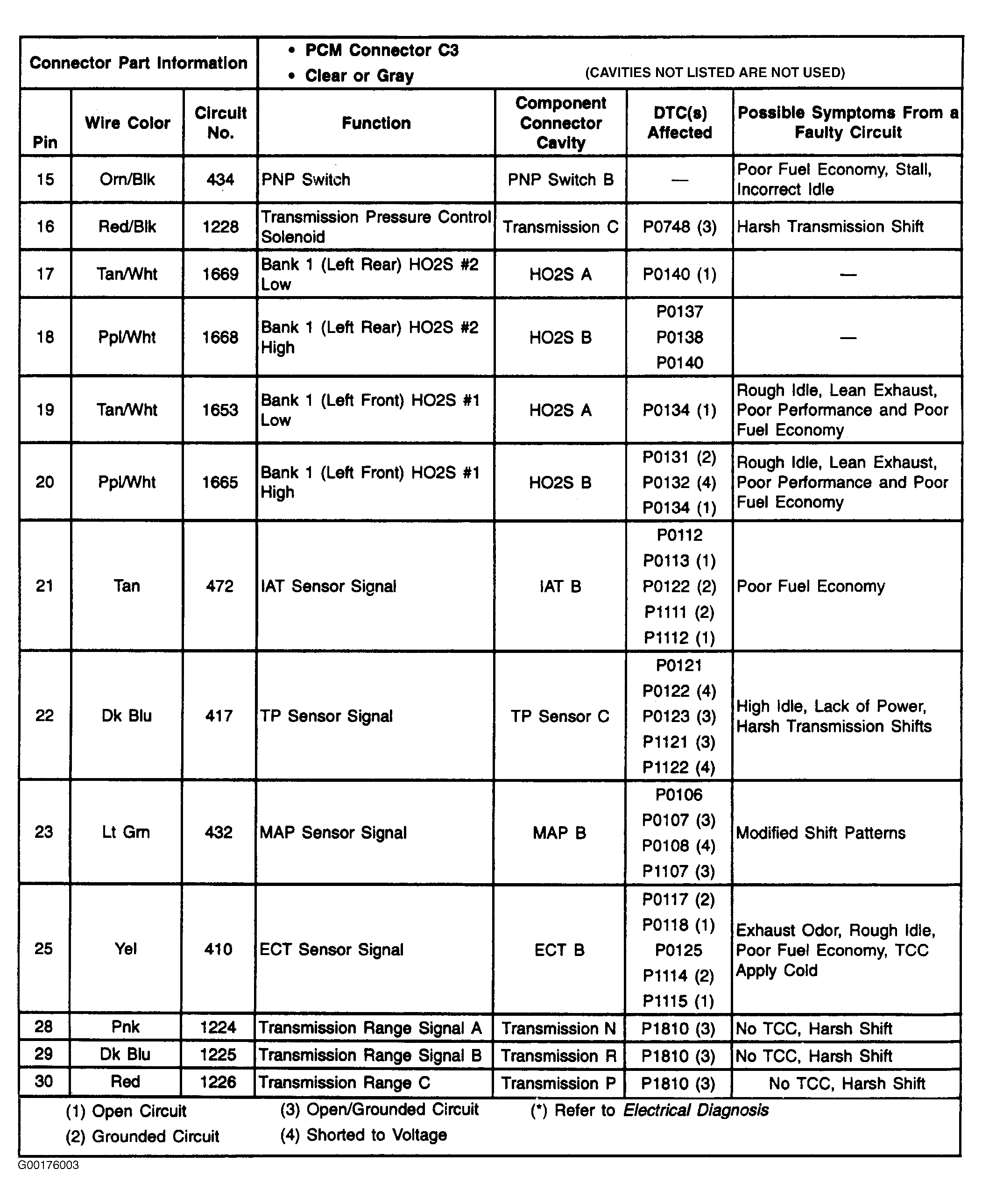

Fig 2: PCM C3 32-Pin Connector (Clear Or Gray) - Legend (2 Of 3)
G00176003Courtesy of GENERAL MOTORS CORP.

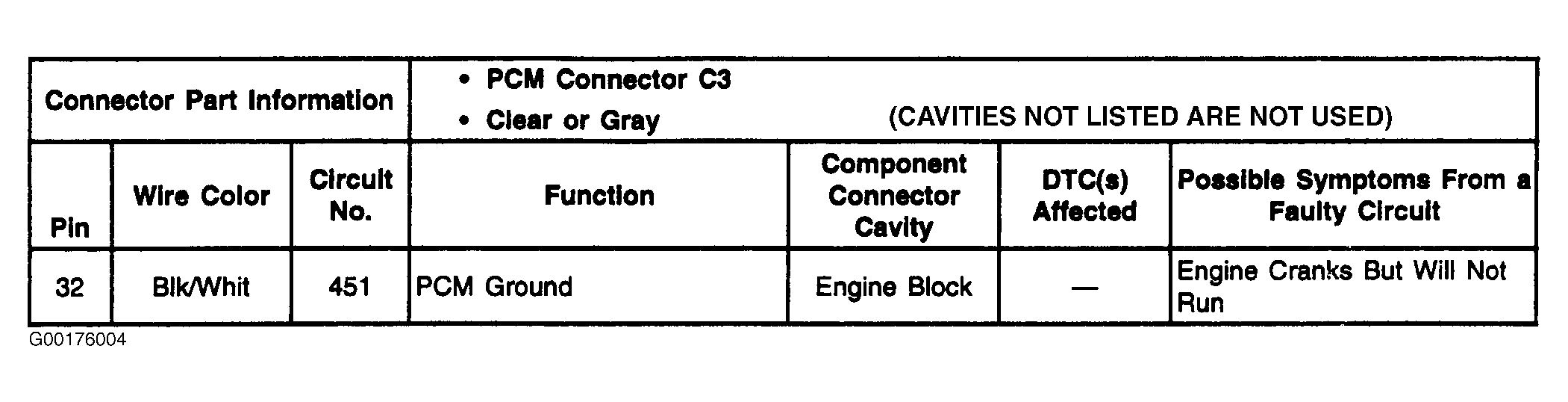

Fig 3: PCM C3 32-Pin Connector (Clear Or Gray) - Legend (3 Of 3)
G00176004Courtesy of GENERAL MOTORS CORP.
