PCM Connector C4

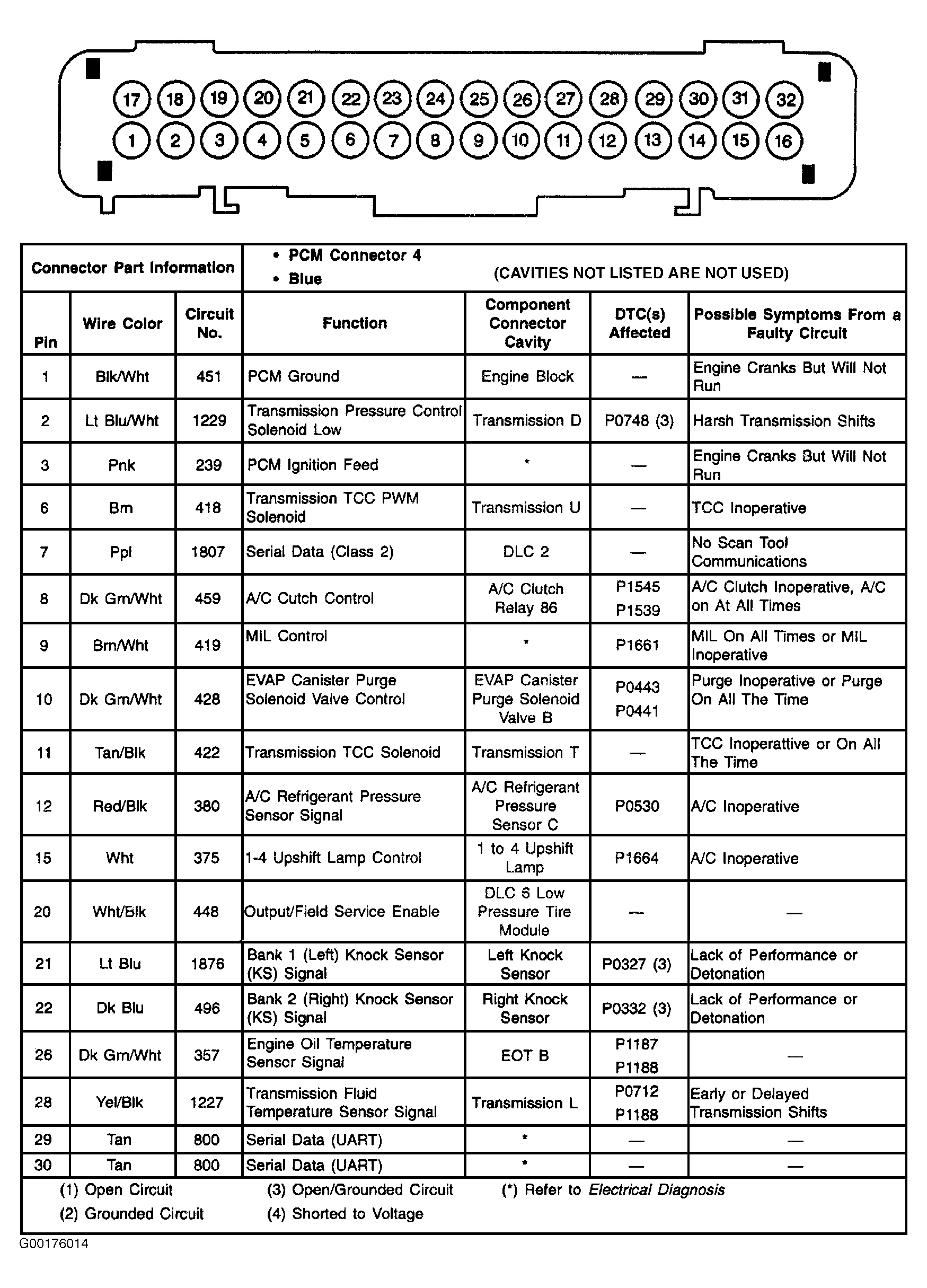

Fig 1: PCM C4 32-Pin Connector (Blue) - Terminal Identification & Legend
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
