Compressor HVAC
>>
With HD6/HT6 Compressor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With HD6/HT6 Compressor

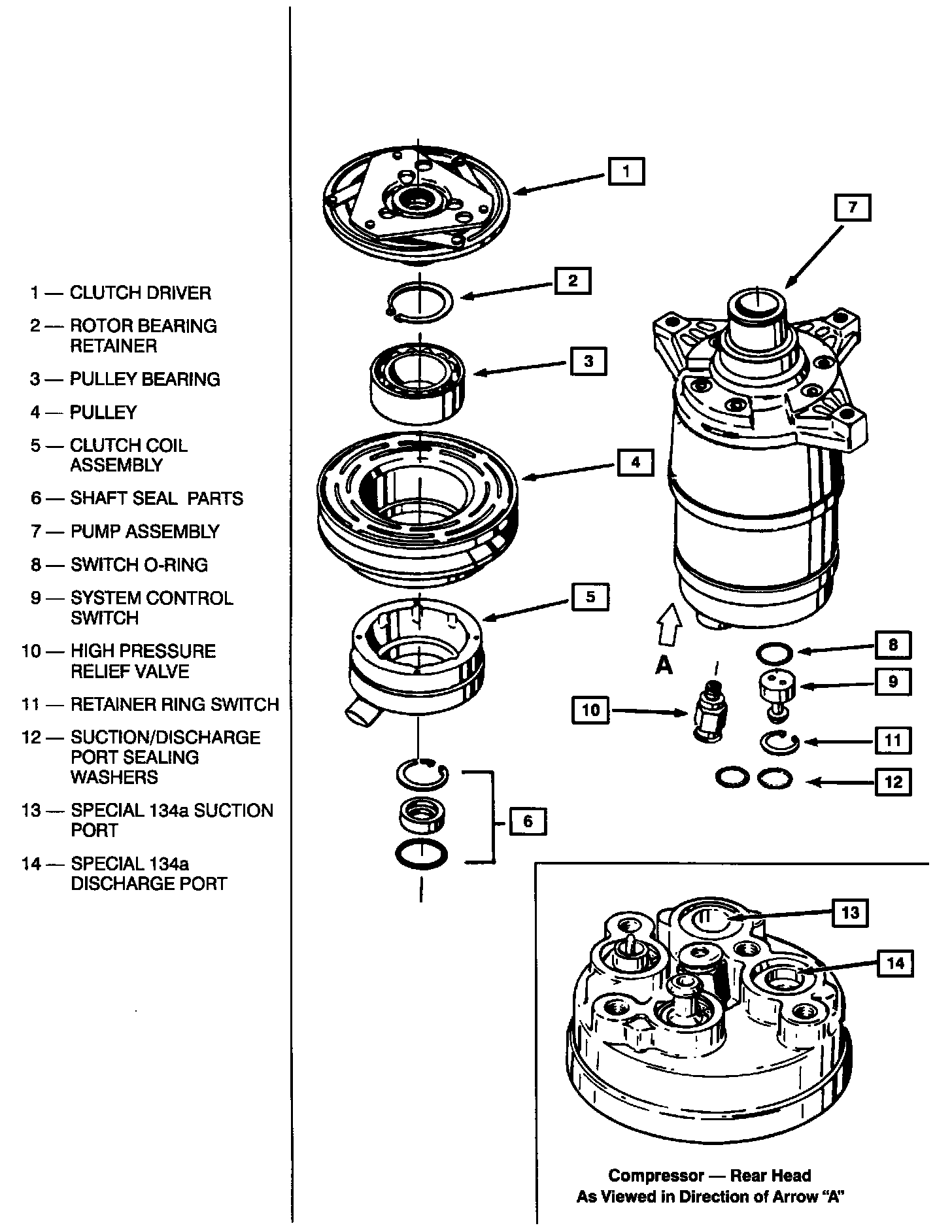

Compressor Components - Disassembly:
