Pcm Connector Identification

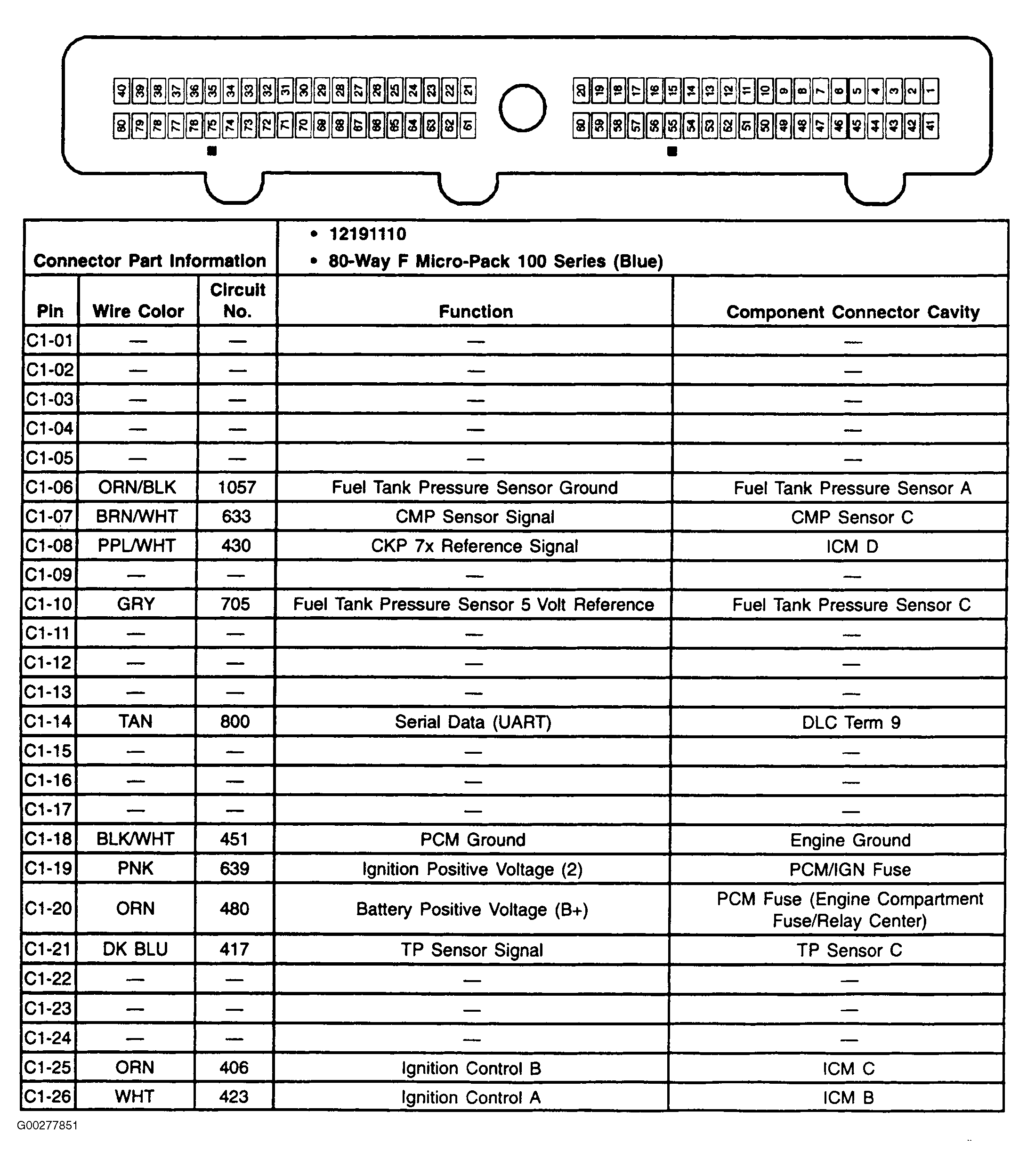

Fig 1: Identifying PCM 80-Pin Blue C1 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

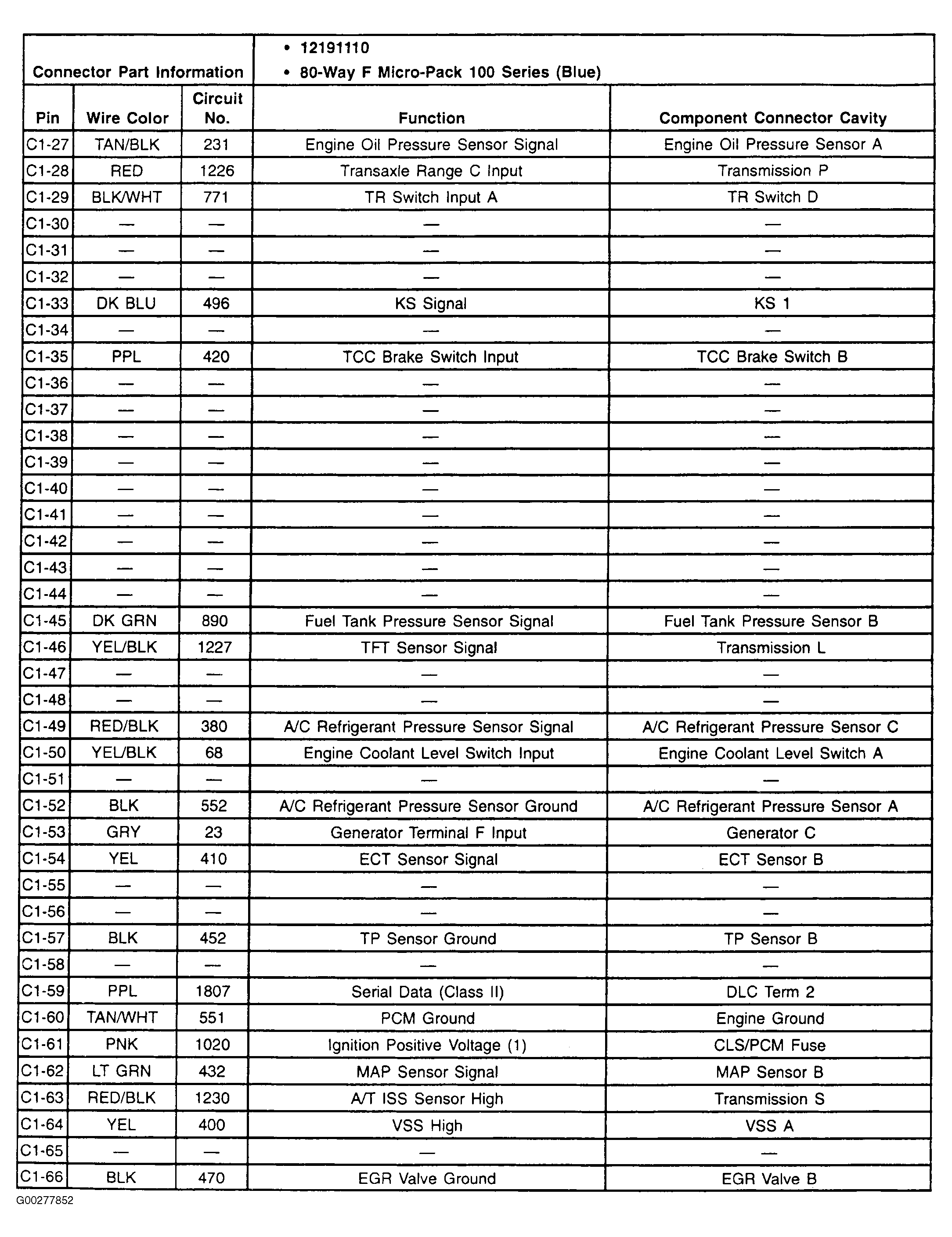

Fig 2: Identifying PCM 80-Pin Blue C1 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

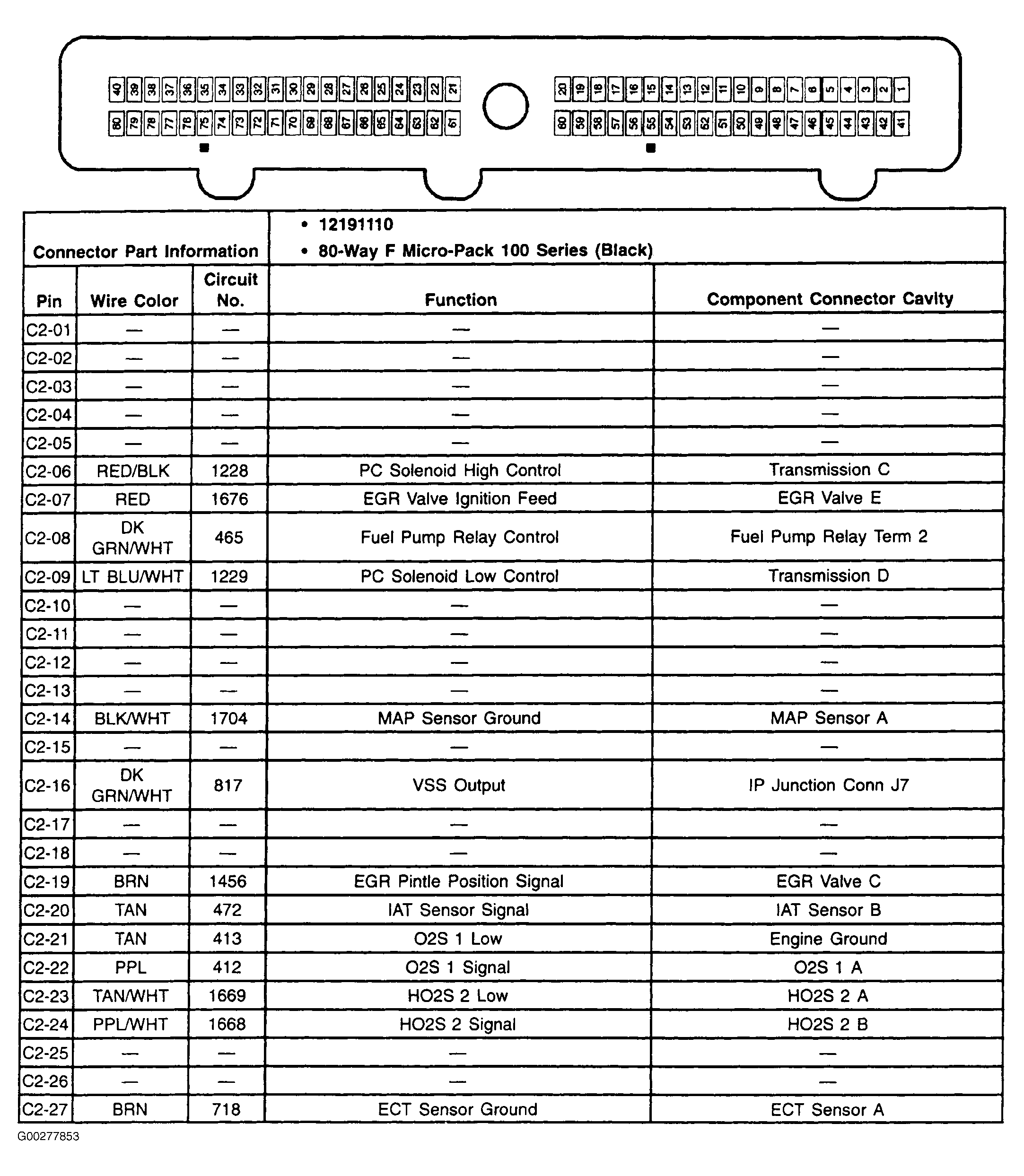

Fig 3: Identifying PCM 80-Pin Black C2 Connector Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

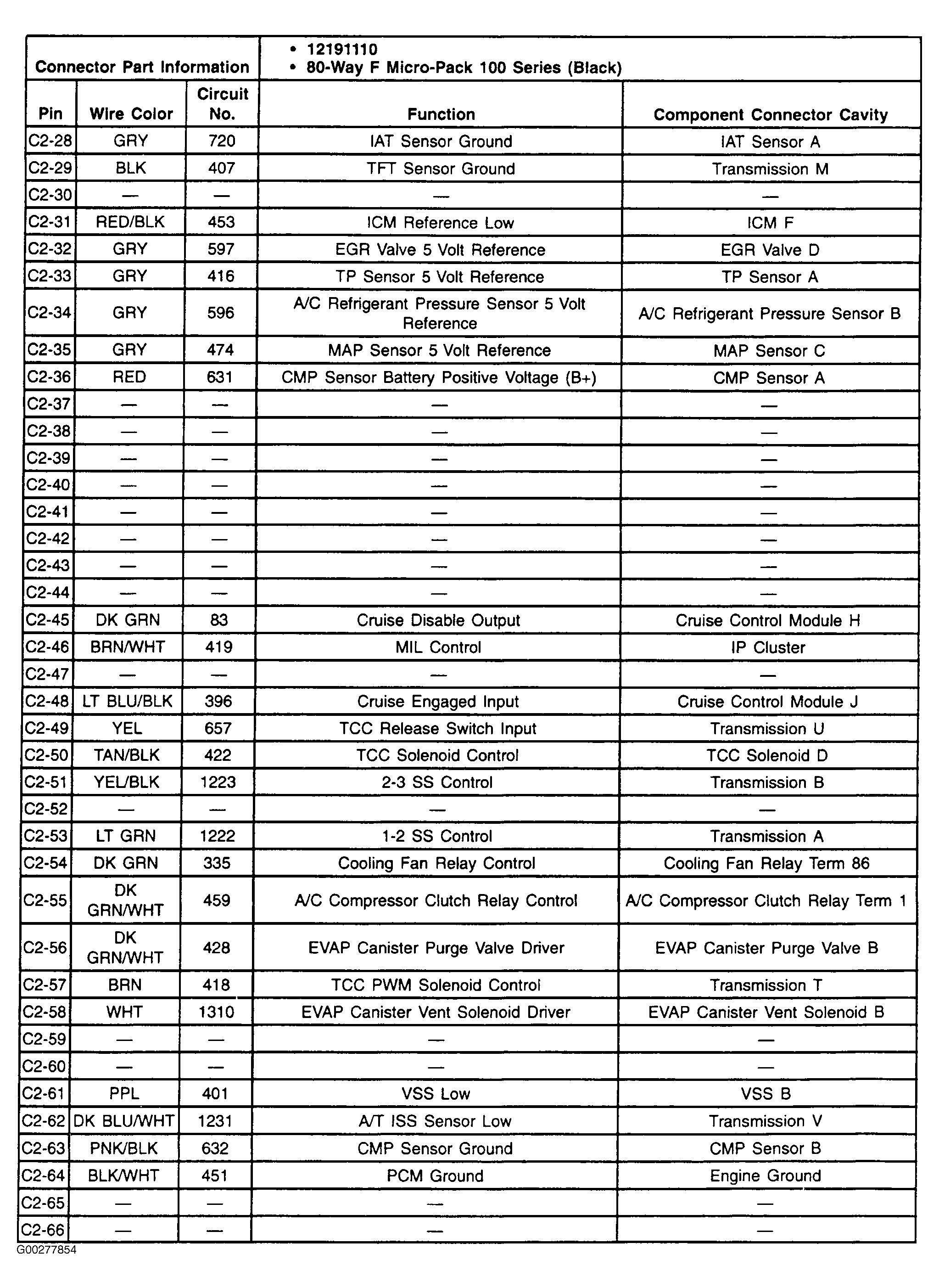

Fig 4: Identifying PCM 80-Pin Black C2 Connector Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

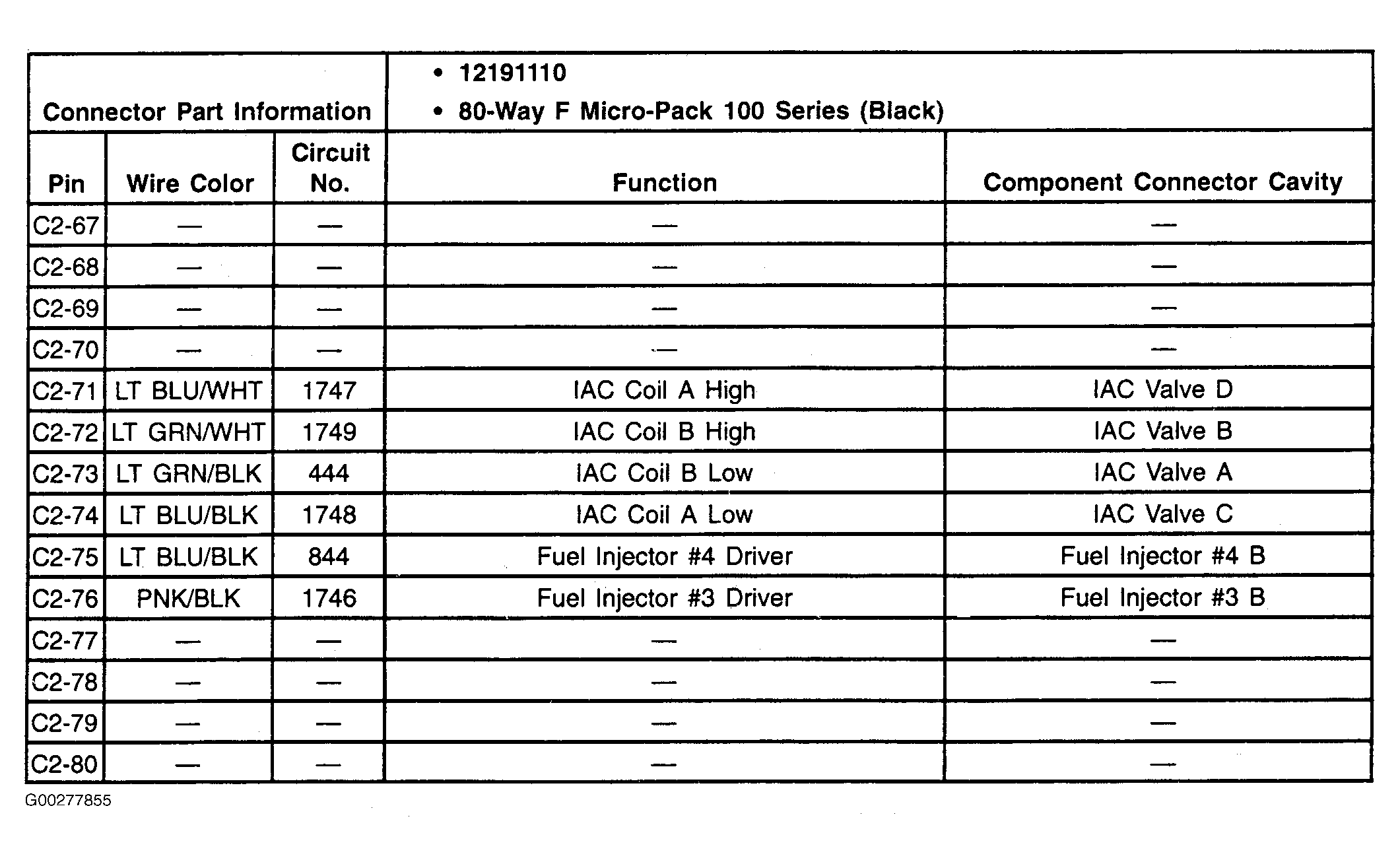

Fig 5: Identifying PCM 80-Pin Black C2 Connector Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
