Data Link Connector (DLC) System Check

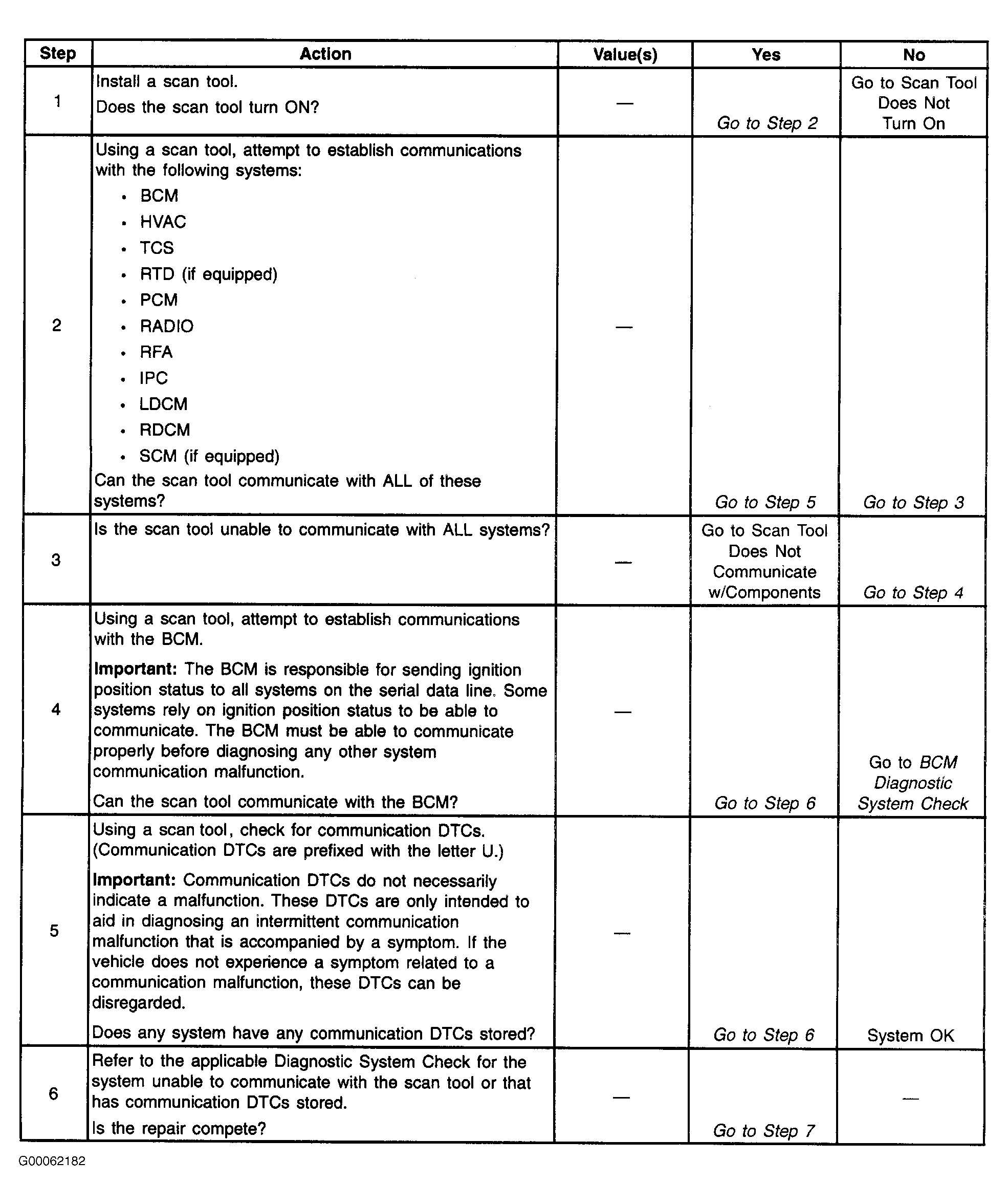

Fig 1: Data Link Connector (DLC) System Check
Courtesy of GENERAL MOTORS
Courtesy of GENERAL MOTORS
