Cigar Lighter

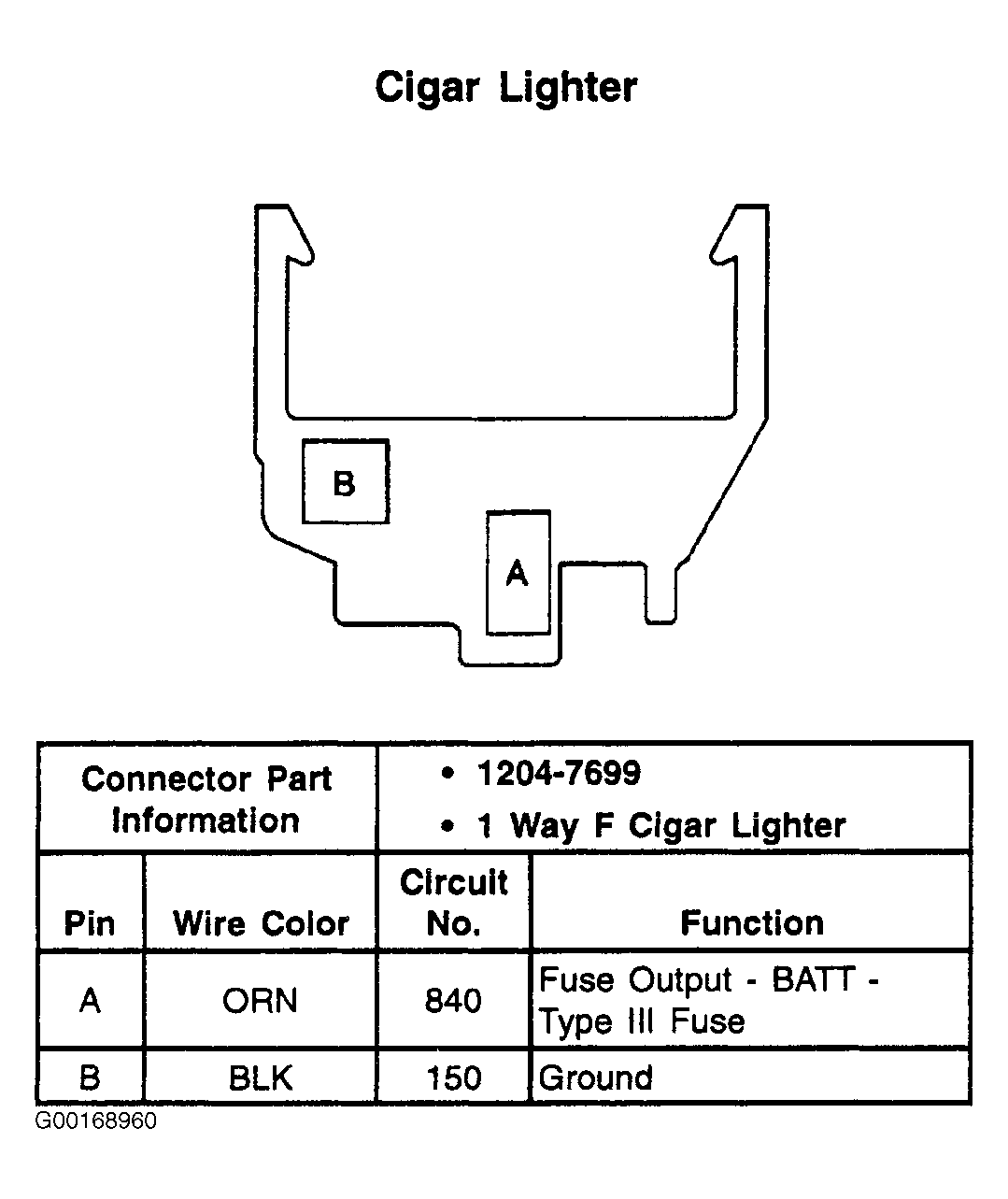

Fig 1: Cigar Lighter - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
