Cruise Control Switch

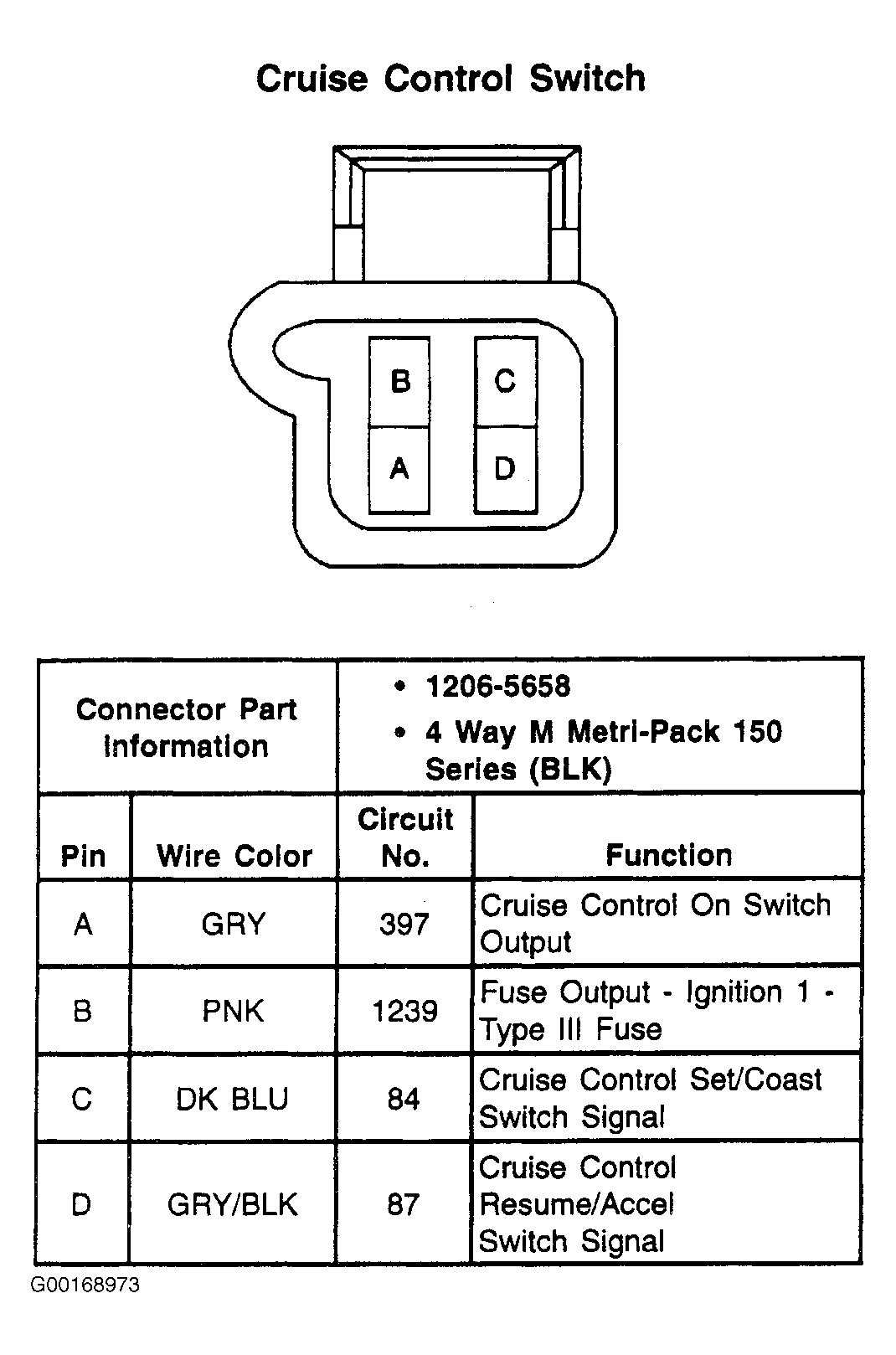

Fig 1: Cruise Control Switch - 4-Pin Connector (Black)

G00168973

Courtesy of GENERAL MOTORS CORP.
