Mass Air Flow (MAF) Sensor

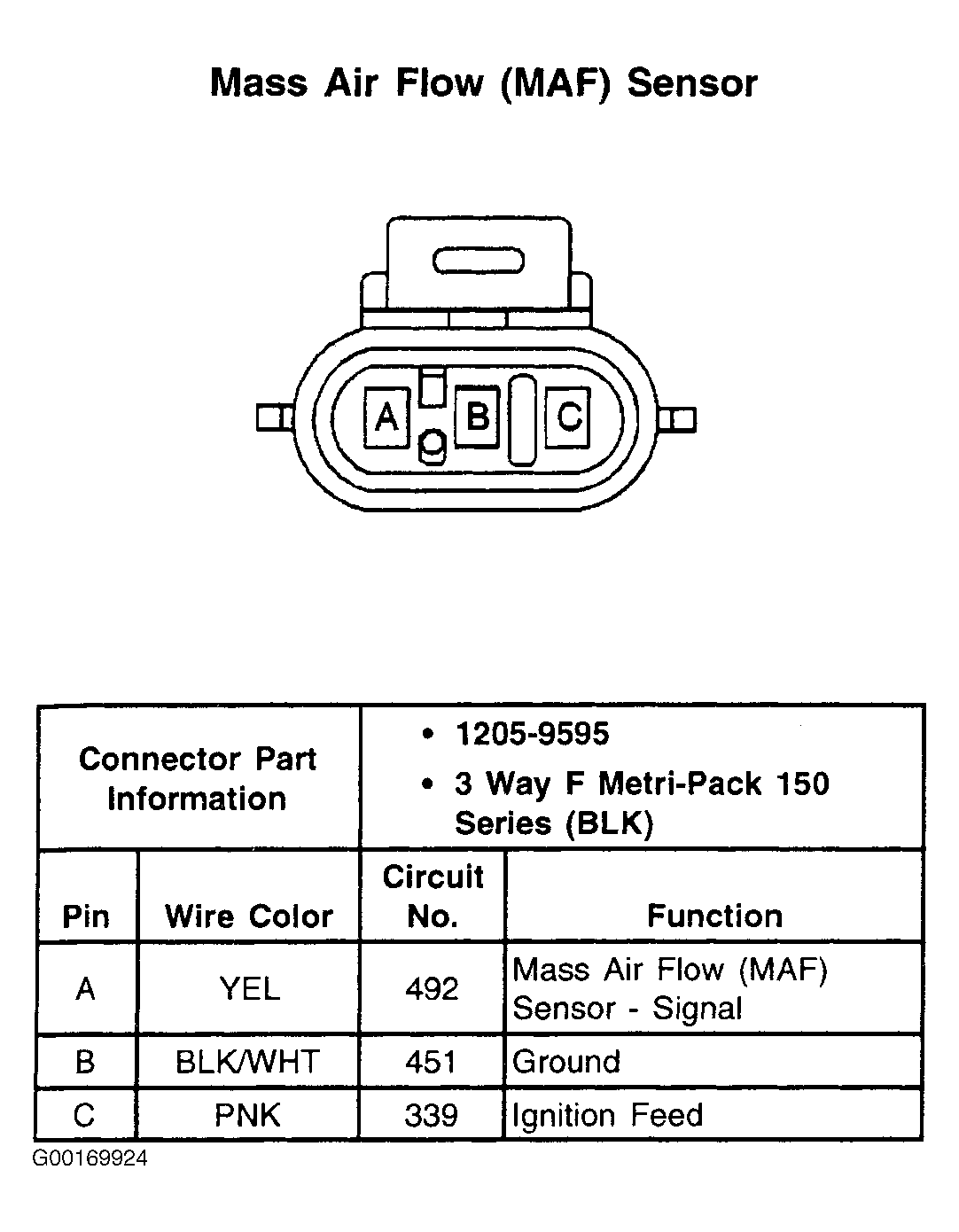

Fig 1: Mass Air Flow (MAF) Sensor - 3-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
