Connector Terminal Identification
>>
Steering Wheel Lock
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Steering Wheel Lock

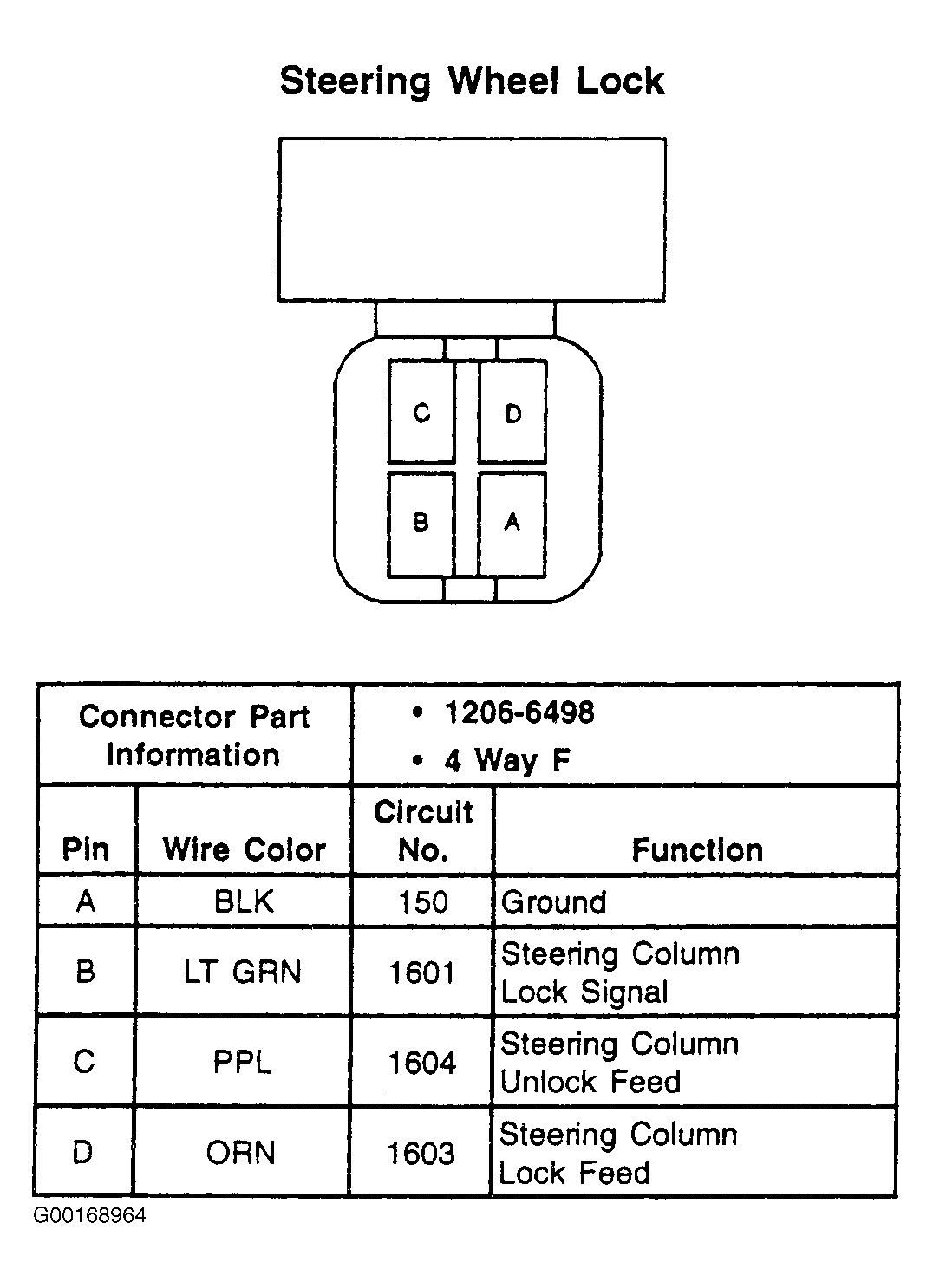

Fig 1: Steering Wheel Lock - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
