Generator (105 Amps)

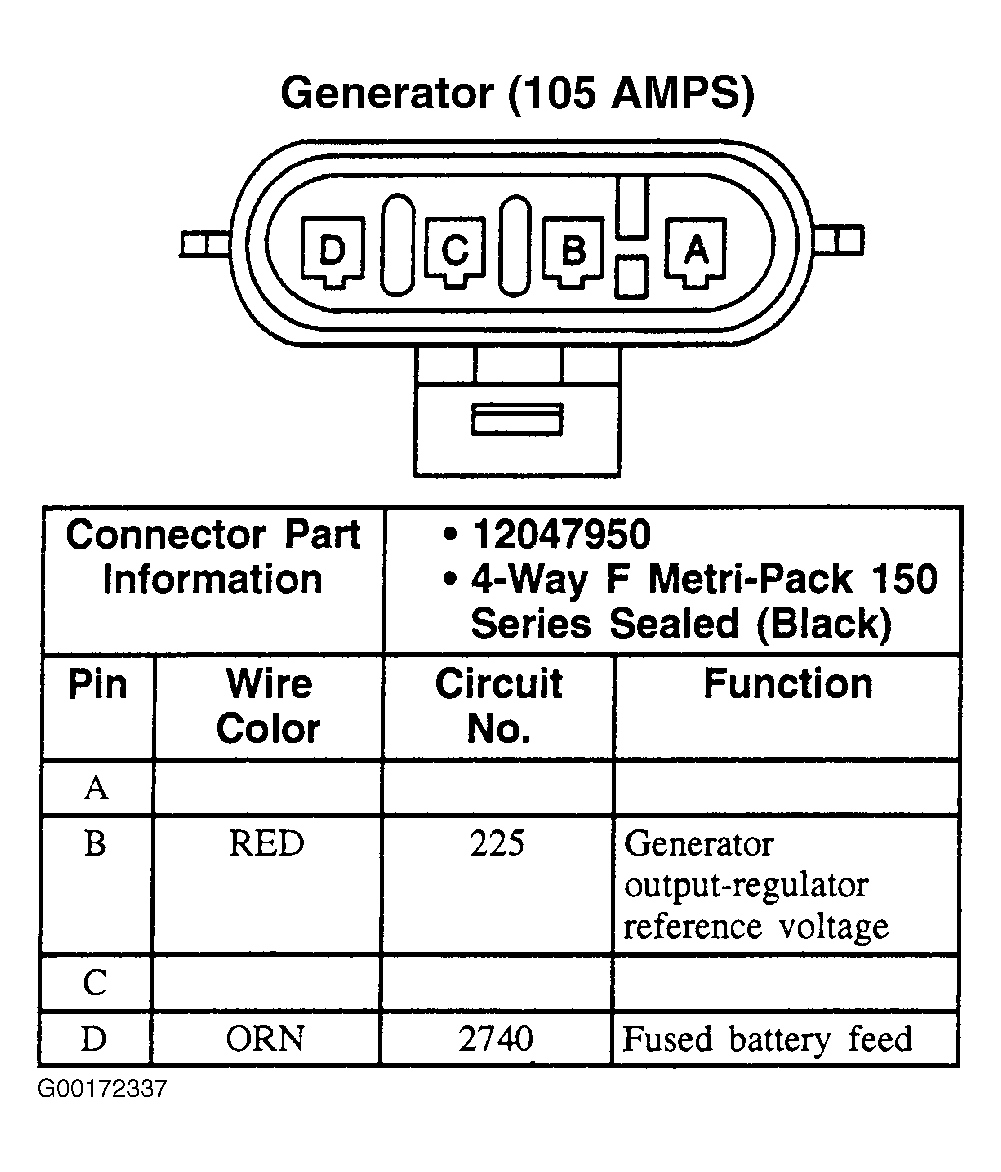

Fig 1: Generator (105 AMPS) - 4-Pin Connector (Black)
G00172337Courtesy of GENERAL MOTORS CORP.
