Interior Lamp & Multi-Function Switch C4

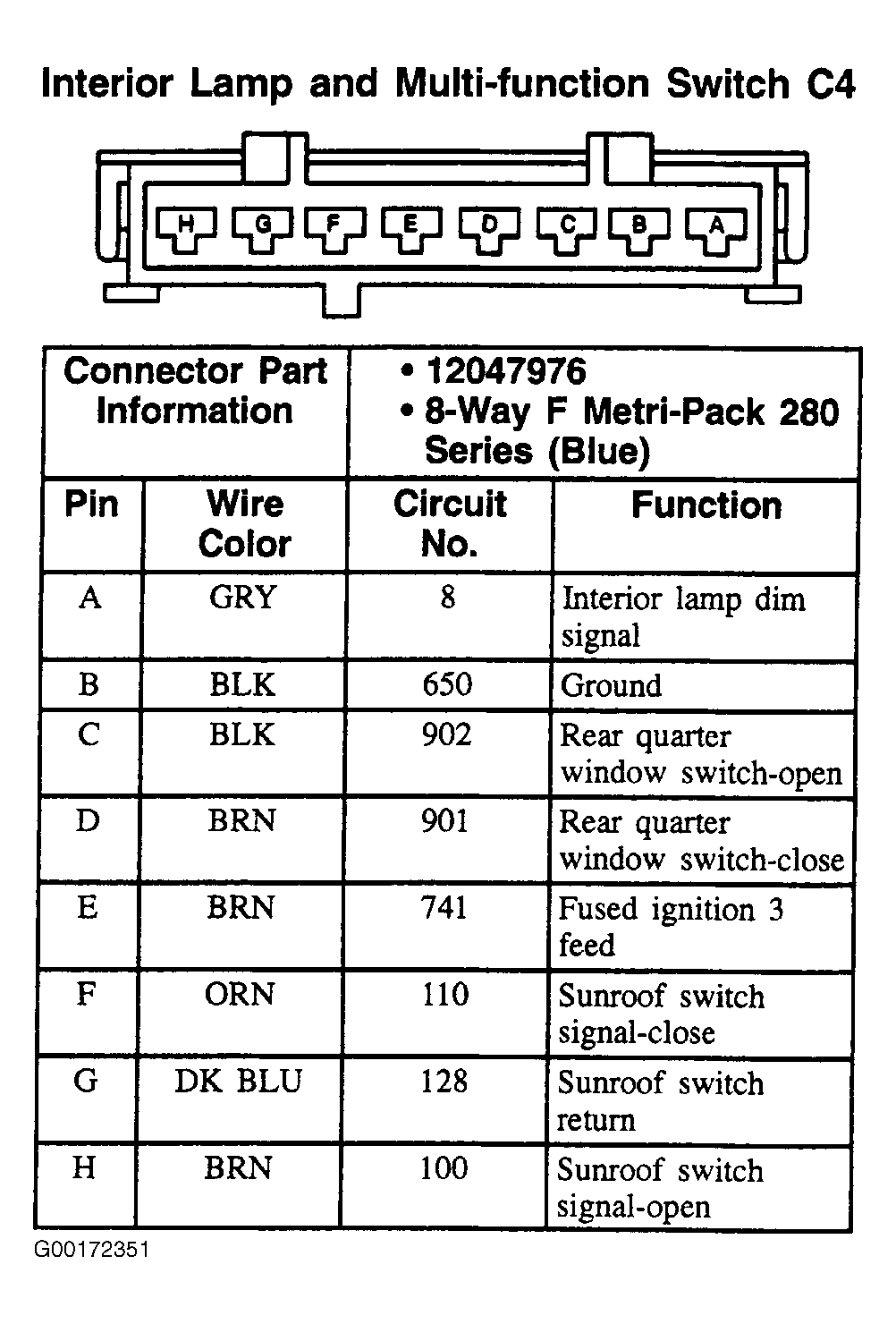

Fig 1: Interior Lamp & Multi-Function Switch C4 - 8-Pin Connector (Blue)
G00172351Courtesy of GENERAL MOTORS CORP.
