Removal (2.2L)
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Turn OFF the ignition. Disconnect negative battery cable. Remove outlet resonator/duct assembly. See AIR CLEANER OUTLET RESONATOR/DUCT ASSEMBLY .

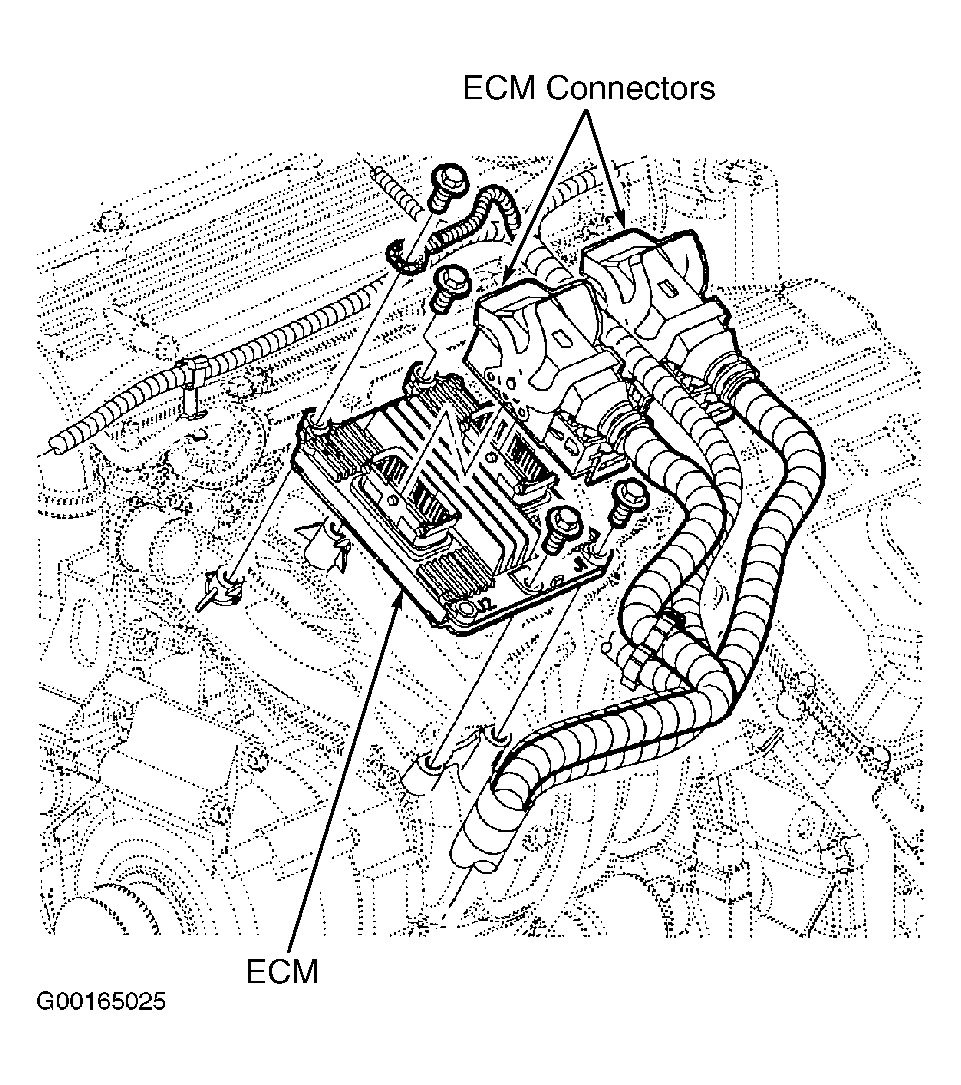

- Disconnect ECM J1 and J2 harness connectors. See Figure . Remove 4 ECM attachment bolts and remove ECM.
