Camshaft Position Sensor: Notes
NOTE:

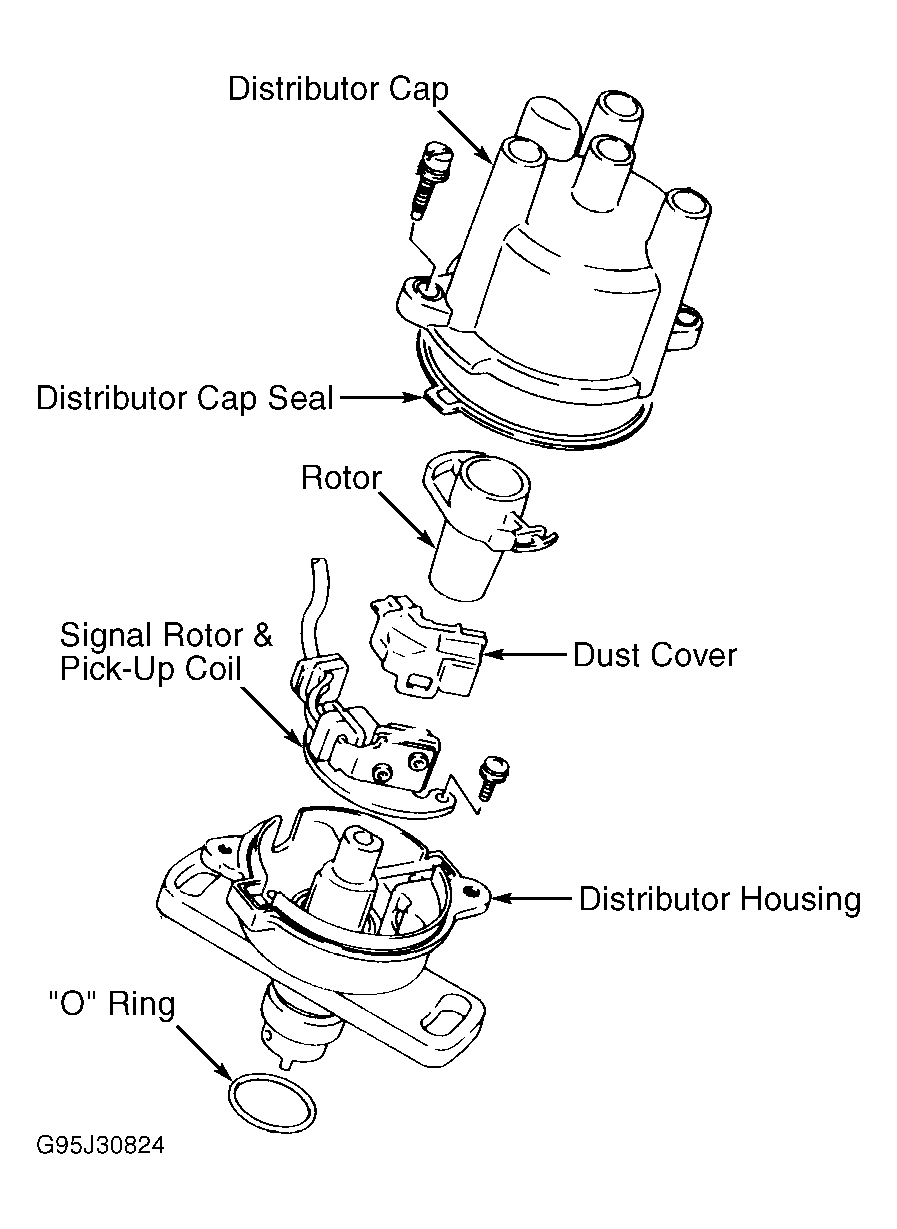

Camshaft position sensor is located in distributor housing and may also be referred to as a pick-up coil. See Figure. Adjust signal rotor air gap to .008-.016" (0.2-0.4 mm) by moving camshaft position sensor in relation to signal rotor.
