Removal & Installation

On engines with a distributor, CMP sensor is located within the distributor. Remove screw and remove CMP sensor from distributor. On engines with distributorless ignition, CMP sensor is located in the engine block adjacent to cam. See Fig 1 .

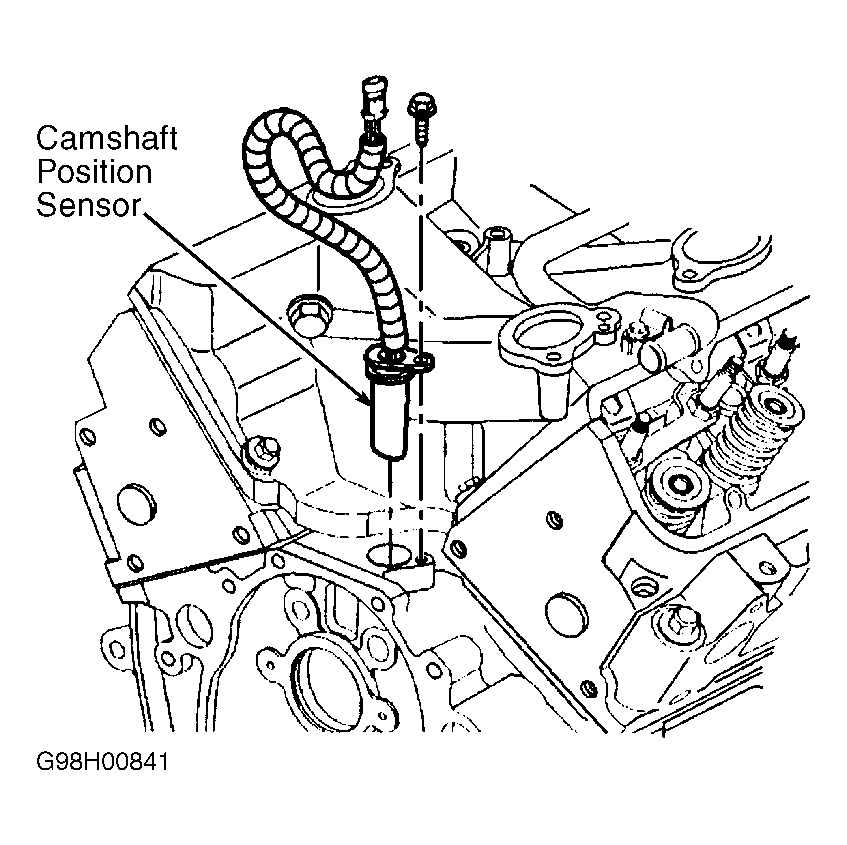

Fig 1: Locating CMP Sensor In Engine Block

Courtesy of GENERAL MOTORS CORP.
