Installation Procedure

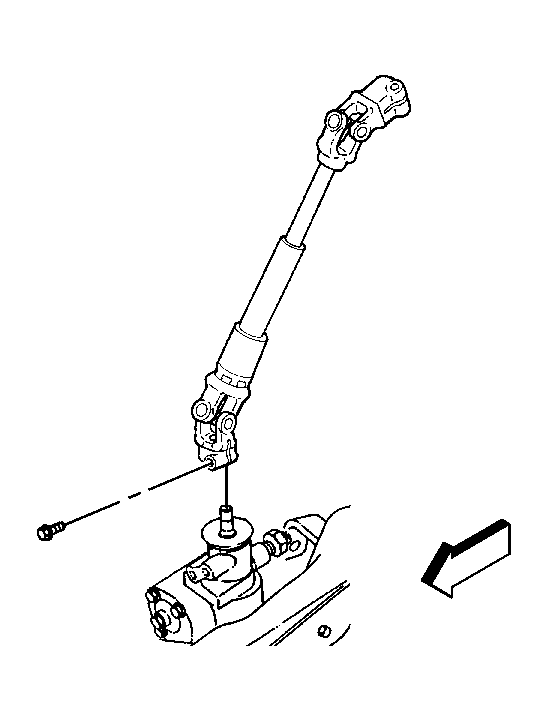

    Fig 1: Identifying Intermediate Shaft To Power Steering Gear Pinch Bolt
    GM361689Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Align the flat on the intermediate shaft with the flat on the steering gear shaft.

    Observe the marks that were made before the disassembly.

    Install the intermediate shaft to the steering gear shaft.

  2. Install the intermediate shaft pinch bolt.

    Tighten  Tighten the intermediate shaft pinch bolt to 41 N.m (30 lb ft).

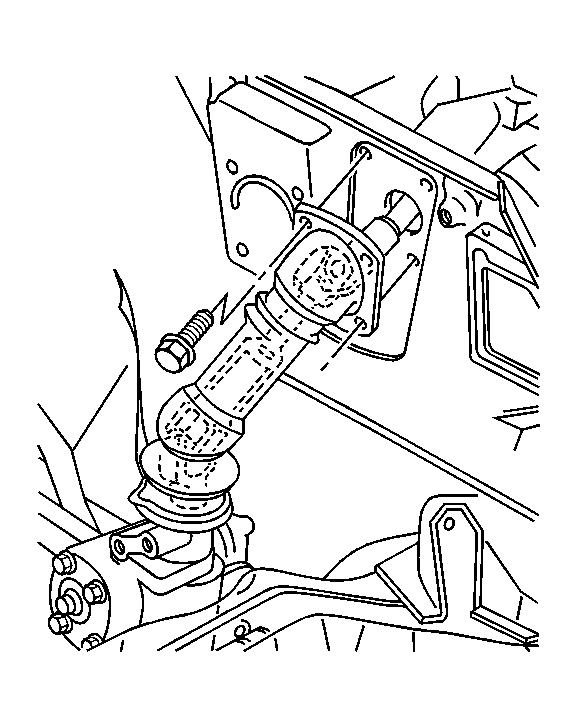

    3. Fig 2: Locating Intermediate Shaft Boot To Cowl Retaining Bolts
    GM284410Courtesy of GENERAL MOTORS CORP.
  3. Install the intermediate shaft boot over the intermediate shaft.

    Do not secure the boot to the steering gear.

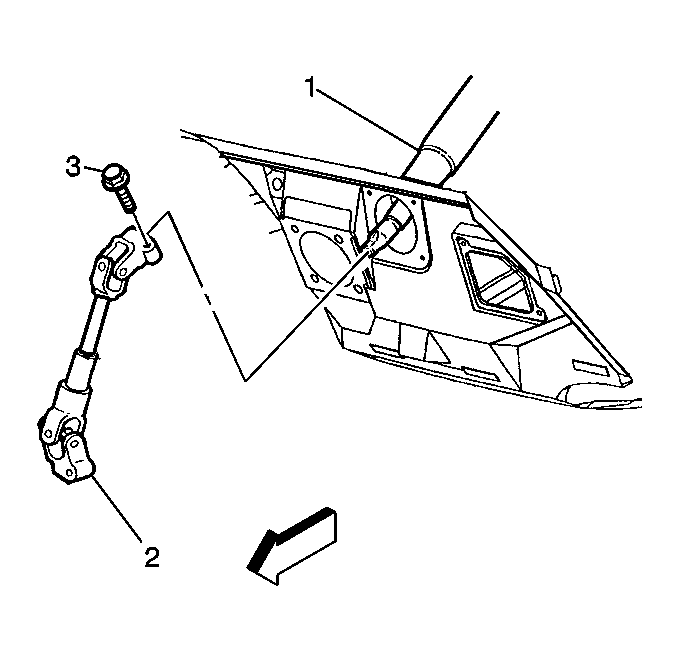

    4. Fig 3: Identifying Steering Column Shaft Pinch Bolt
    GM284408Courtesy of GENERAL MOTORS CORP.
  4. Align the flat on the intermediate shaft with the flat on the steering column shaft.

    Observe the marks that were made before the disassembly.

    Install the intermediate shaft (2) to the steering column shaft (1).

  5. Install the intermediate shaft pinch bolt (3).

    Tighten  Tighten the intermediate shaft pinch bolt to 41 N.m (30 lb ft).

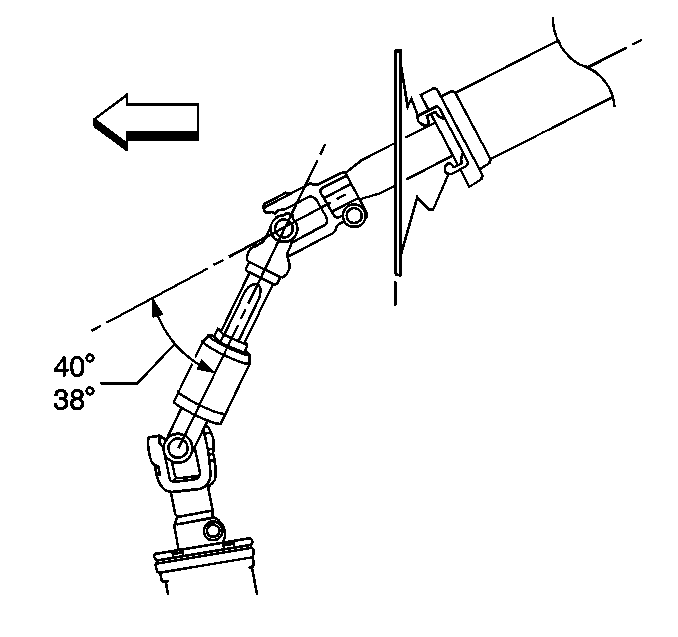

    6. Fig 4: Identifying Shaft Angle
    GM284411Courtesy of GENERAL MOTORS CORP.
  6. Measure the intermediate shaft angle. For RWD, the angle must be 38-40 degrees.

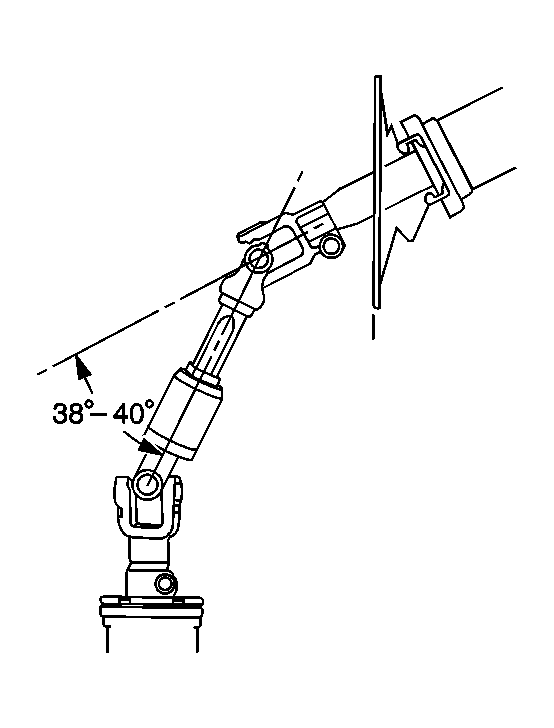

    7. Fig 5: Identifying Proper Intermediate Shaft Angle
    GM284412Courtesy of GENERAL MOTORS CORP.
  7. Measure the intermediate shaft angle. For F4WD, the angle must be 38-40 degrees.
  8. Install the intermediate shaft boot to the steering gear.
  9. Install the intermediate shaft boot cowl with the 4 screws.

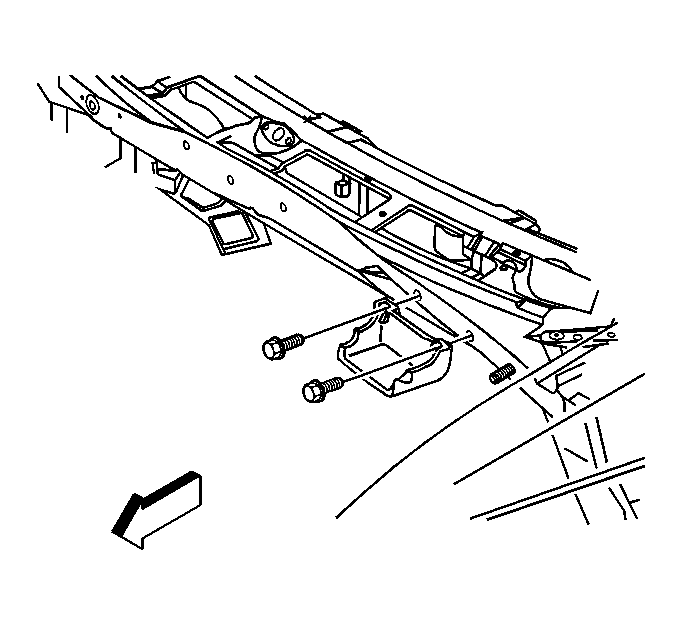

    10. Fig 6: View Of Underhood Electrical Center Mounting Bolts
    GM334078Courtesy of GENERAL MOTORS CORP.

  10. Tighten  Tighten the bolts to 5.5 N.m (49 lb in).

  11. Install the upper fan shroud.
    12. Fig 7: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  12. Remove the J 42640 .
  13. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
