Test D: Left Front Door Unlock Inoperative With Transmitter

For test procedure, refer to illustration. See Fig 1 .

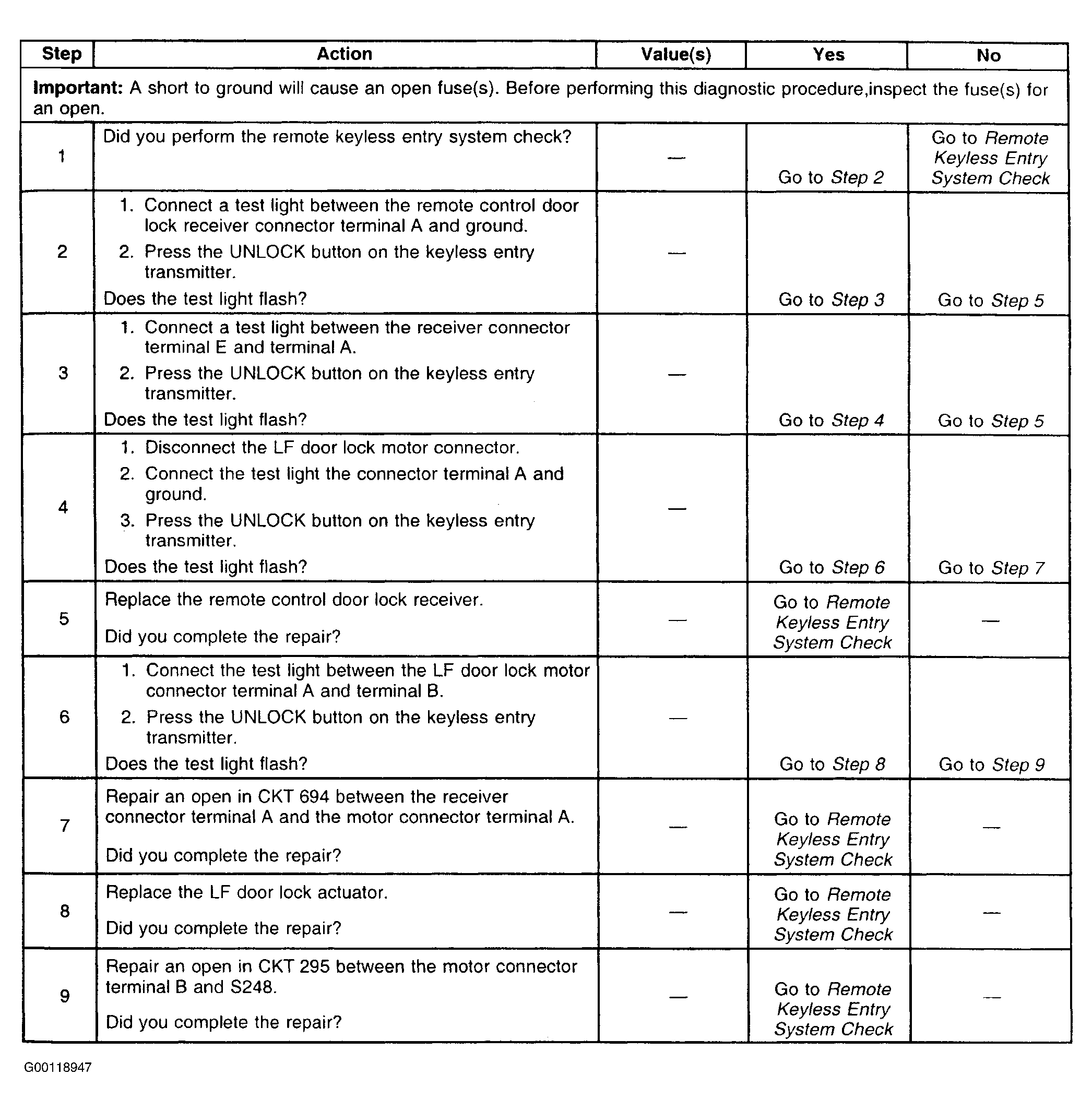

Fig 1: Test D: Left Door Unlock Inoperative With Transmitter
G00118947Courtesy of GENERAL MOTORS CORP.
