Front End Discriminating Sensor: Installation
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

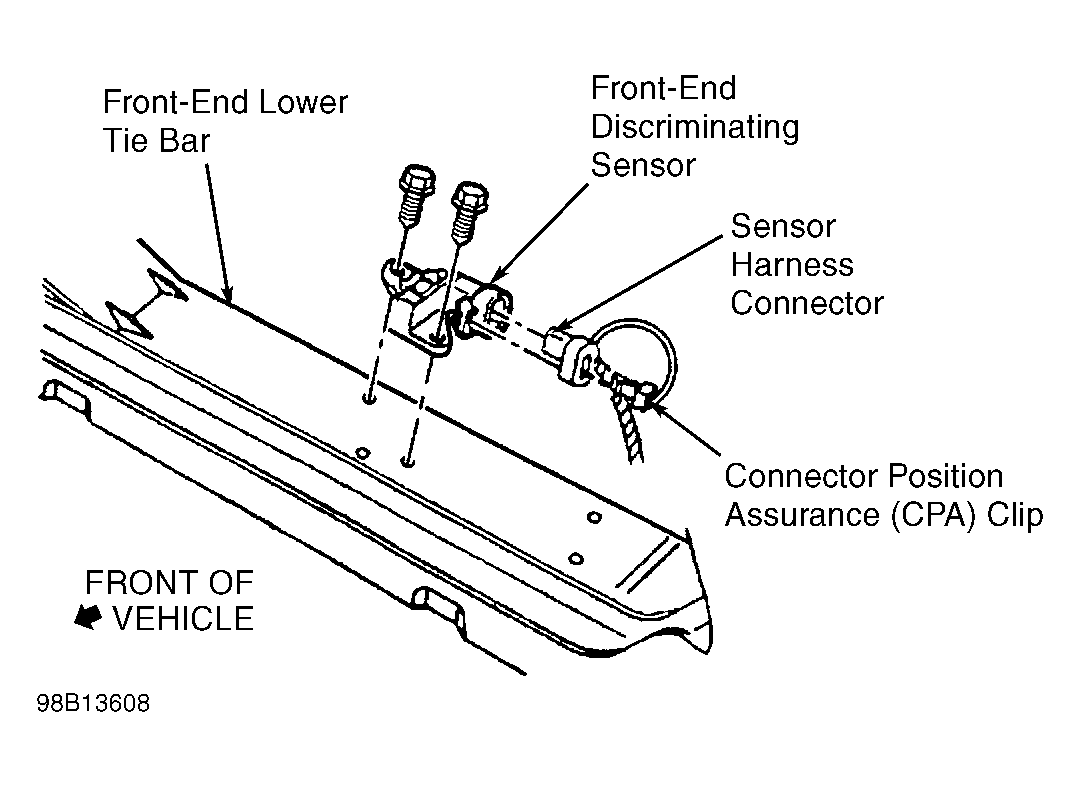

To install, reverse removal procedure. Ensure arrow on discriminating sensor is facing towards front of vehicle. Tighten front end discriminating sensor bolts and fan clutch bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
