Connector Identification

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

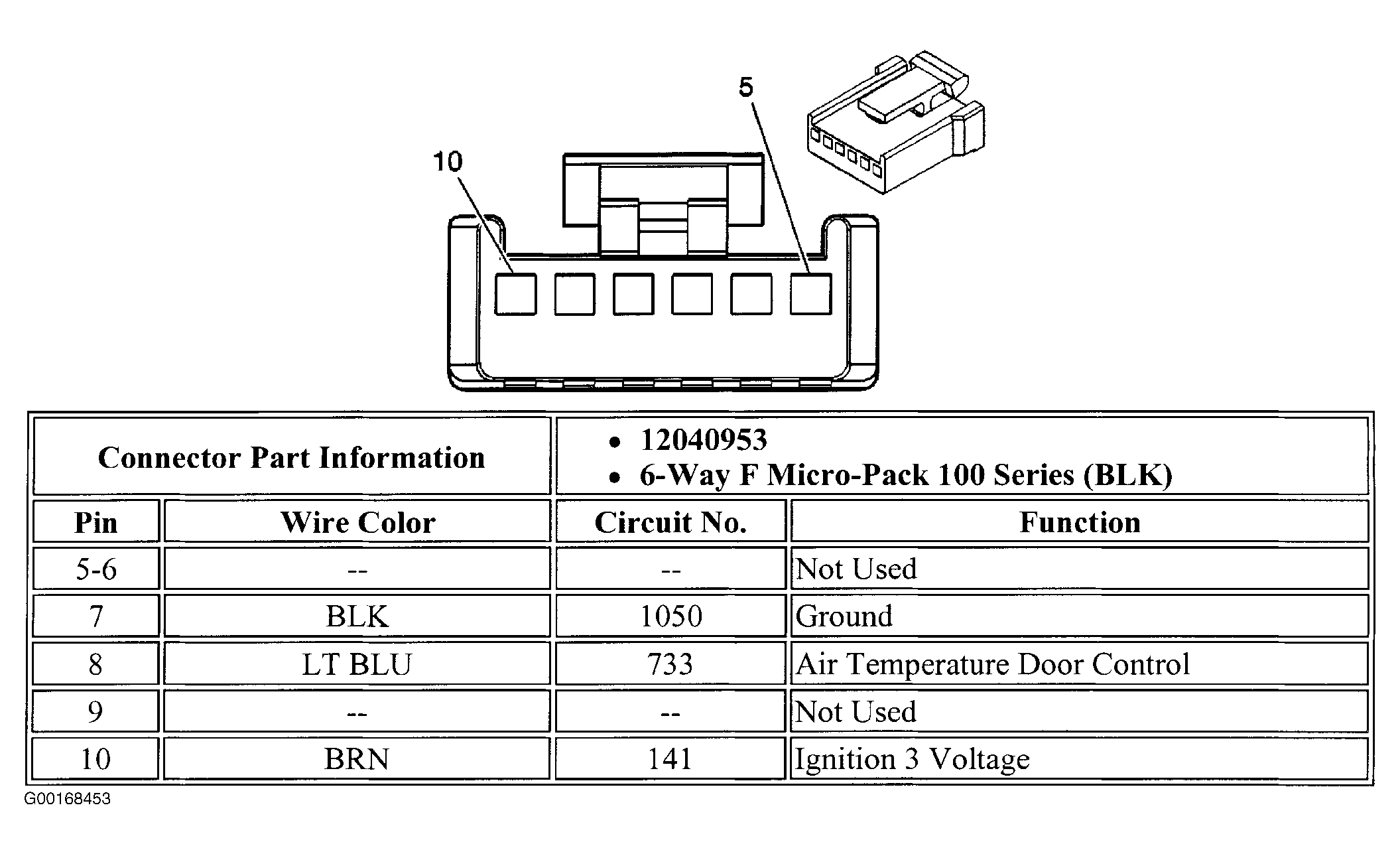

Fig 1: Identifying Temperature Actuator Connector Terminals

Courtesy of GENERAL MOTORS CORP.

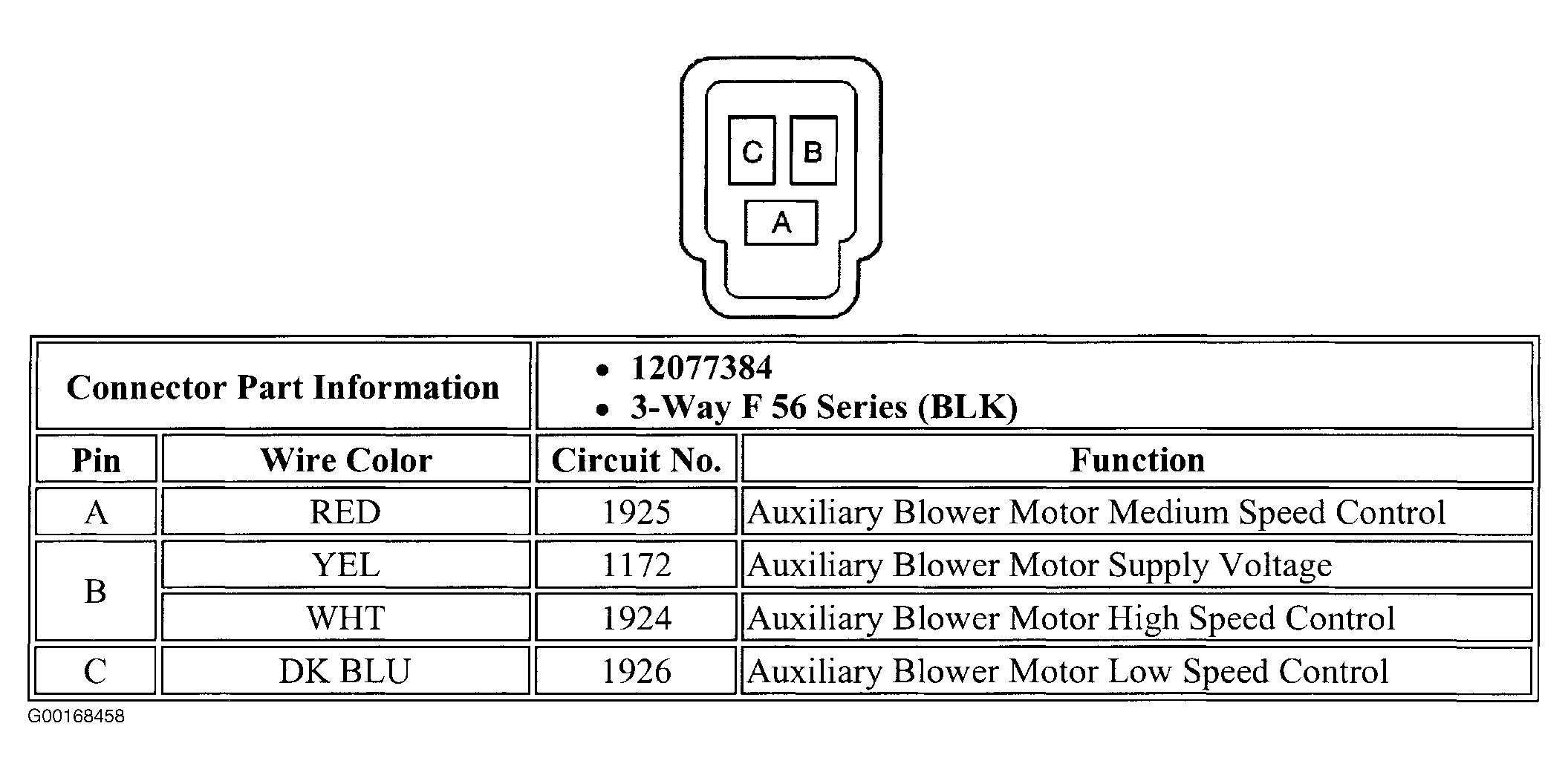

Fig 2: Identifying Auxiliary Heater Blower Resistor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

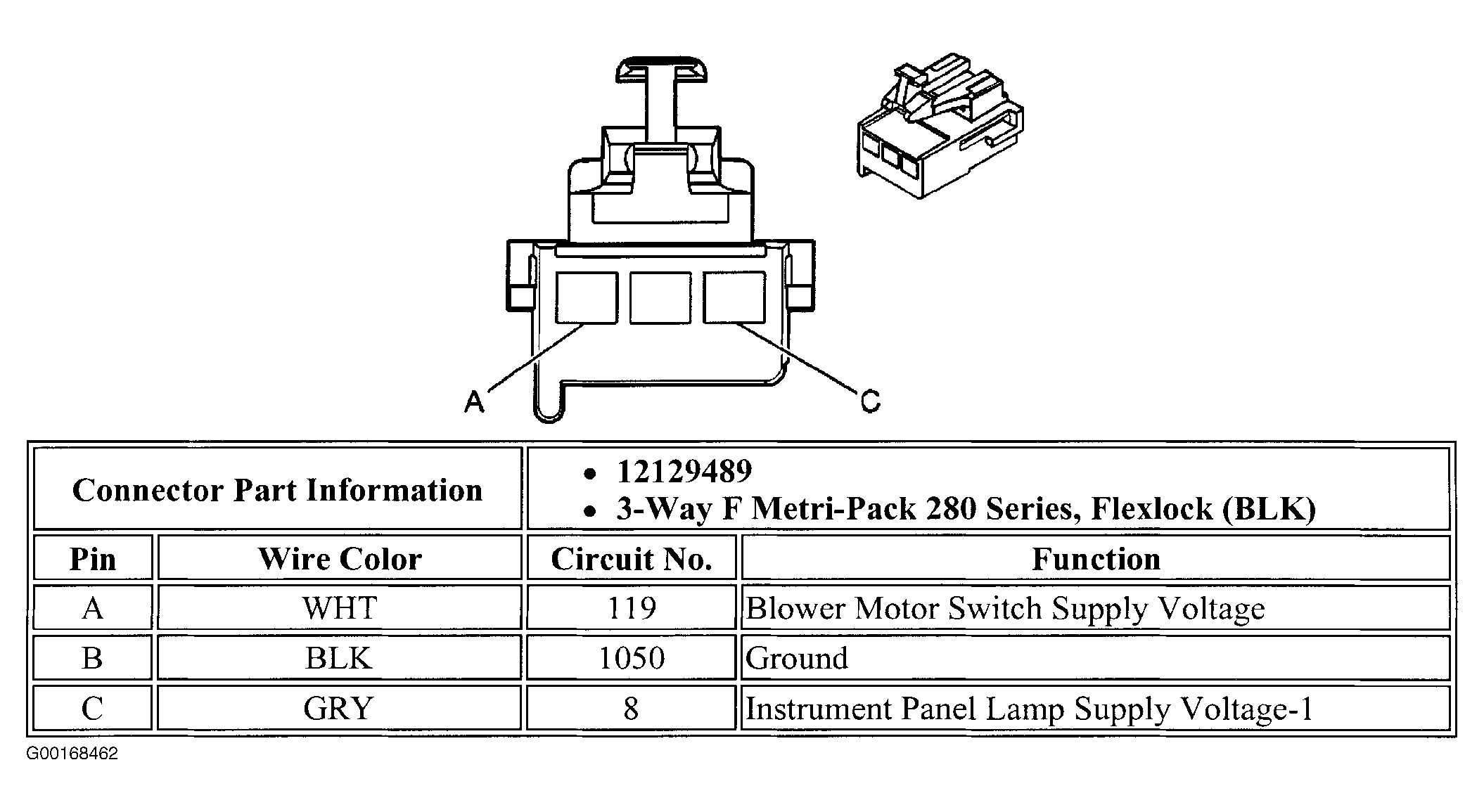

Fig 3: Identifying Auxiliary Heater Blower Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

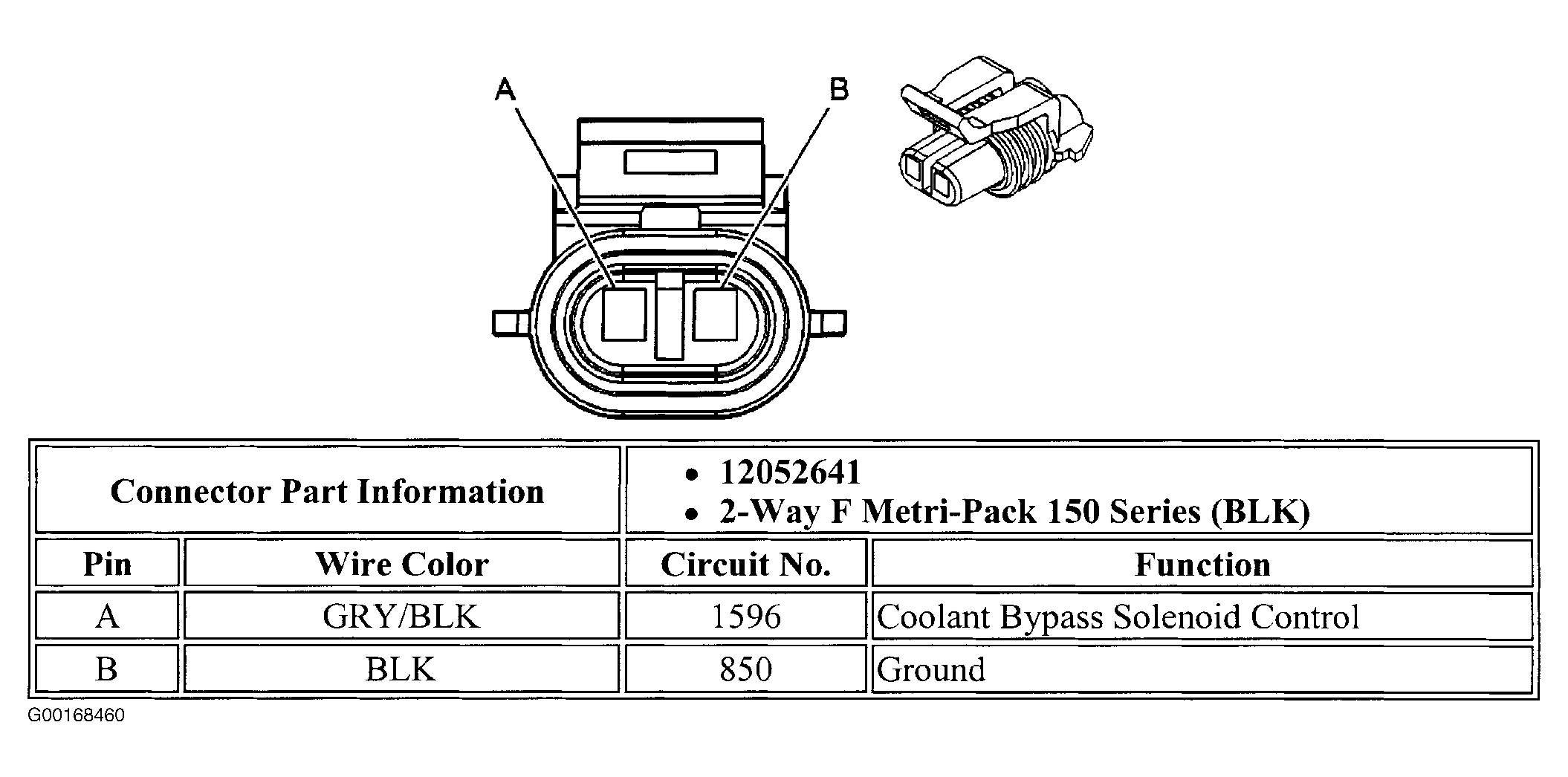

Fig 4: Identifying Coolant Bypass Valve Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

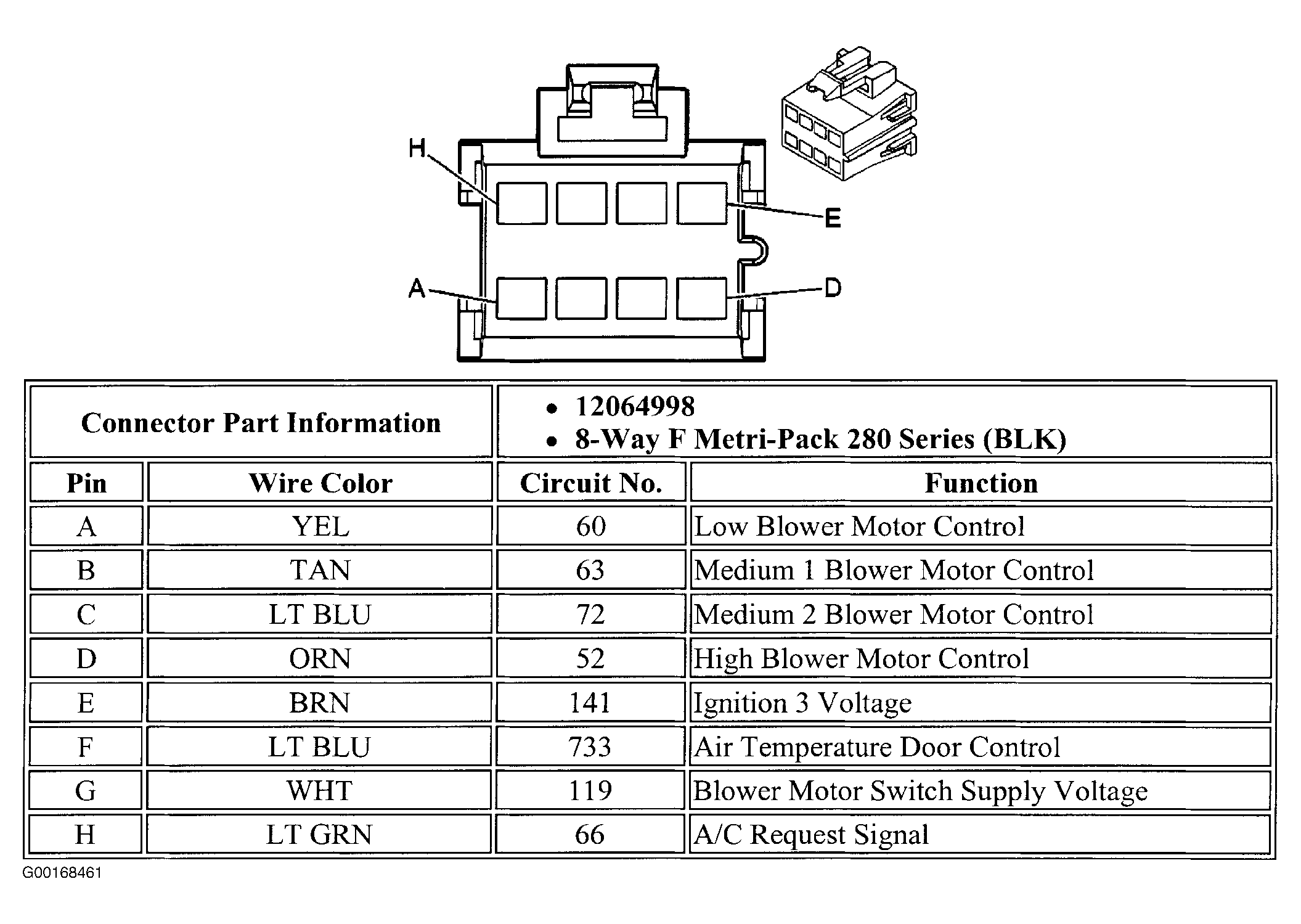

Fig 5: Identifying HVAC Control Connector "C2" Terminals

Courtesy of GENERAL MOTORS CORP.

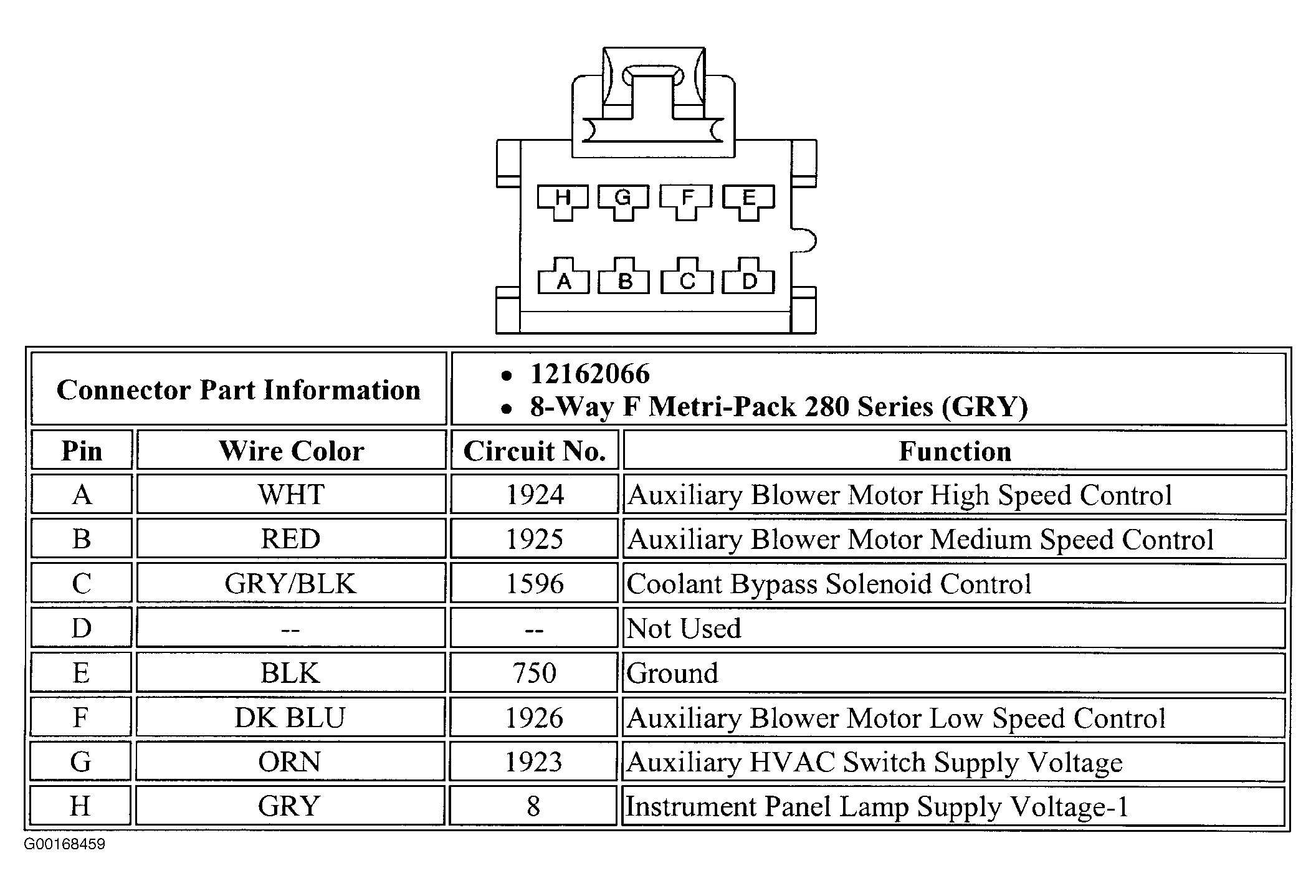

Fig 6: Identifying HVAC Connector "C3" Terminals

Courtesy of GENERAL MOTORS CORP.
