Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

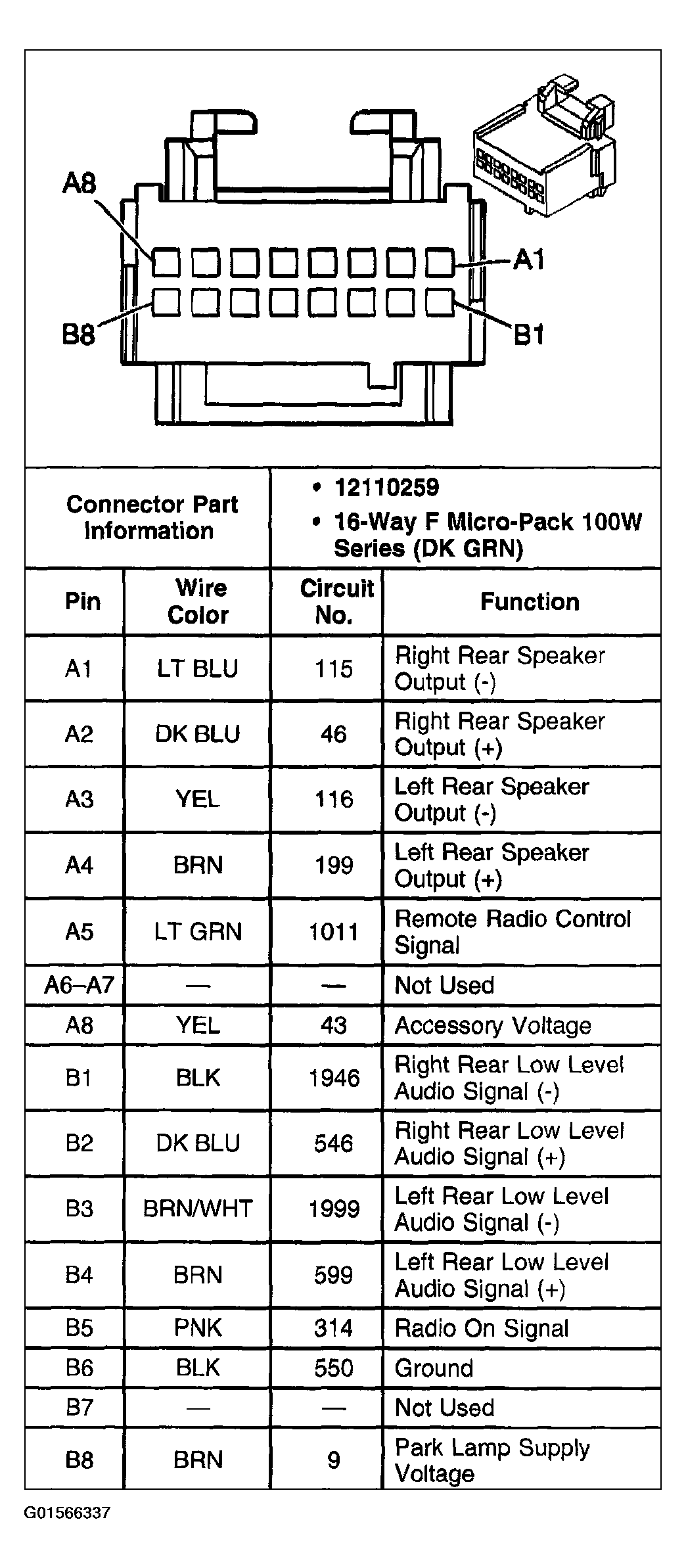

Fig 1: Identifying Audio Amplifier Connector Terminals

Courtesy of GENERAL MOTORS CORP.

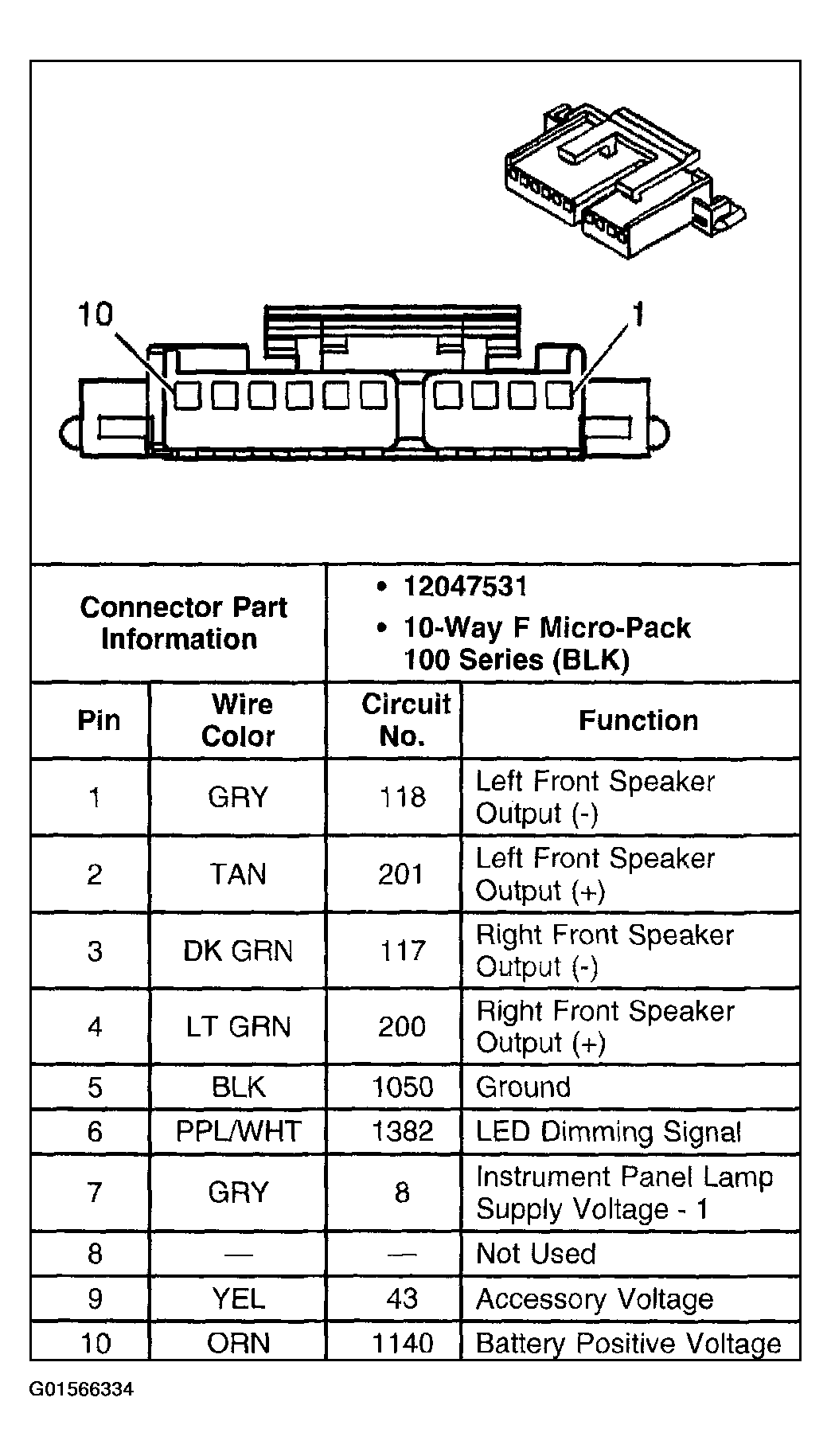

Fig 2: Identifying Radio Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

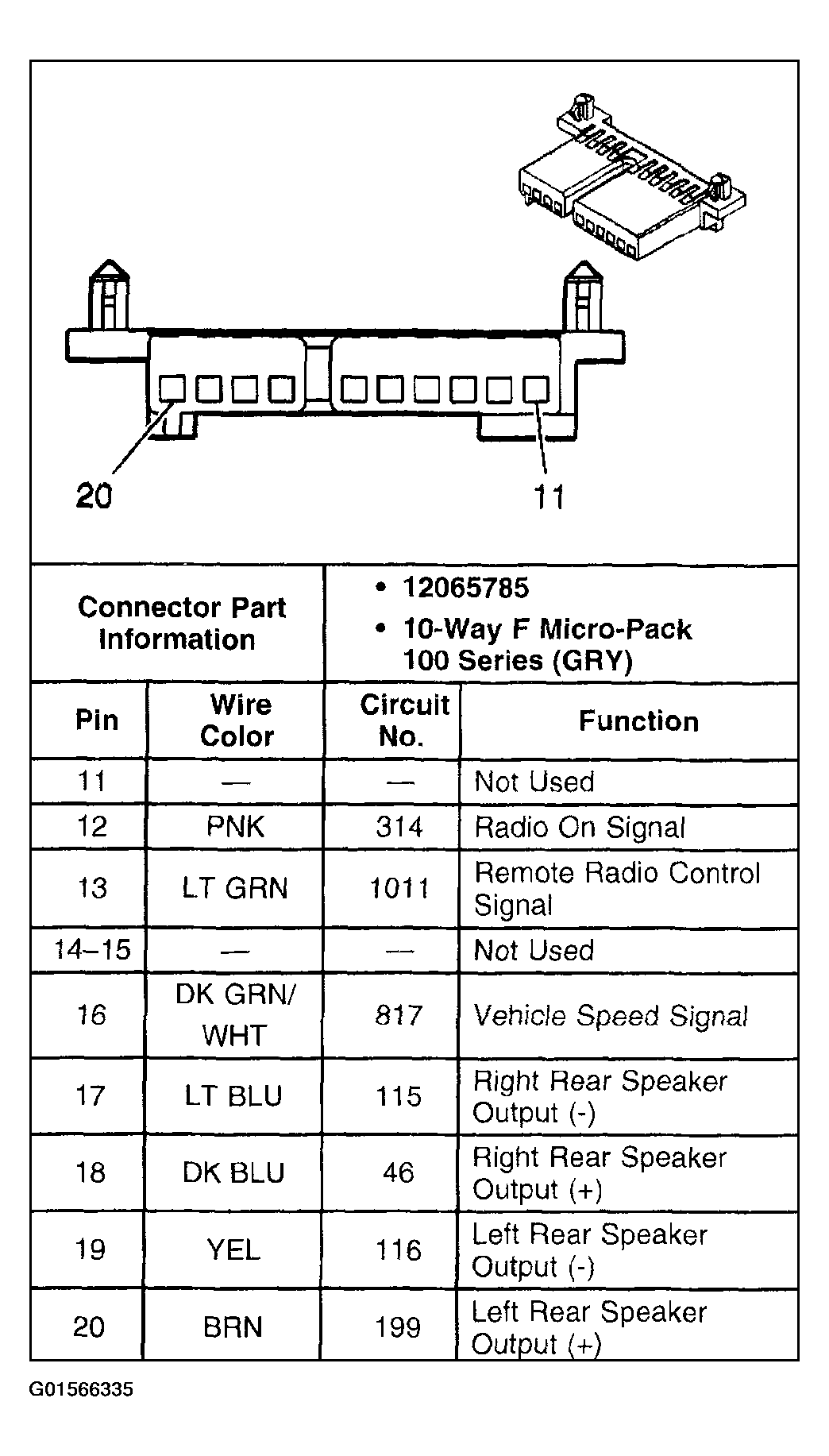

Fig 3: Identifying Radio Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

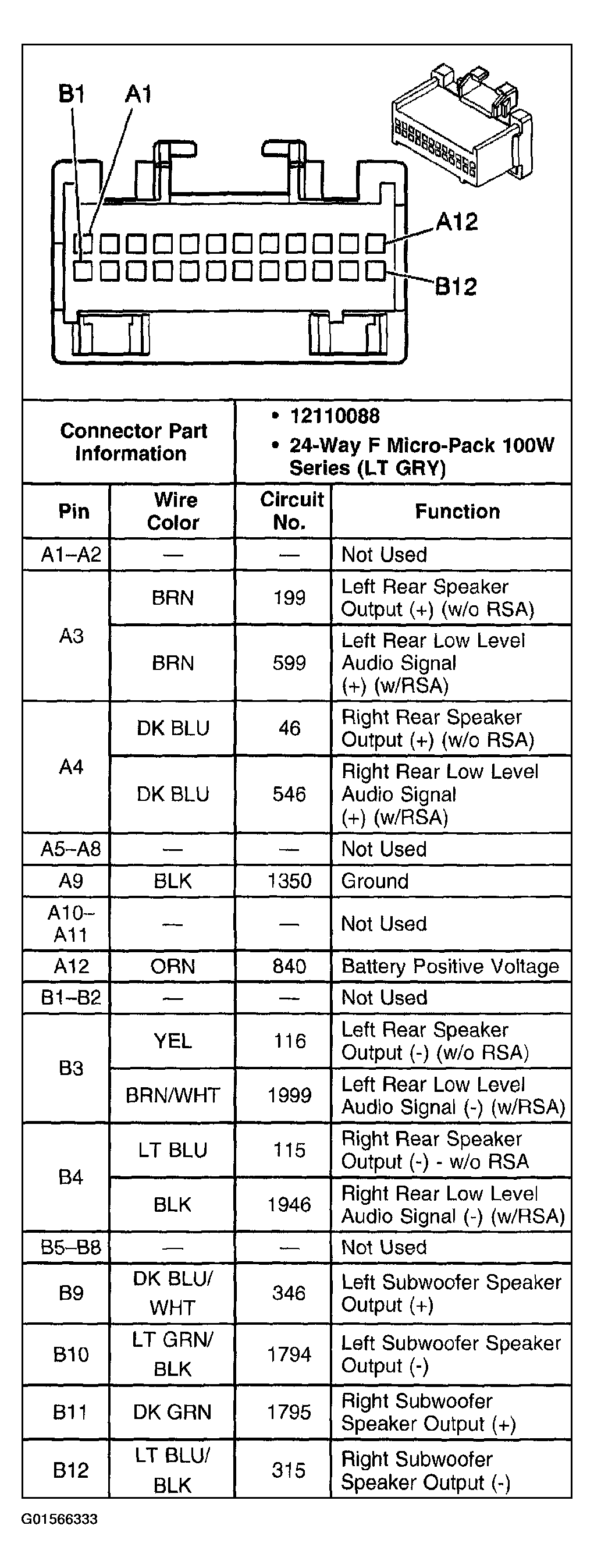

Fig 4: Identifying Radio Connector C3 Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Rear Seat Audio (RSA) Controller Terminals

Courtesy of GENERAL MOTORS CORP.

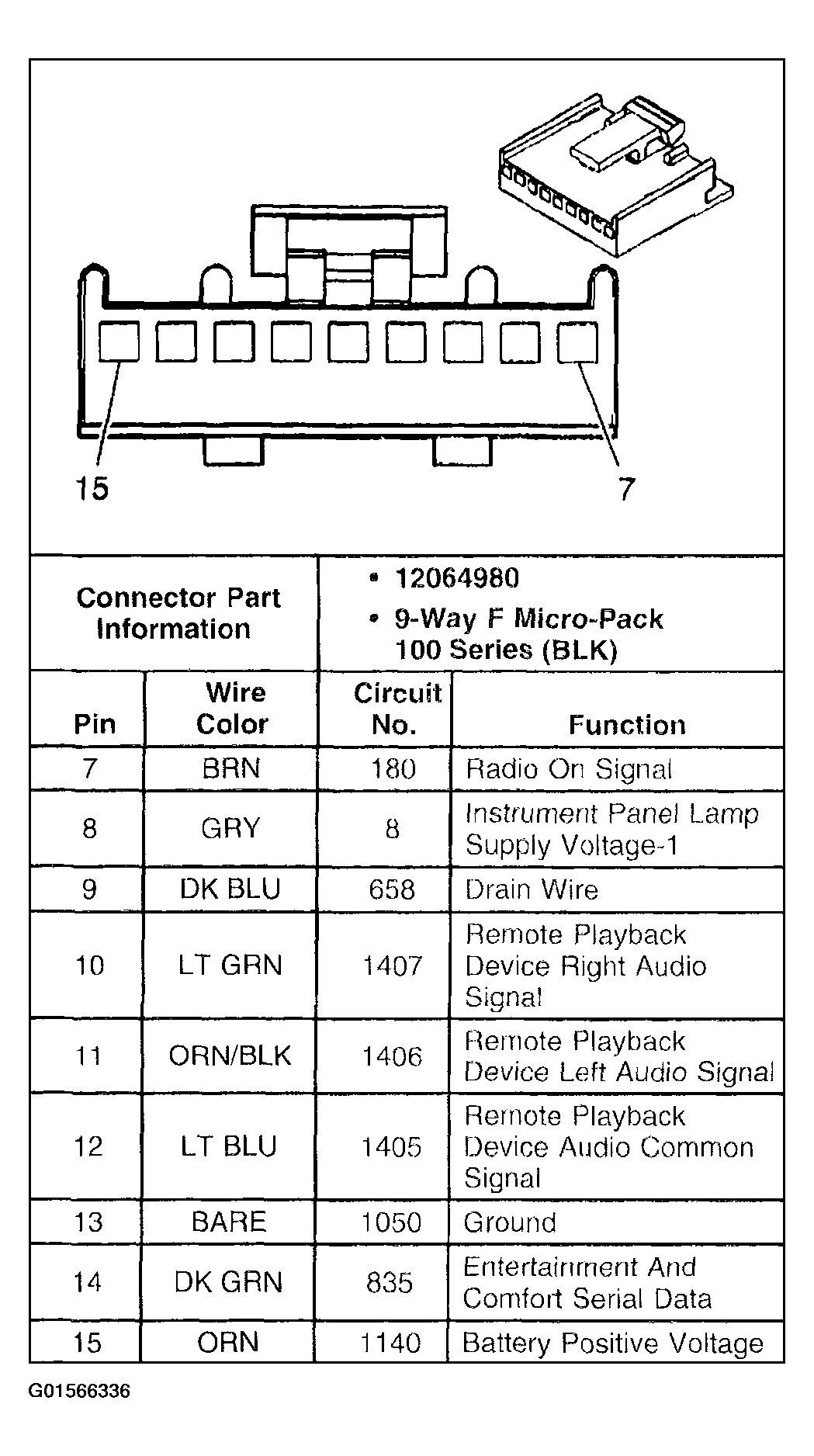

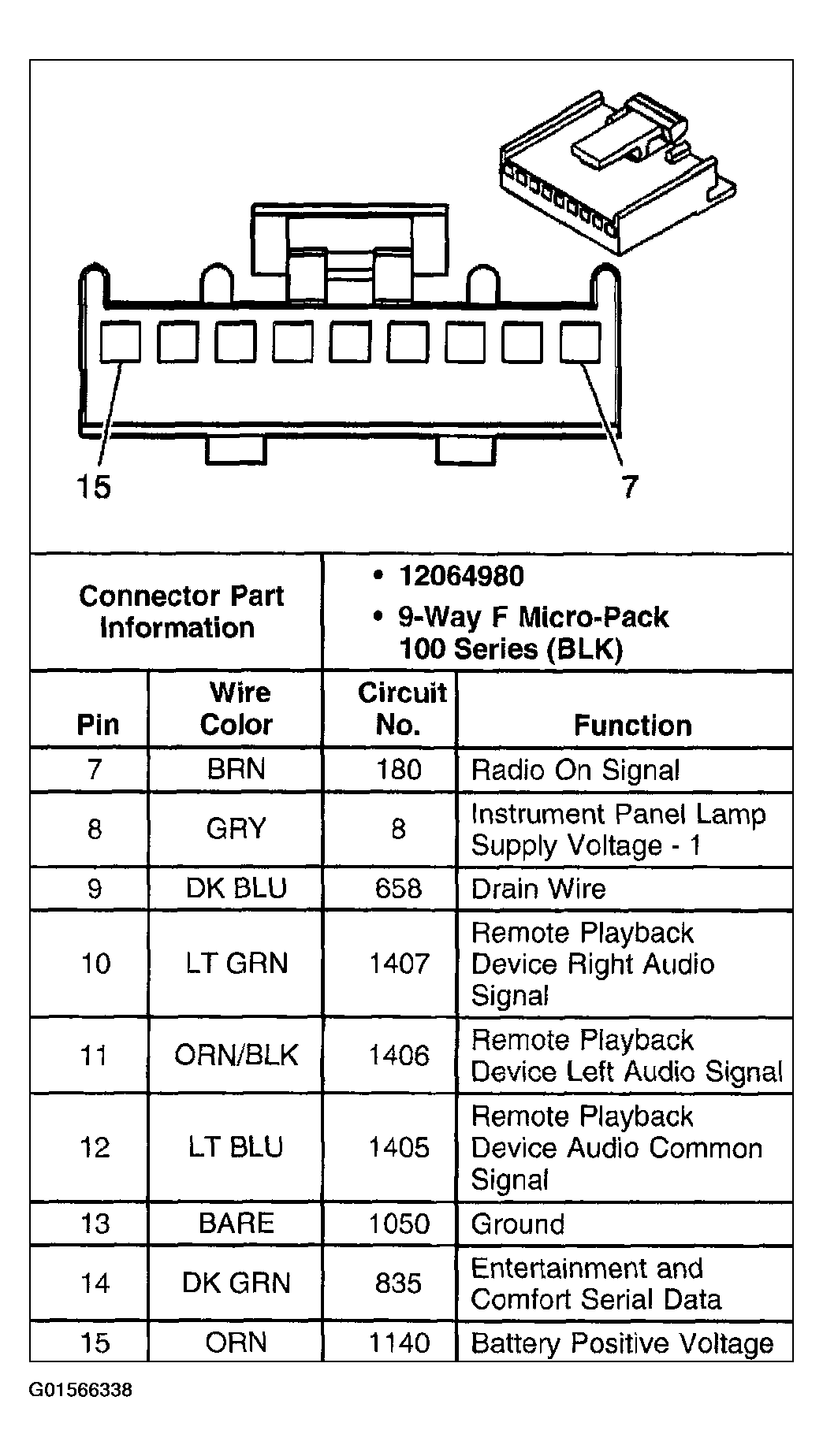

Fig 6: Identifying Remote Playback Device Terminals

Courtesy of GENERAL MOTORS CORP.

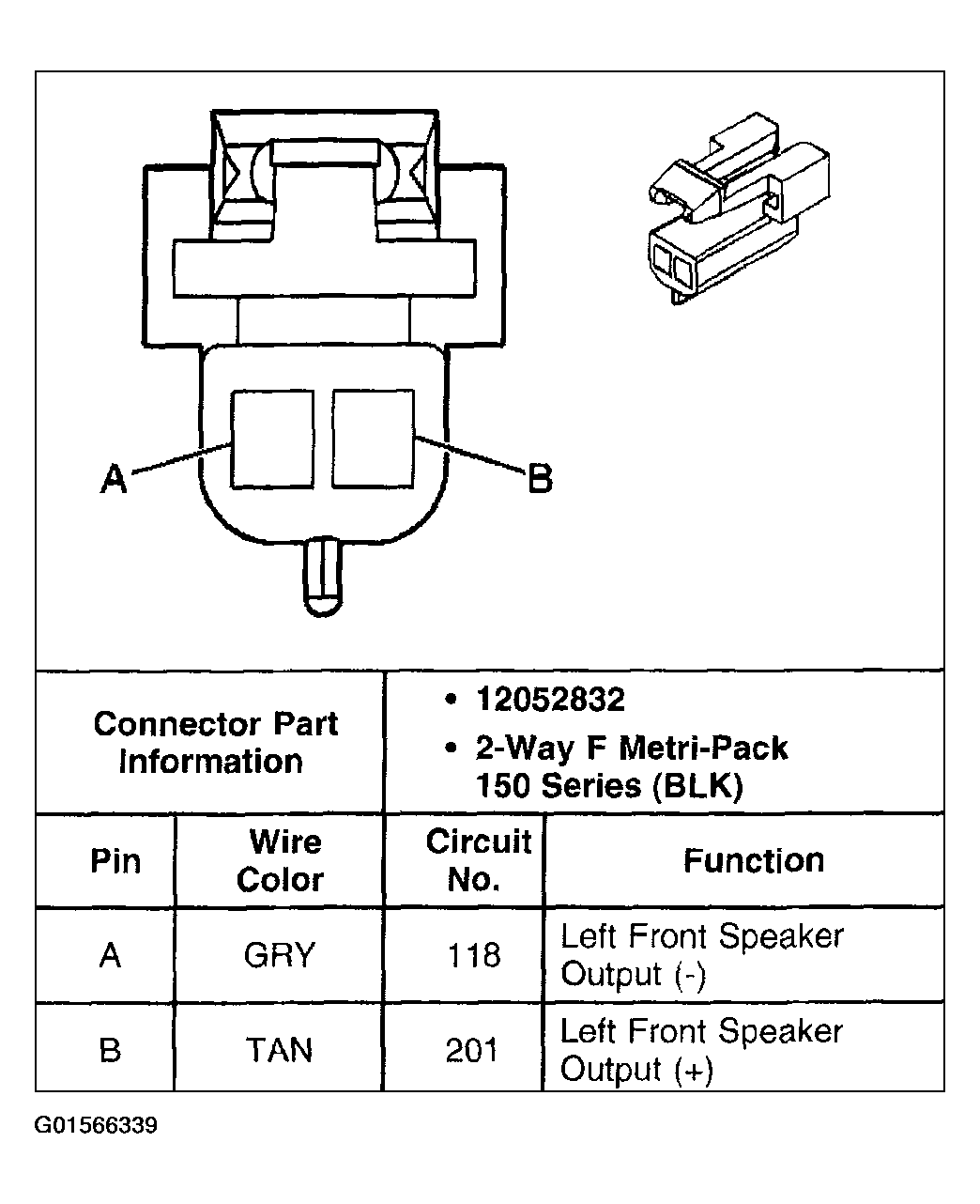

Fig 7: Identifying Speaker Connector Terminals - LF Door

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Speaker Connector Terminals - LF Door - Tweeter

Courtesy of GENERAL MOTORS CORP.

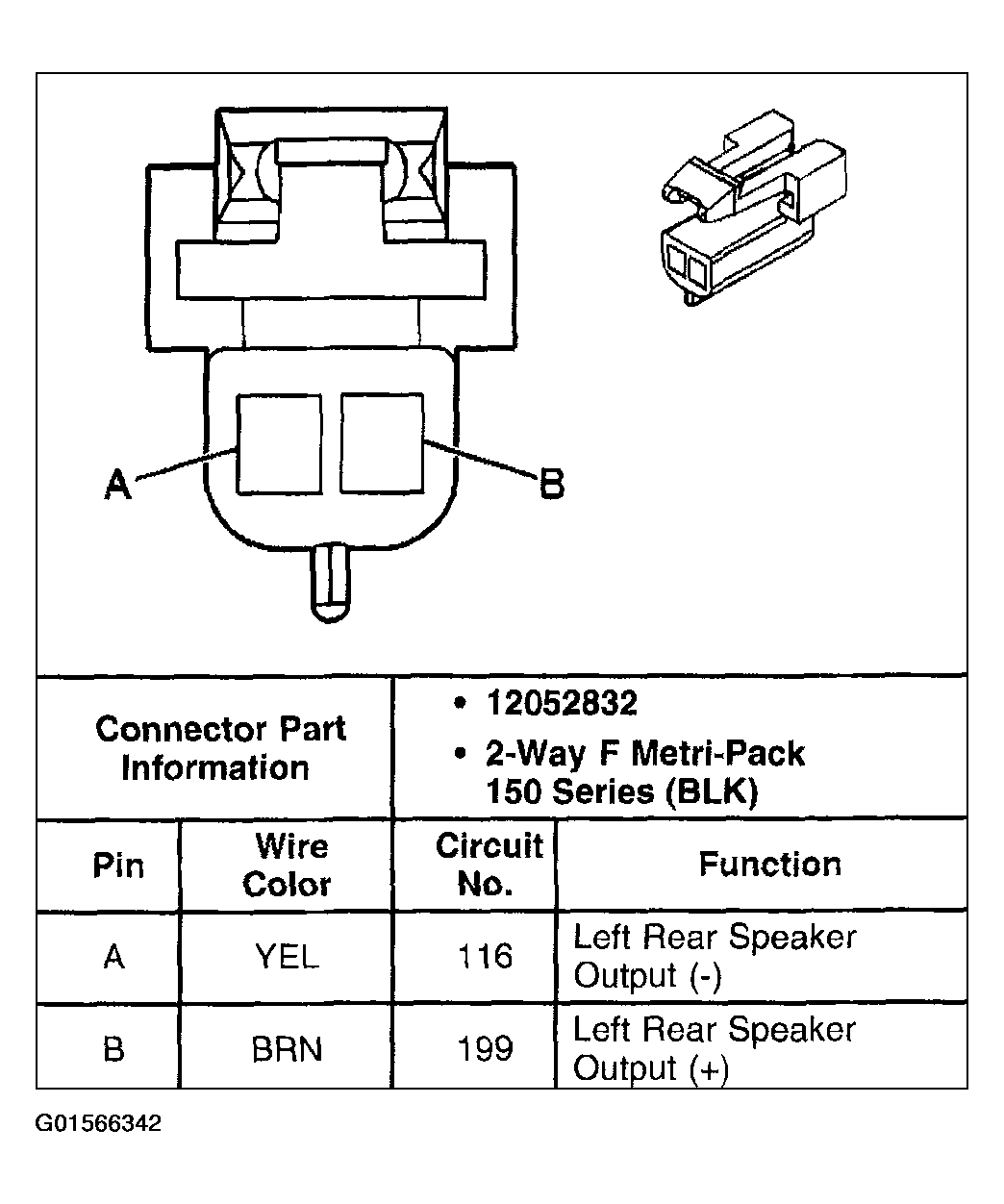

Fig 9: Identifying Speaker Connector Terminals - LR

Courtesy of GENERAL MOTORS CORP.

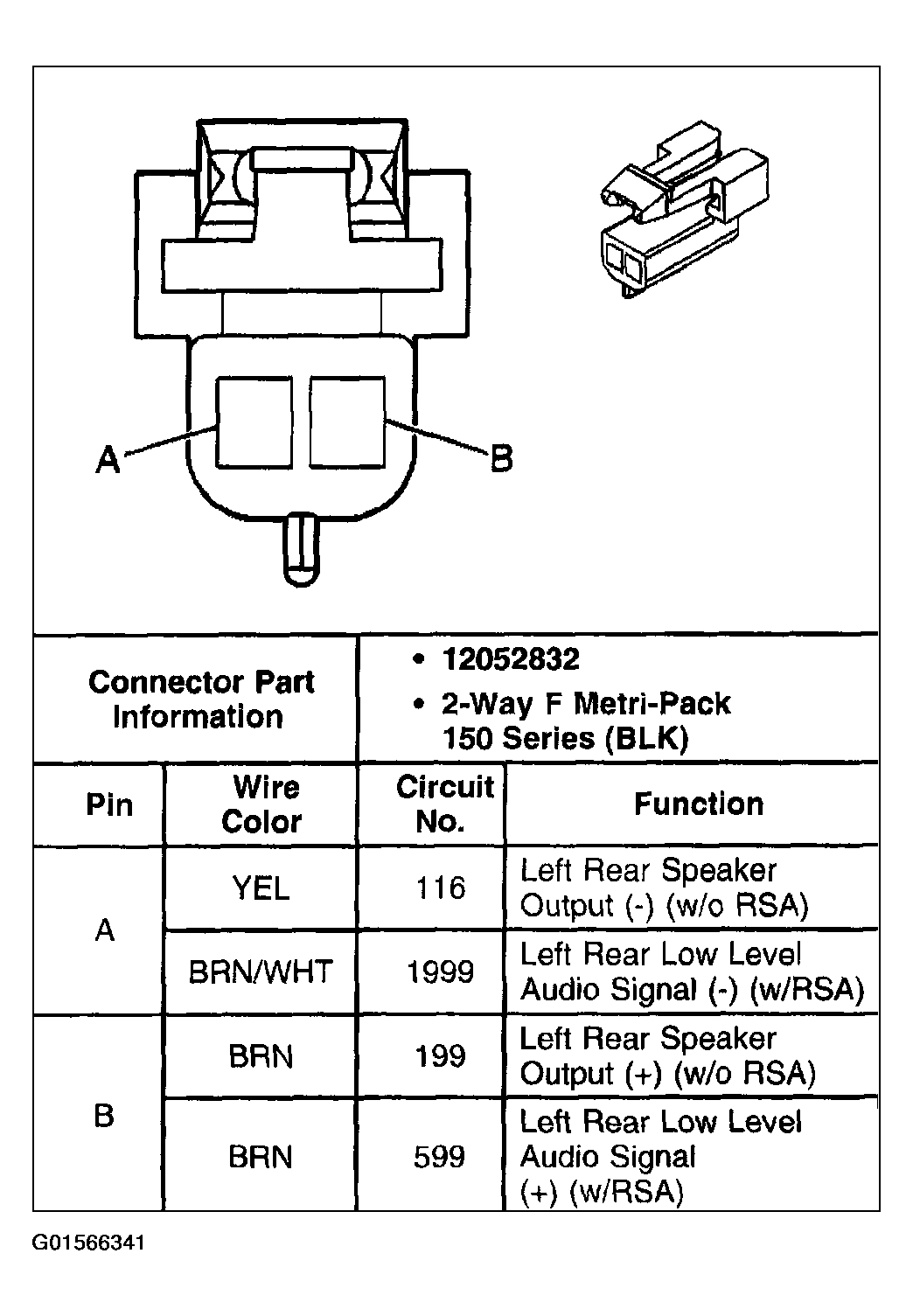

Fig 10: Identifying Speaker Connector Terminals - LR Door

Courtesy of GENERAL MOTORS CORP.

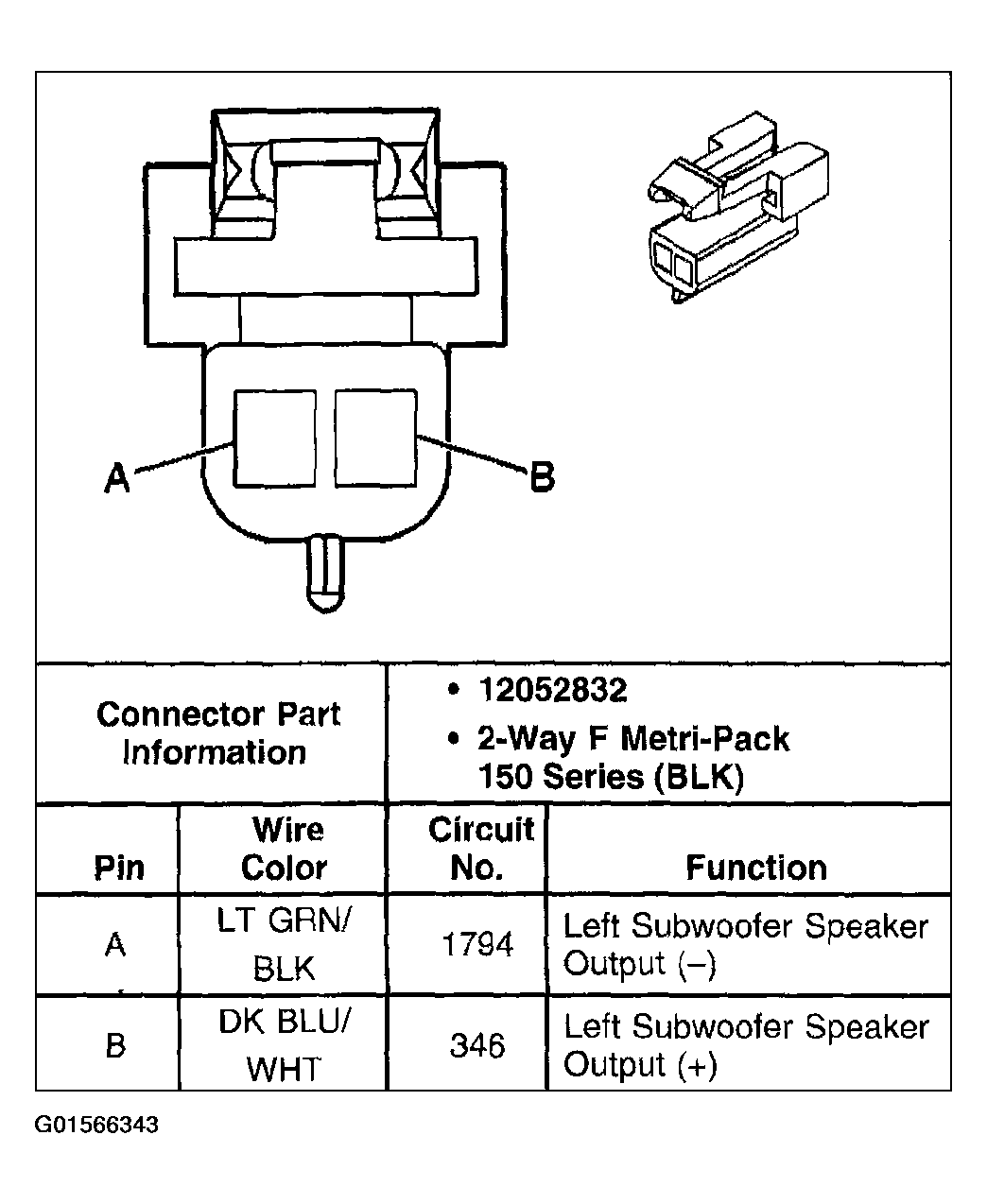

Fig 11: Identifying Speaker Connector Terminals - LR Subwoofer

Courtesy of GENERAL MOTORS CORP.

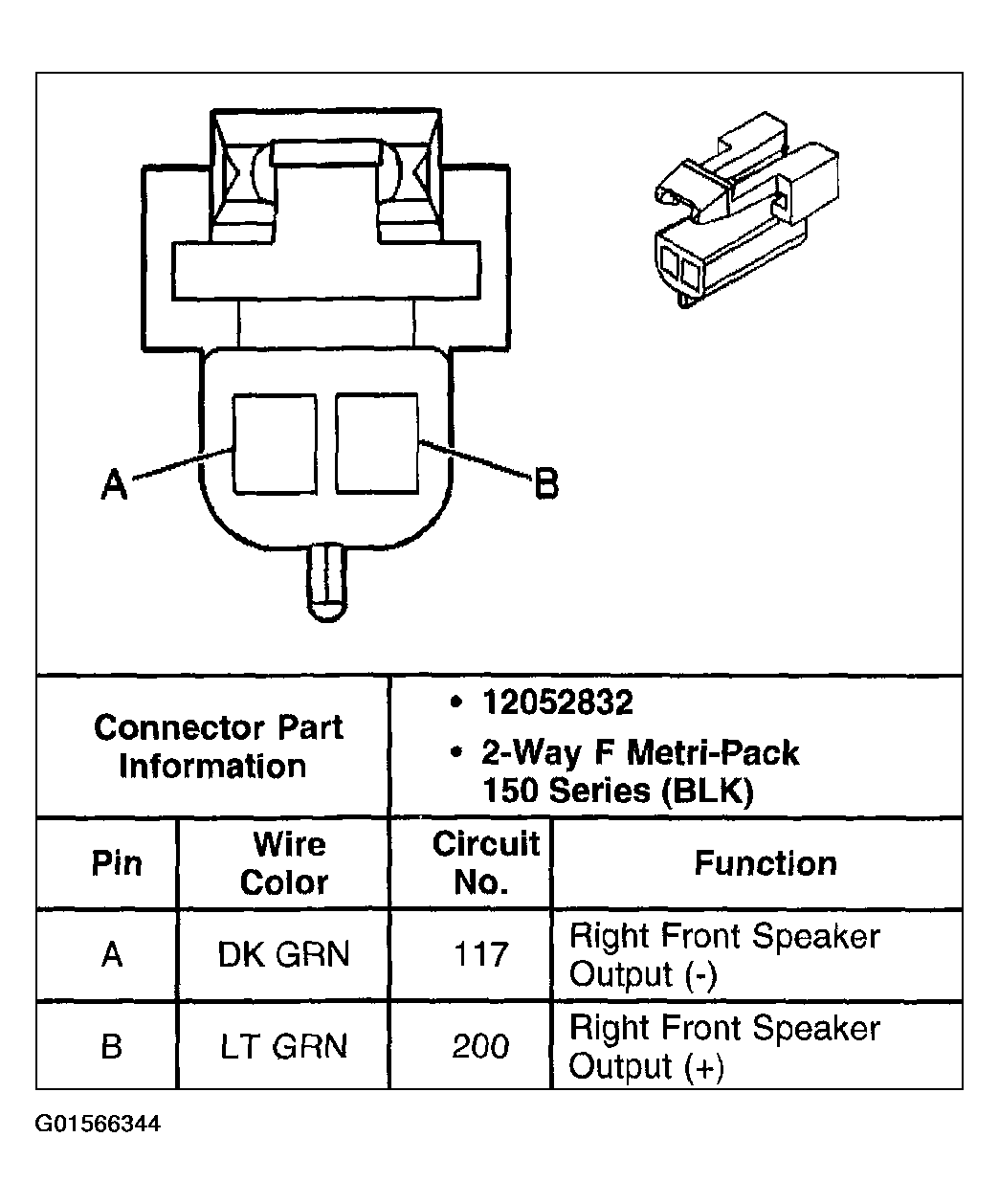

Fig 12: Identifying Speaker Connector Terminals - RF Door

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Speaker Connector Terminals - RF Door Tweeter

Courtesy of GENERAL MOTORS CORP.

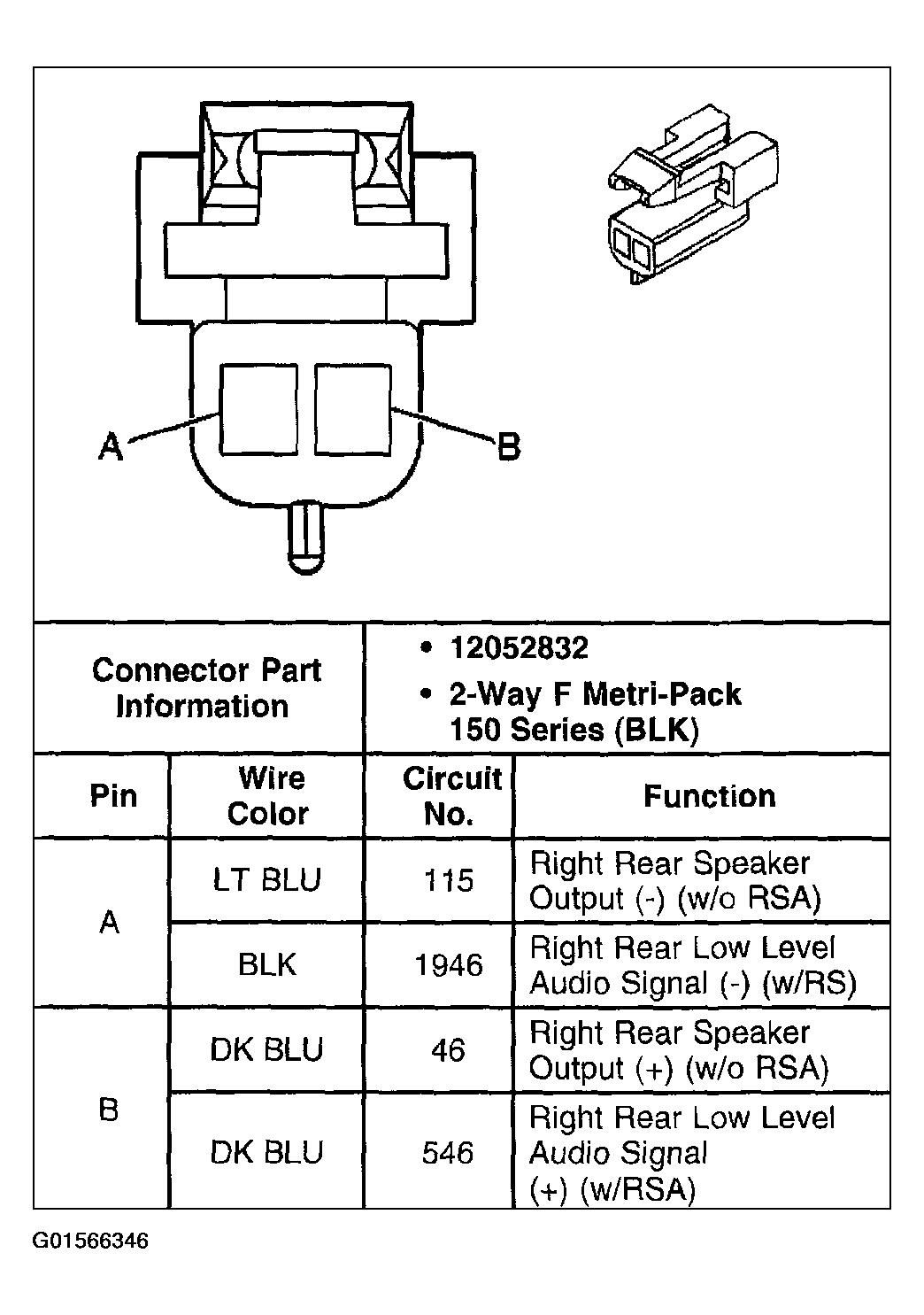

Fig 14: Identifying Speaker Connector Terminals - RR

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Speaker Connector Terminals - RR Door

Courtesy of GENERAL MOTORS CORP.

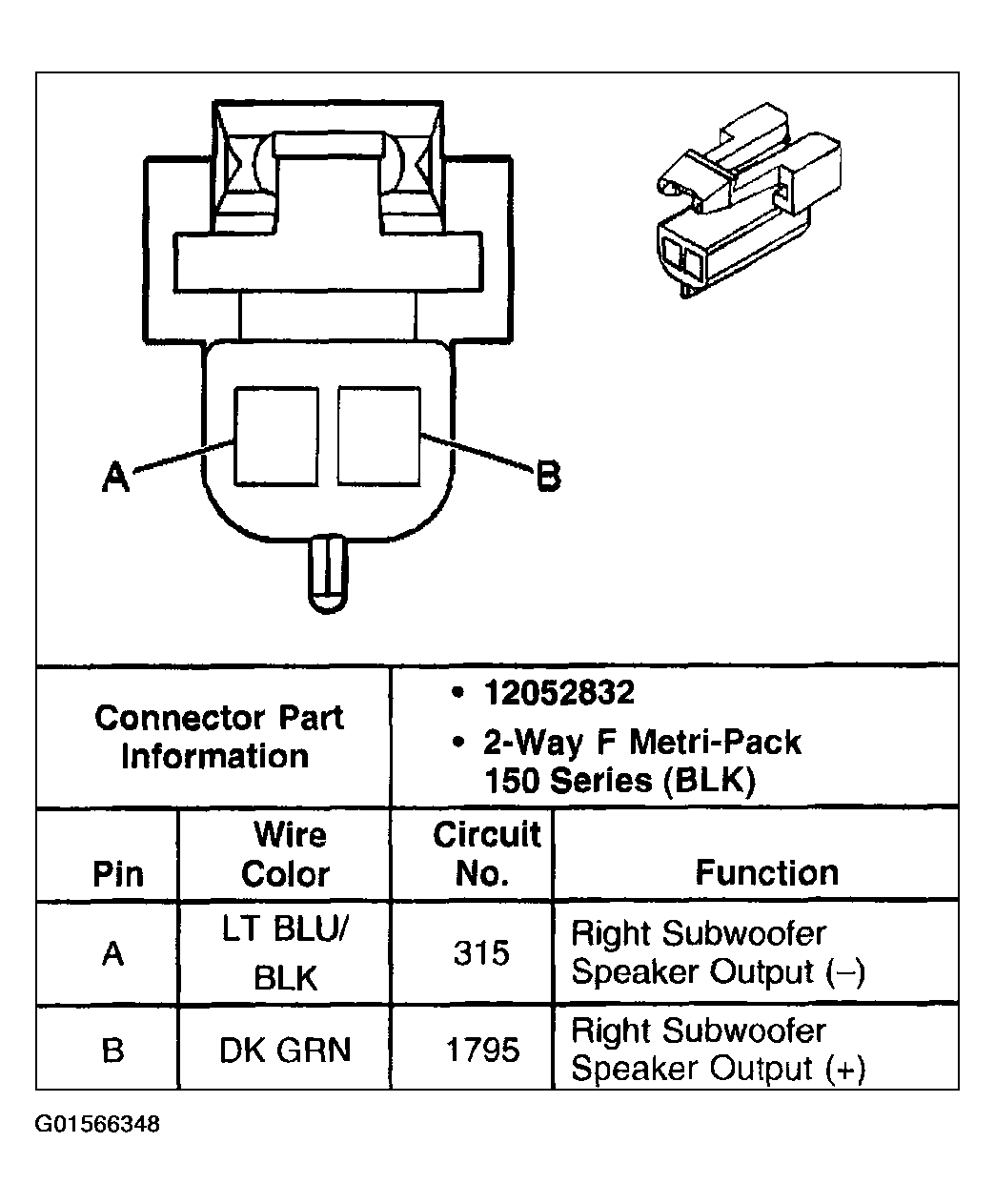

Fig 16: Identifying Speaker Connector Terminals - RR Subwoofer

Courtesy of GENERAL MOTORS CORP.
