Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Ensure that the module strap is not twisted during the installation of the cable.

Install the cable to the module band.
Install the cable to the module.

Fig 1: Installing Cable To Module Band
Courtesy of GENERAL MOTORS CORP.
Install the cable to the throttle lever and accelerator control cable bracket.

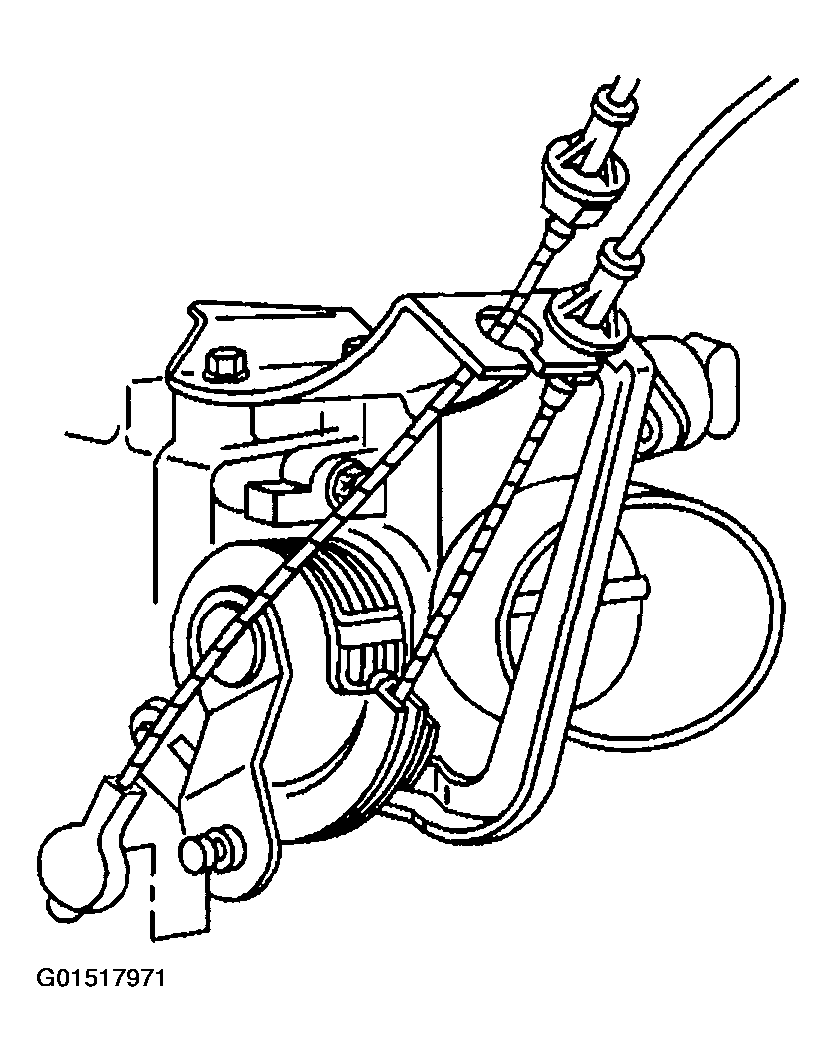

Fig 2: Installing Cable To Throttle Lever
Courtesy of GENERAL MOTORS CORP.
