Body Control System Component Views
WARNING:
This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

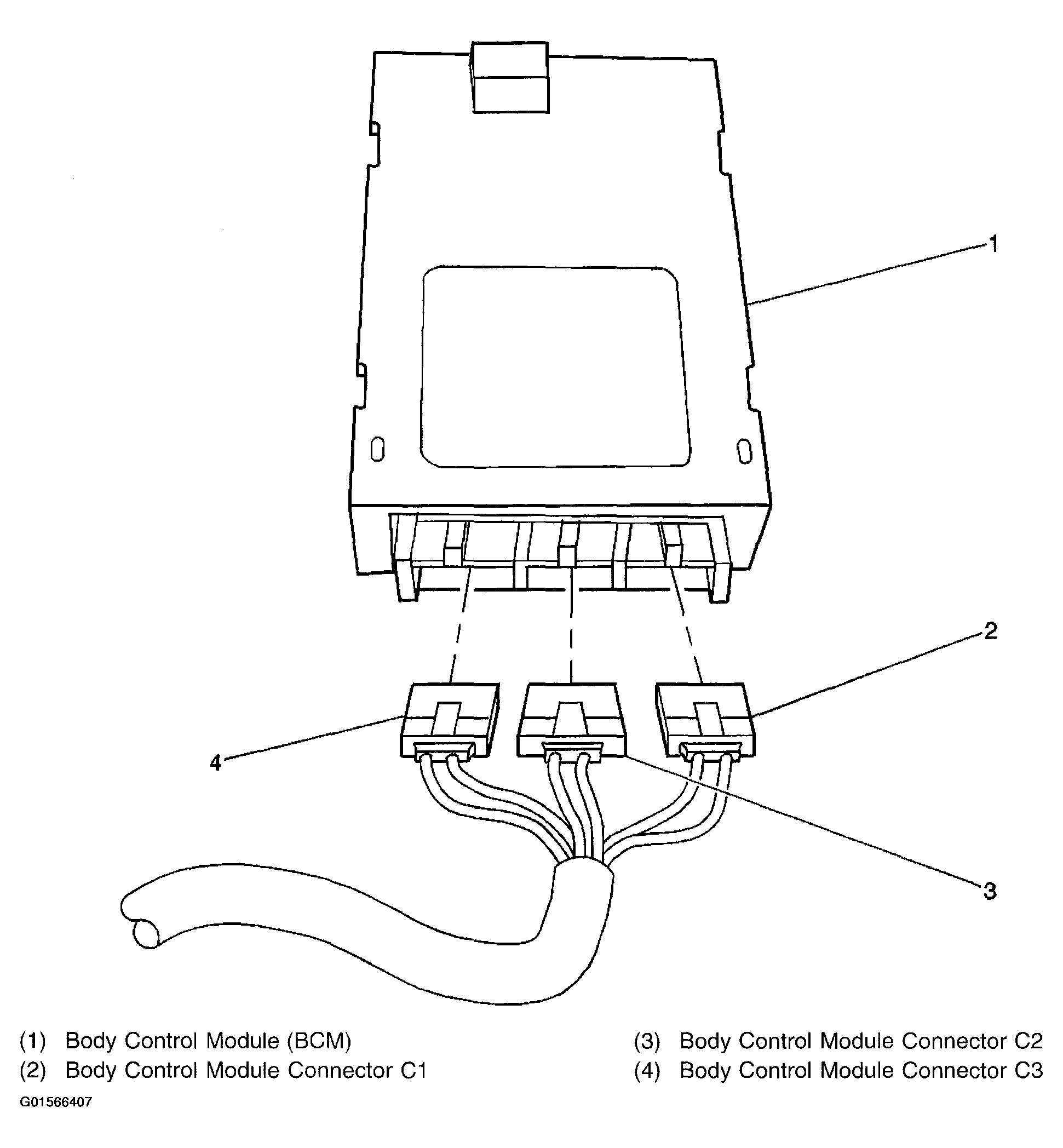

Fig 1: Body Control Module Connectors
Courtesy of GENERAL MOTORS CORP.

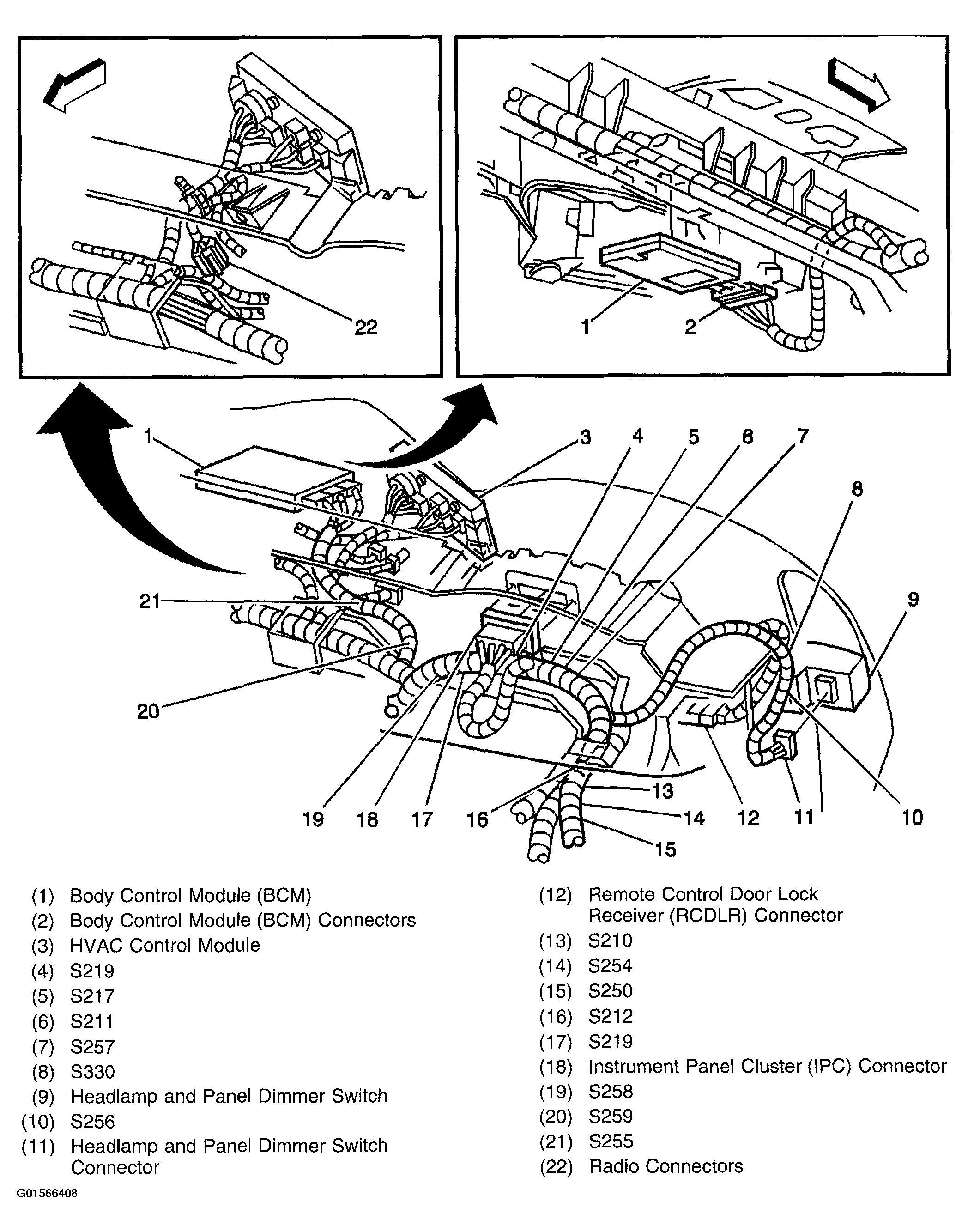

Fig 2: Instrument Cluster Wiring
Courtesy of GENERAL MOTORS CORP.
