Body Control System Connector End Views

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

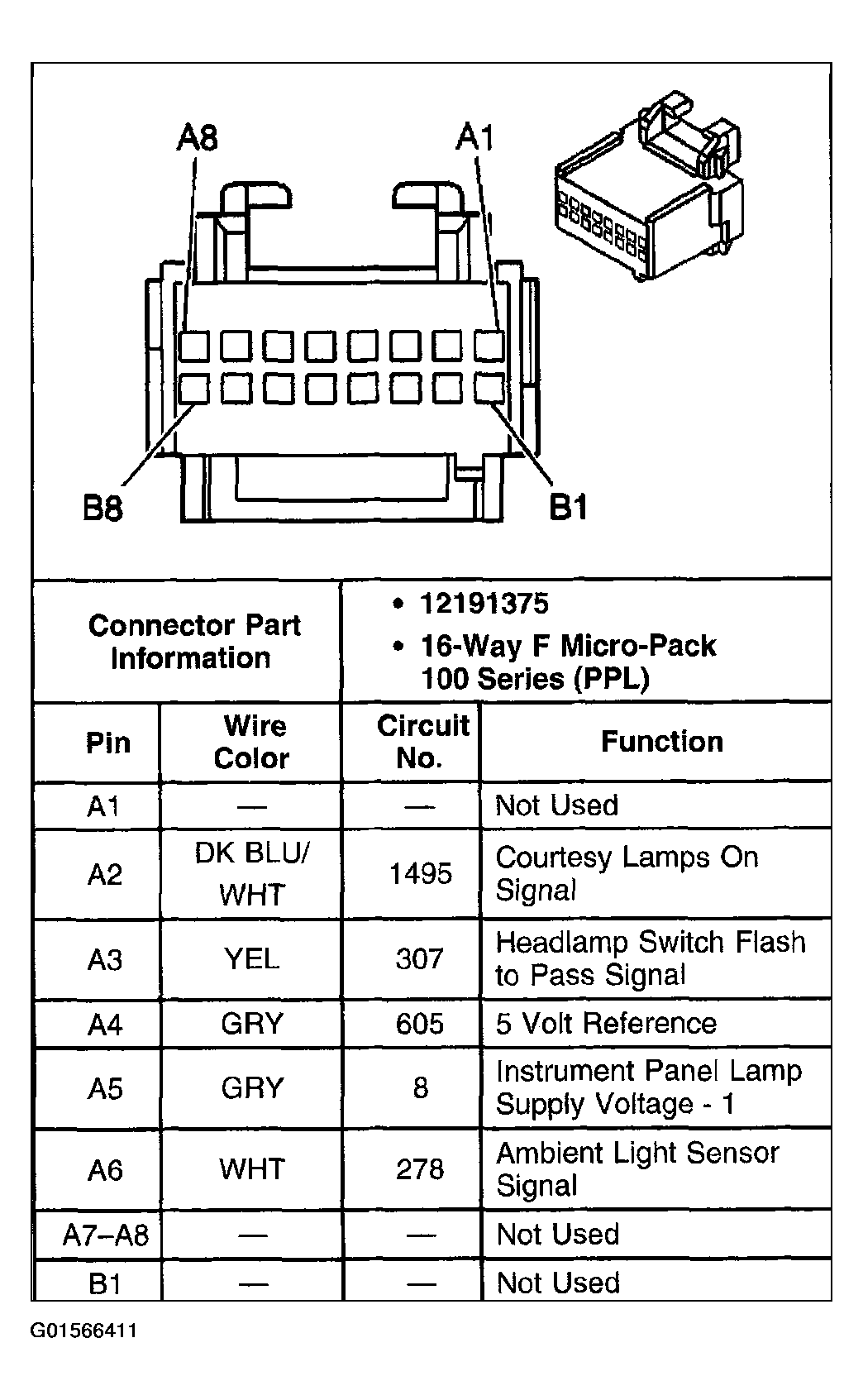

Fig 1: Body Control Module C1

Courtesy of GENERAL MOTORS CORP.

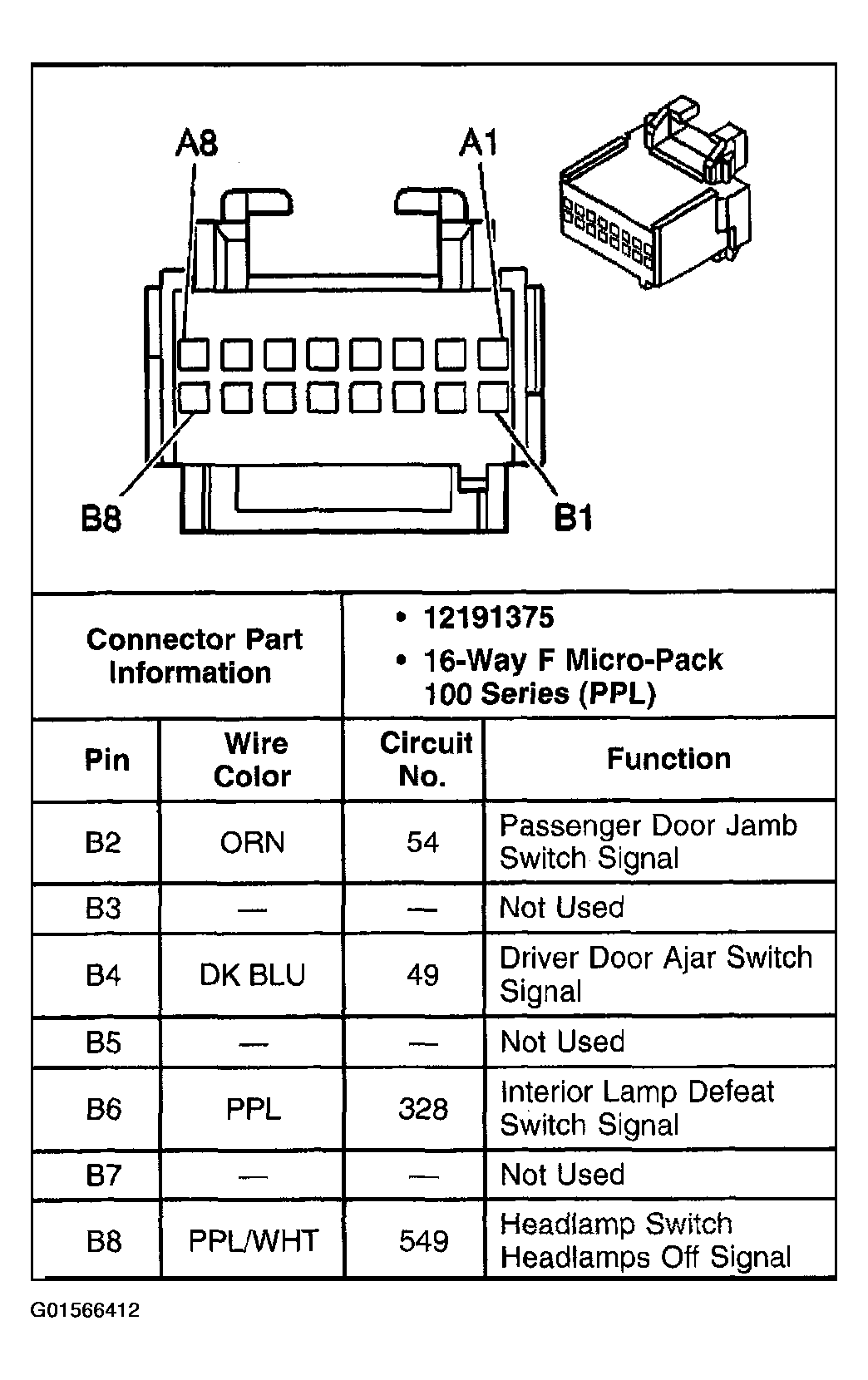

Fig 2: Body Control Module C2

Courtesy of GENERAL MOTORS CORP.

Fig 3: Body Control Module C3 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Body Control Module C3 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
