Controls

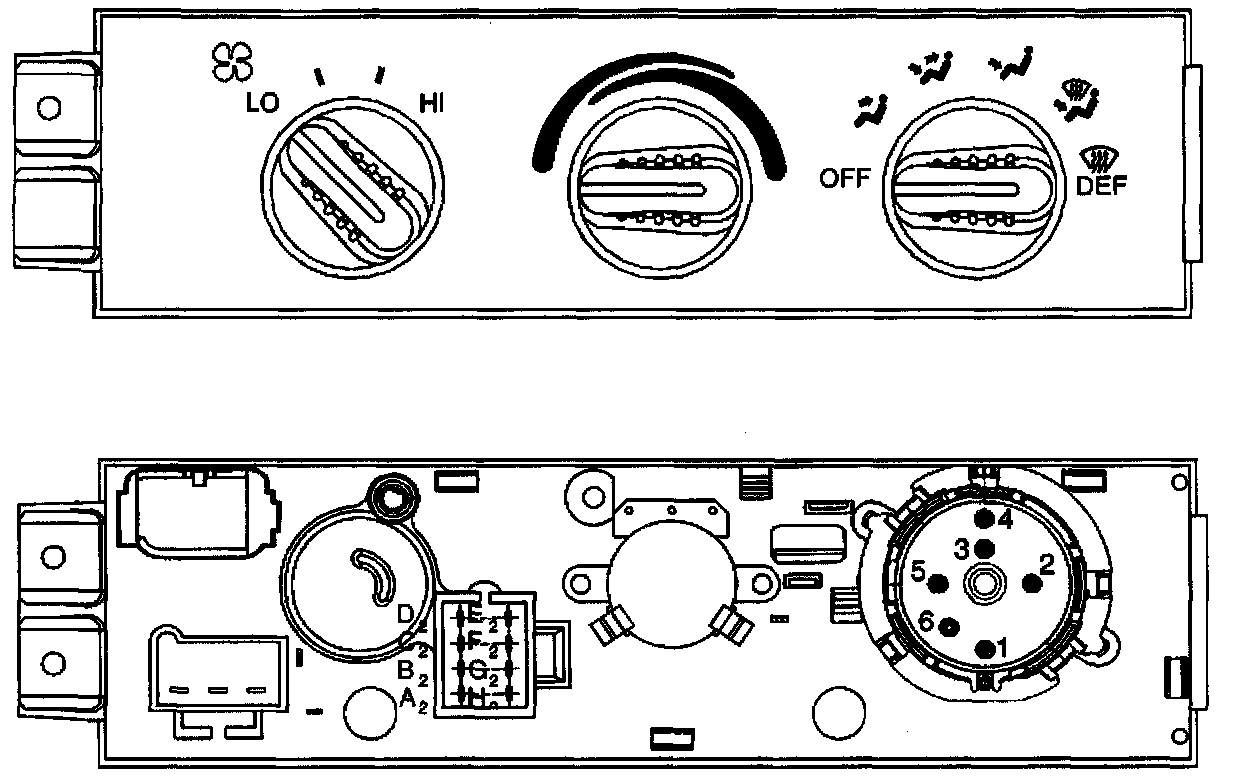

Control Assembly Description Controls:

The control assembly in the instrument panel contains the following controls:
^ A temperature knob
^ A mode knob
^ A blower switch

When the headlamps are on, these controls are illuminated. Electrical voltage is provided to the control assembly through the instrument panel lighting circuit. The instrument panel dimmer switch controls the brightness of the dial illumination.
