Body Control Module (BCM) C1

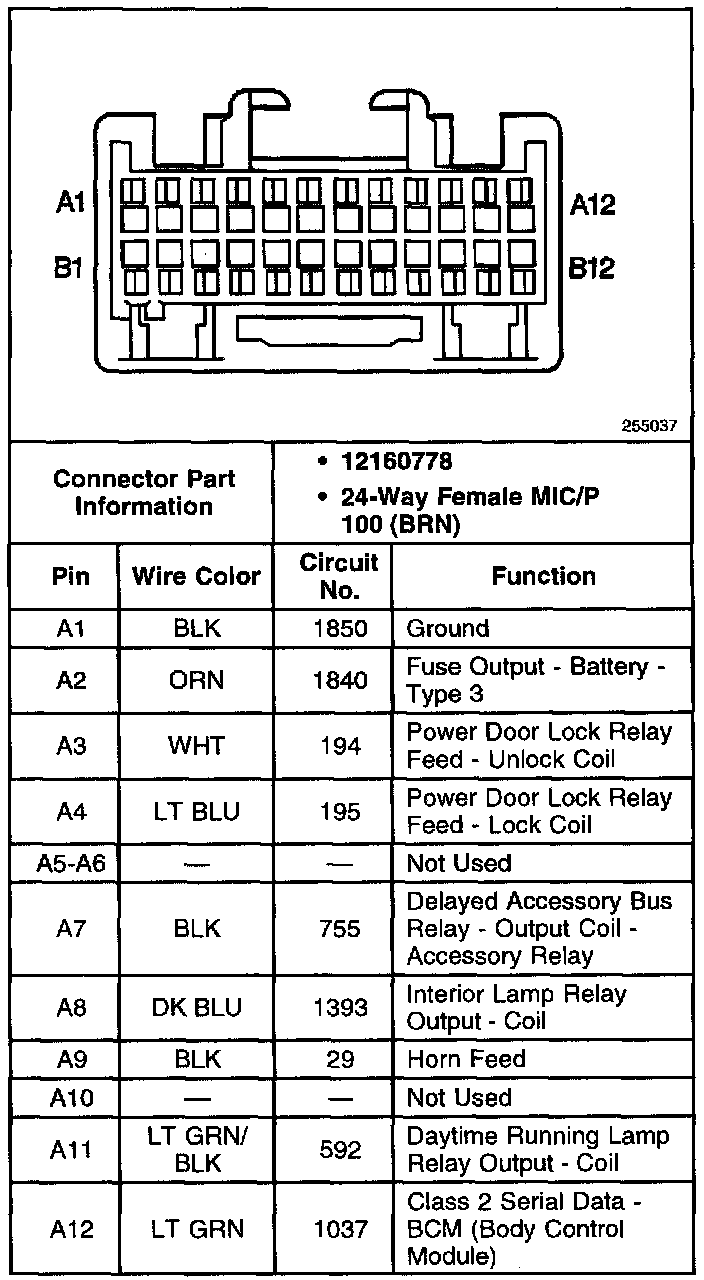

Body Control Module (C1) (Part 1 Of 2):

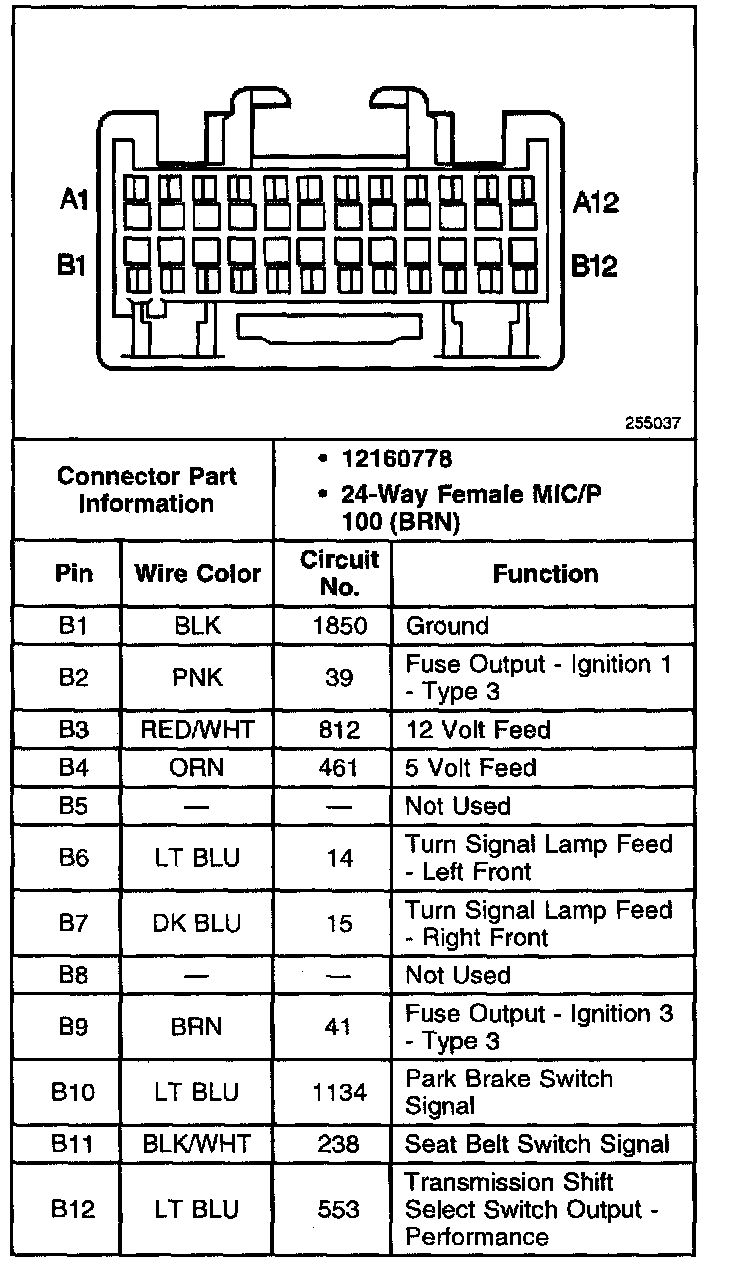

Body Control Module (C1) (Part 2 Of 2):
