Installation Procedure

  1. Install the engine cover guide assembly.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the bolts that retain the engine cover guide assembly to the vehicle.

    Tighten

    Tighten the bolts that retain the engine cover guide to 8.5 N.m (75 in. lb.).

  3. Install the engine cover. Refer to Engine Cover Replacement  .

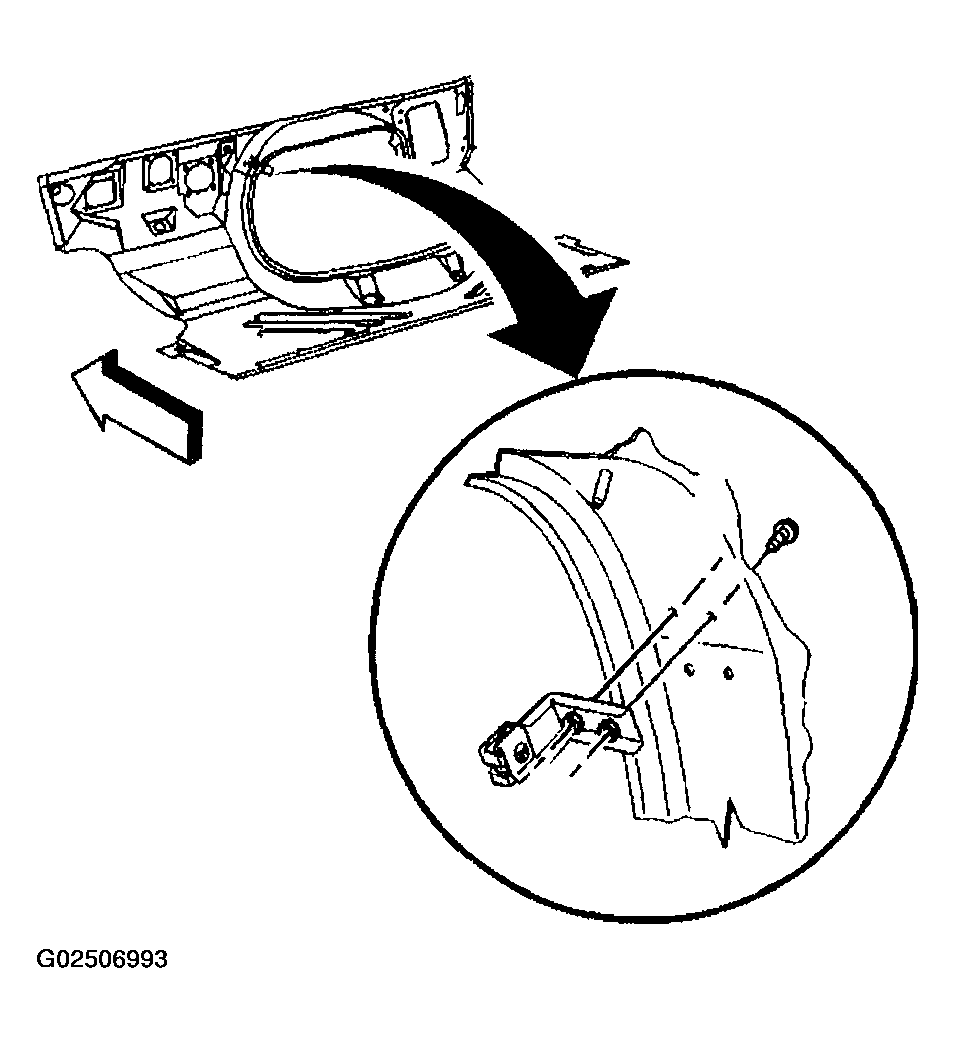

    Fig 1: Installing Engine Cover Guide
    G02506993Courtesy of GENERAL MOTORS CORP.
