Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

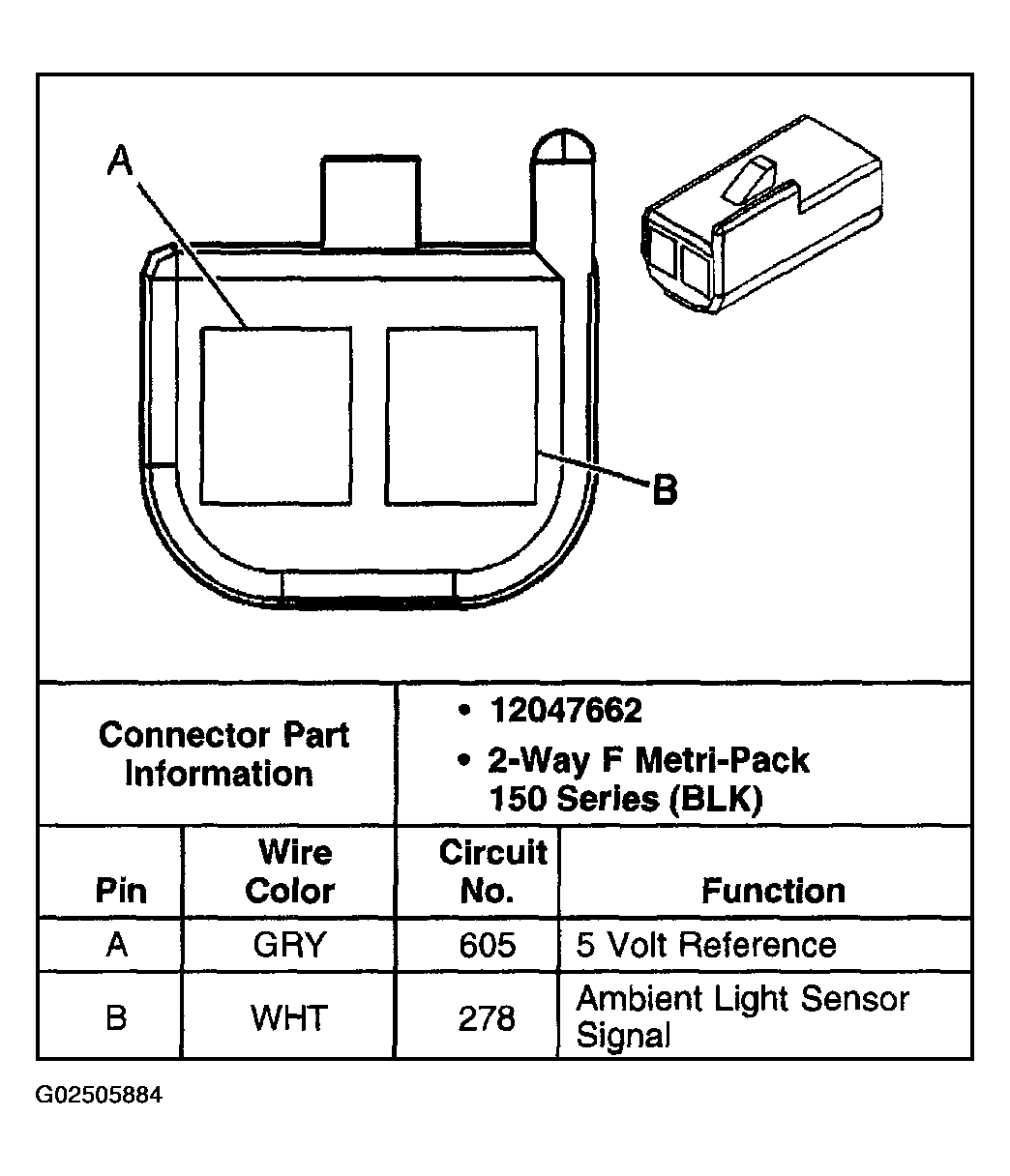

Fig 1: Identifying Ambient Light Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

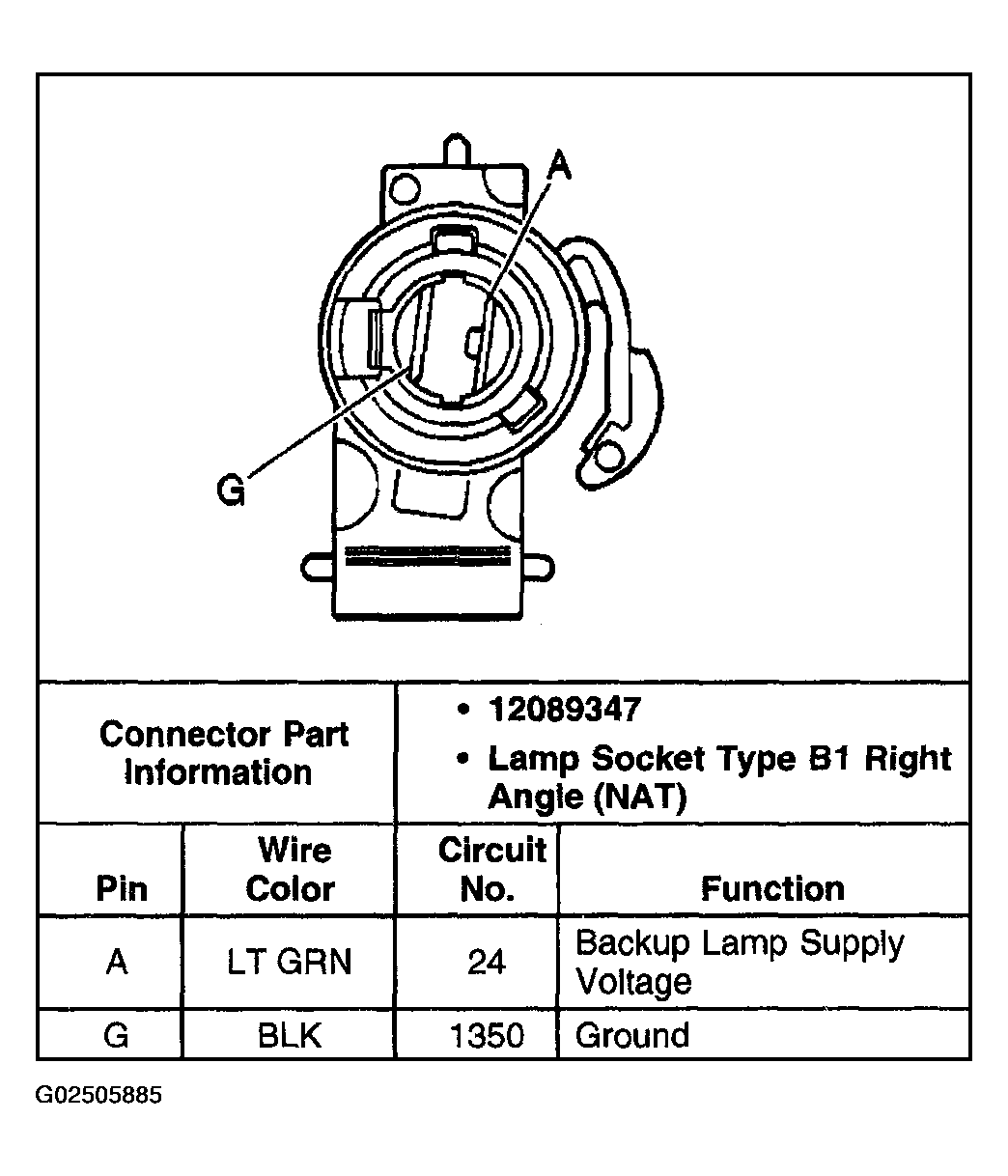

Fig 2: Identifying Backup Lamp - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.

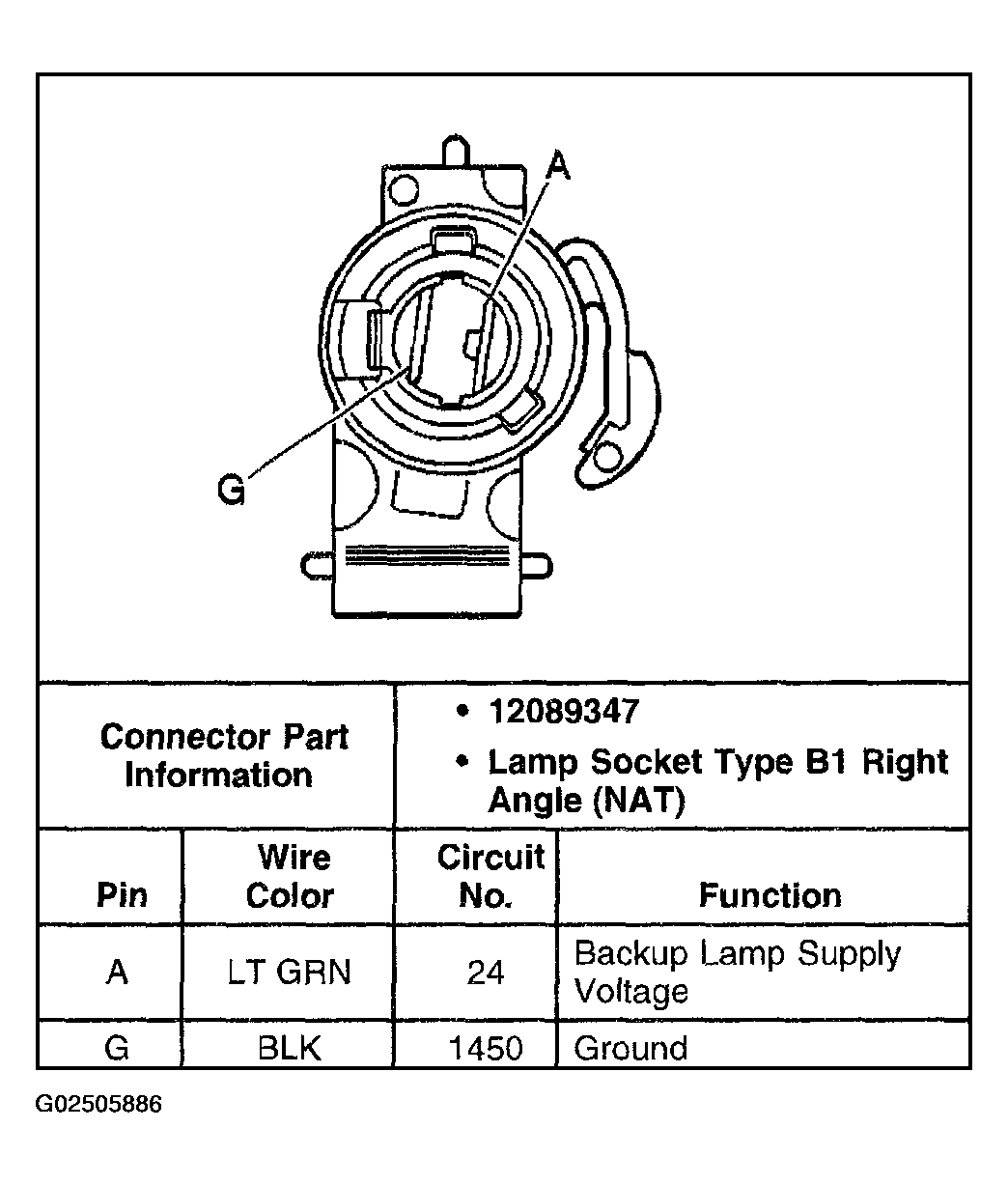

Fig 3: Identifying Backup Lamp - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.

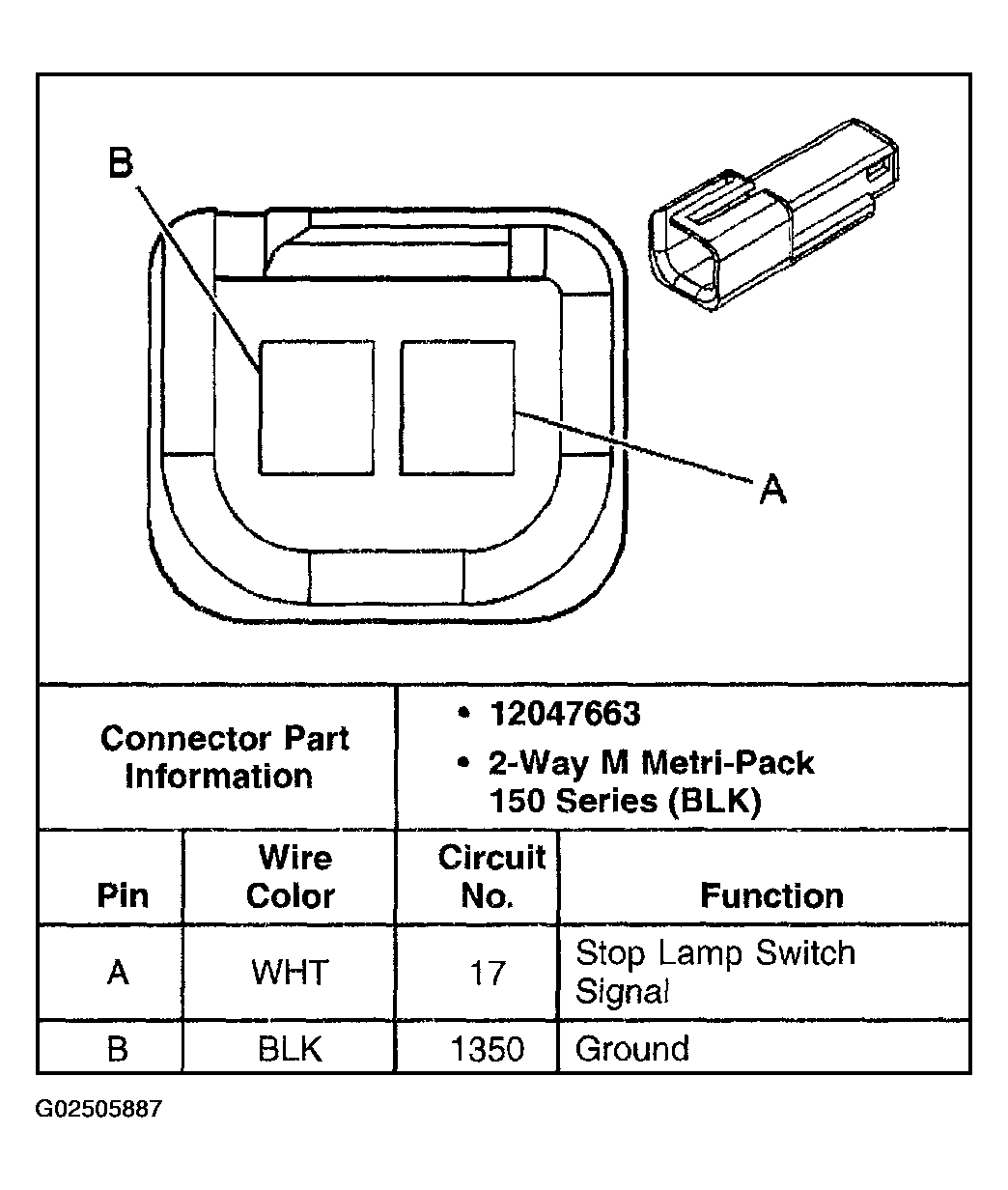

Fig 4: Identifying Center High Mounted Stoplamp (CHMSL) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

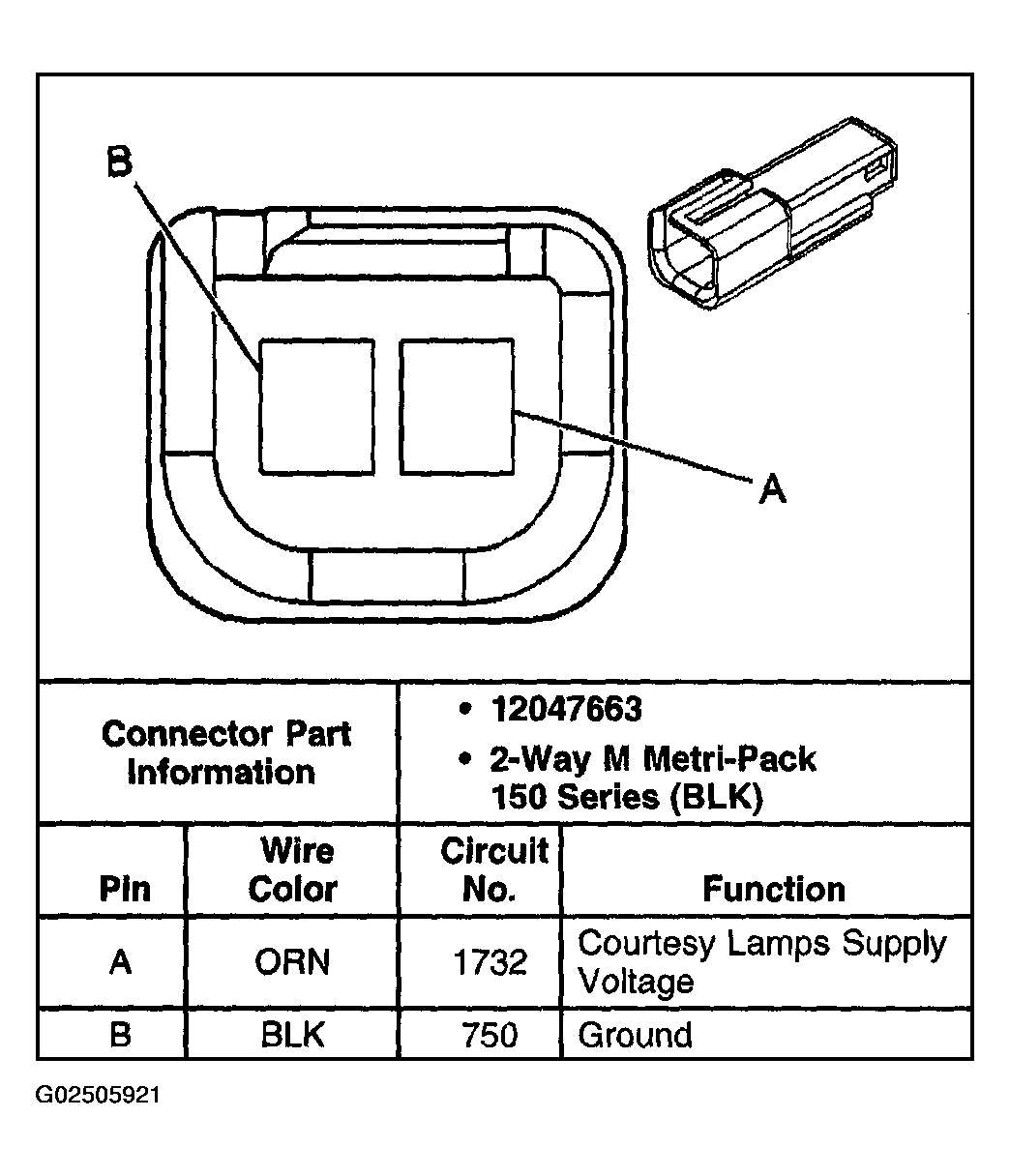

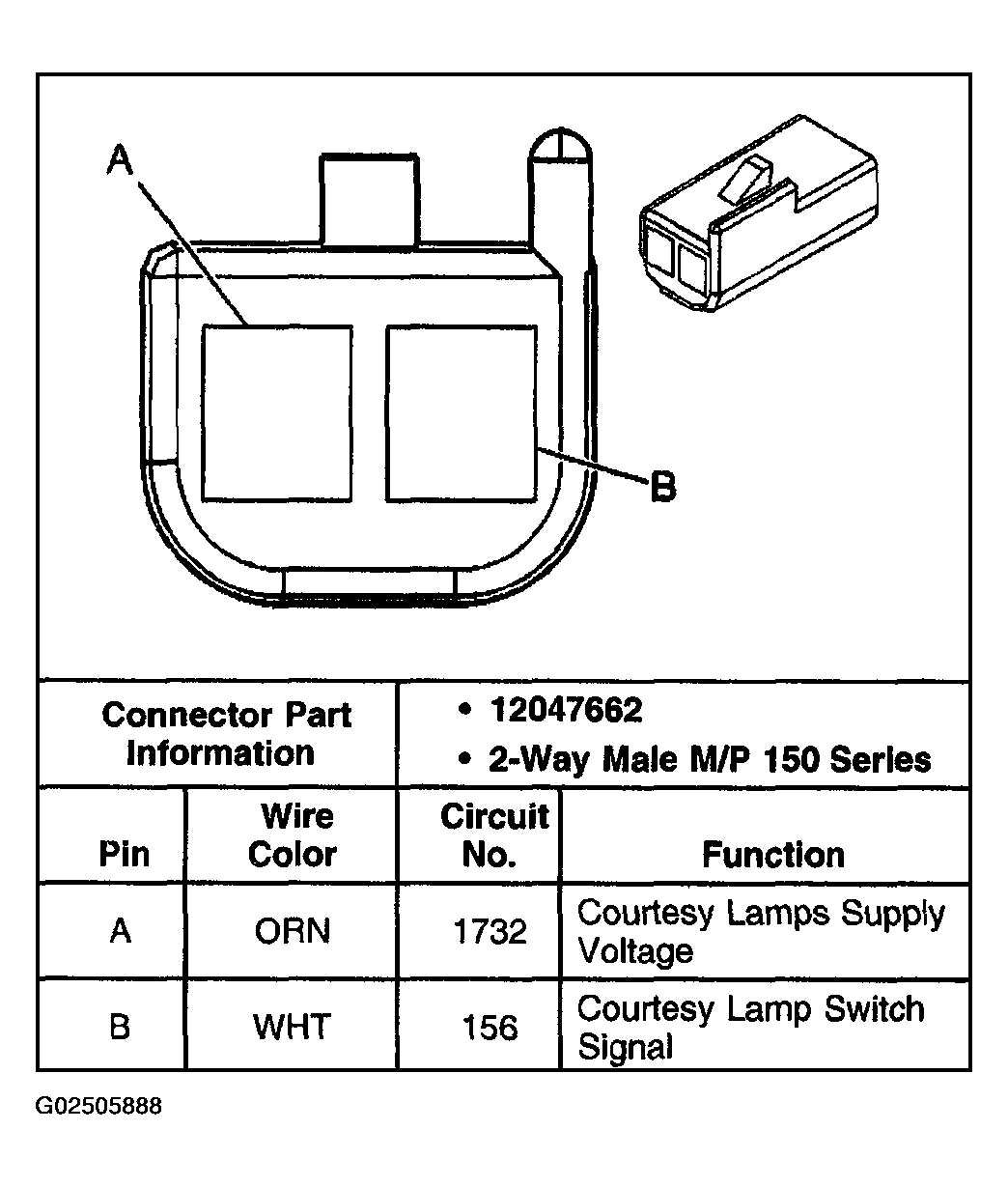

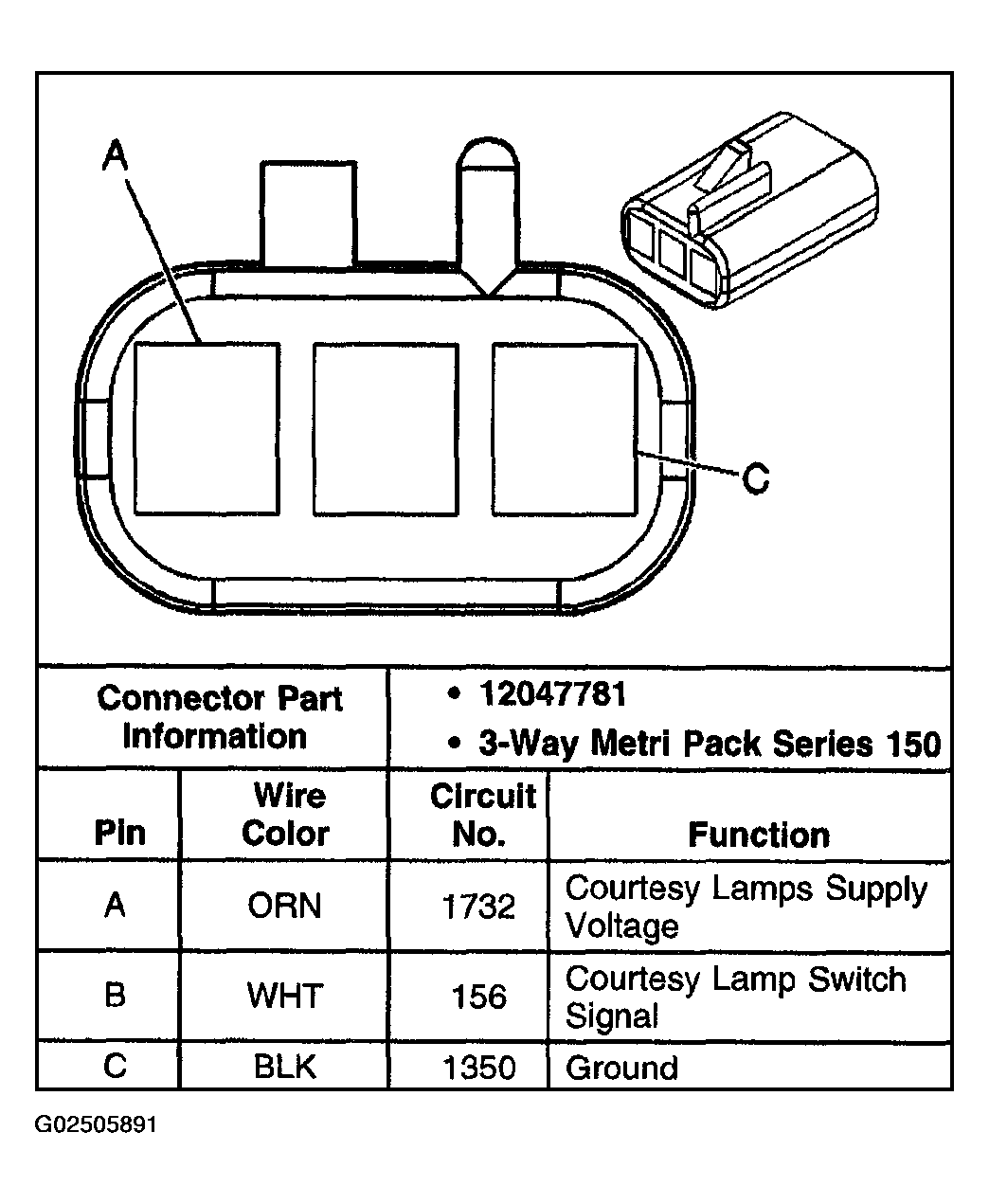

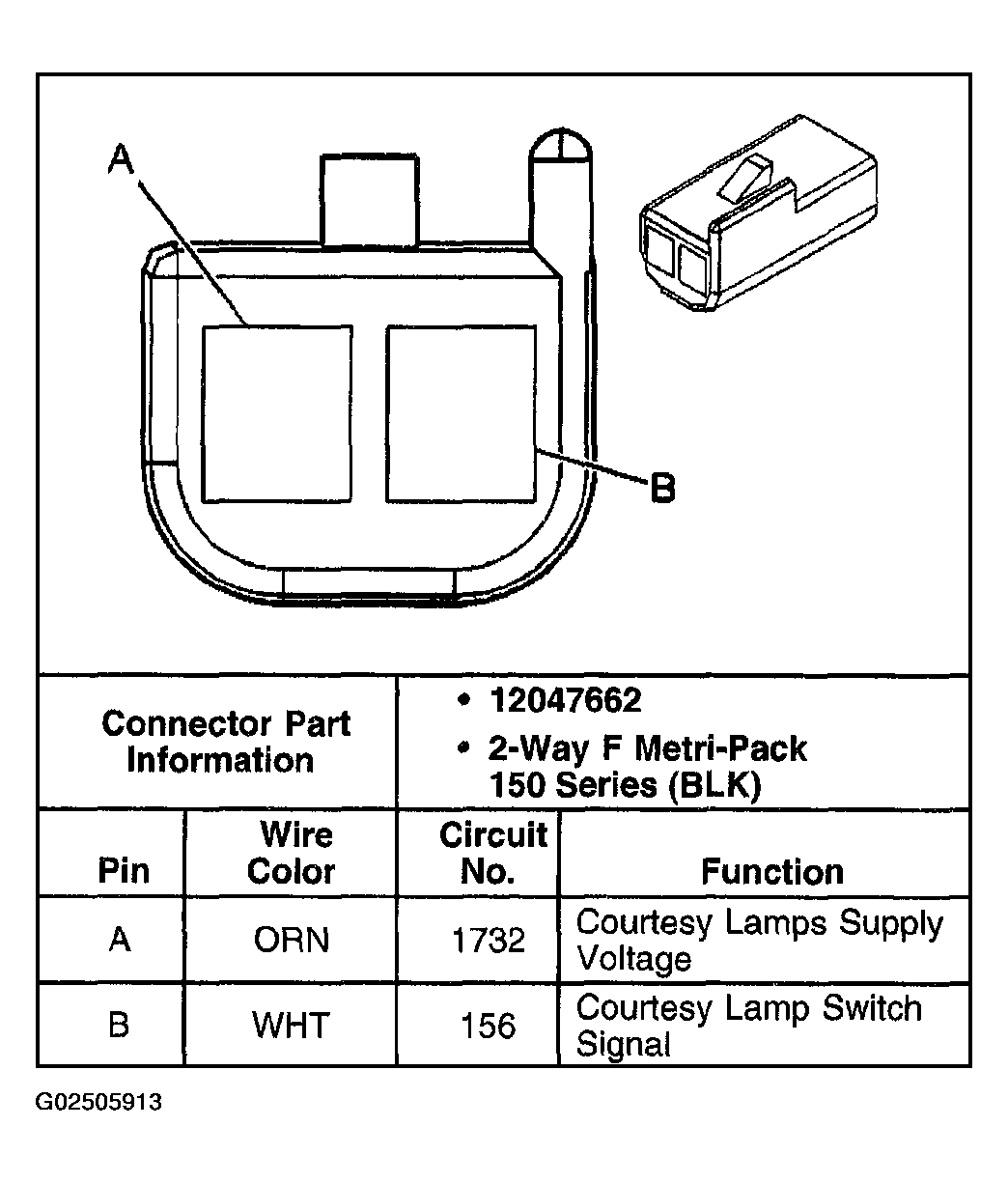

Fig 5: Identifying Courtesy Lamp - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.

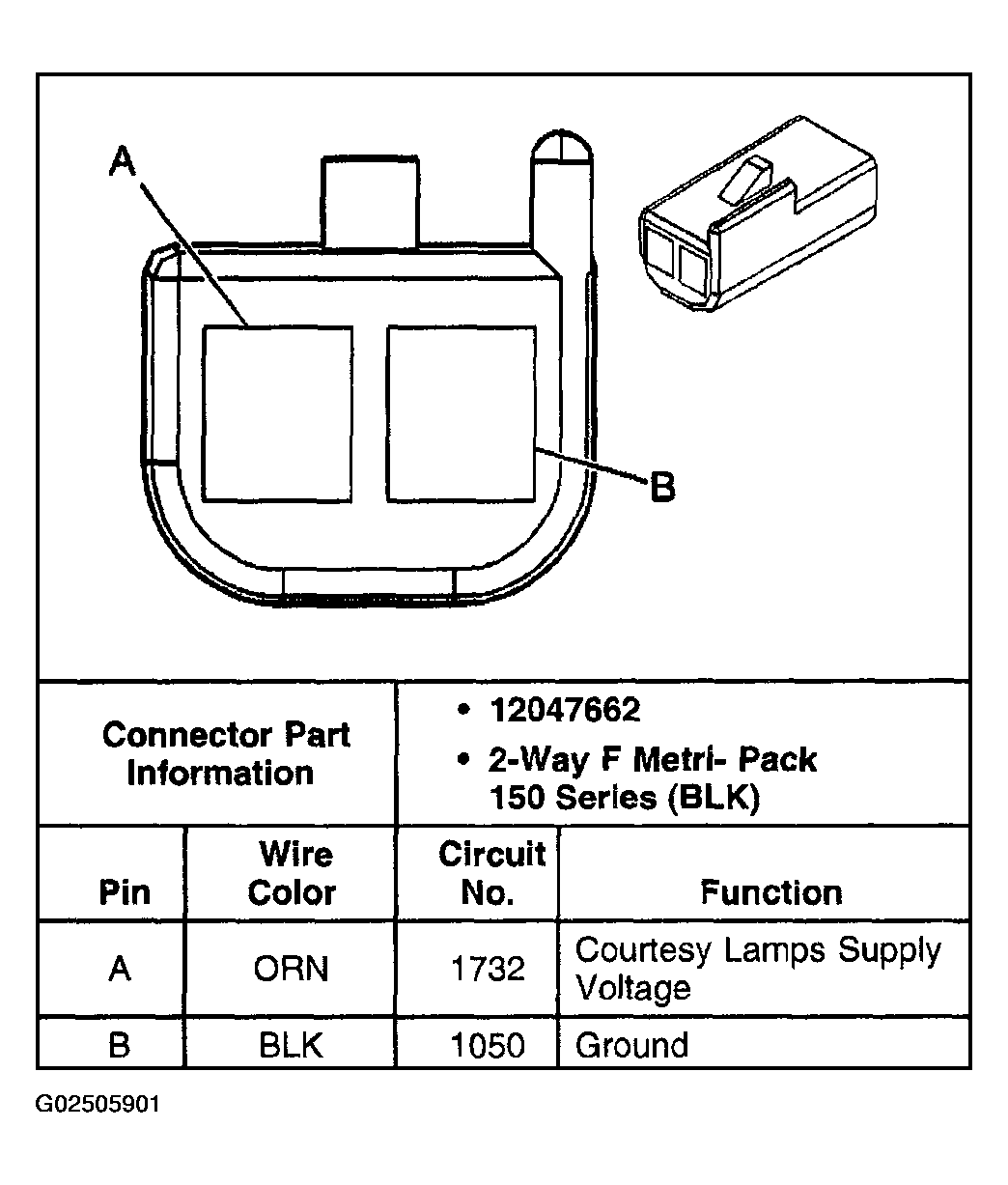

Fig 6: Identifying Courtesy Lamp - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.

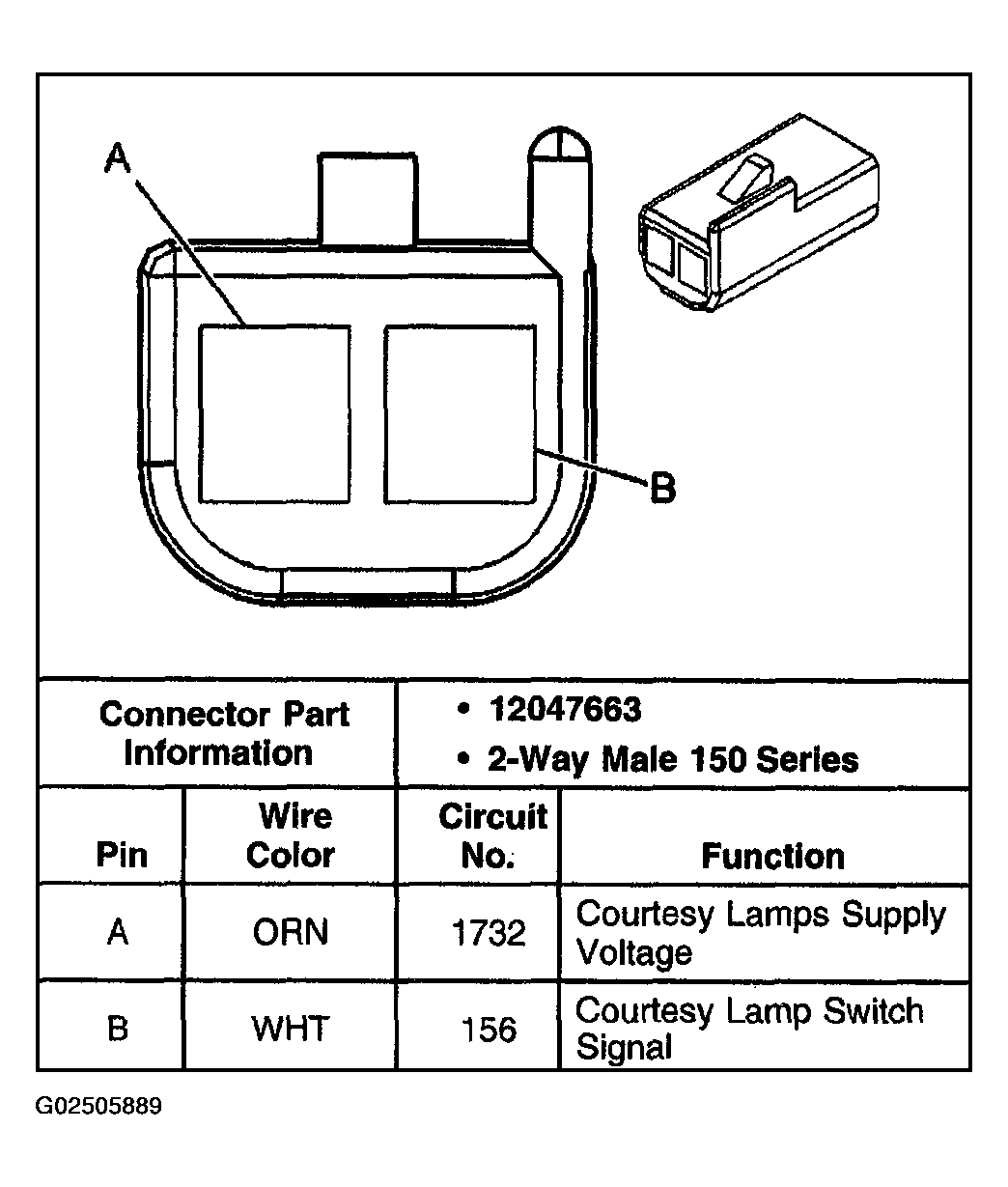

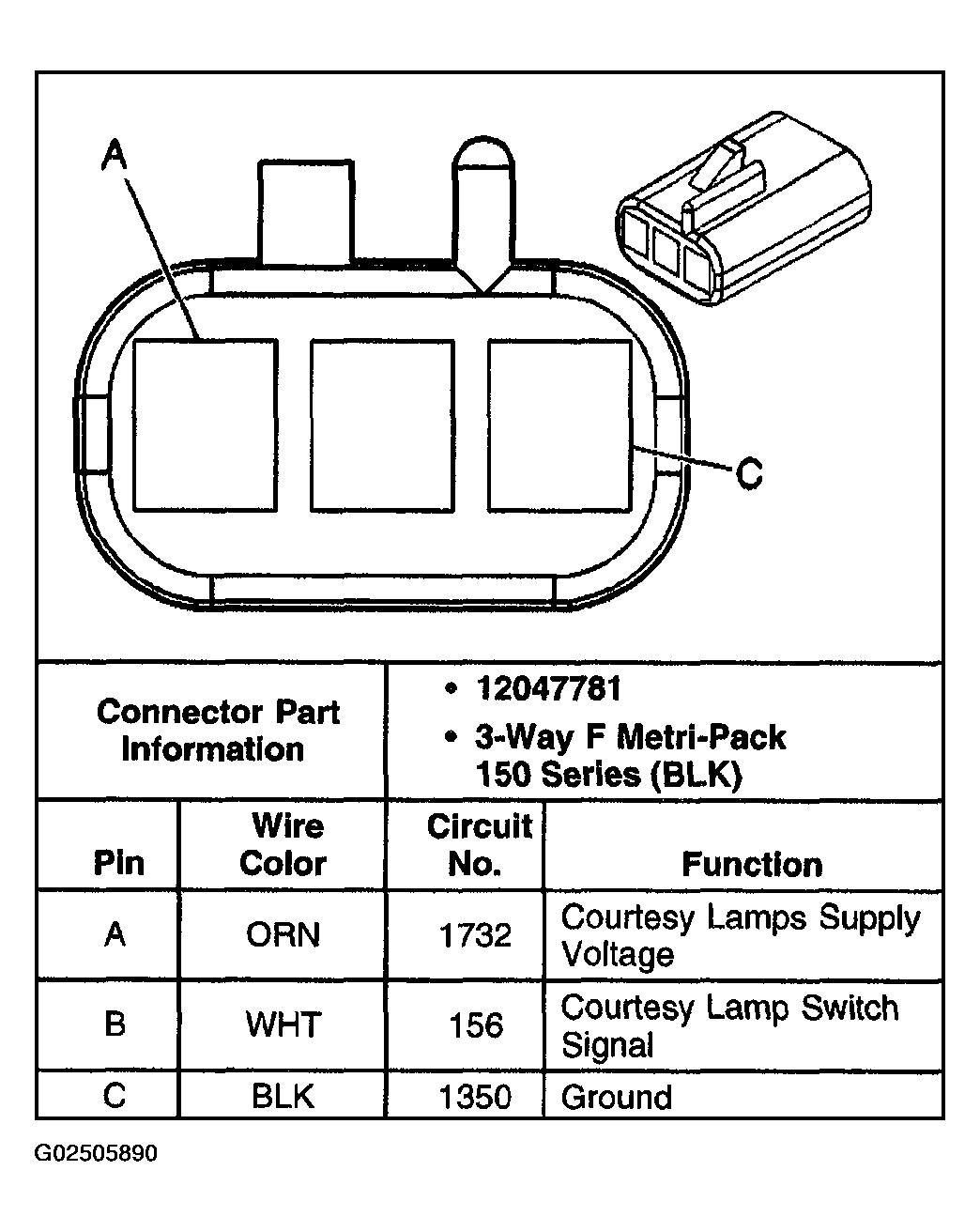

Fig 7: Identifying Courtesy/Reading Lamp - Center Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Courtesy/Reading Lamp - Front Connector Terminals
Courtesy of GENERAL MOTORS CORP.

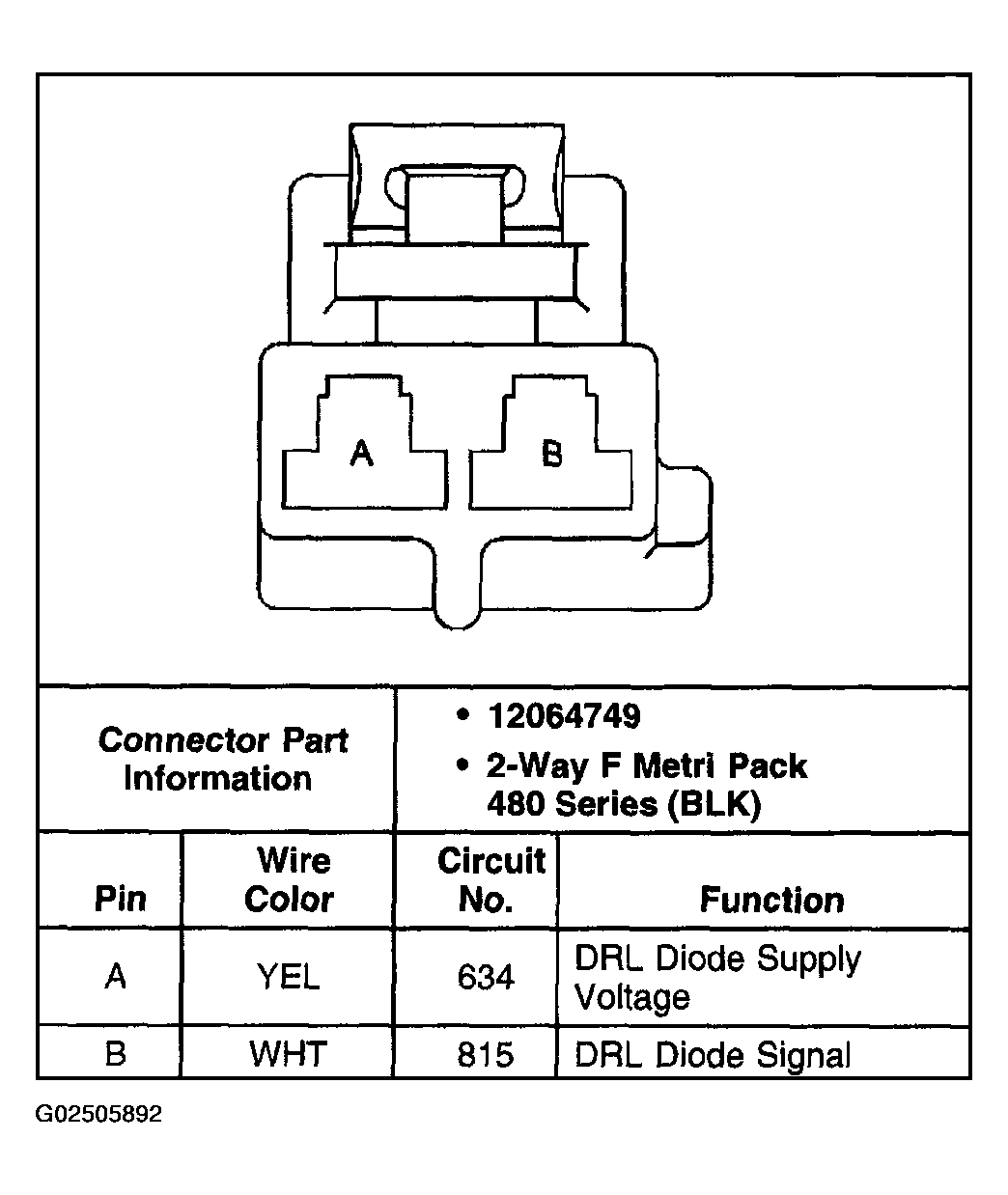

Fig 9: Identifying Daytime Running Lamps (DRL) Diode Connector Terminals
Courtesy of GENERAL MOTORS CORP.

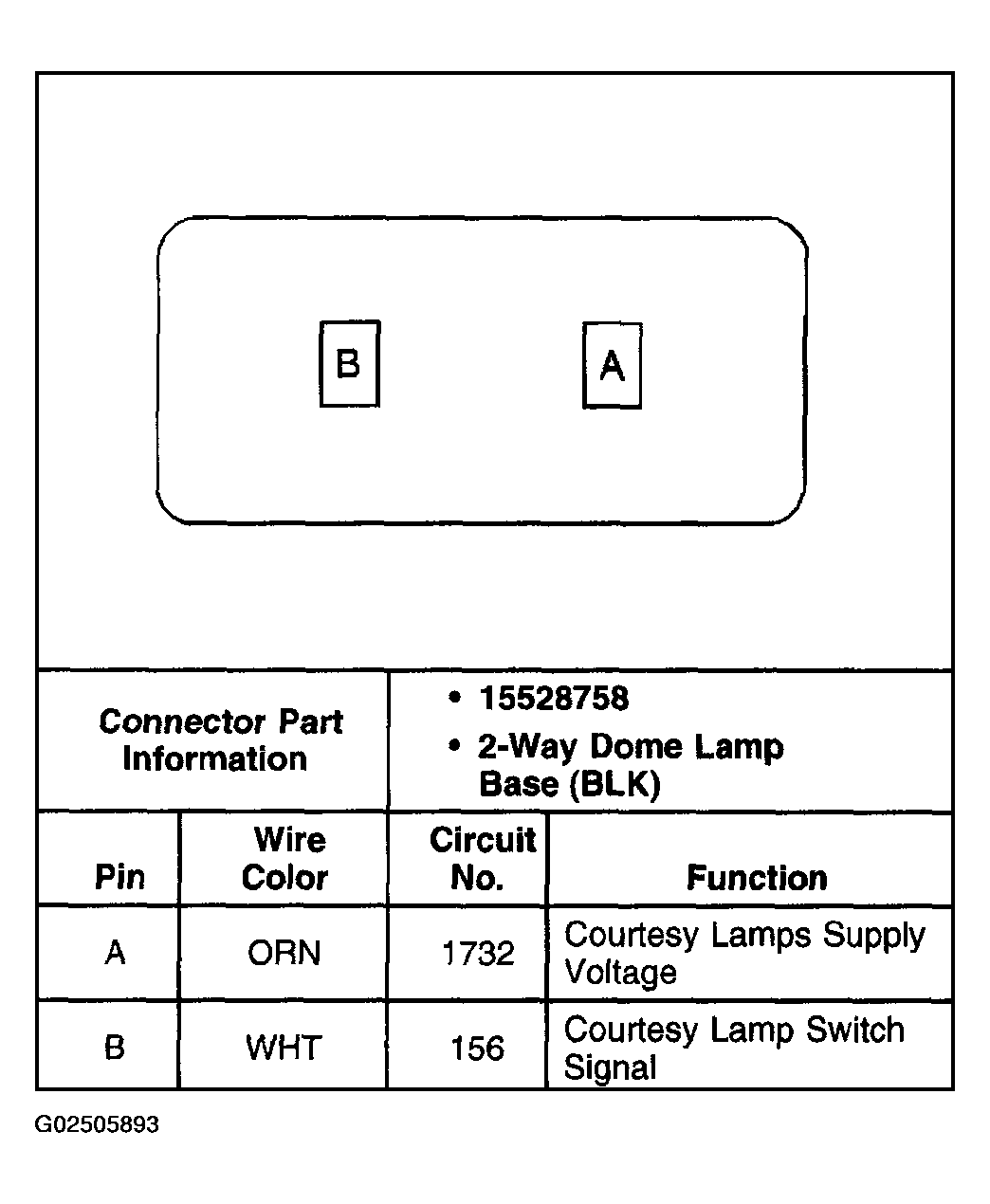

Fig 10: Identifying Dome Lamp - Rear Connector Terminals
Courtesy of GENERAL MOTORS CORP.

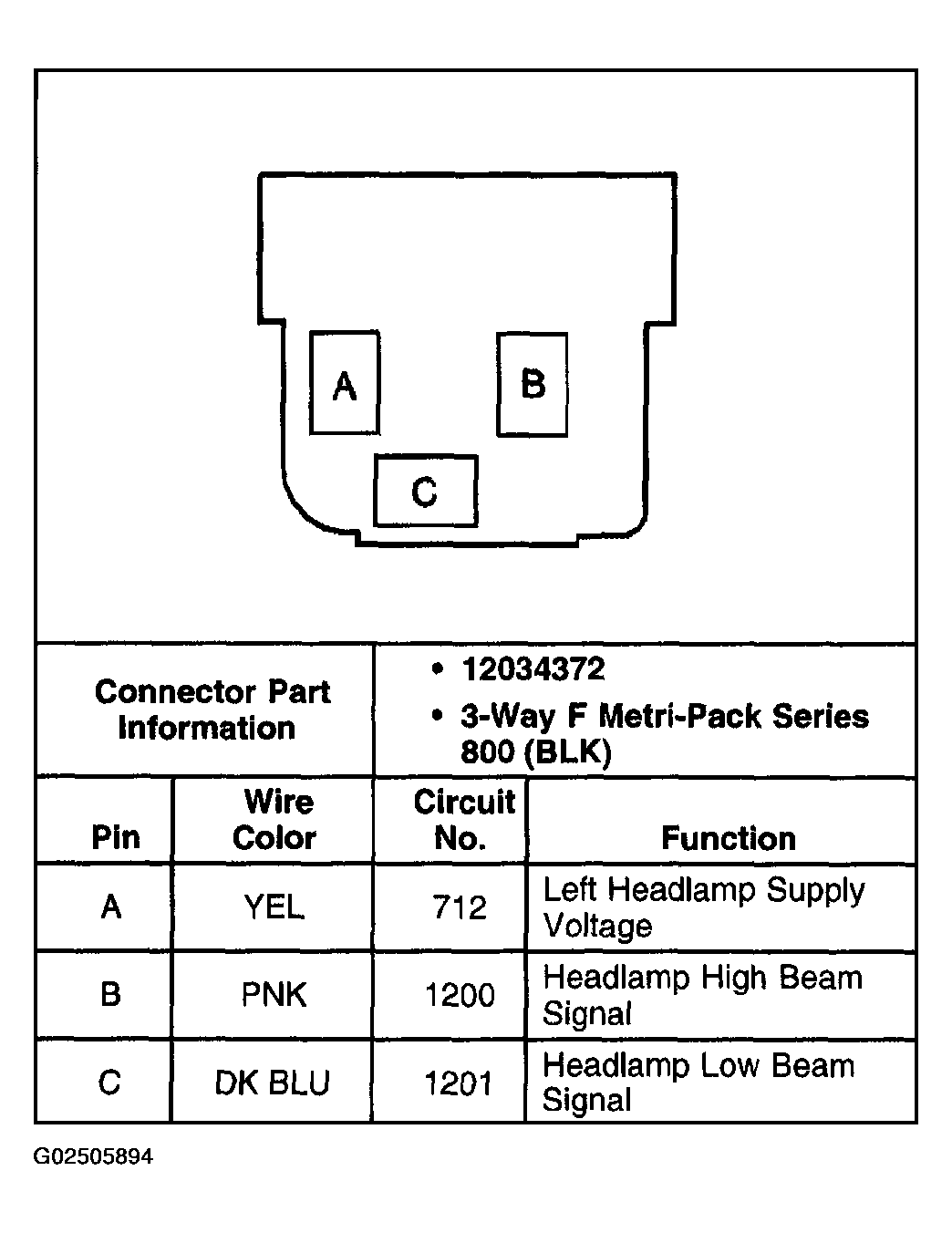

Fig 11: Identifying Headlamp - LH Connector Terminals
Courtesy of GENERAL MOTORS CORP.

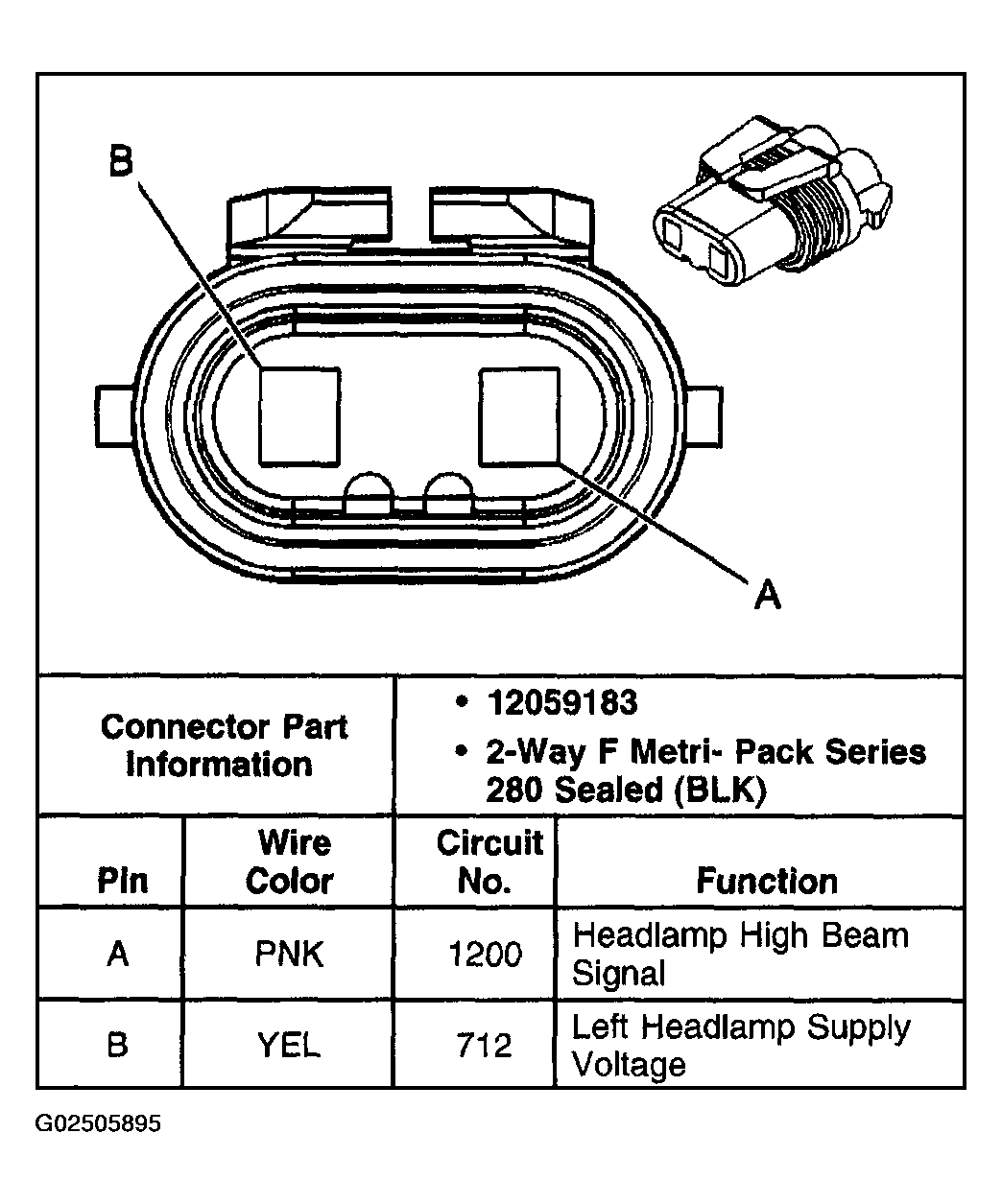

Fig 12: Identifying Headlamp - High Beam - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.

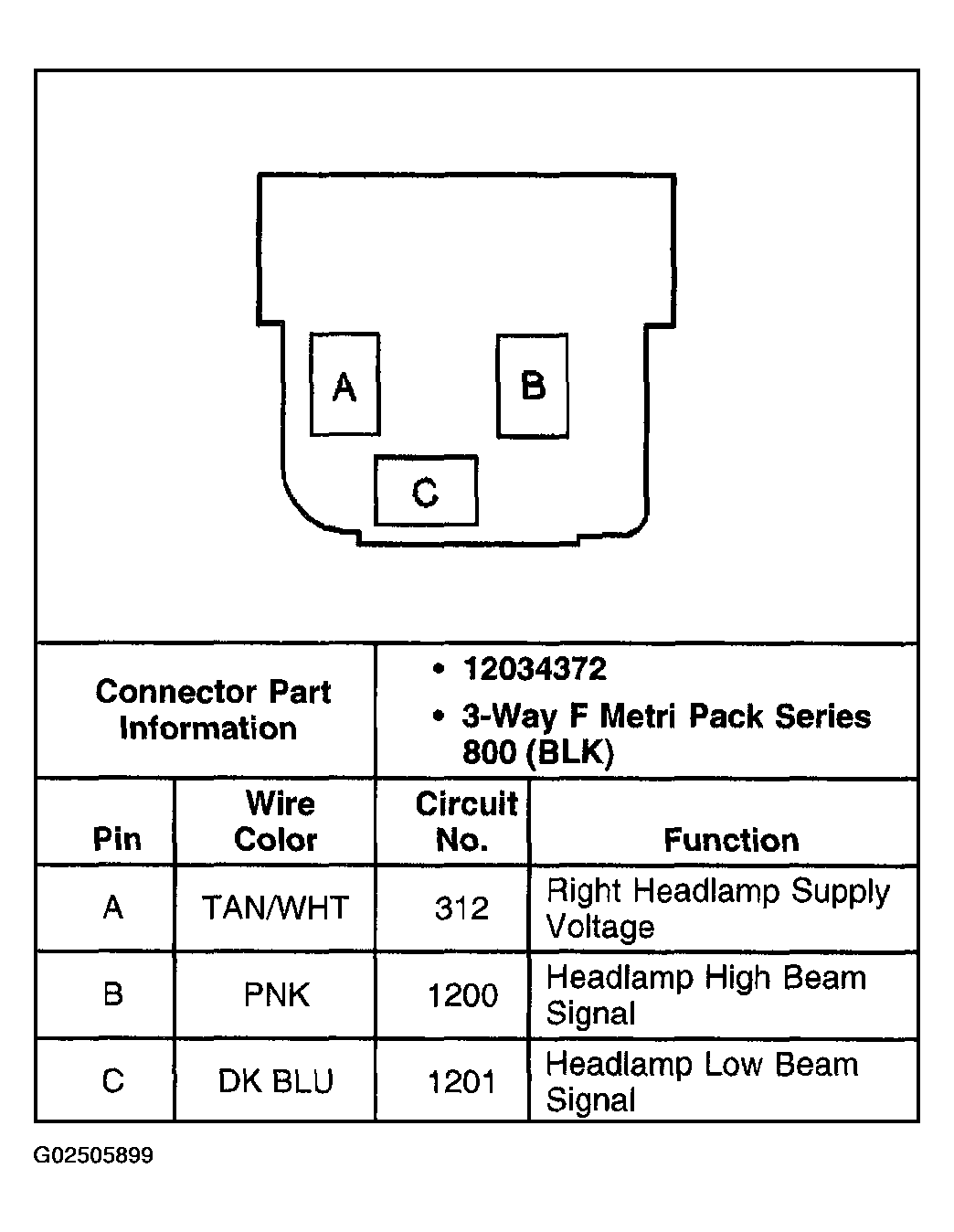

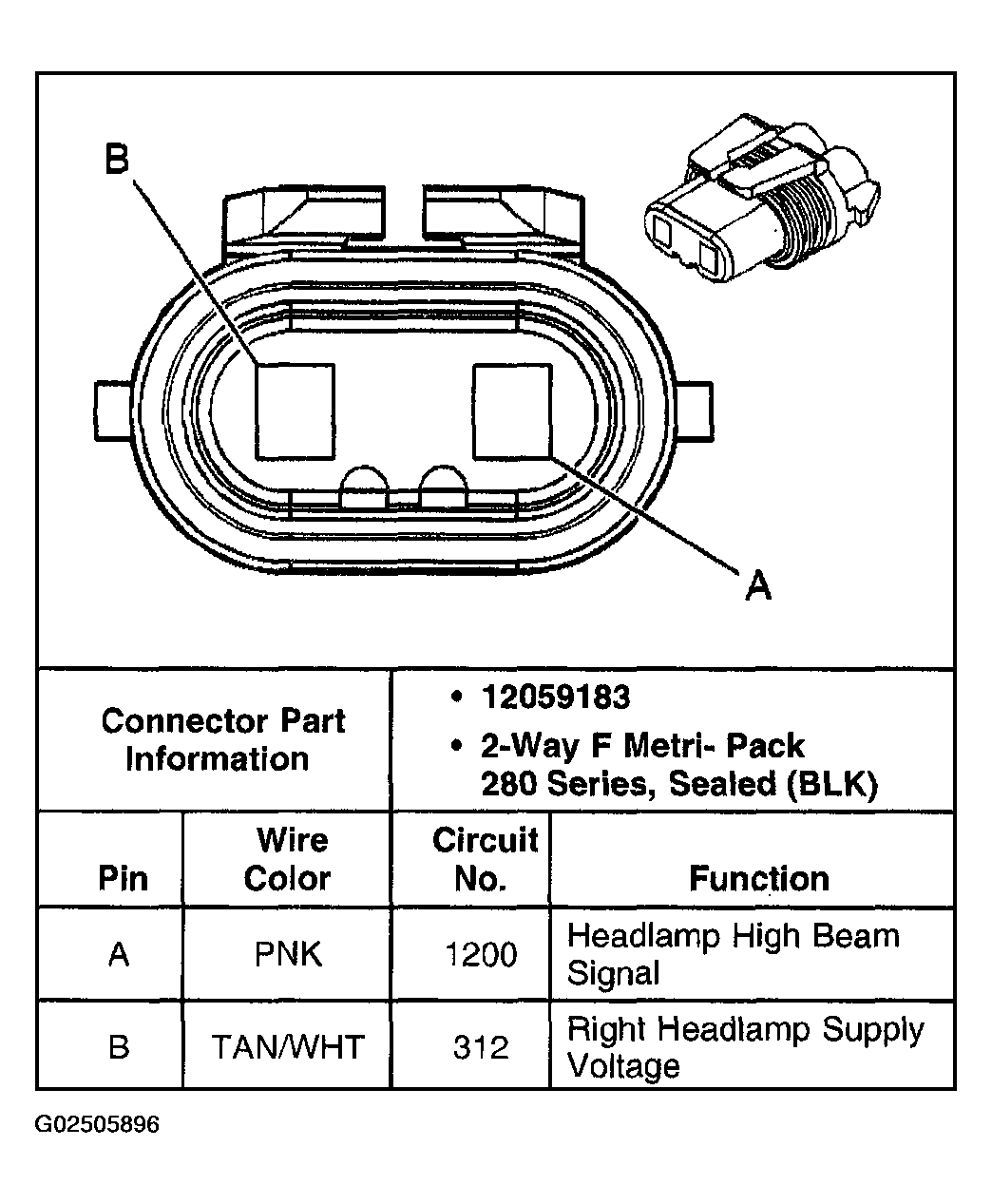

Fig 13: Identifying Headlamp - High Beam - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.

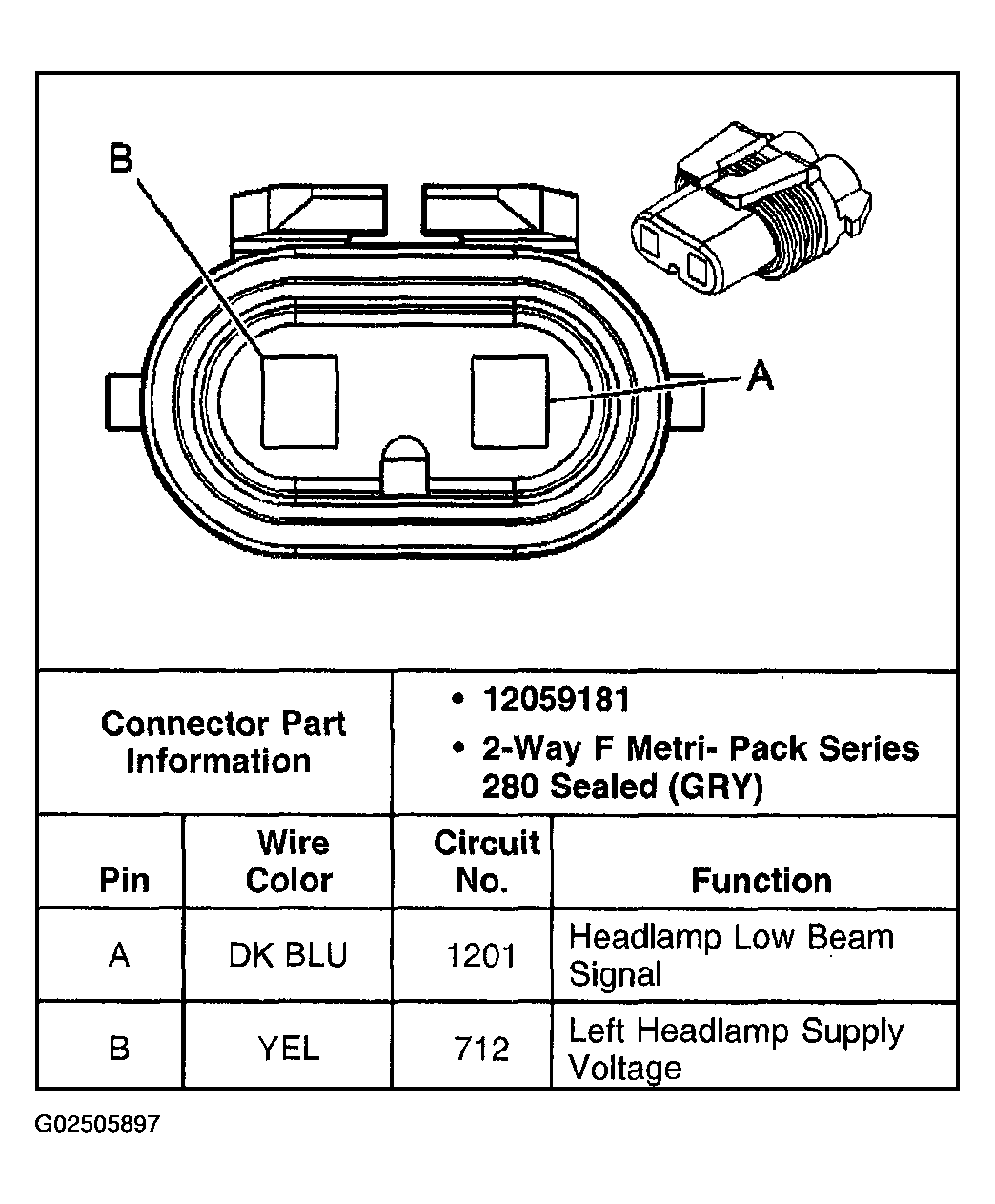

Fig 14: Identifying Headlamp - Low Beam - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.

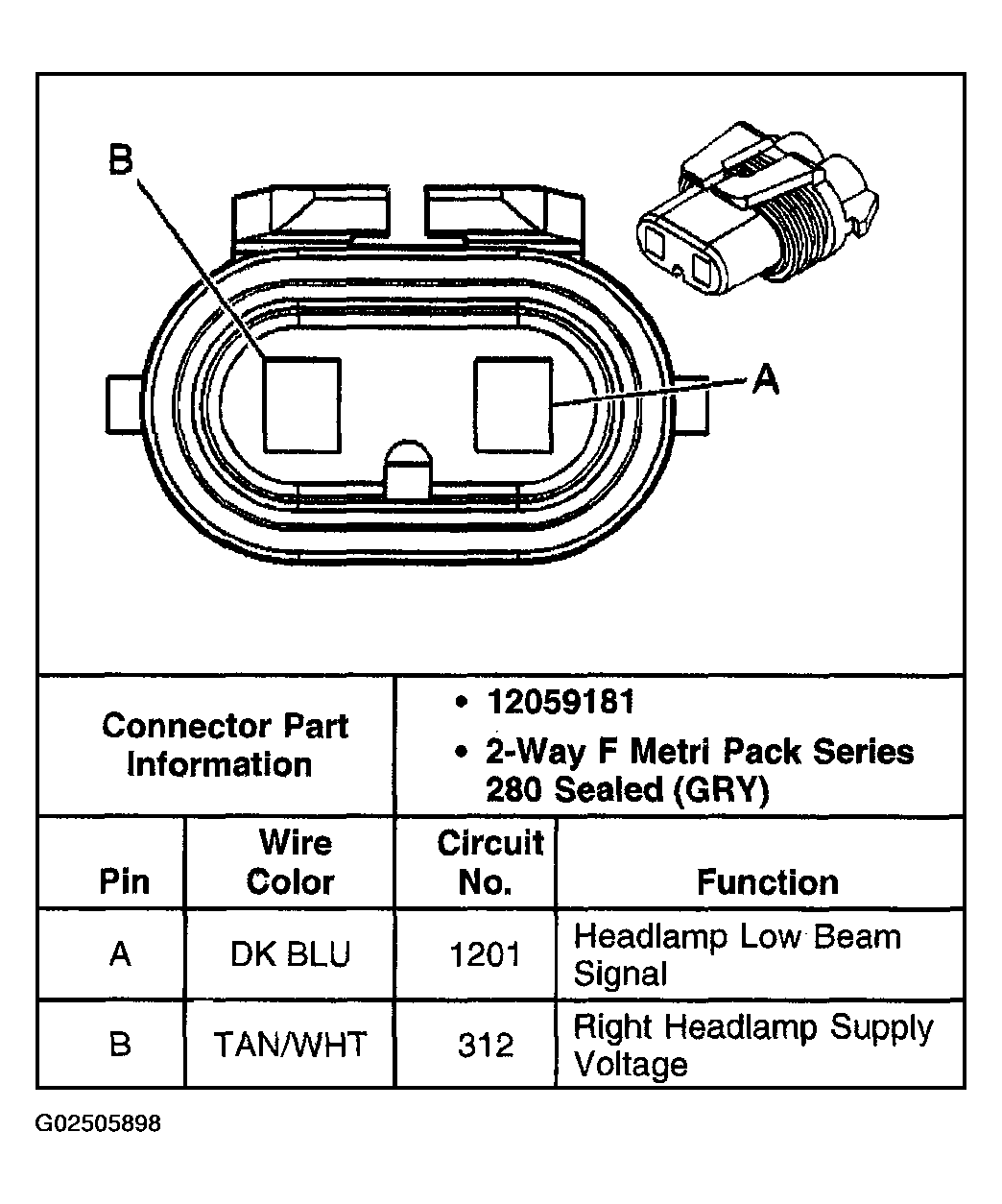

Fig 15: Identifying Headlamp - Low Beam - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Headlamp - RH Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Headlamp and Panel Dimmer Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

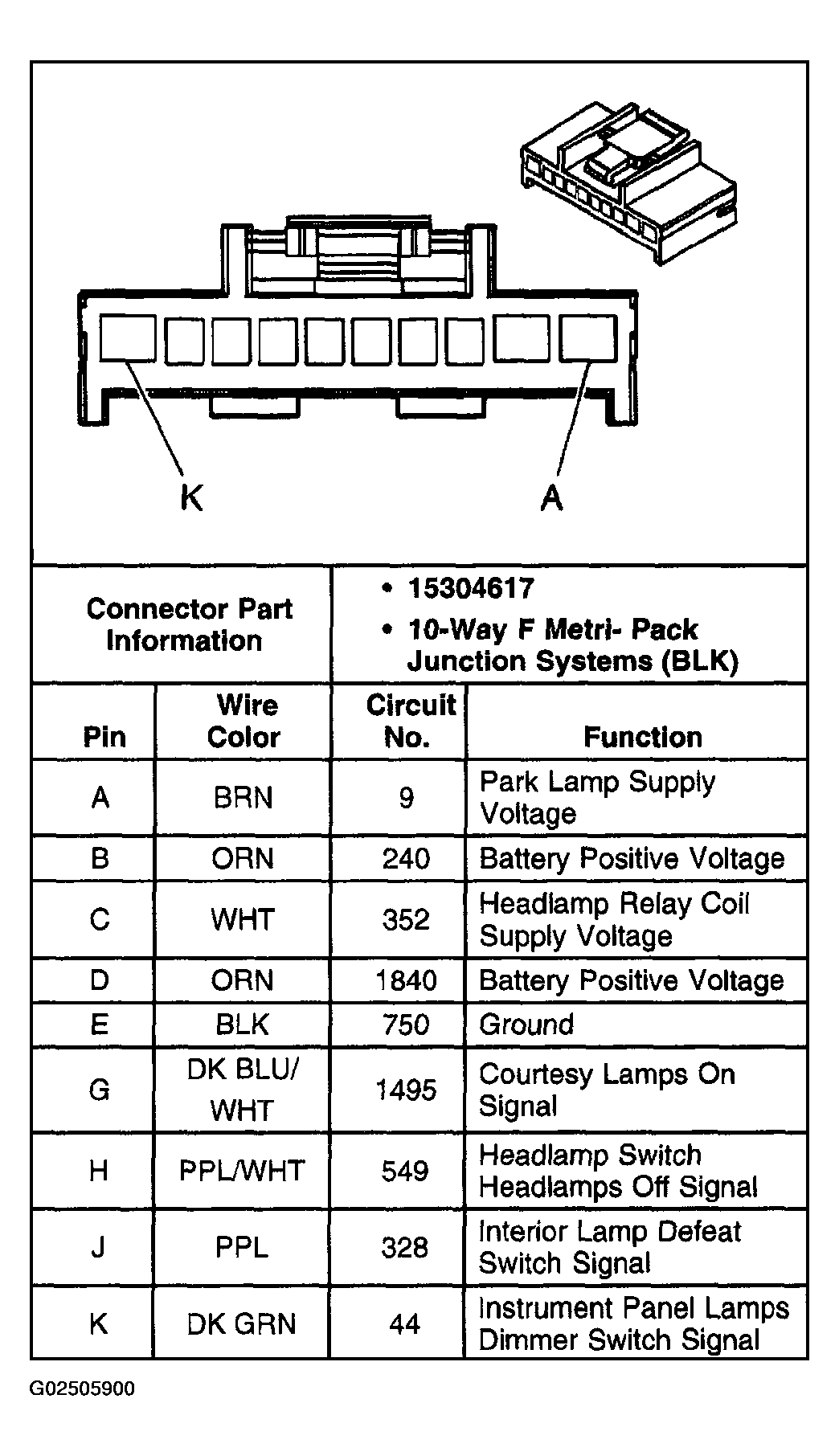

Fig 18: Identifying I/P Compartment Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying License Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

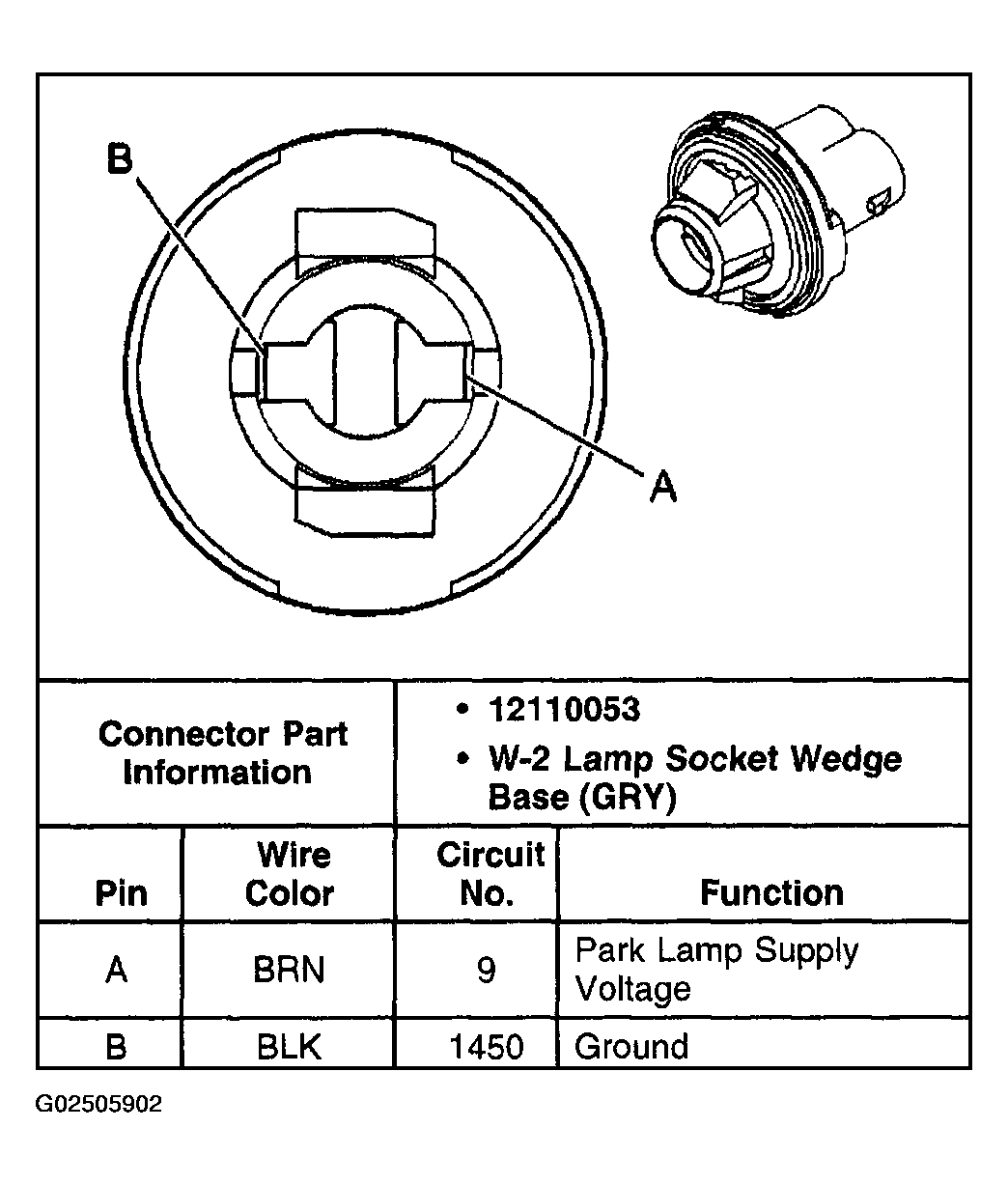

Fig 20: Identifying Marker Lamp - LF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Marker Lamp - LR Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Marker Lamp - RF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Marker Lamp - RR Connector Terminals
Courtesy of GENERAL MOTORS CORP.

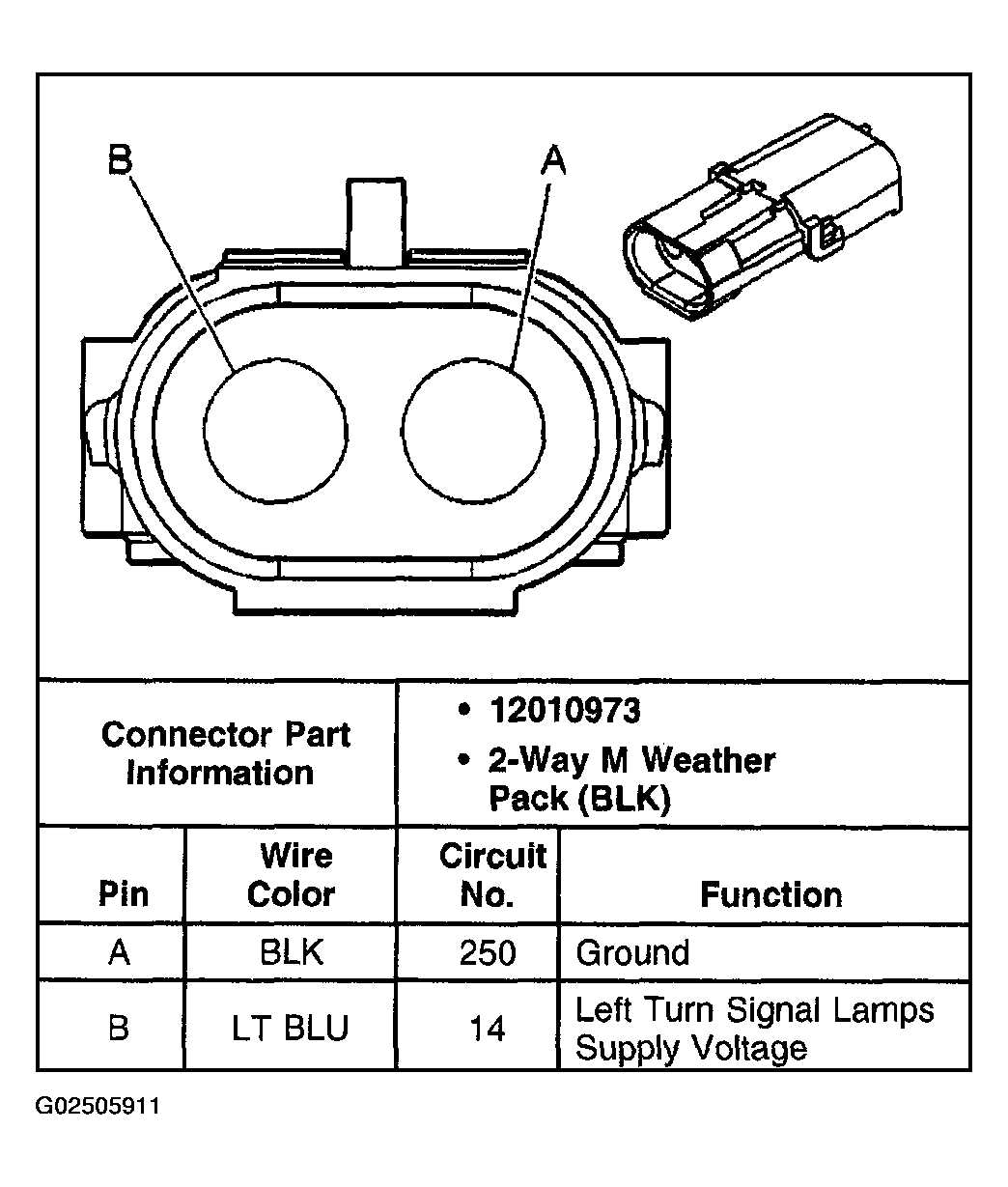

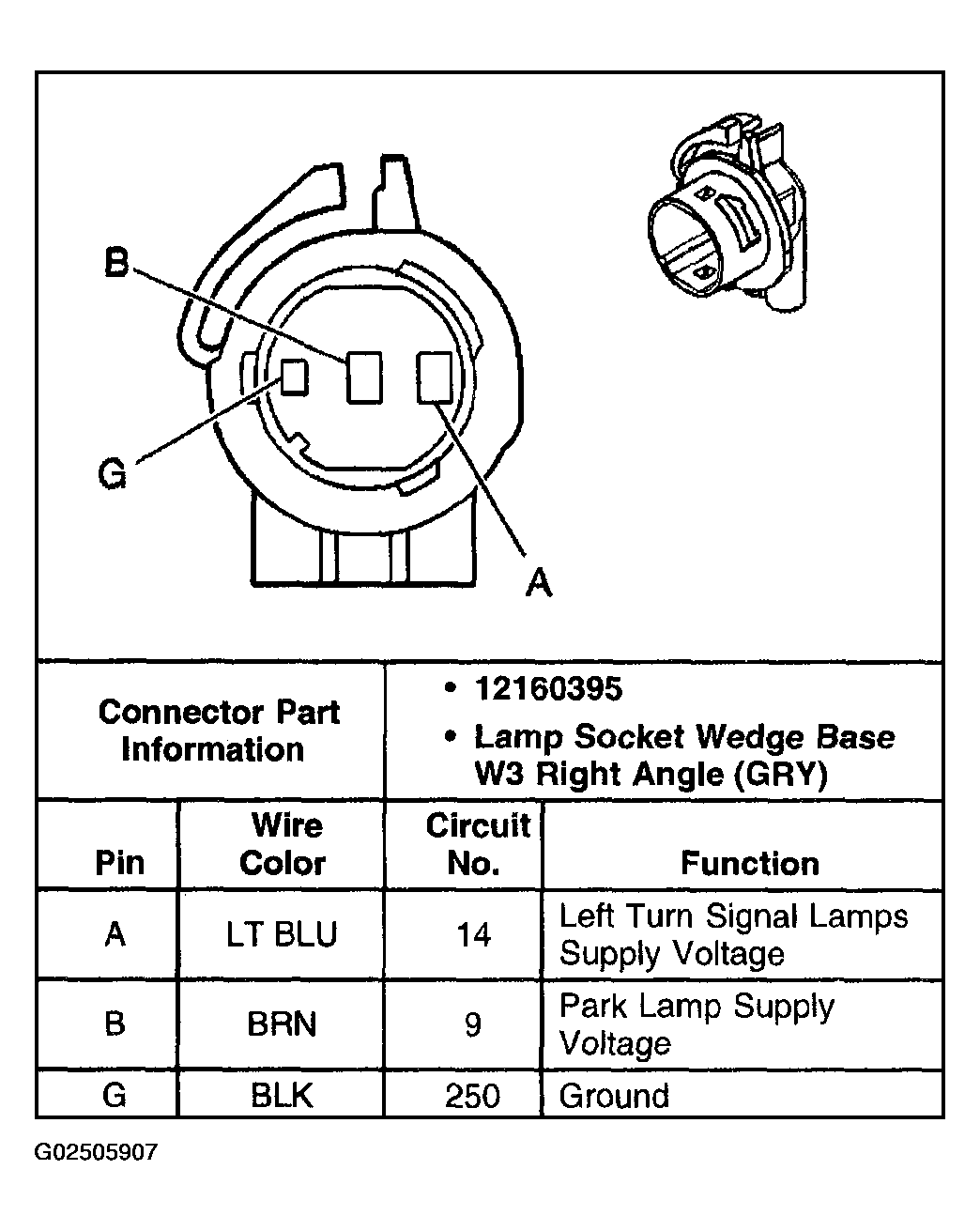

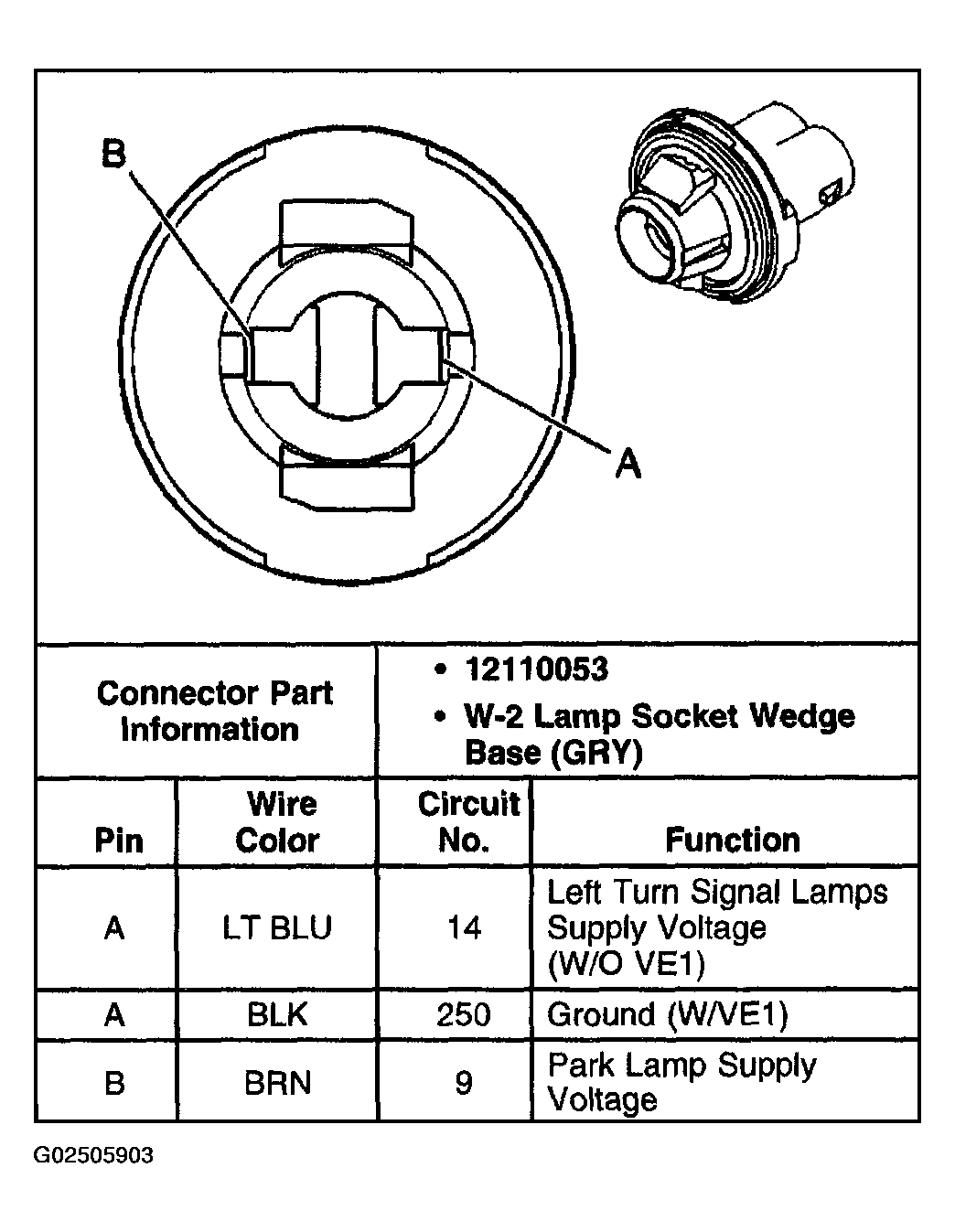

Fig 24: Identifying Park/Turn Signal Lamp - LF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Park/Turn Signal Lamp - LF - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.

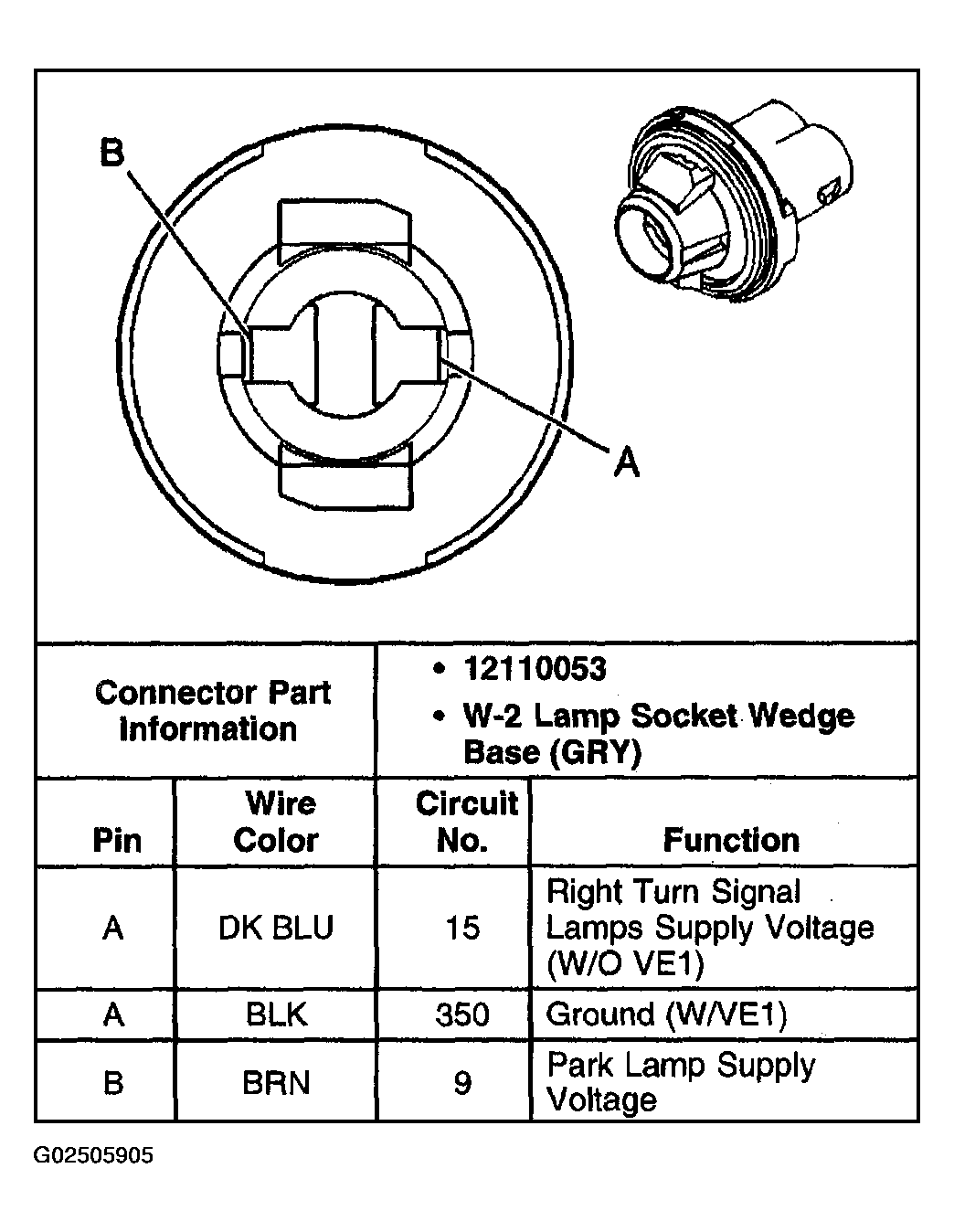

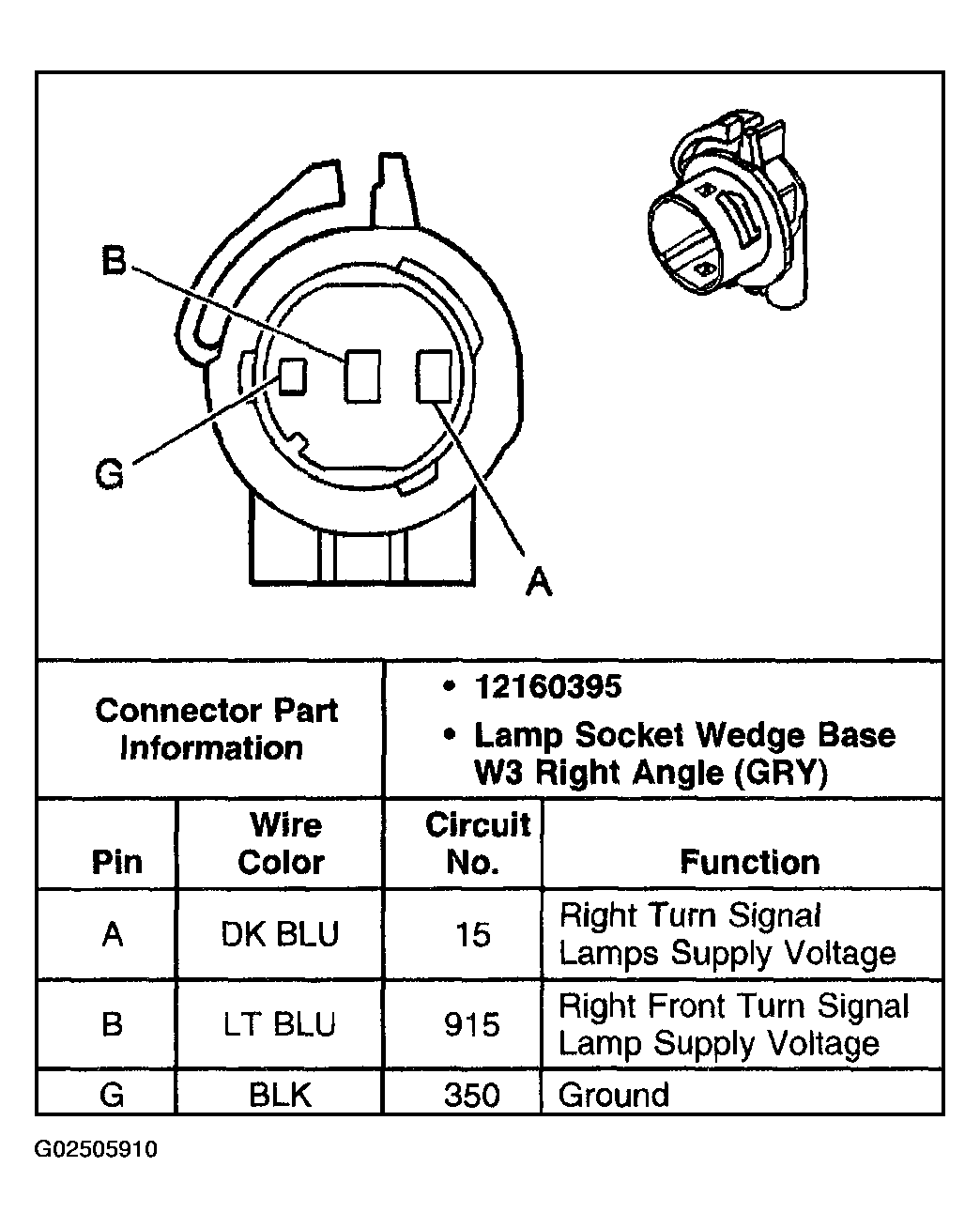

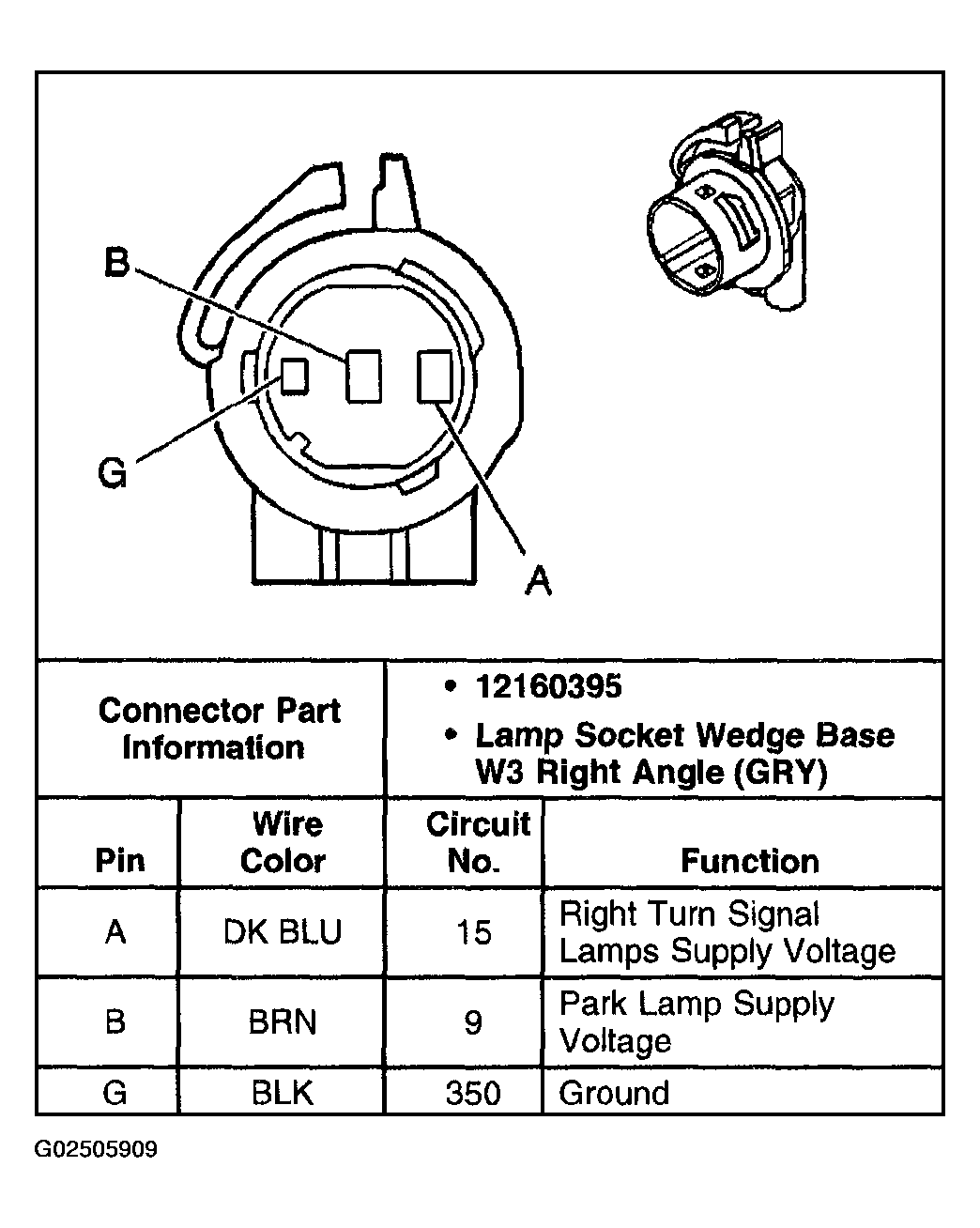

Fig 26: Identifying Park/Turn Signal Lamp - RF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying Park/Turn Signal Lamp - RF - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Repeater Lamp - Left - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.

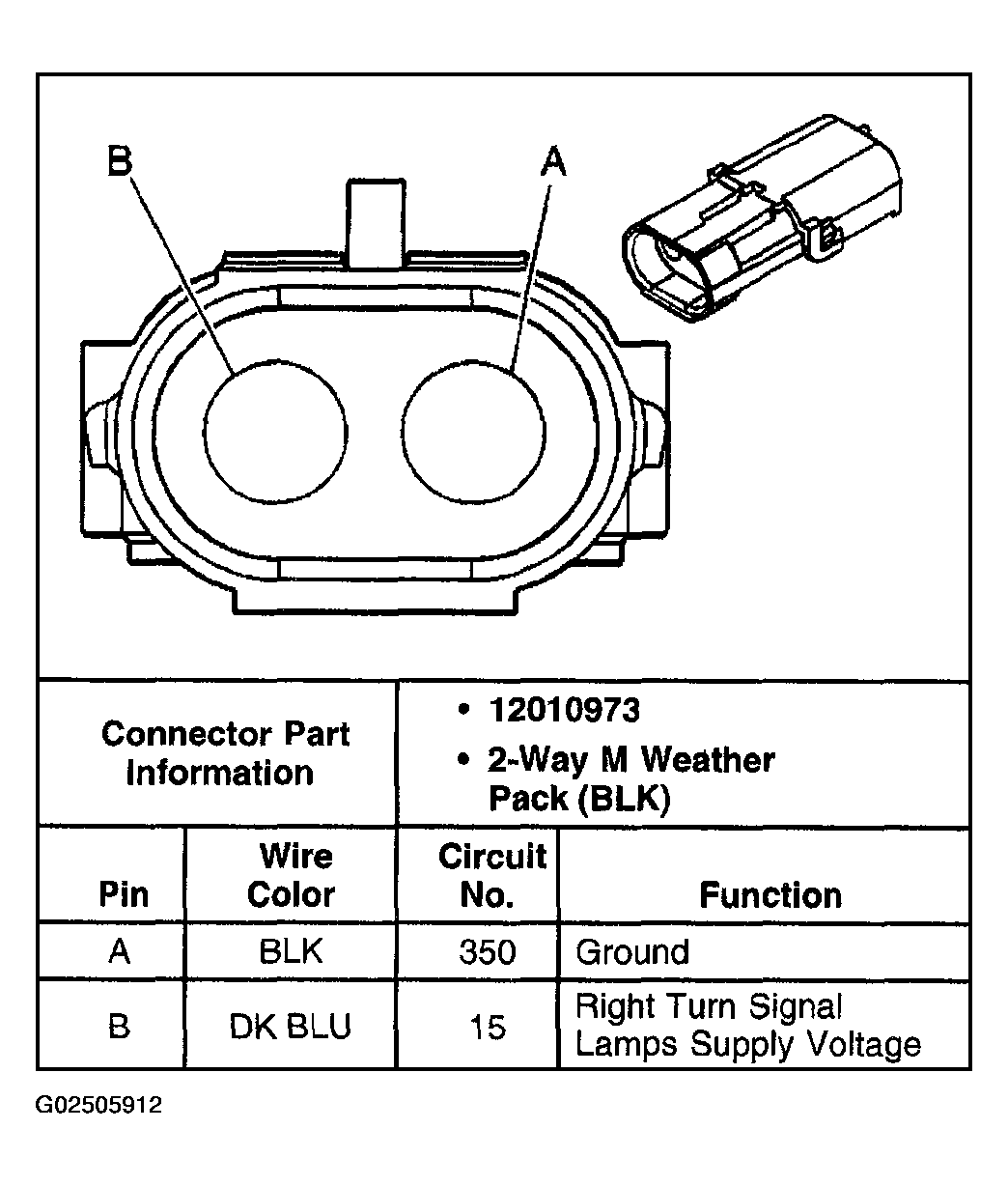

Fig 29: Identifying Repeater Lamp - Right - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Stepwell Lamp Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.

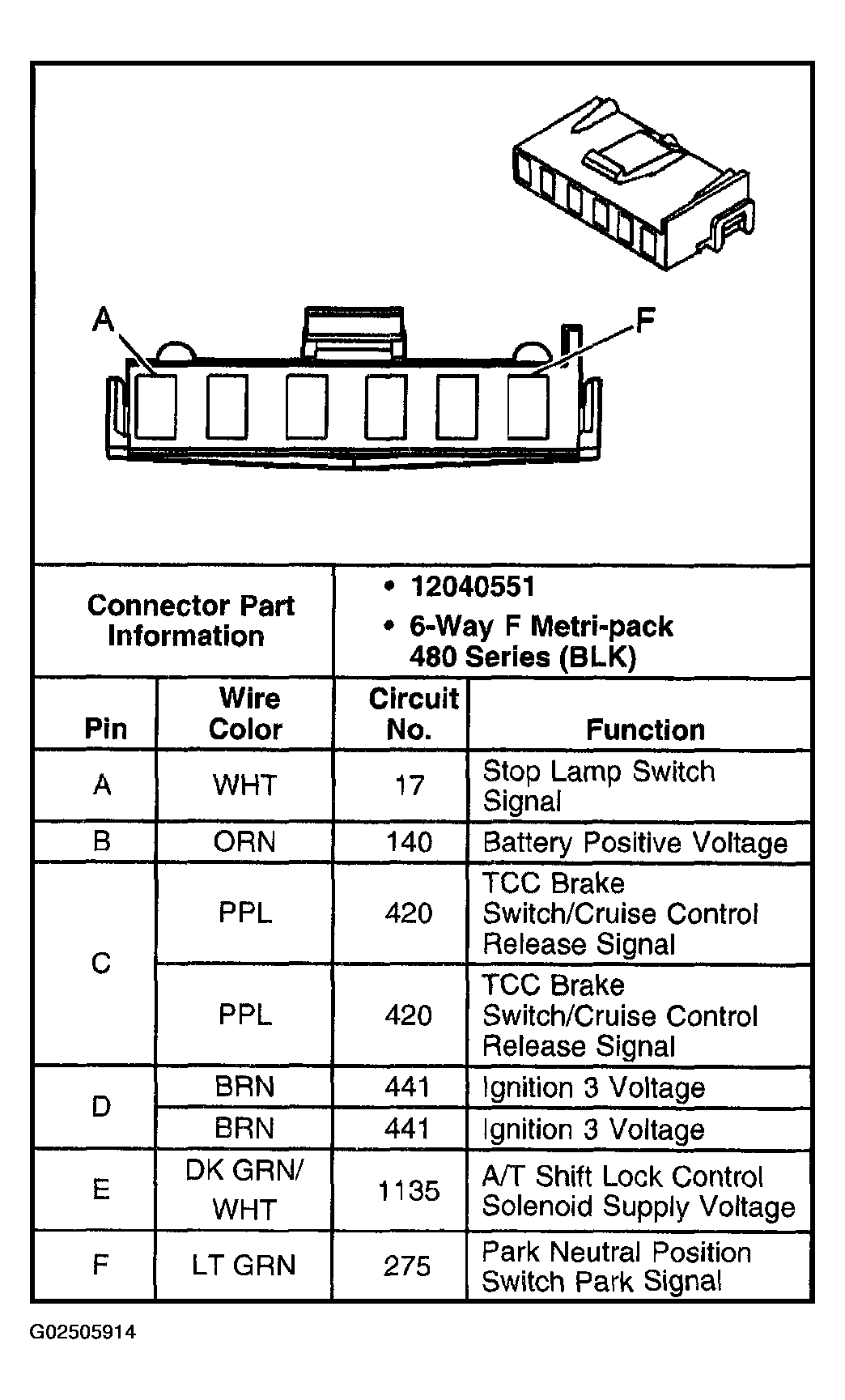

Fig 31: Identifying Stop Lamp Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

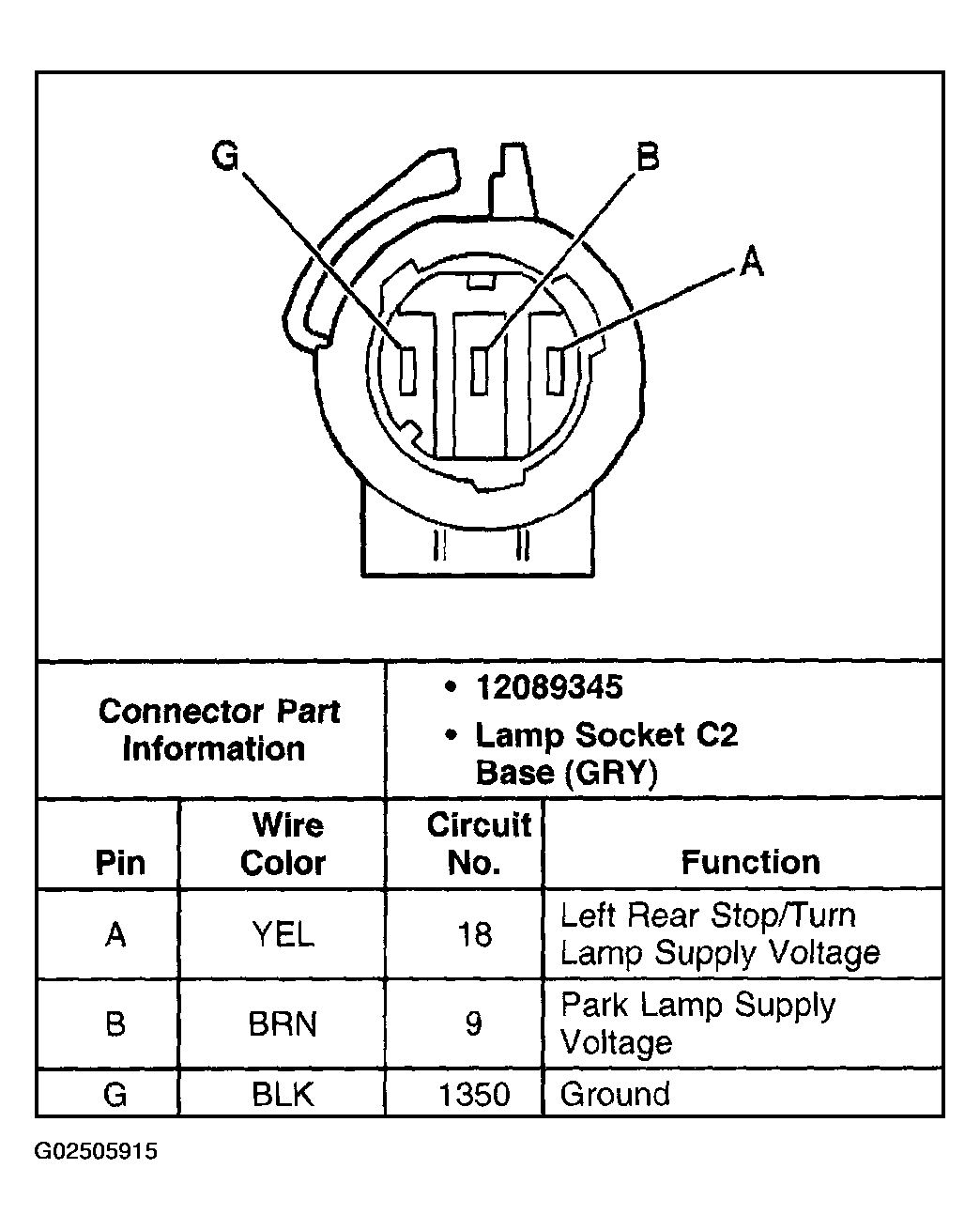

Fig 32: Identifying Tail/Stop and Turn Signal Lamp - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.

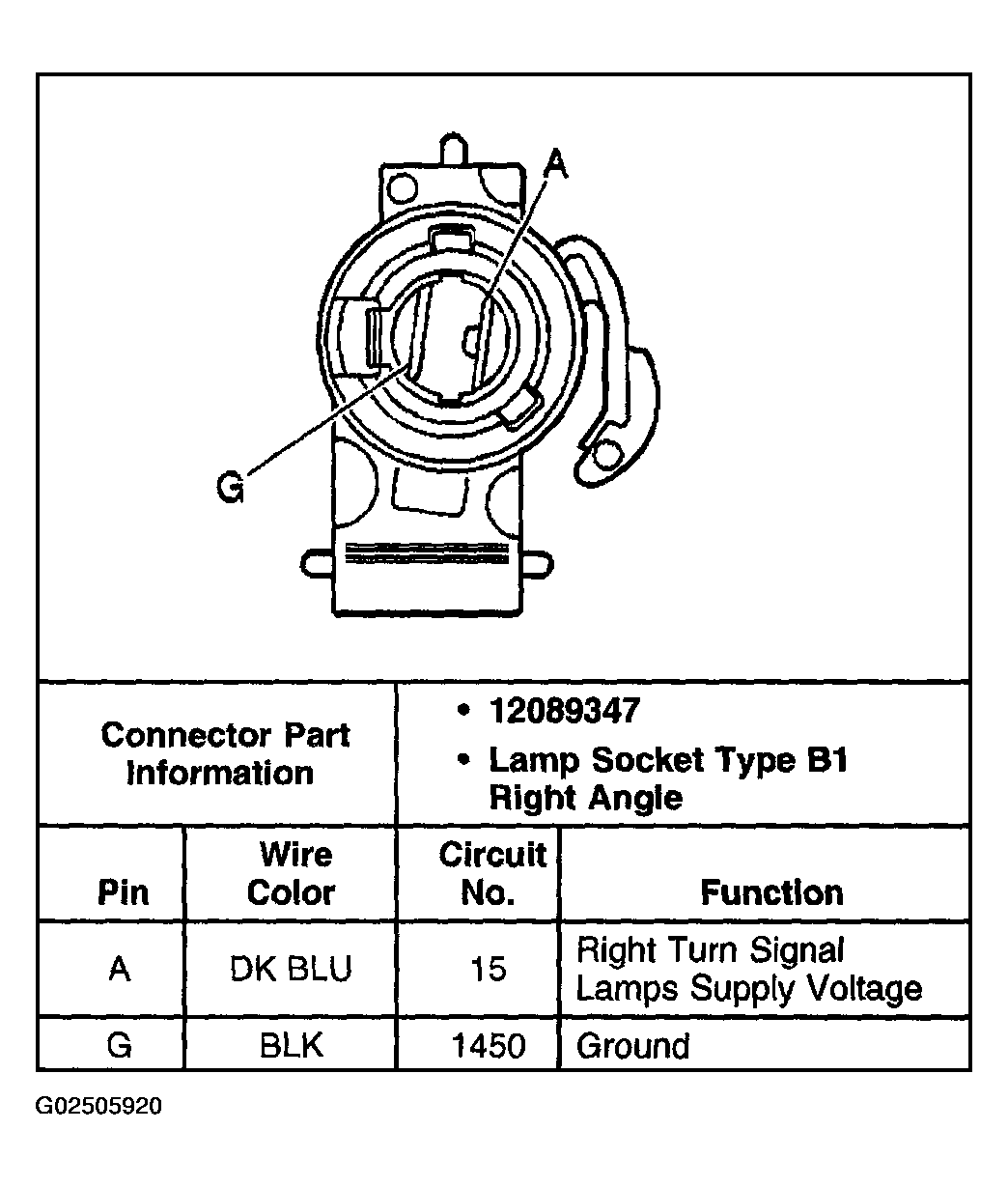

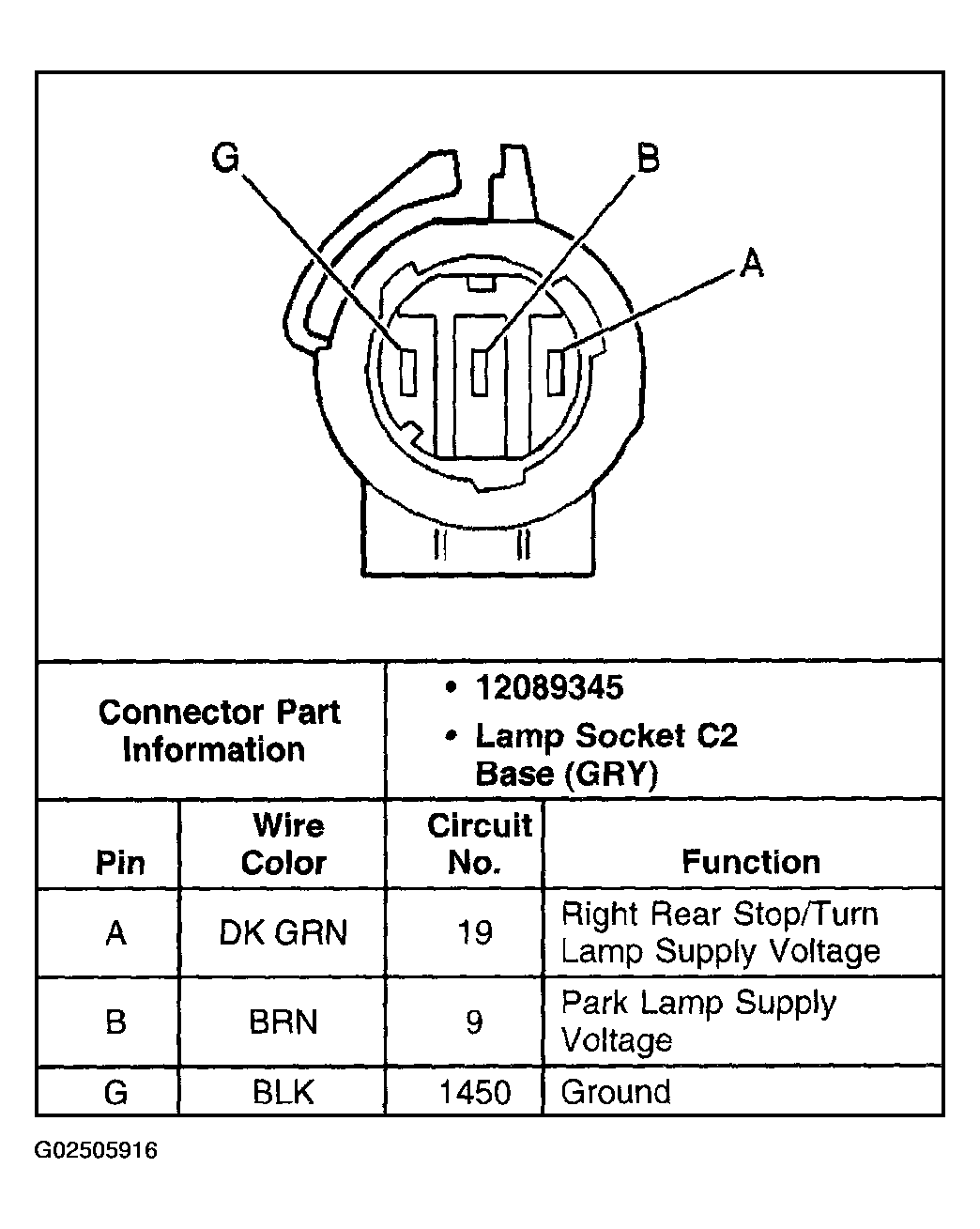

Fig 33: Identifying Tail/Stop and Turn Signal Lamp - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.

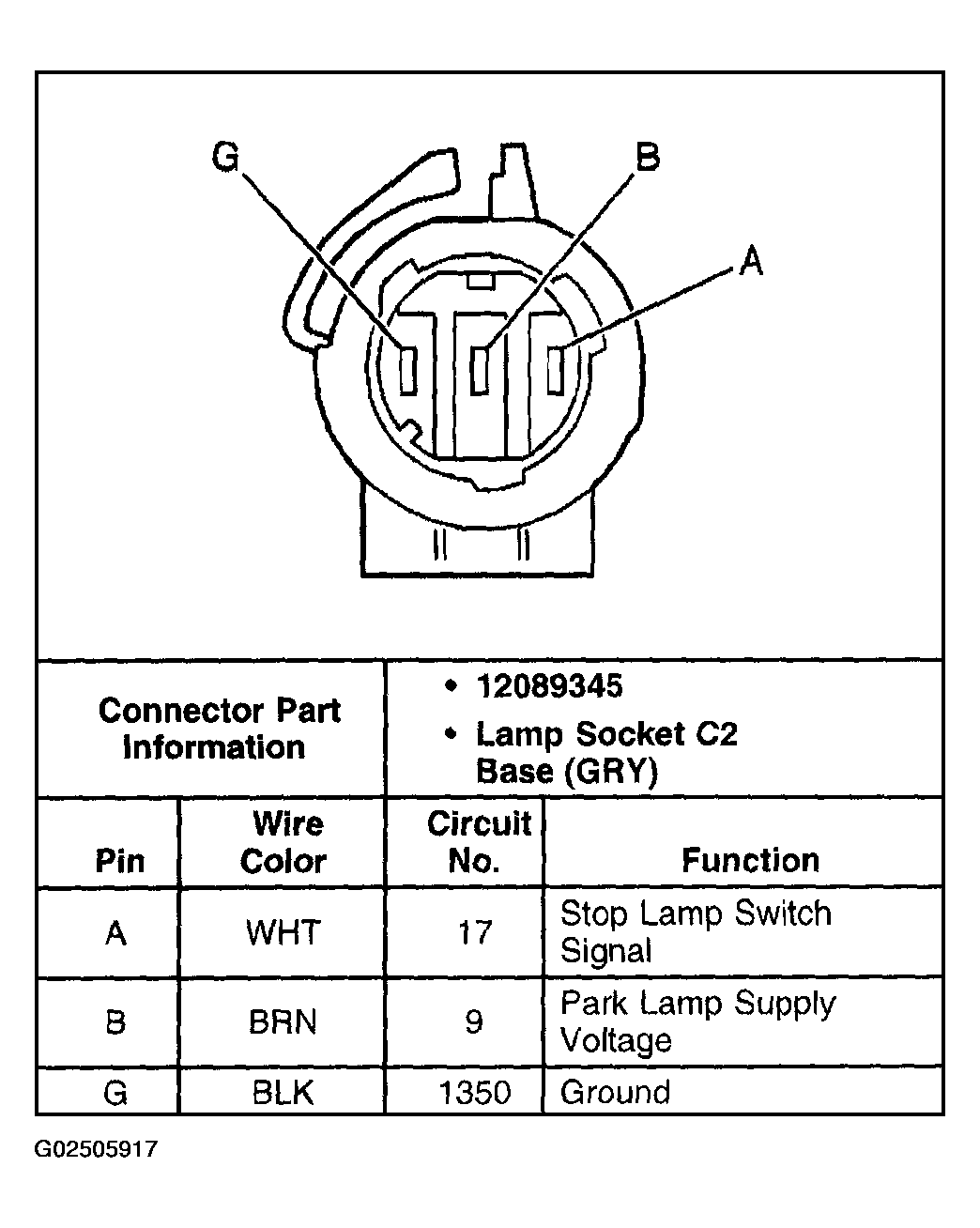

Fig 34: Identifying Tail/Stop Lamp - Left - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Tail/Stop Lamp - Right - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.

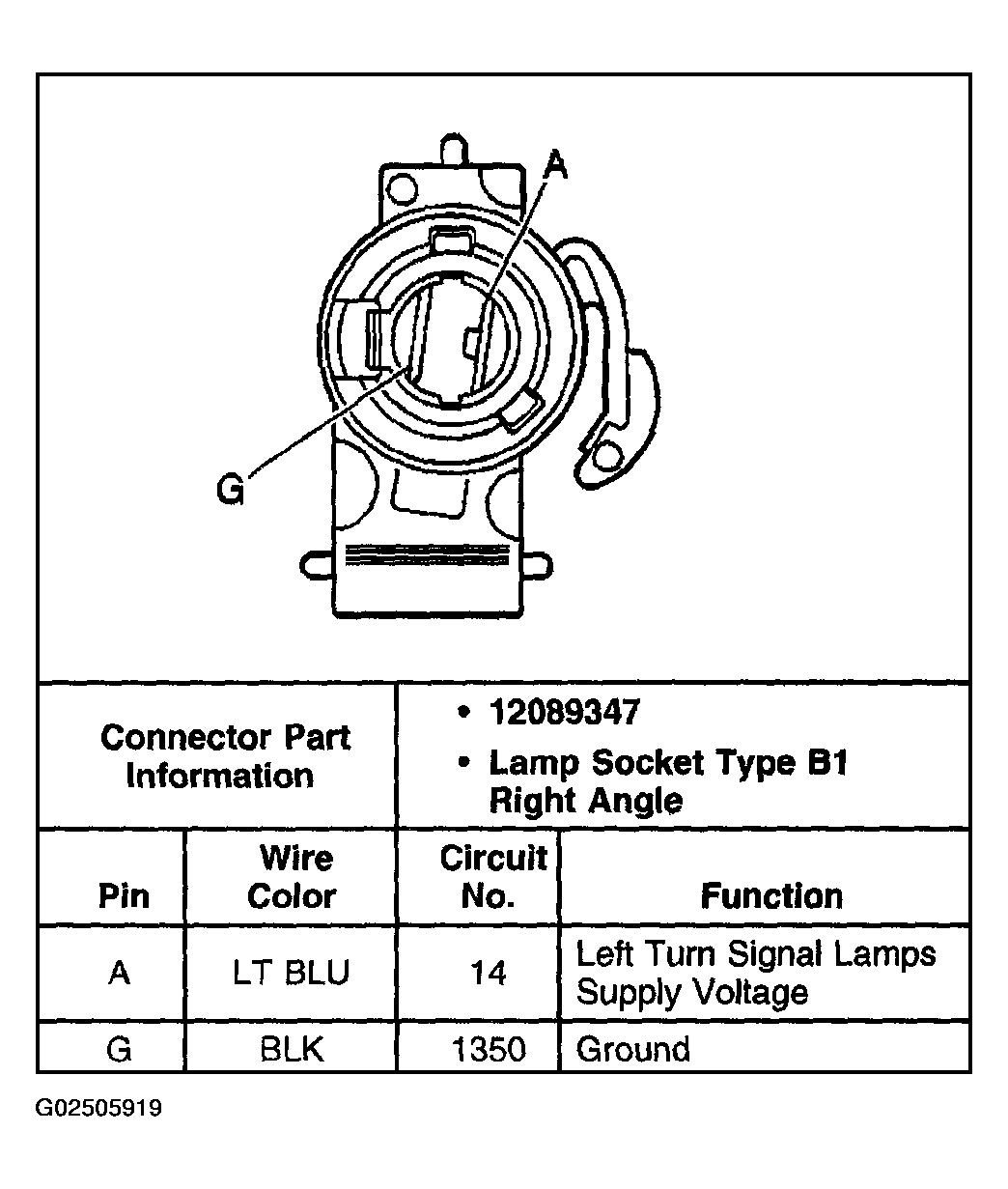

Fig 36: Identifying Turn Signal Lamp - LR - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying Turn Signal Lamp - RR - Export Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 38: Identifying Vanity Mirror Lamp - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 39: Identifying Vanity Mirror Lamp - Right Connector Terminals
Courtesy of GENERAL MOTORS CORP.
