C2

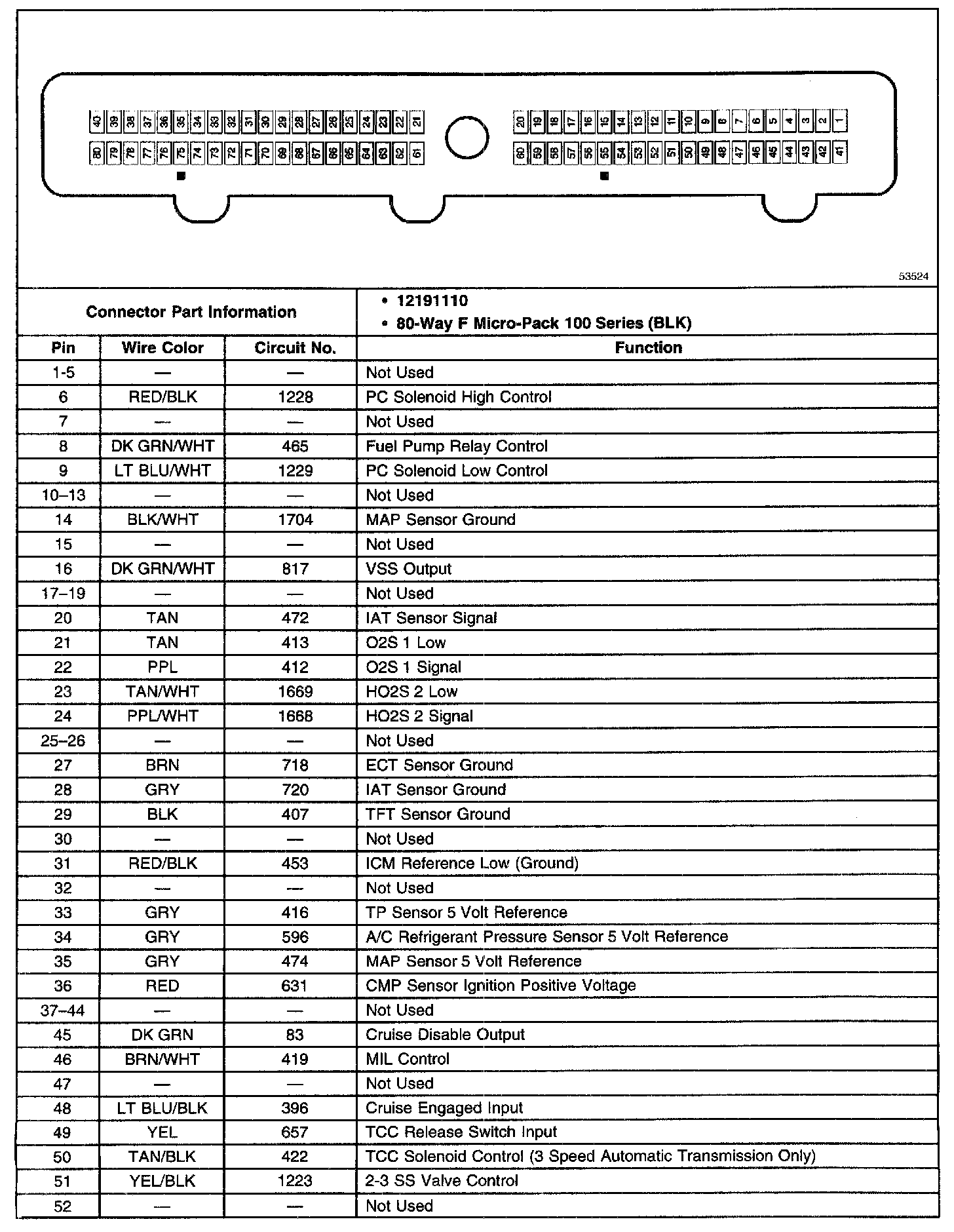

Powertrain Control Module (PCM) Connector C2 (Part 1 Of 2):

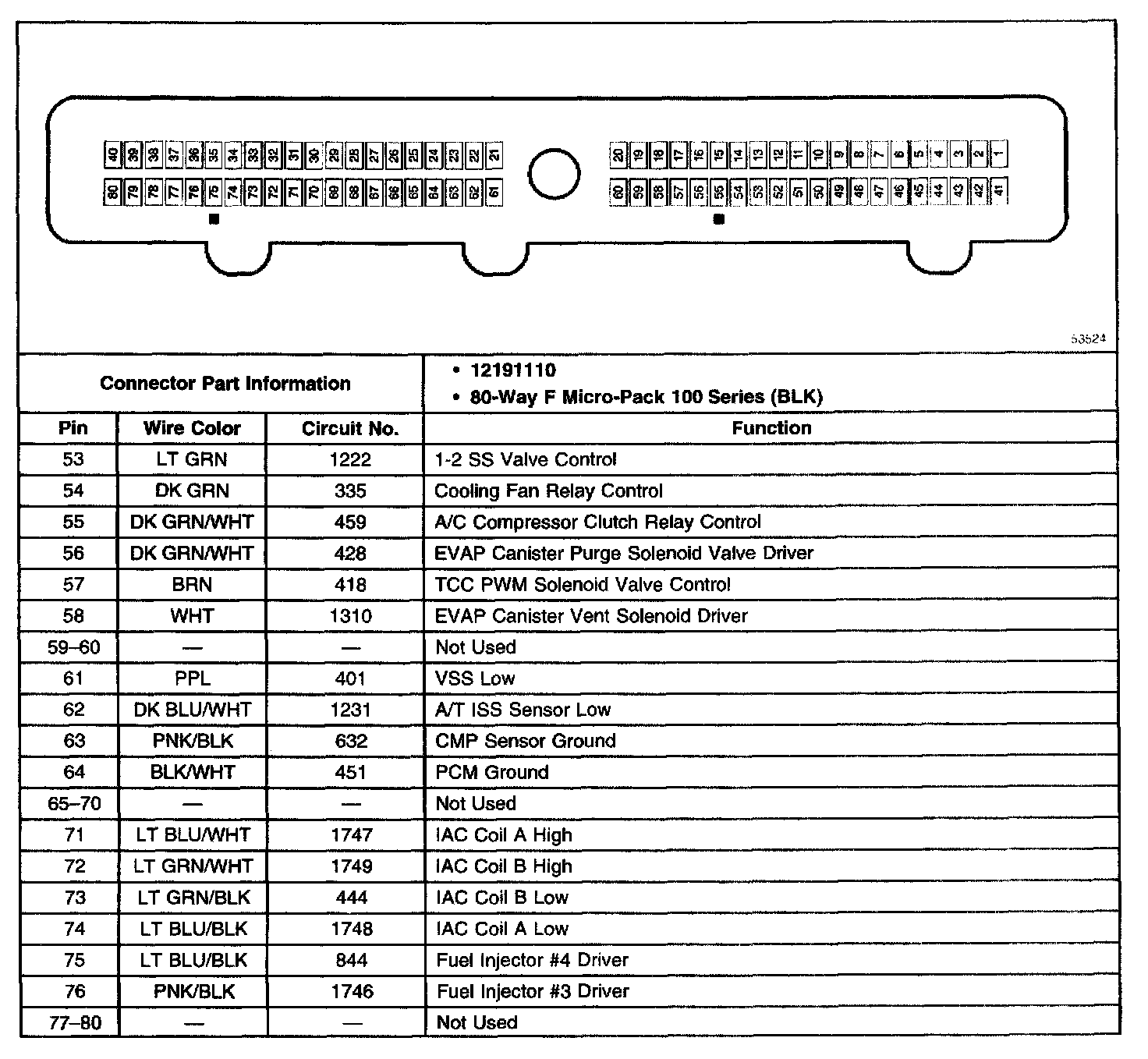

Powertrain Control Module (PCM) Connector C2 (Part 2 Of 2):
