Body Control Module: Service and Repair

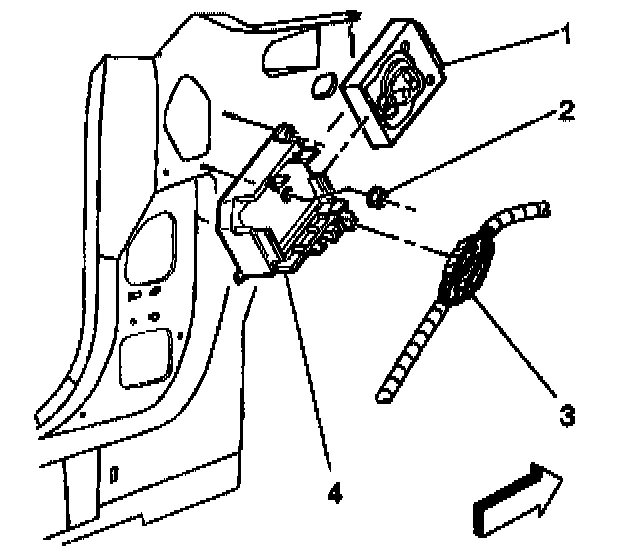

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Release the BCM wire harness retainer (3) from the BCM Bracket (4).
3. Remove the BCM (1) from the BCM bracket (4).

INSTALLATION PROCEDURE
1. Install the BCM (1) to the BCM bracket (4).
2. Install the BCM wire harness retainer (3) to the BCM bracket (4).

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

3. Connect the negative battery cable.
4. Use the Tech 2 Scan Tool to reprogram the new BCM. Programming and Relearning
