Electronic Column Lock Module - Assemble - Off Vehicle (Non-Telescoping Column)

Install the electric column lock to the steering column tilt head assembly.
CAUTION: Refer to FASTENER NOTICE .
Install the 2 pan head tapping screws.
Tighten

Tighten the screws to 7 N.m (62 lb in).

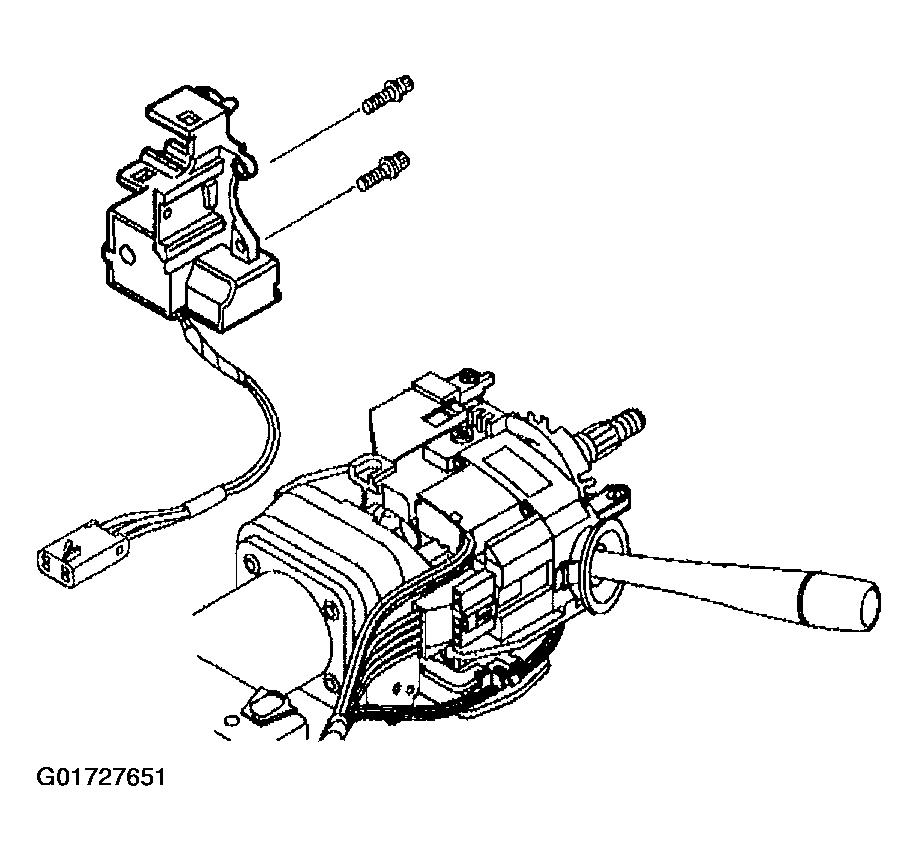

Fig 1: Installing Electric Column Lock Module Screws
Courtesy of GENERAL MOTORS CORP.
Slide the windshield wiper and washer switch assembly into the electric column lock until the clips engage.
Connect the electric lock module connector.

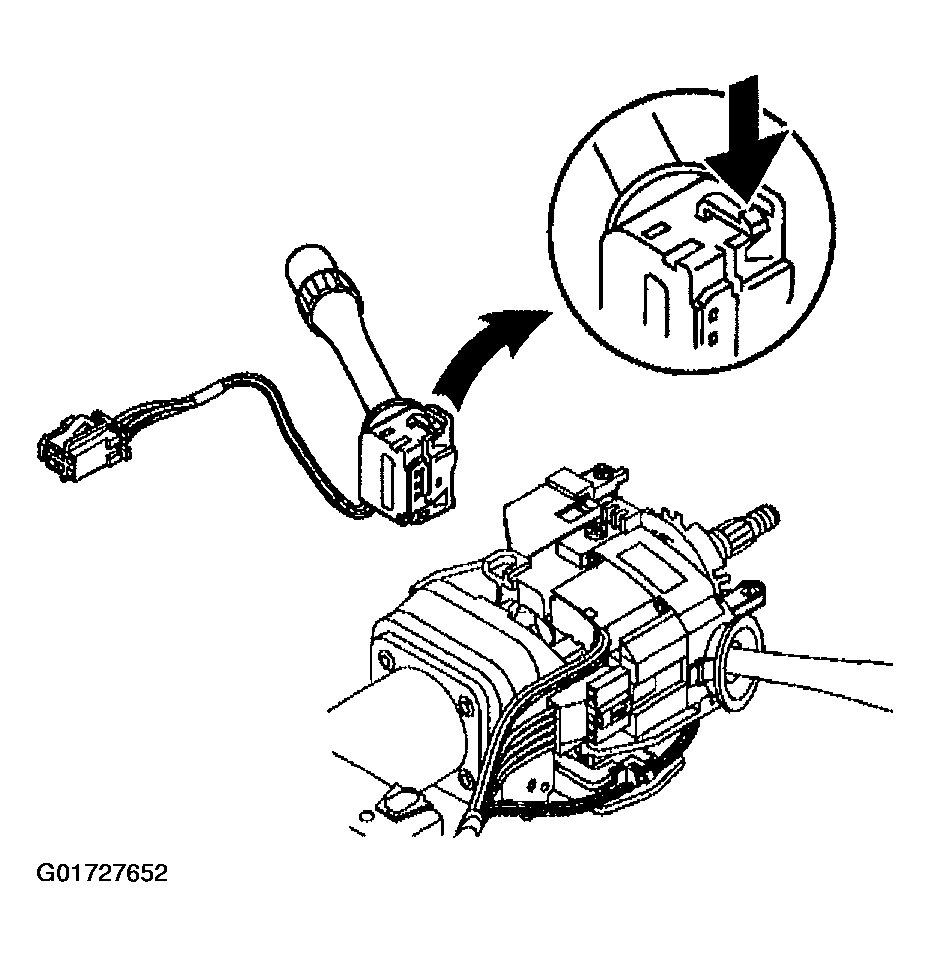

Fig 2: Locating Windshield Wiper & Washer Switch Assembly Clips
Courtesy of GENERAL MOTORS CORP.

WARNING: Refer to DISABLING SYSTEM .
Route the wire harness assembly along the steering column jacket assembly.
Connect the connector, if necessary.

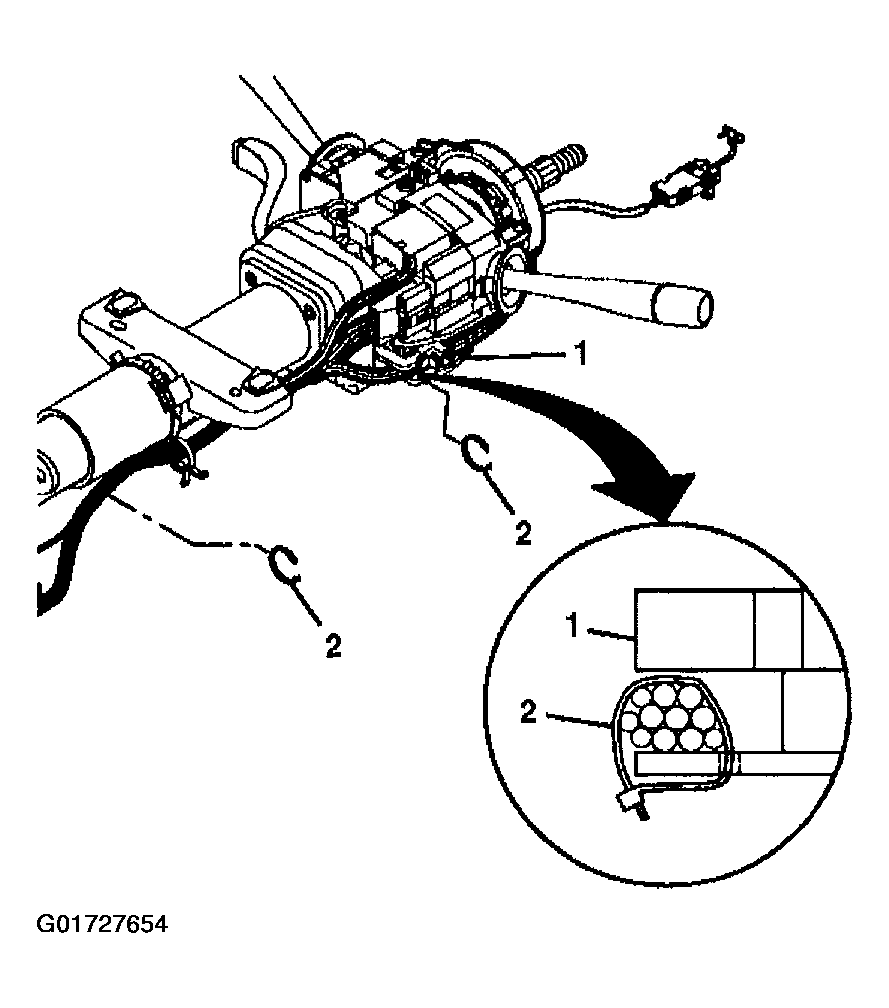

Fig 3: Aligning Steering Column Wiring Harness
Courtesy of GENERAL MOTORS CORP.
Install the wire harness strap (2) to the steering column tilt head assembly (1).
Install the wire harness strap (2) onto the wire harness assembly.

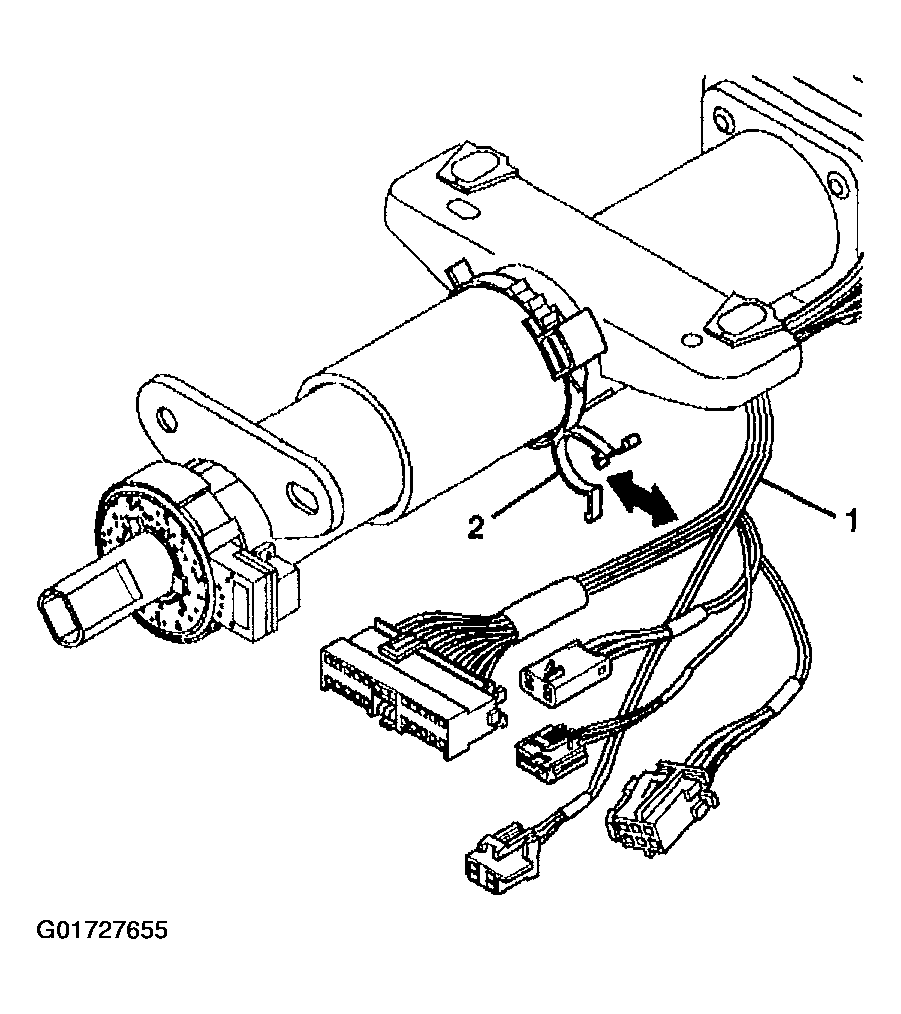

Fig 4: Installing Steering Column Wiring Harness Straps
Courtesy of GENERAL MOTORS CORP.
Pop the wire harness assembly (1) into the wire harness strap (2).
Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle (Telescoping) or Steering Column Tilt Head Housing - Assemble - Off Vehicle (Non- Telescoping) .
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

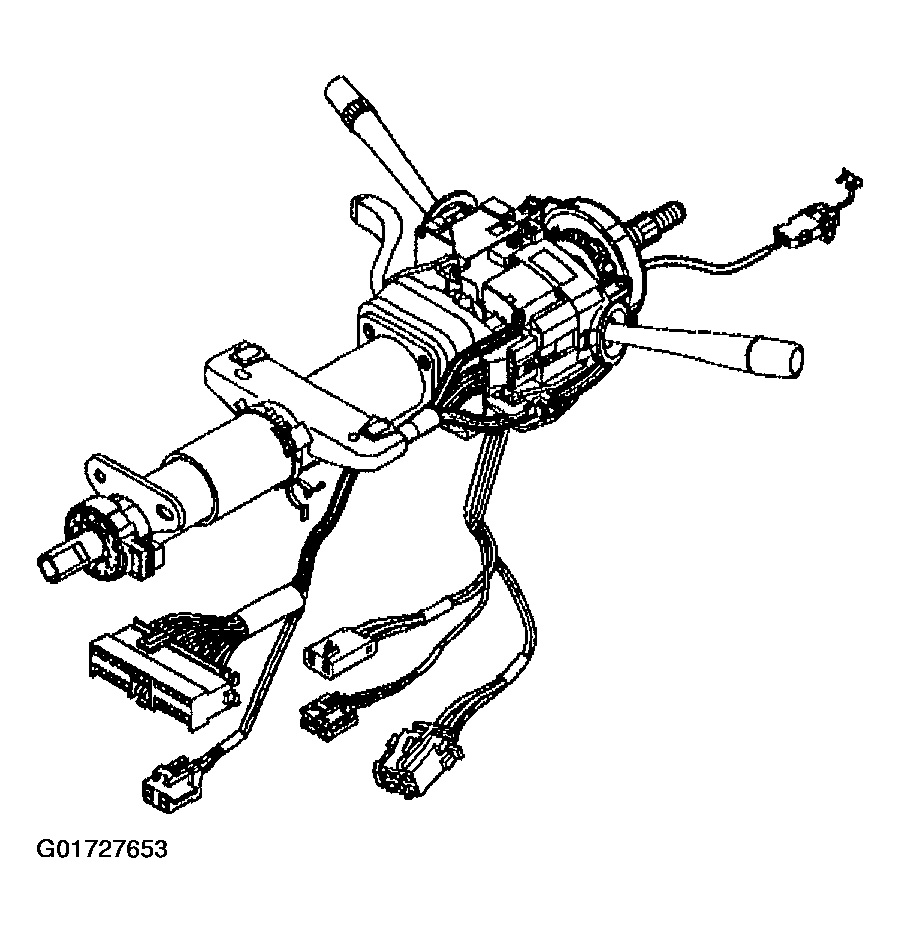

Fig 5: Installing Steering Column Wiring Harness
Courtesy of GENERAL MOTORS CORP.
