Turn Signal & Multifunction Switch Assembly - Assemble - Off Vehicle (Non-Telescoping Column)

Important:  The electrical contact must rest on the turn signal cancel cam assembly.

1. Install the turn signal and multifunction switch assembly (1) to the steering column tilt head assembly.

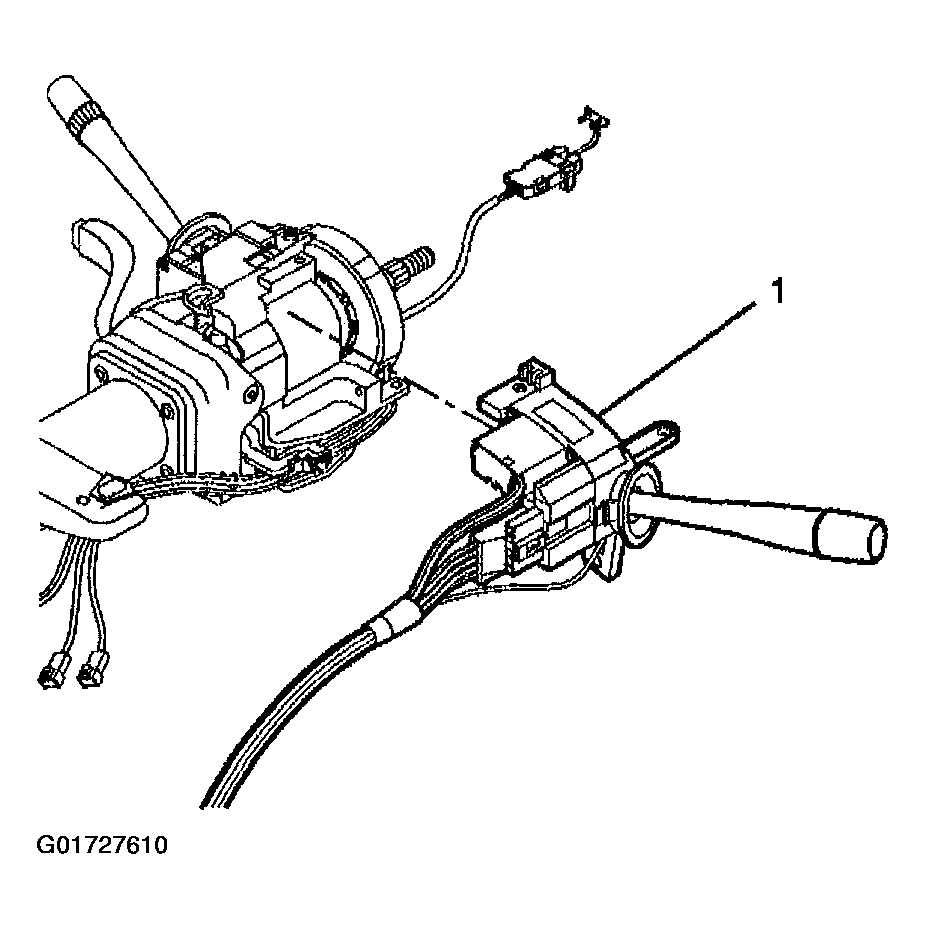

   Fig 1: Installing Turn Signal & Multifunction Switch Assembly

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to FASTENER NOTICE .
2. Install the 2 pan head tapping screws (1).

   Tighten

   Tighten the screws to 7 N.m (62 lb in).

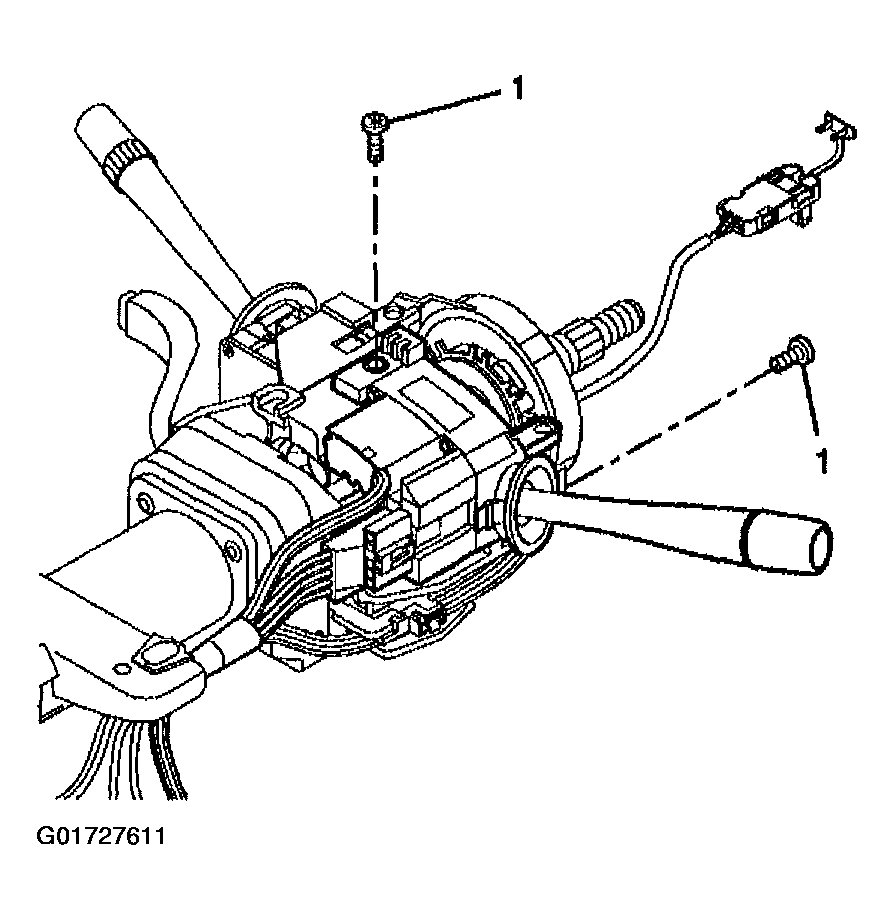

   Fig 2: Installing Turn Signal & Multifunction Switch Assembly Screws

   Courtesy of GENERAL MOTORS CORP.
   WARNING: Refer to SIR INFLATOR MODULE COIL CAUTION .
3. Route the wire harness assembly along the steering column jacket assembly.
4. Connect the turn signal and multifunction switch assembly connector.

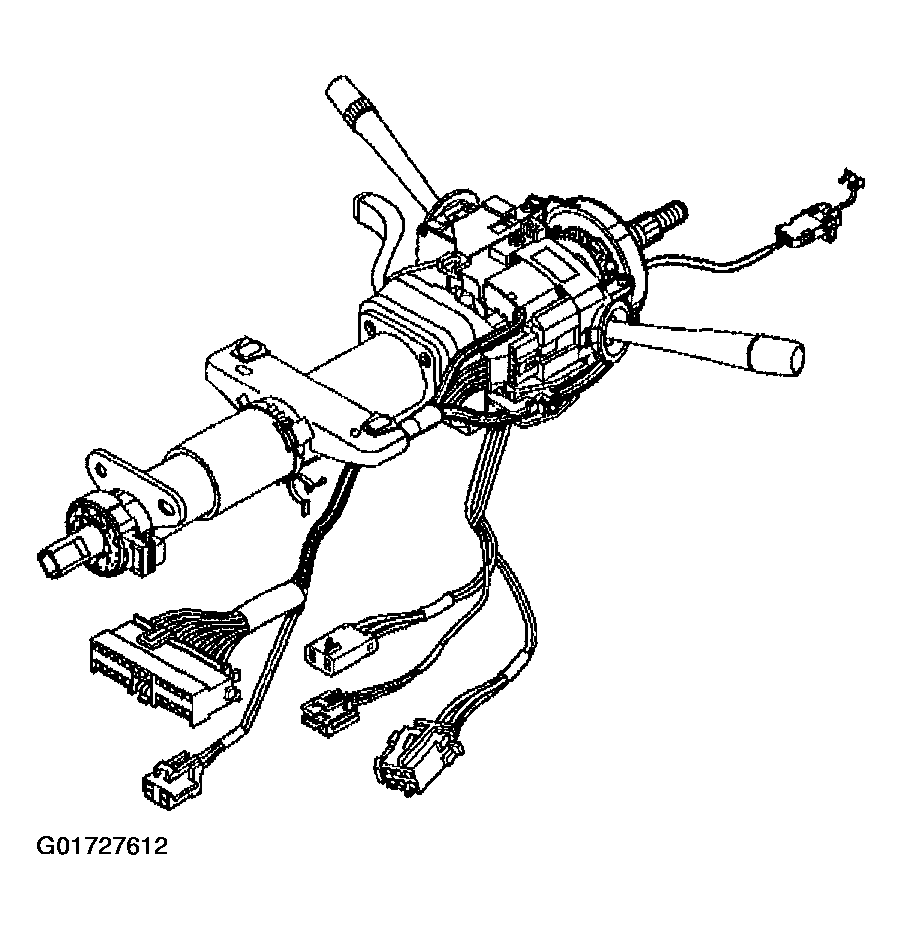

   Fig 3: Aligning Steering Column Wiring Harness

   Courtesy of GENERAL MOTORS CORP.

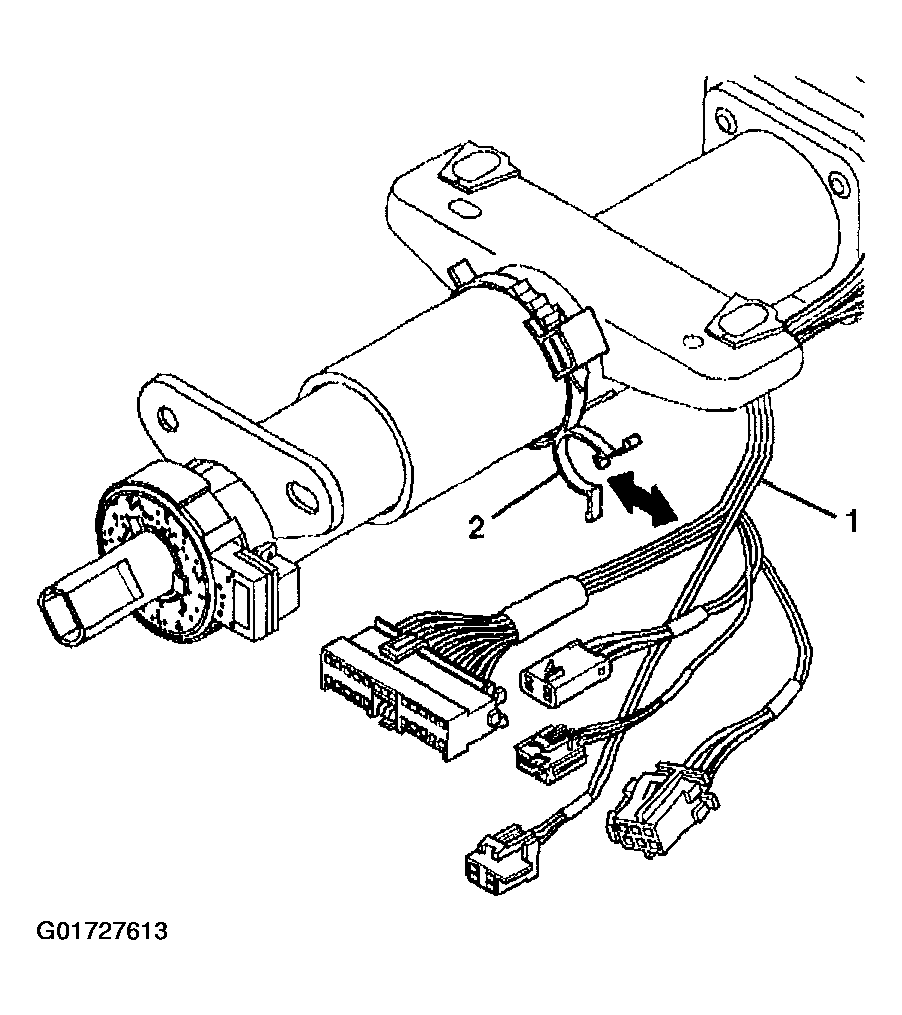

5. Insert the wire harness assembly (1) firmly into the wire harness strap (2).

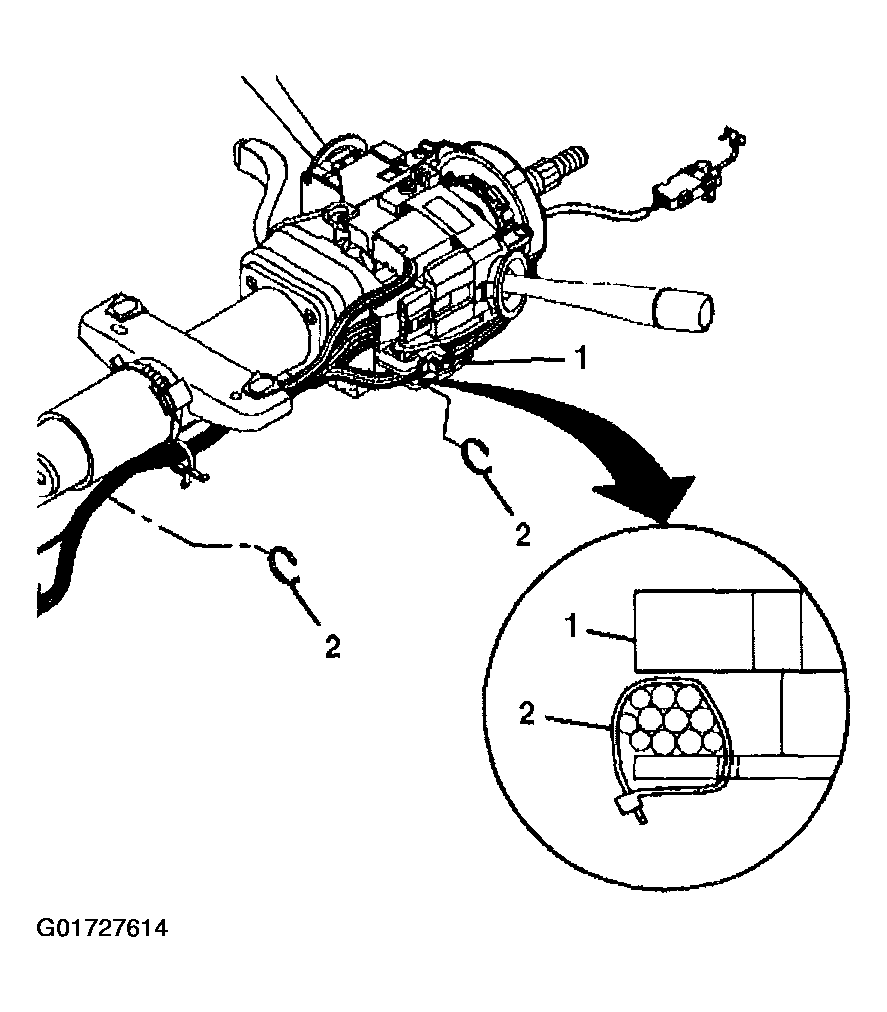

   Fig 4: Installing Steering Column Wiring Harness

   Courtesy of GENERAL MOTORS CORP.
6. Install the wire harness straps (2) to the steering column tilt head assembly (1).
7. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Telescoping Column)  or Steering Column Trim Covers - Assemble - Off Vehicle (Non-Telescoping Column) .
8. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
