Turn Signal & Multifunction Switch Assembly - Assemble - Off Vehicle (Telescoping Column)

Important:  The electrical contact must rest on the turn signal cancel cam assembly.

1. Install the turn signal and multifunction switch assembly (1) to the steering column tilt head assembly.
   Fig 1: Installing Turn Signal & Multifunction Switch Assembly

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to FASTENER NOTICE .
2. Install the 2 pan head tapping screws (1).

   Tighten

   Tighten the screws to 7 N.m (62 lb in).

   WARNING: Refer to SIR INFLATOR MODULE COIL CAUTION .
3. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Telescoping Column)  or Steering Column Trim Covers - Assemble - Off Vehicle (Non-Telescoping Column) .
4. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

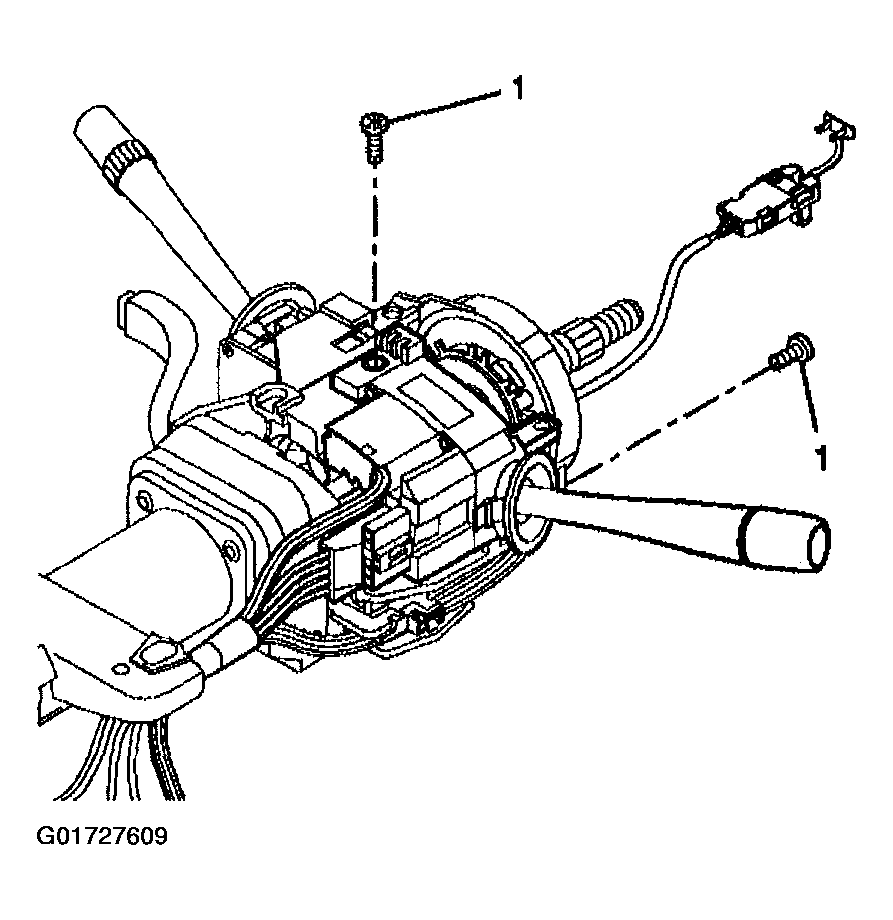

   Fig 2: Installing Turn Signal & Multifunction Switch Assembly Screws

   Courtesy of GENERAL MOTORS CORP.
