Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR .
  2. Remove the cover from the instrument panel (IP) electrical center.
  3. Remove the RDO/ANT MiniFuse® #24 from the I/P electrical center.
  4. Remove the I/P left lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  5. Disconnect the electrical/audio connector from the Bose® signal processing module.

    Important:  The signal processing module is only held in place by retaining bolts. Be sure to support the signal processor upon removal of the bolts.

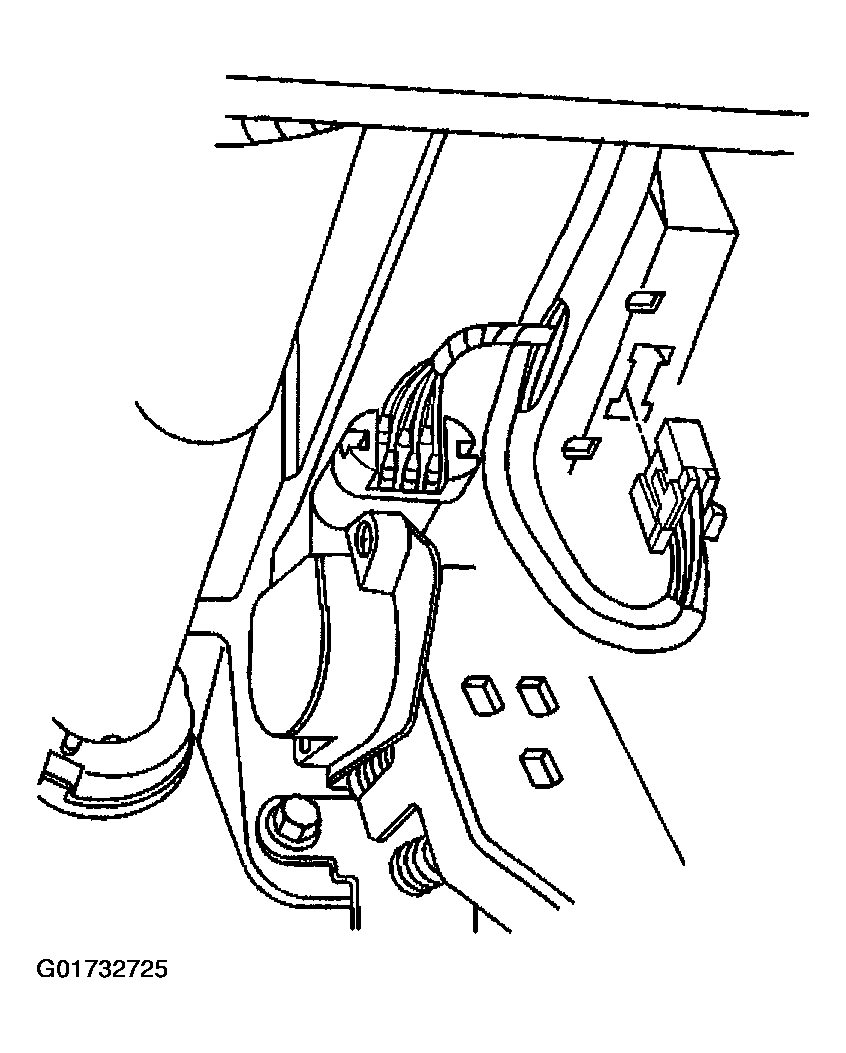

    Fig 1: Disconnecting Bose® Signal Processing Module
    G01732725Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts retaining the Bose® signal processor to the steering column bracket.
  7. Remove the signal processing module.

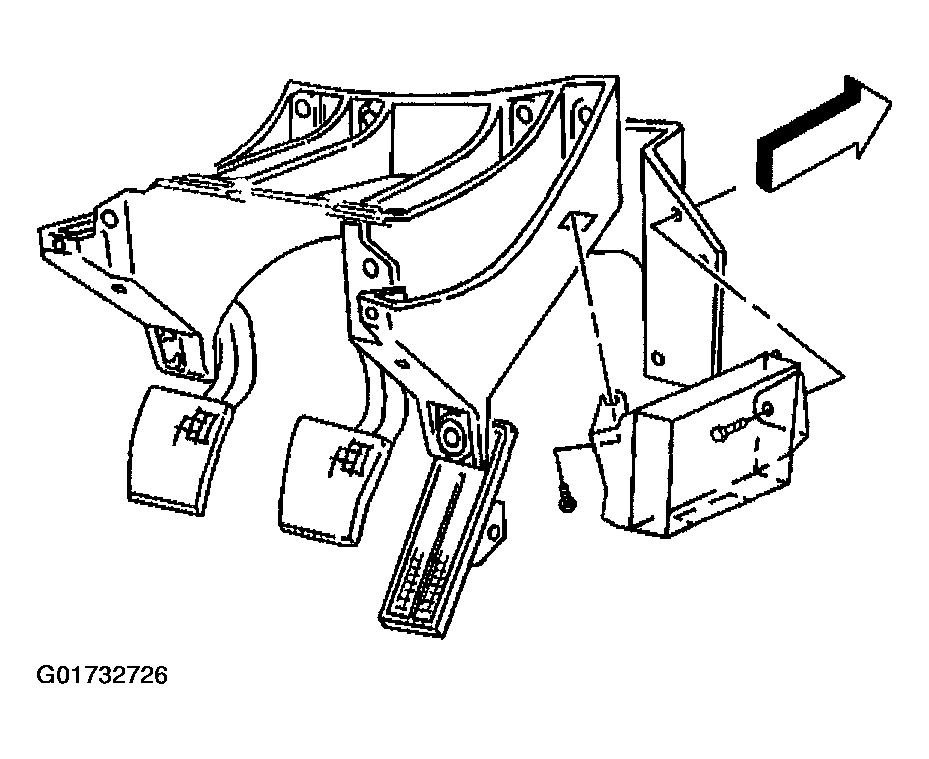

    Fig 2: Removing Bose® Signal Processing Module Retaining Bolts
    G01732726Courtesy of GENERAL MOTORS CORP.
