Electrical Diagrams

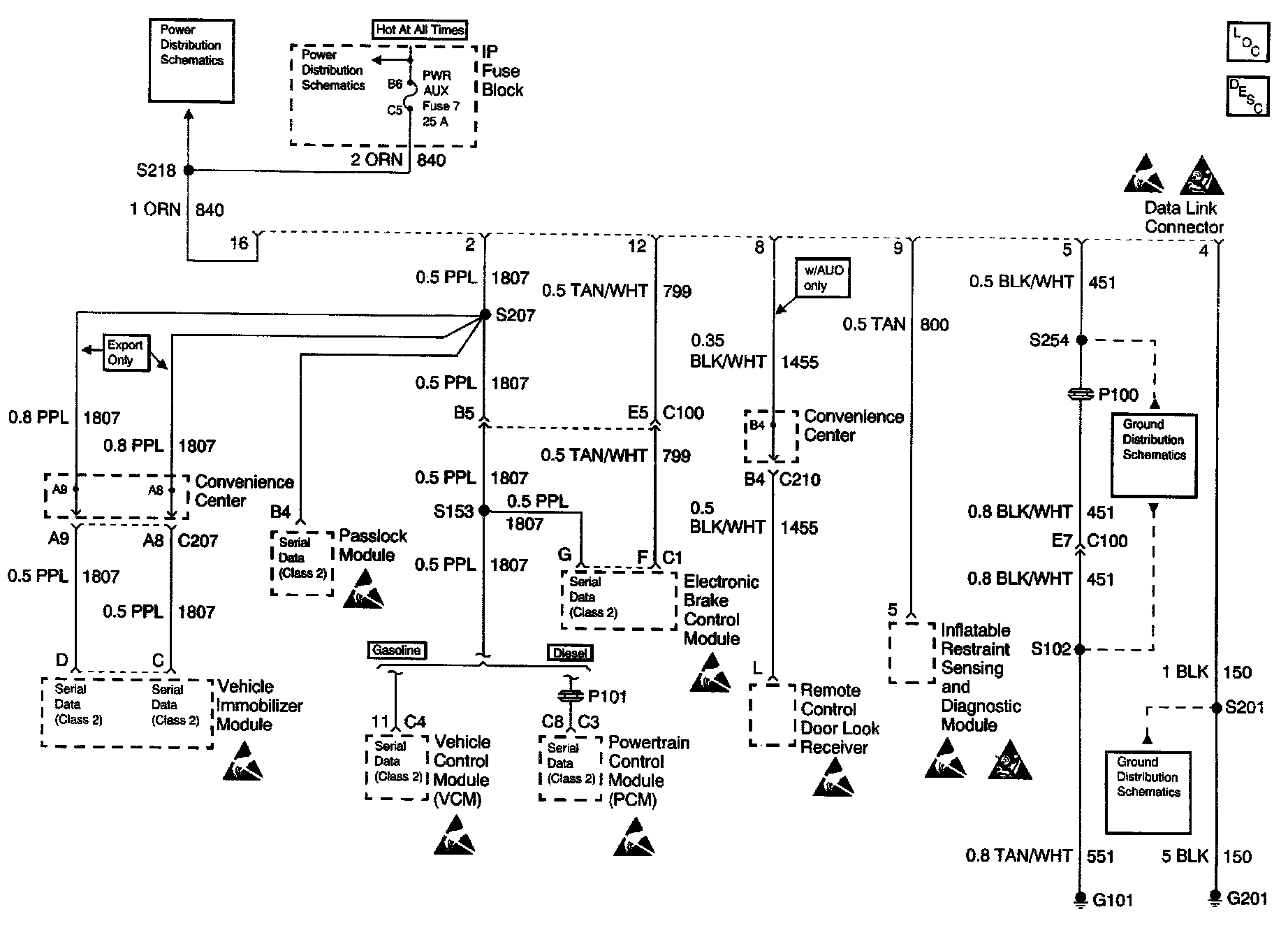

Data Link Connector (DLC) Schematics: Fuse Block, Theft Deterrent, VCM/PCM, Remote Control Door Lock Receiver, SDM, G101, And G201:
