Park Neutral Position Switch

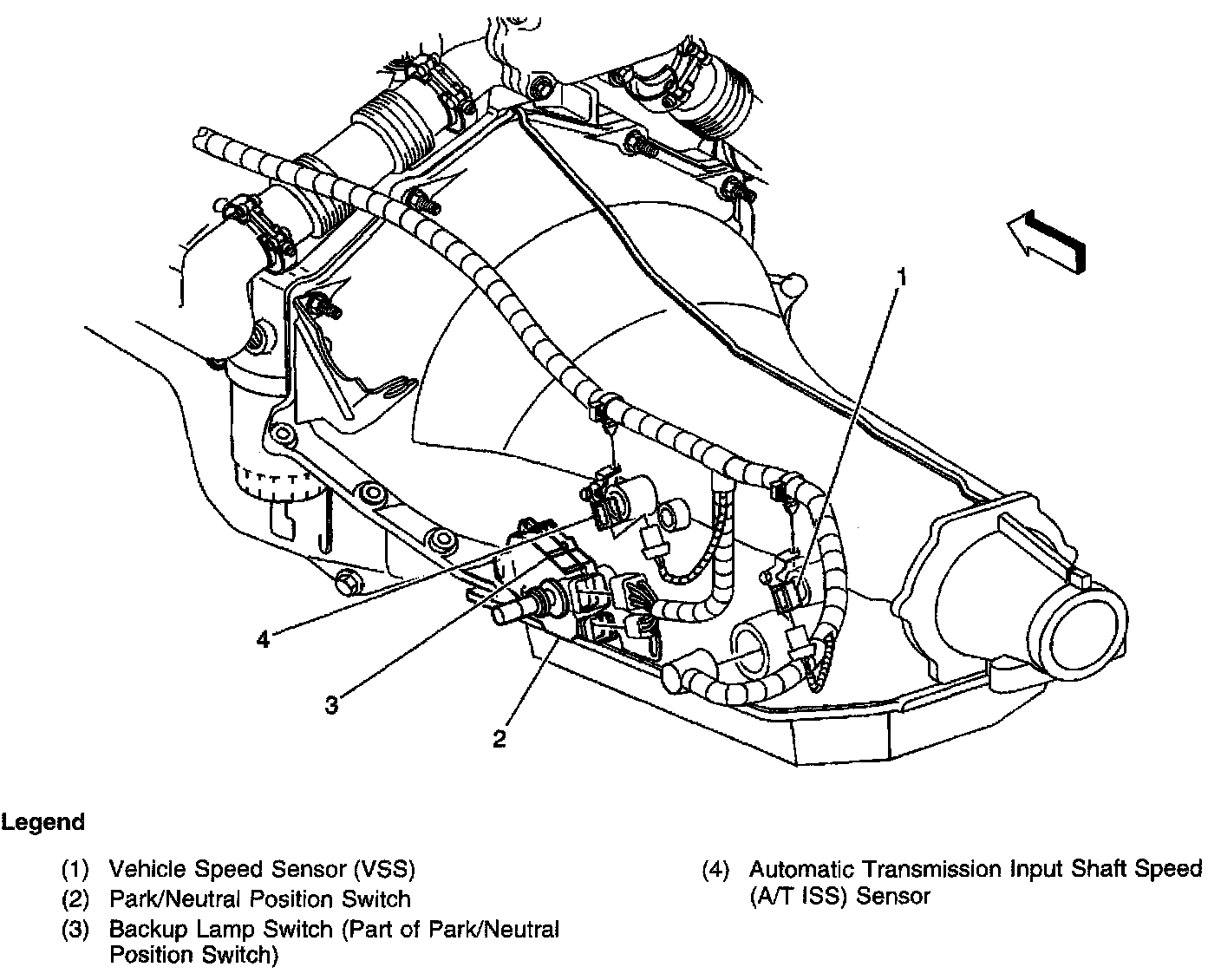

Locations View:

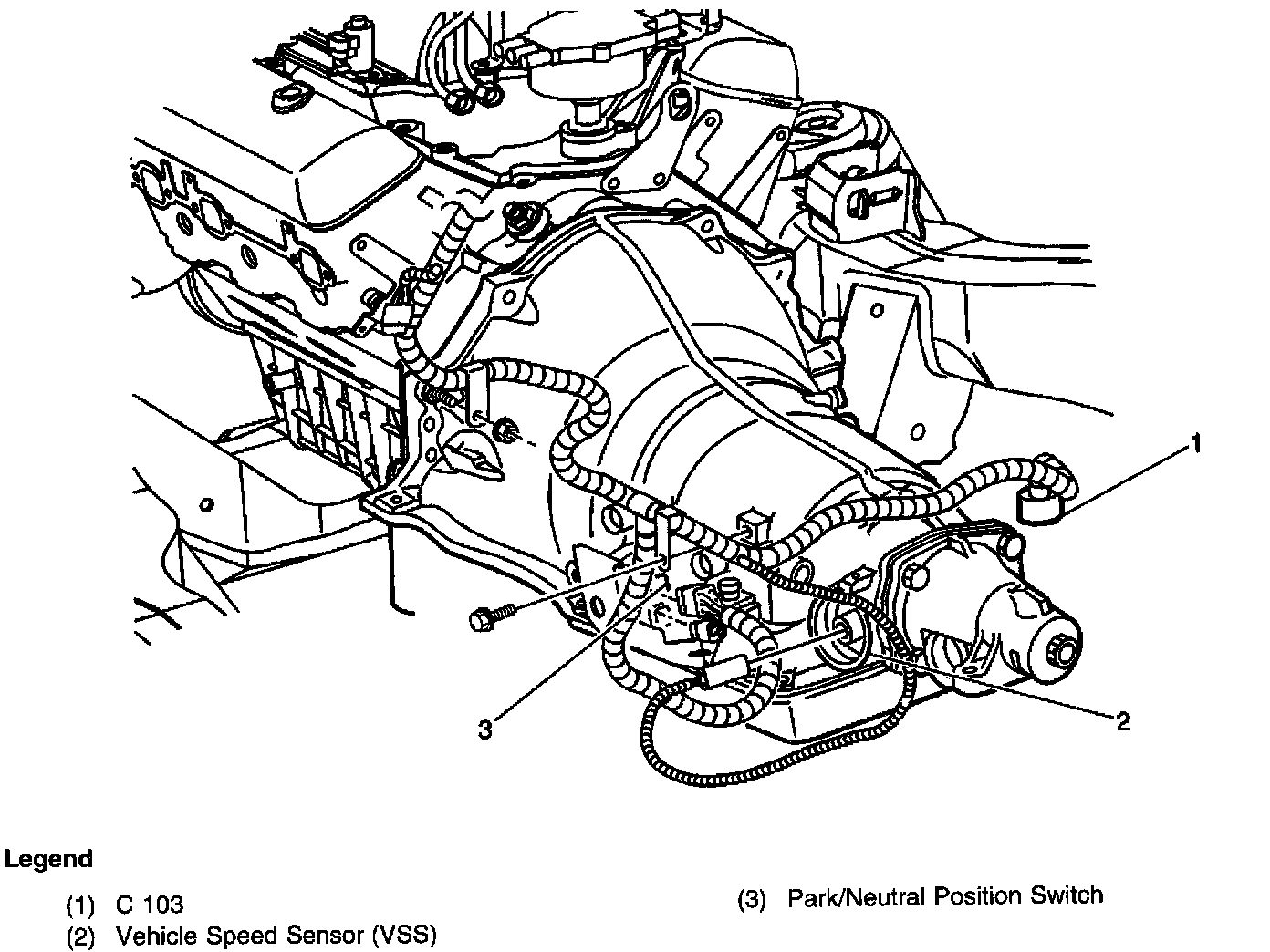

Locations View:
LH side of transmission
Left rear of transmission case
