Horn Assembly

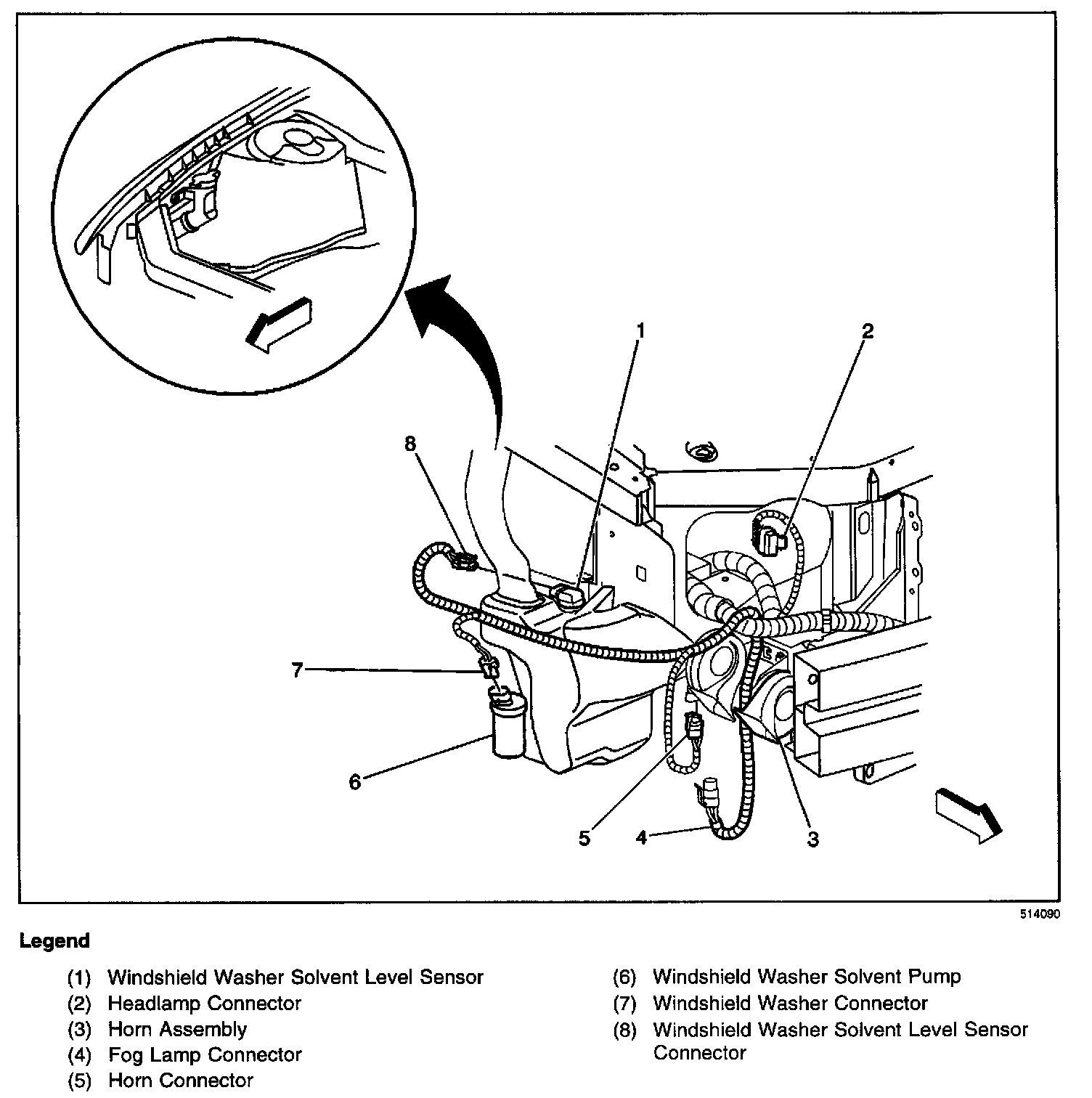

Locations View:
RH side of the engine compartment, below the RH headlamp and outside of the RH side front frame rail.
