Inflatable Restraint IP Module

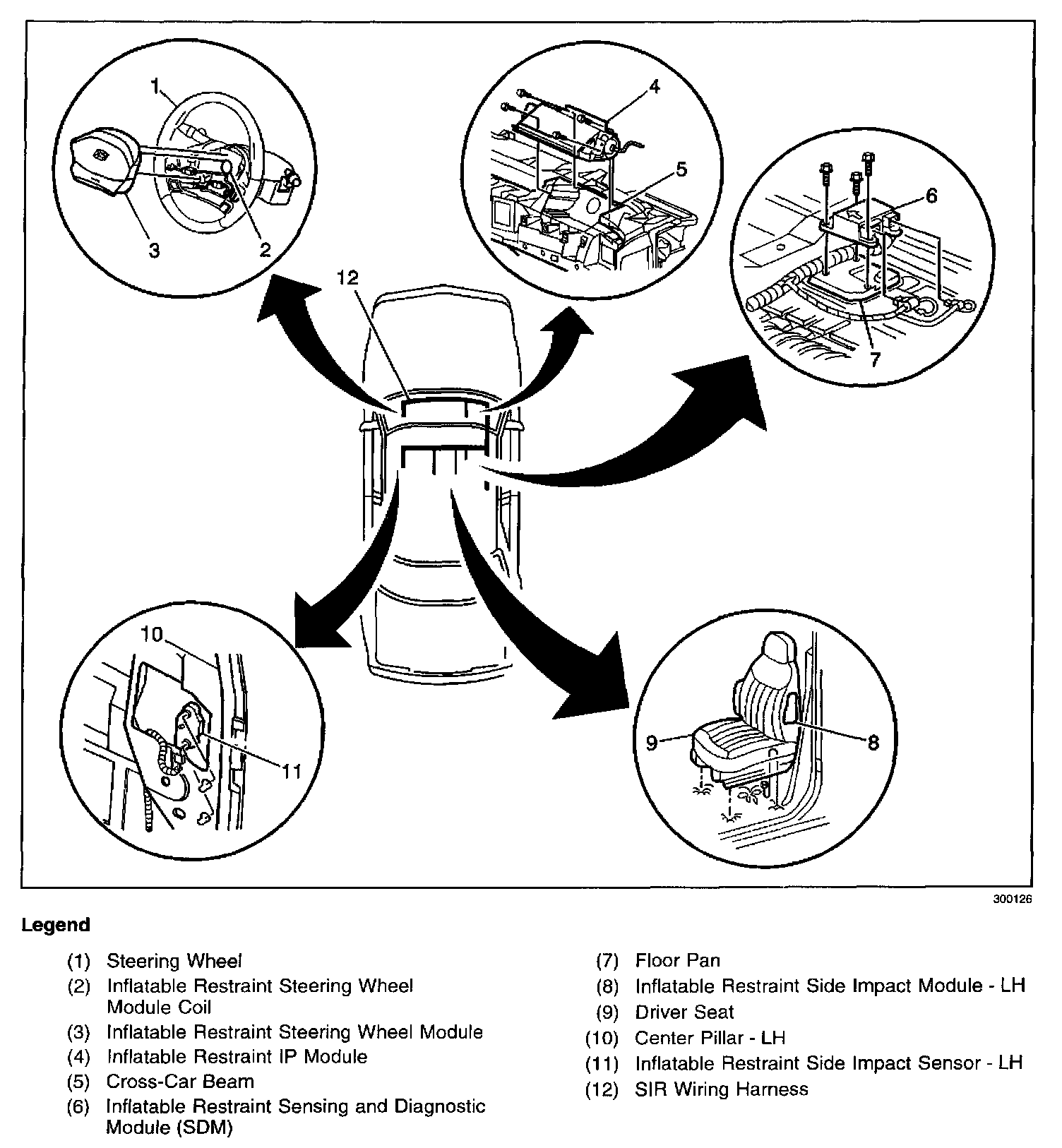

Locations View:

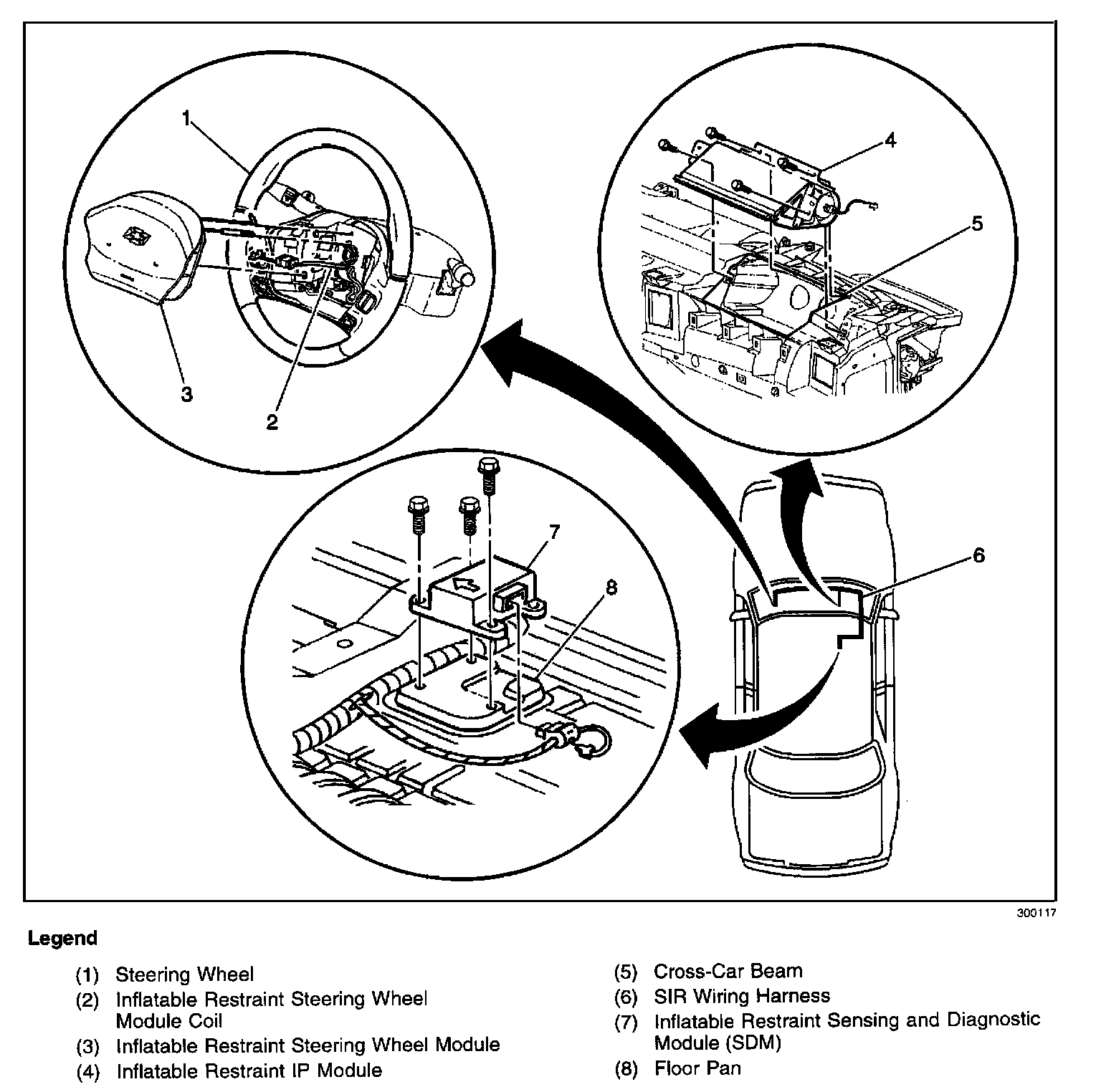

Locations View:





RPO AK5,AJ7: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
