Engine

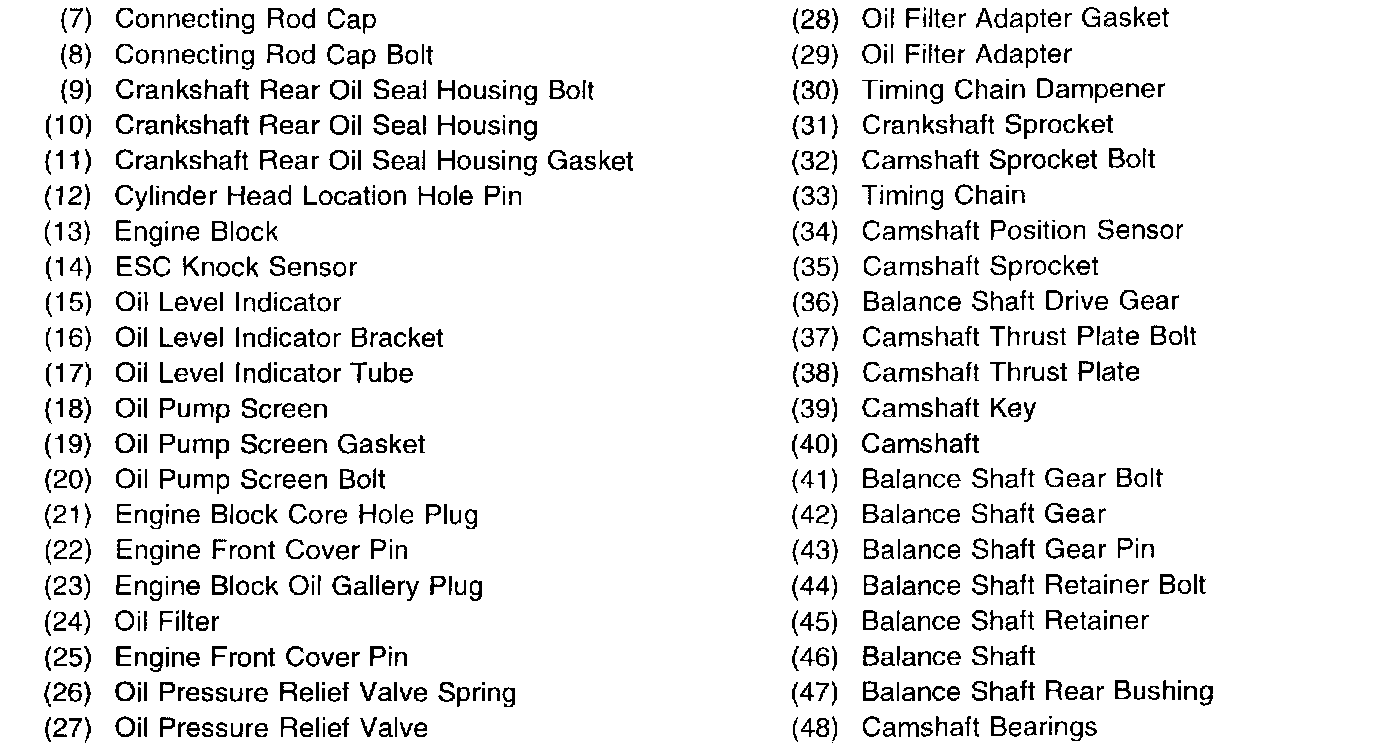

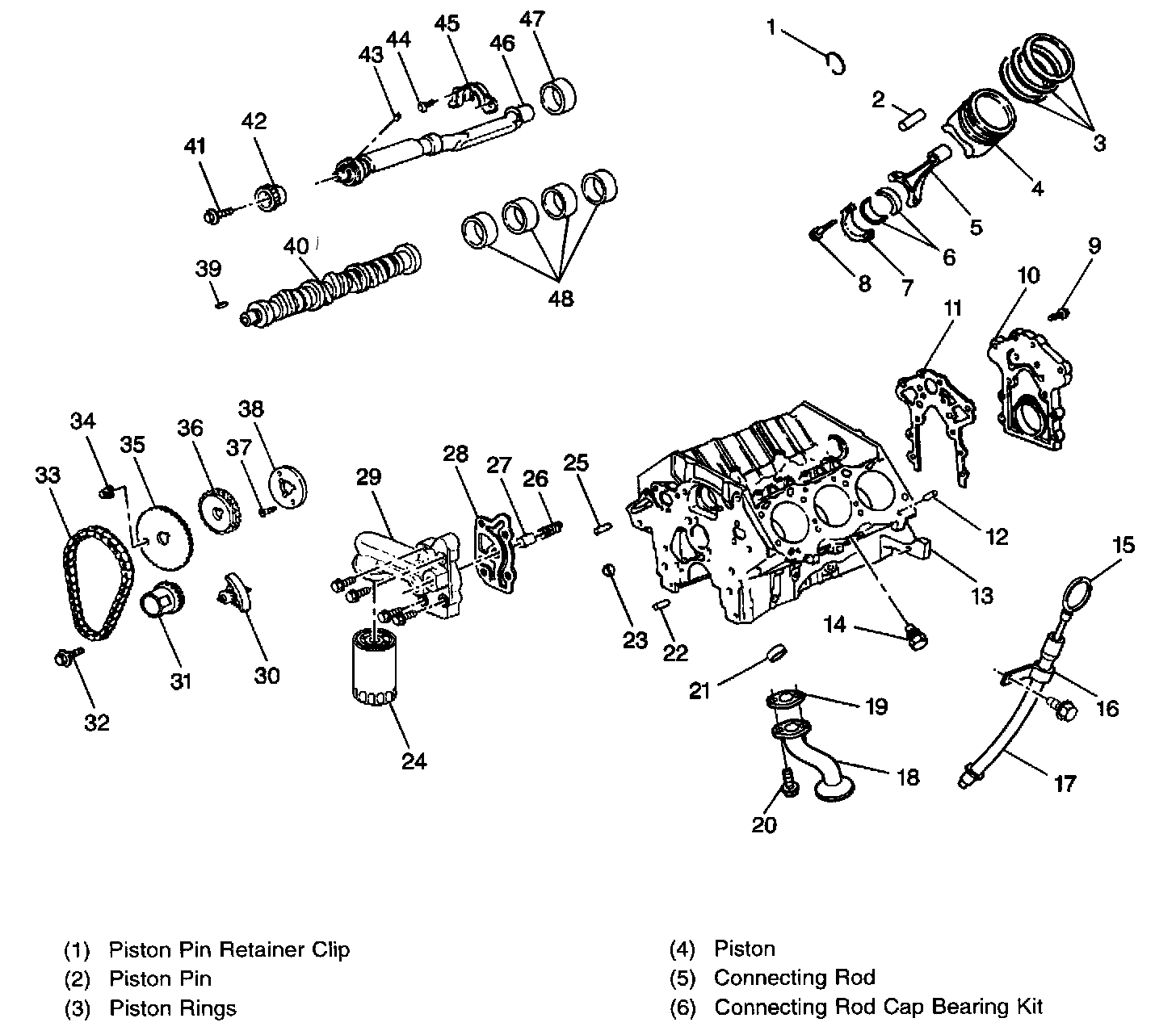

Engine Block and Components

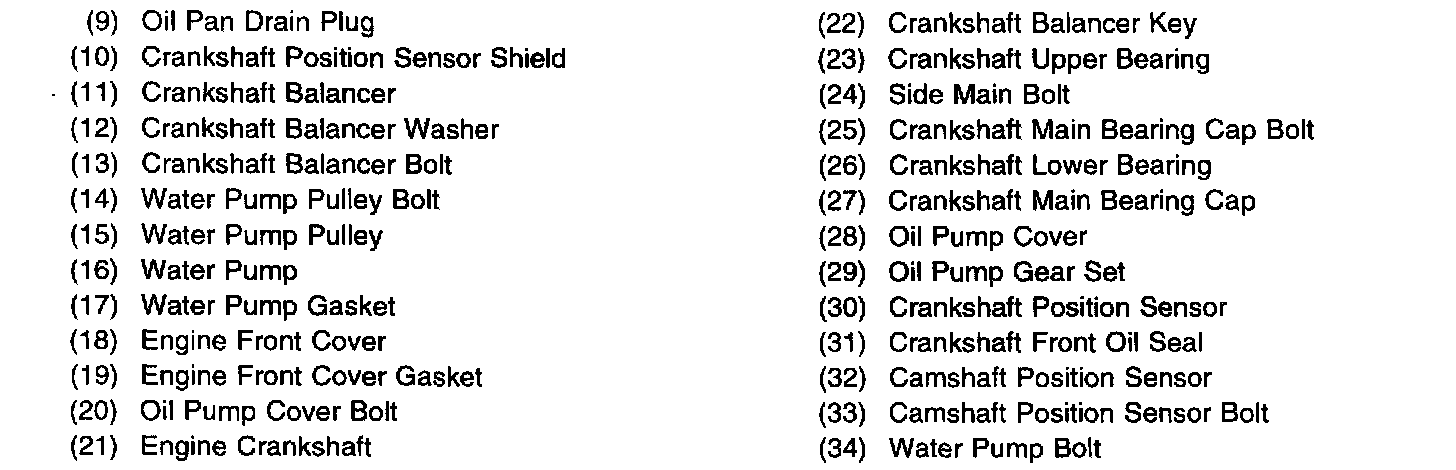

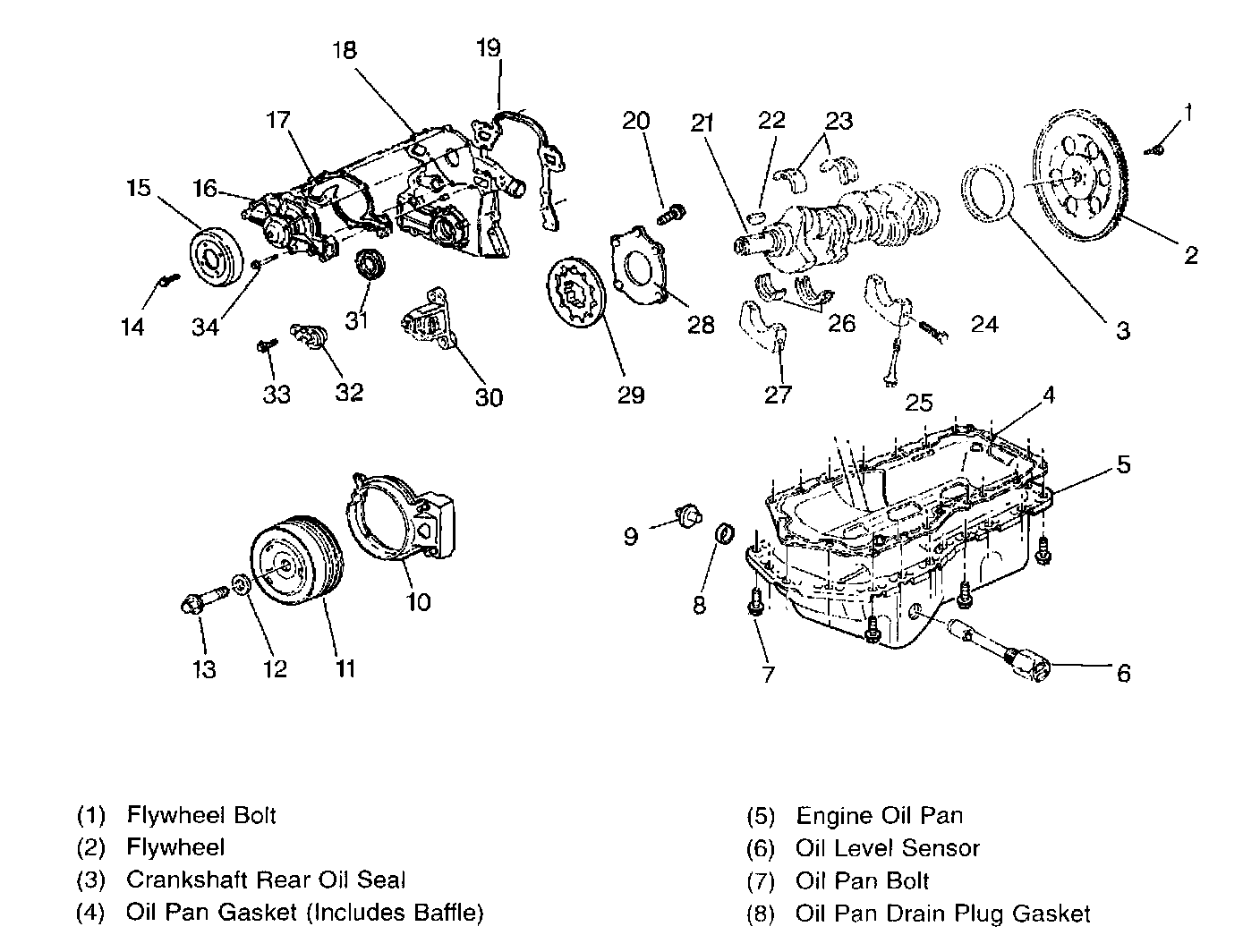

Crankshaft and Components

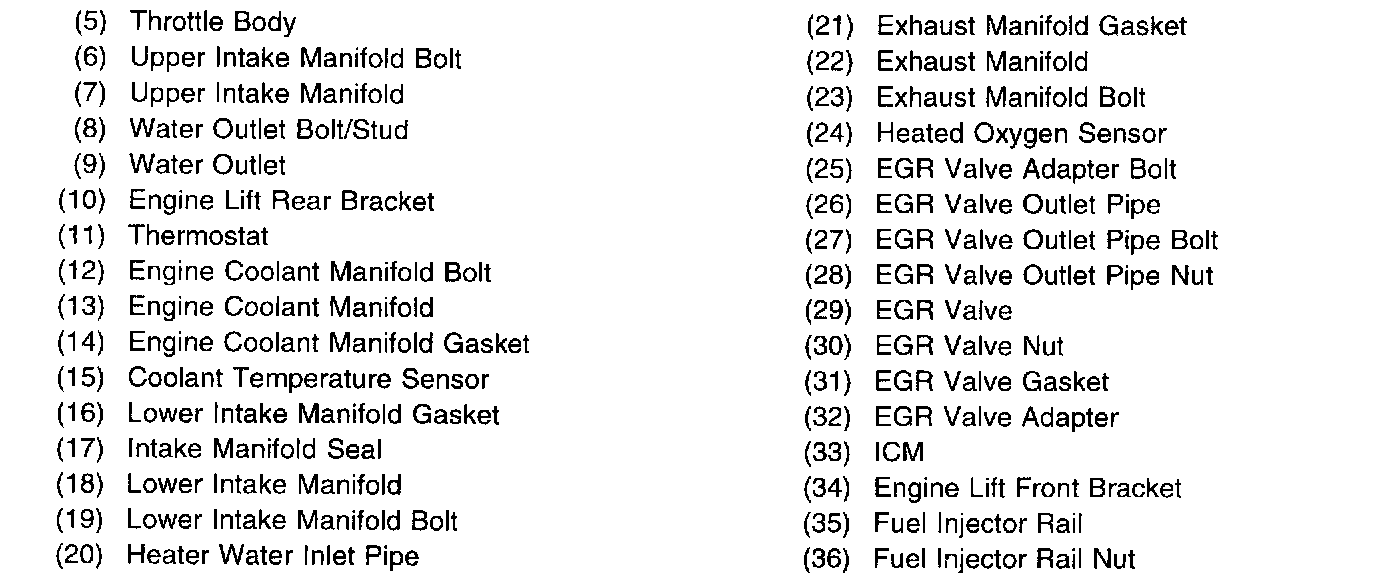

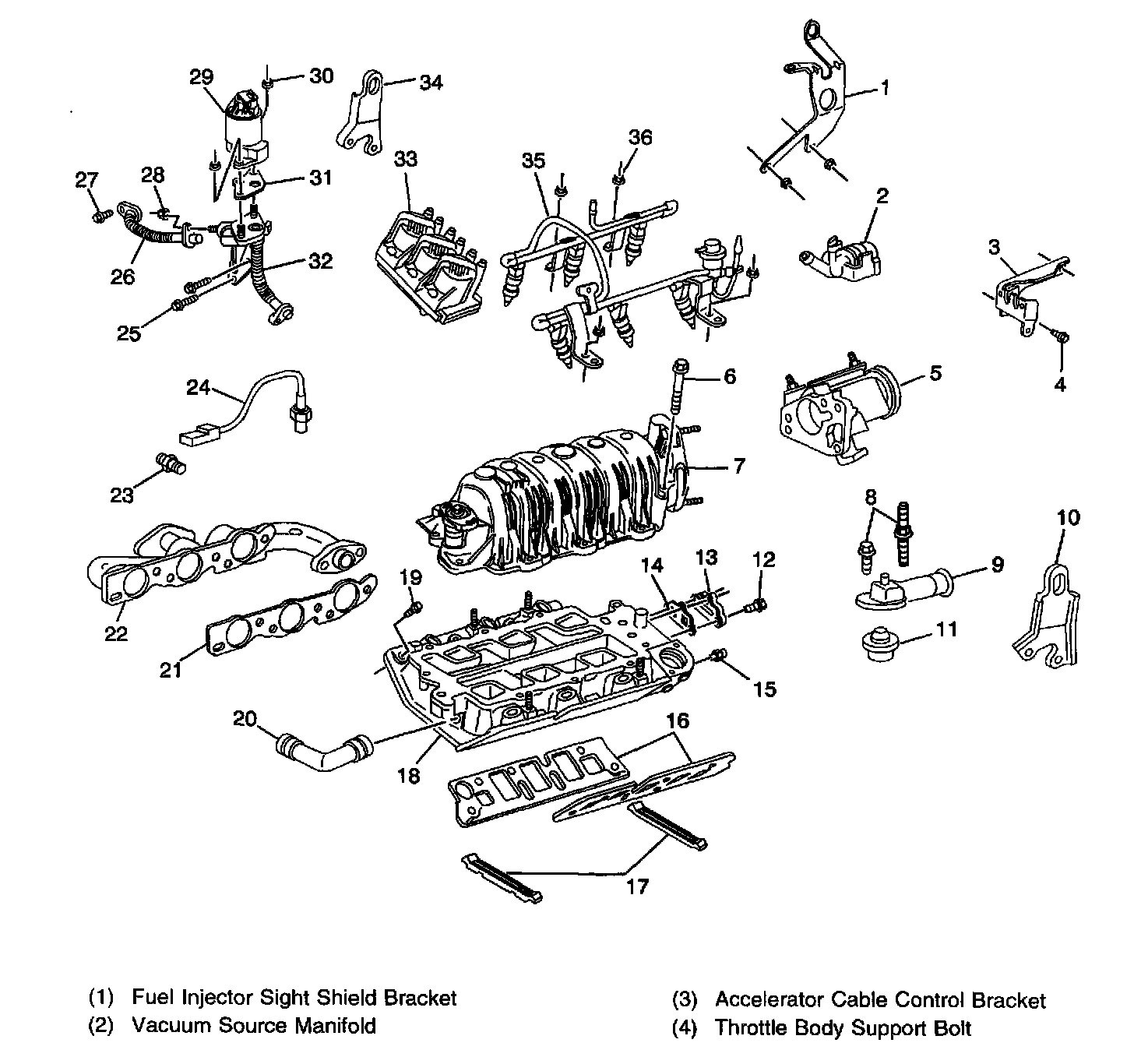

Intake Manifold and Components

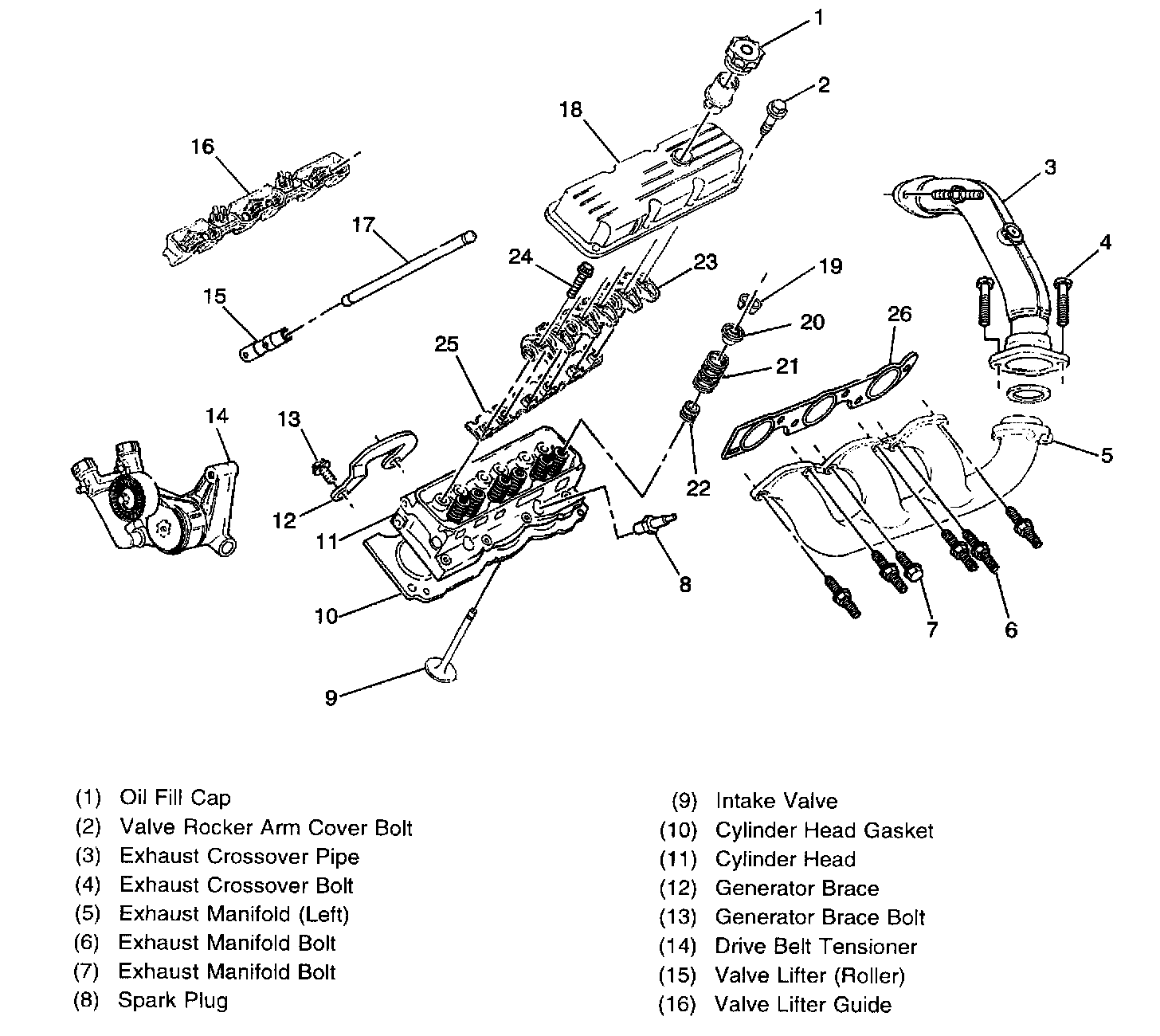

Cylinder Head and Components
