Charging System Test (Delphi CS 130D)

TEST DESCRIPTION

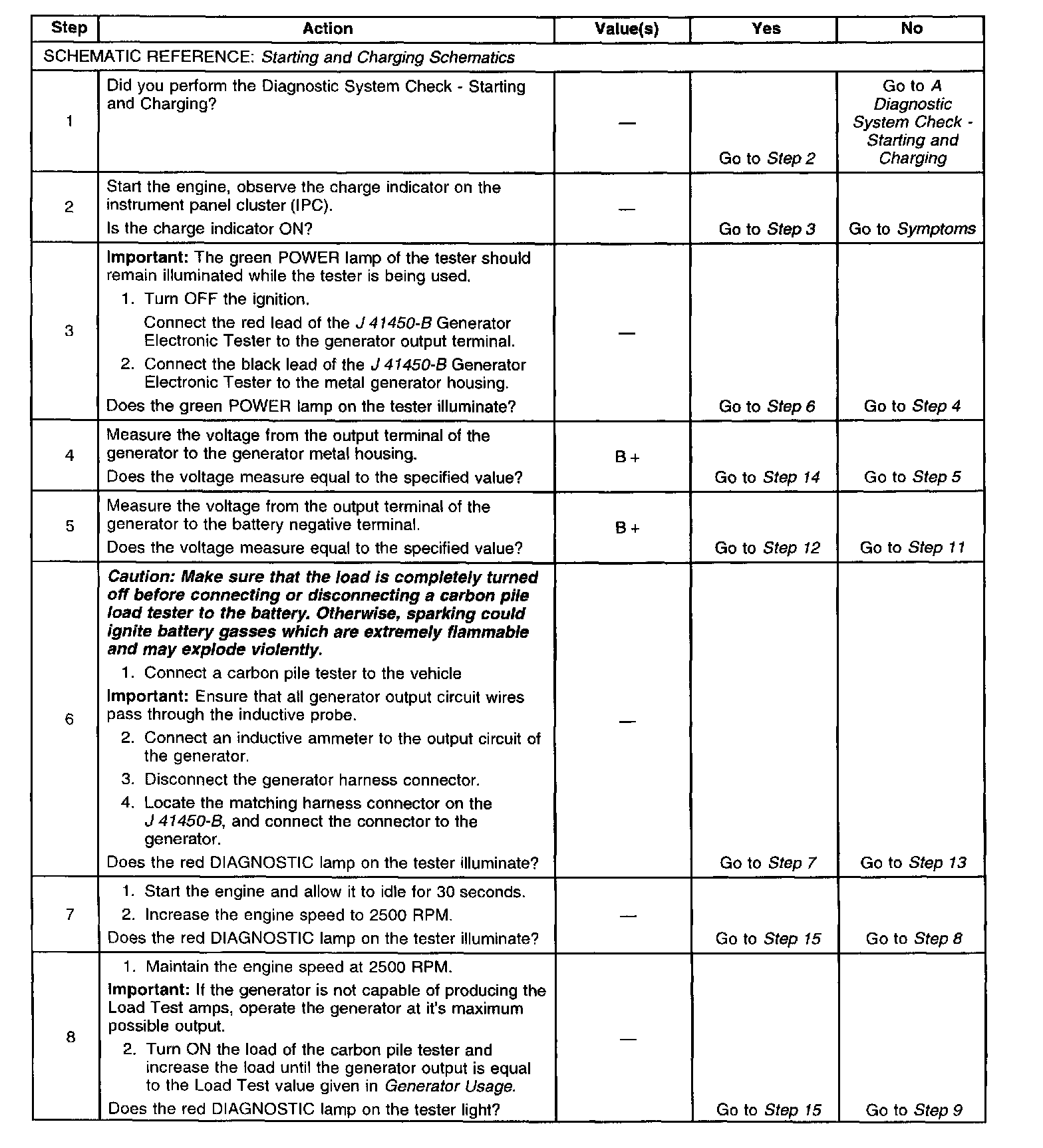

Step 1 - 8:

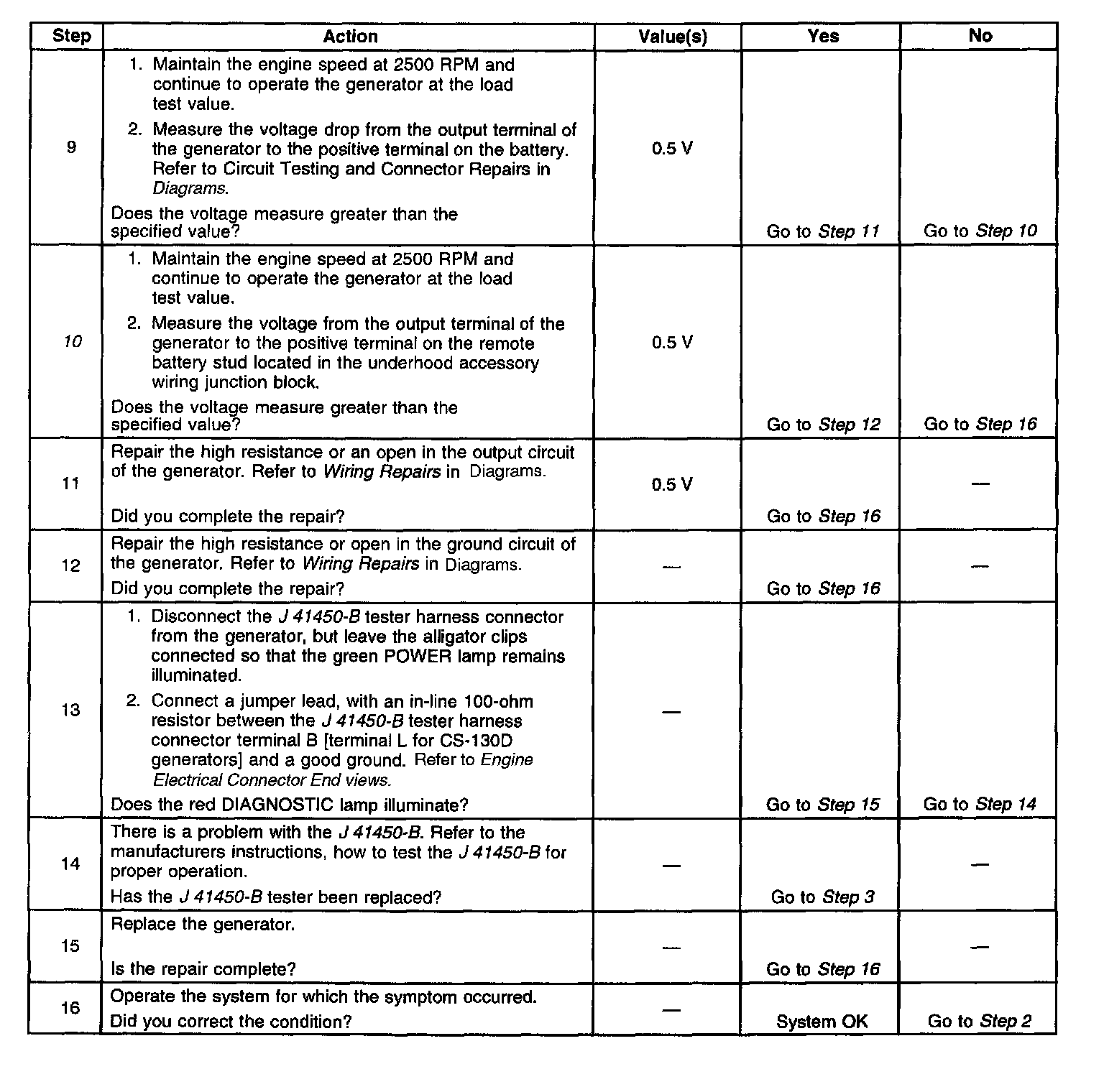

Step 9 - 16:

10. If the test has shown the generator to be OK, however the condition remains, test the PCM or its control circuit(s) to the generator.
