Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Body Control Module (BCM) | Below right side of dash, near blower motor. See Figure . |
| Brake Pressure Modulator Valve (BPMV) | At lower left front of engine compartment. |

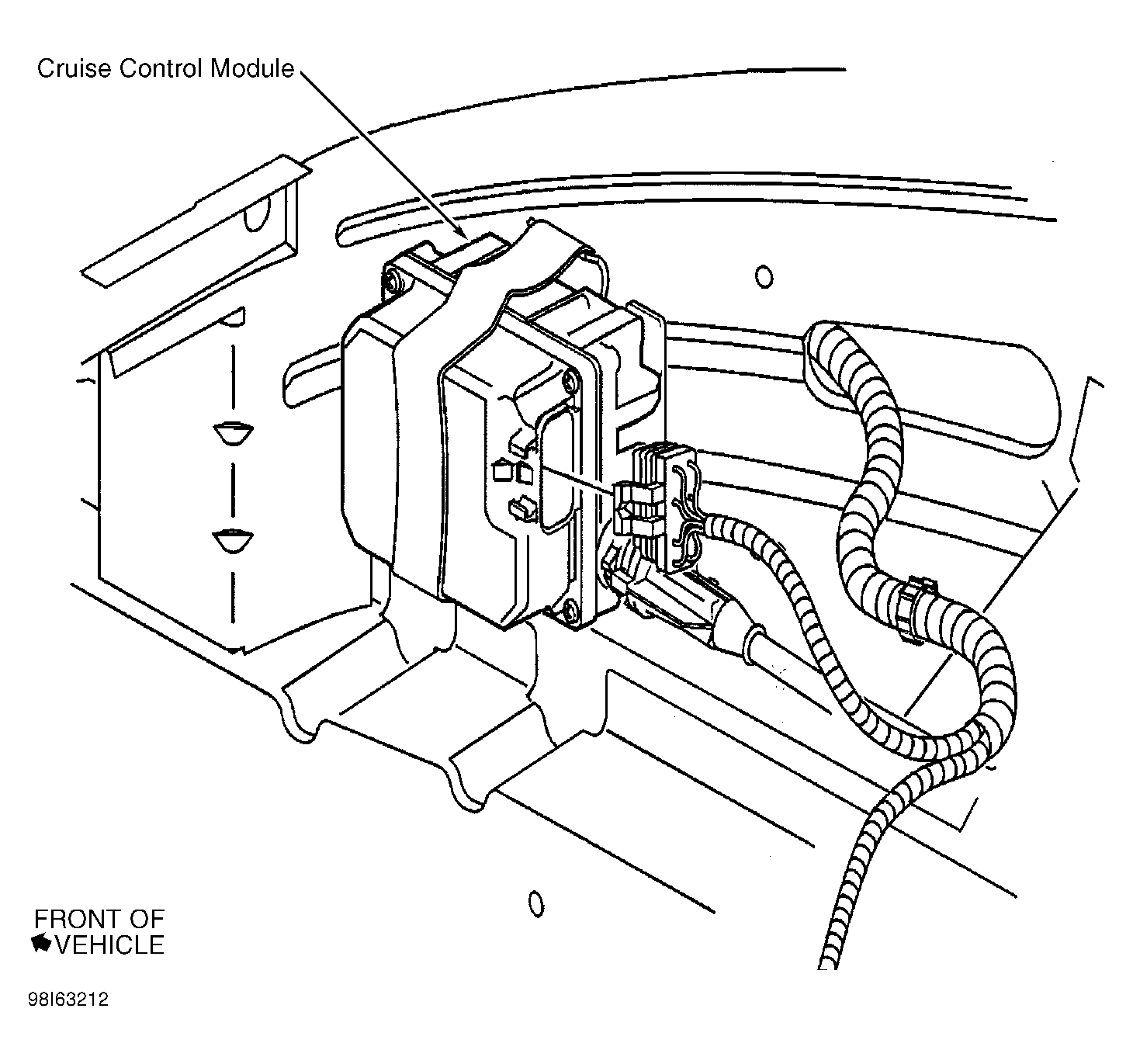

| Cruise Control Module | On right side of engine compartment. See Figure . |
| Electronic Brake Control Module (EBCM) | Inside left front fender. |
| Fuel Tank Module | Under rear of vehicle, at fuel tank. |
| Ignition Control Module | On top front of engine. |
| Inflatable Restraint Sensing & Diagnostic Module | Under right front seat. |
| Lamp Dimmer Module | On left side of dash. |
| Powertrain Control Module (PCM) | Below left side of dash, near steering column. See Figure . |
| Remote Control Door Lock Receiver | On rear package shelf. |
