Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

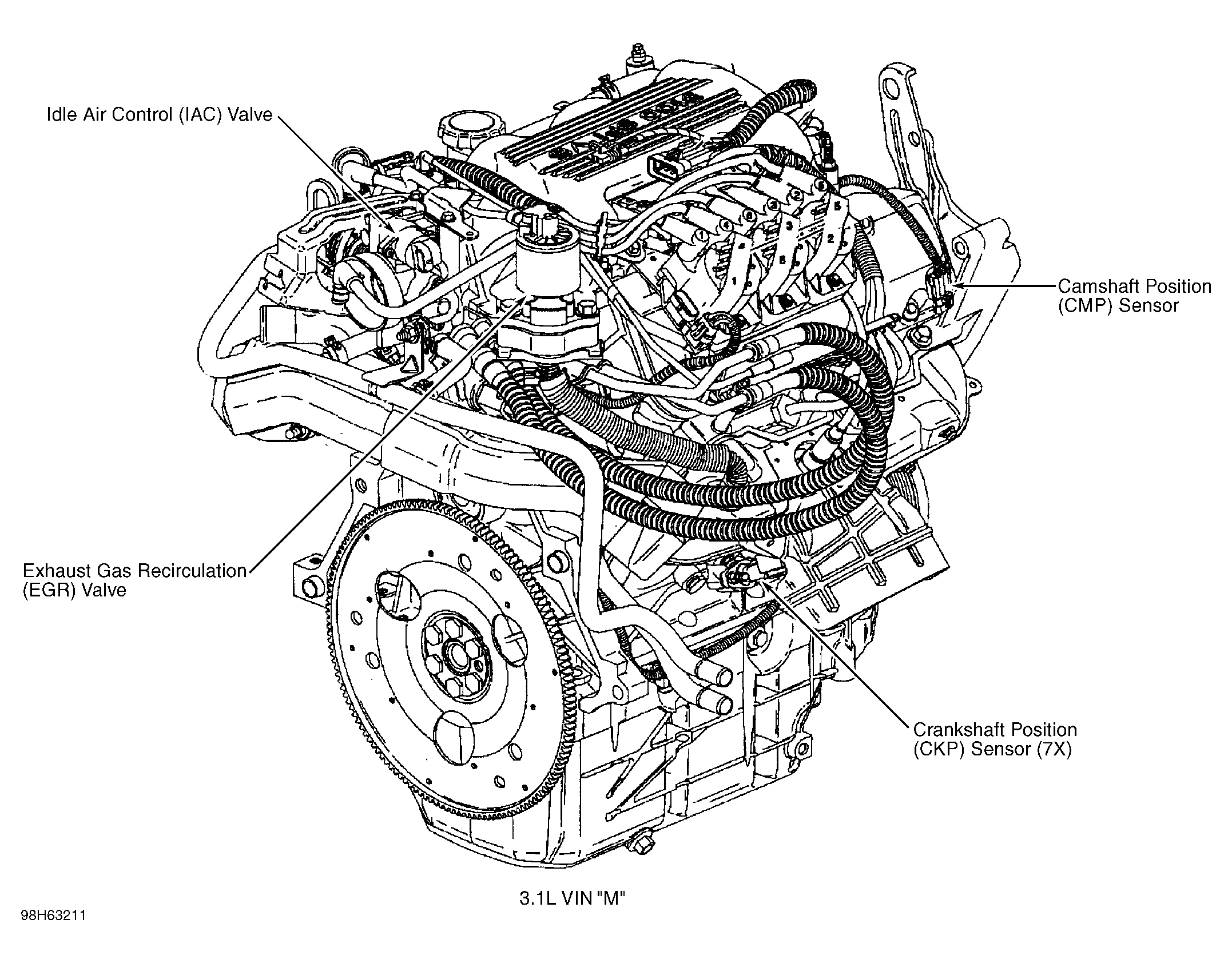

Fig 1: Engine (3.1L VIN M)

Fig 2: Left Side Of Dash

Fig 3: Right Front Of Engine Compartment

Fig 4: Right Side Of Dash
