Body Control Module: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the battery negative cable.
2. Remove the left side instrument panel insulator.

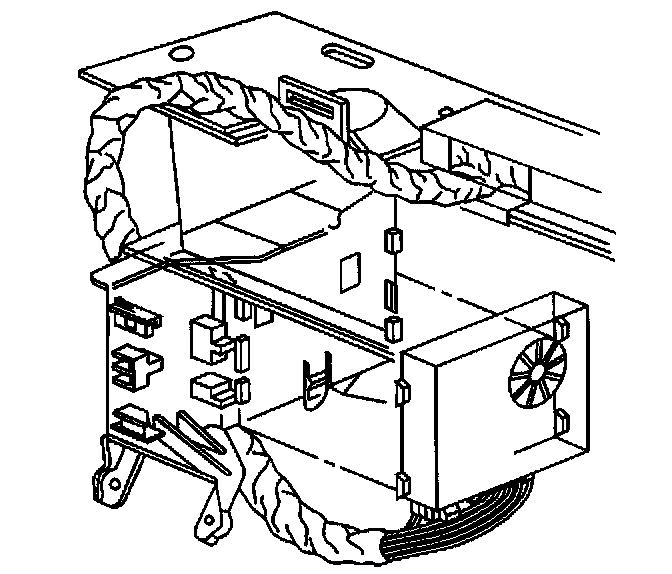

3. Push the release tab on the bottom of the bracket to release the body control module.
4. Slide the body control module from the bracket.

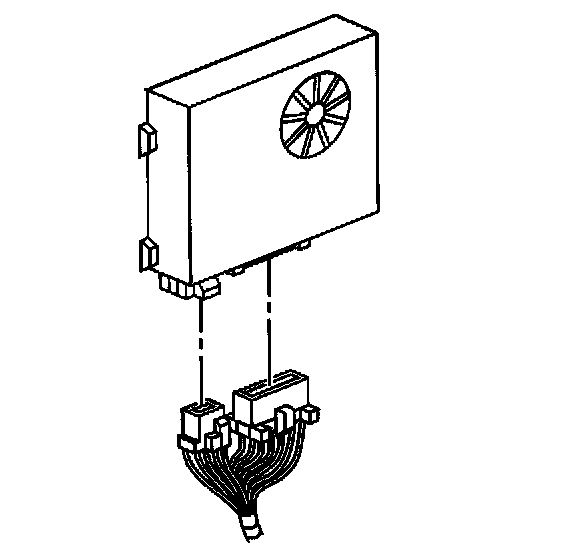

5. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical to the body control module.




2. Align the tabs on the body control module with the slots in the mounting bracket. Push the body control module up until it clicks in place.
3. Install the left side instrument panel insulator.
4. Connect the battery negative cable.
5. Setup the BCMs customized options.
