Symptom Related Diagnostic Procedures

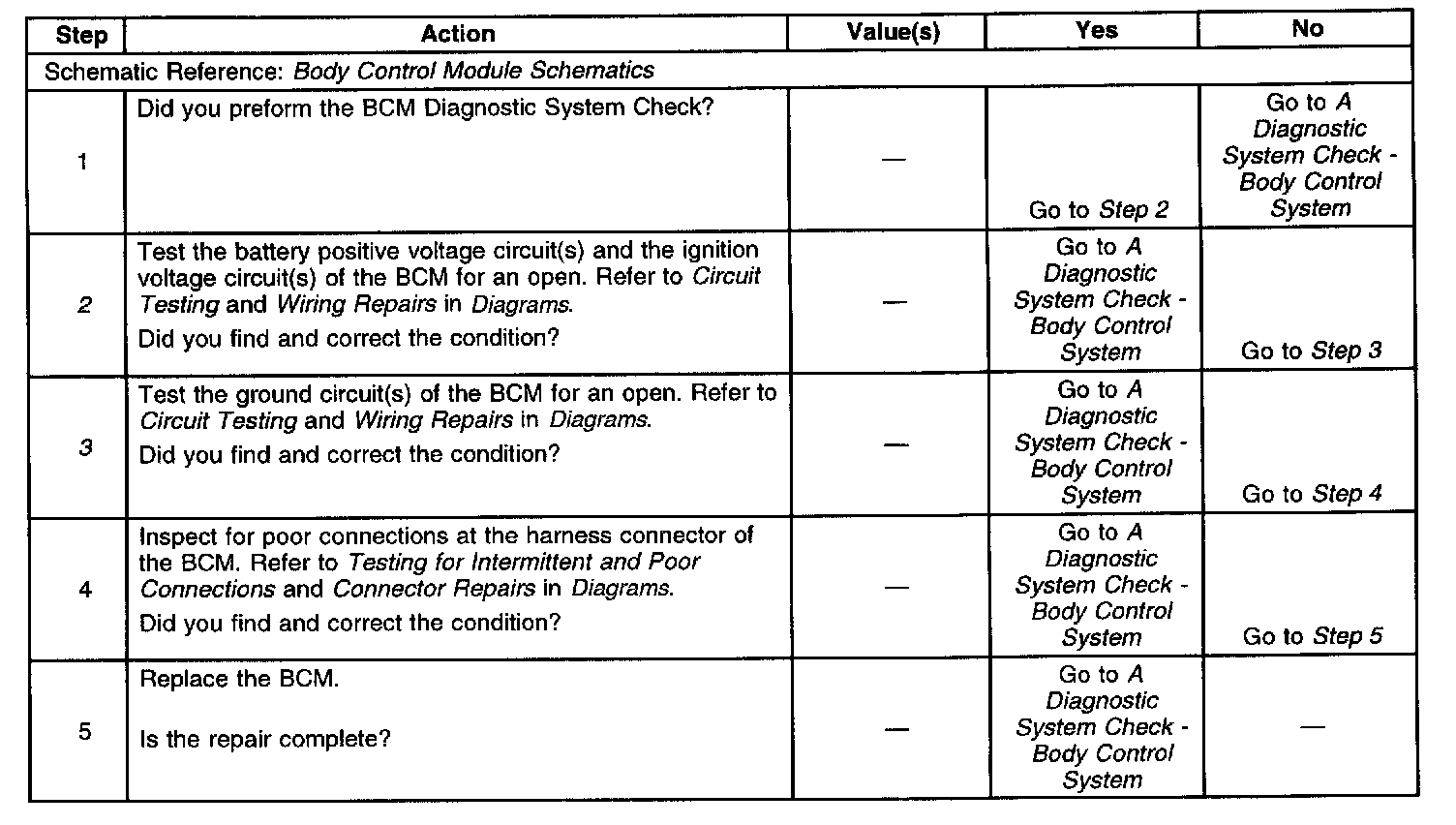

Diagnostic Chart:

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
2. Tests for an open in the BCM battery positive voltage circuit(s) and the ignition voltage circuit(s).
3. Tests for an open in the BCM ground circuit(s).
