Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high-mounted stop lamp to the vehicle.
  2. Connect the electrical connector.
  3. Carefully push the electrical connector back into the roof.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the high-mounted stop lamp retaining screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in)

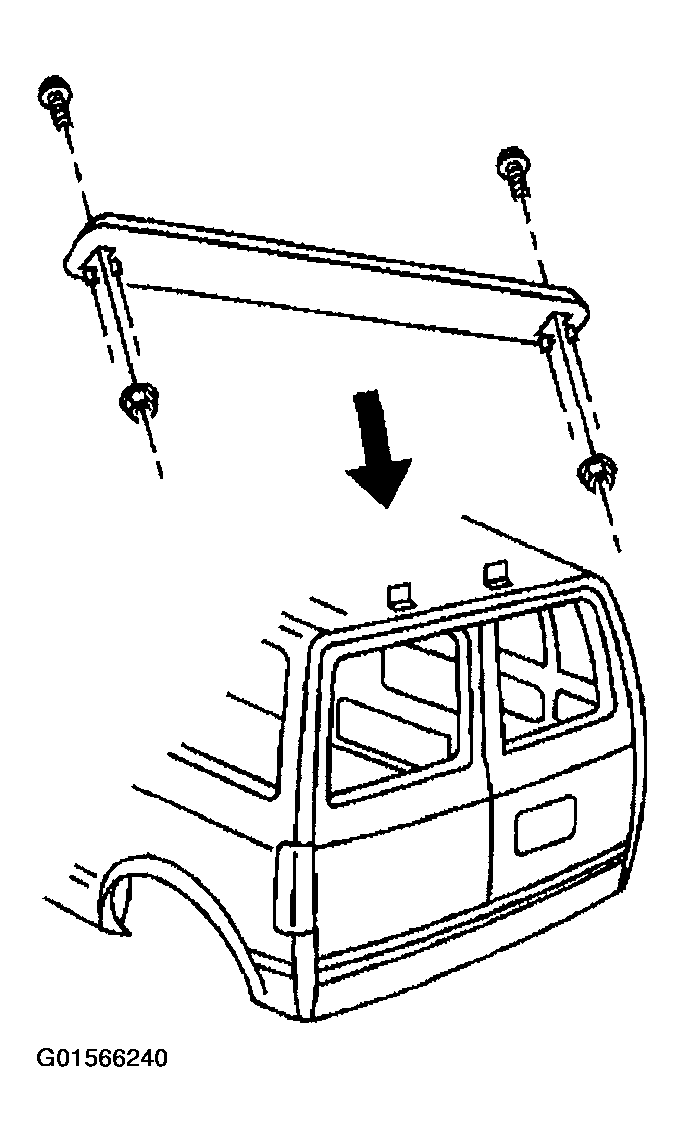

    Fig 1: Installing High Mounted Stop Lamp
    G01566240Courtesy of GENERAL MOTORS CORP.
