Manual Transmission/Transaxle

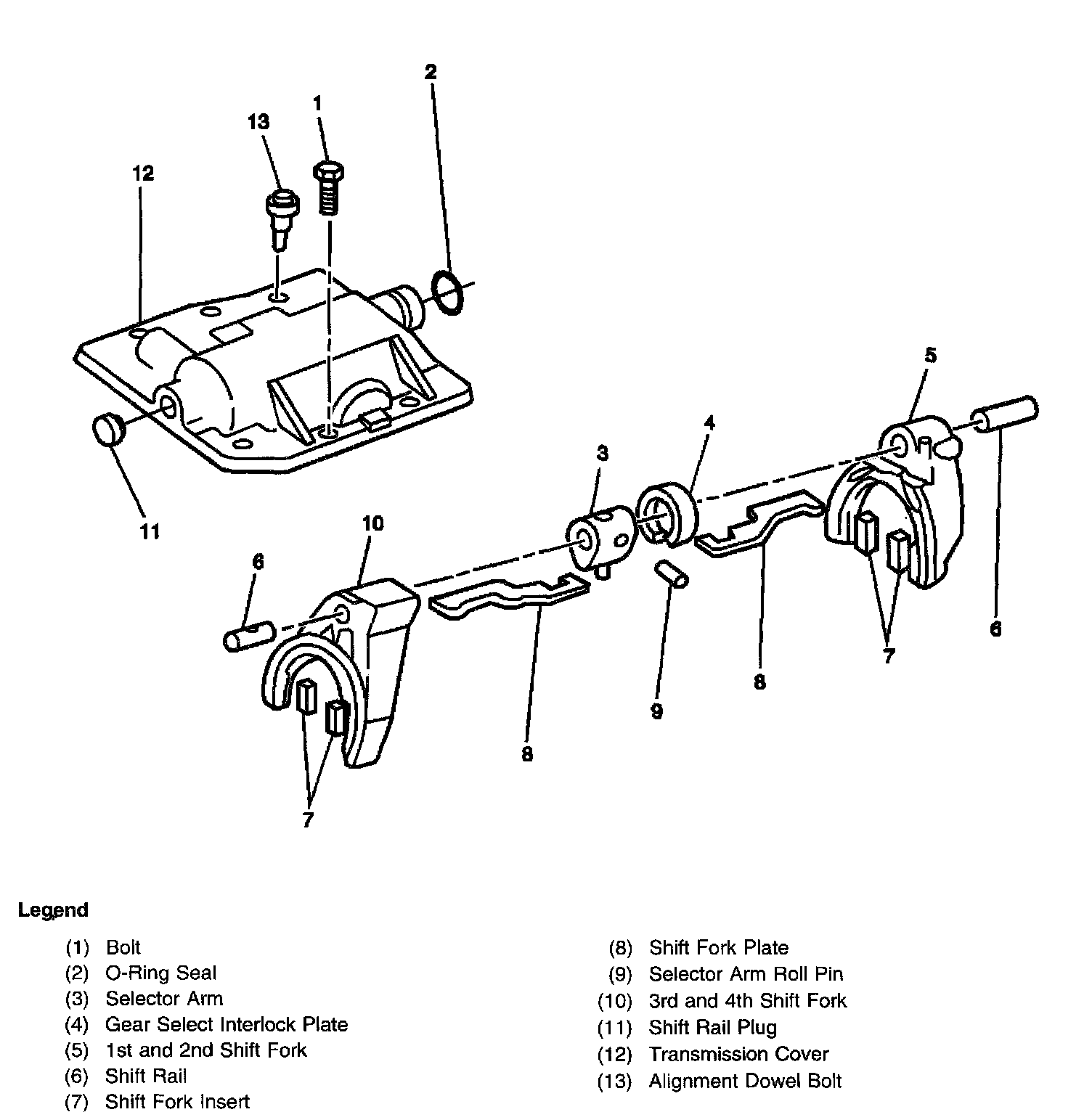

Transmission Case Cover and Shift Fork Assembly

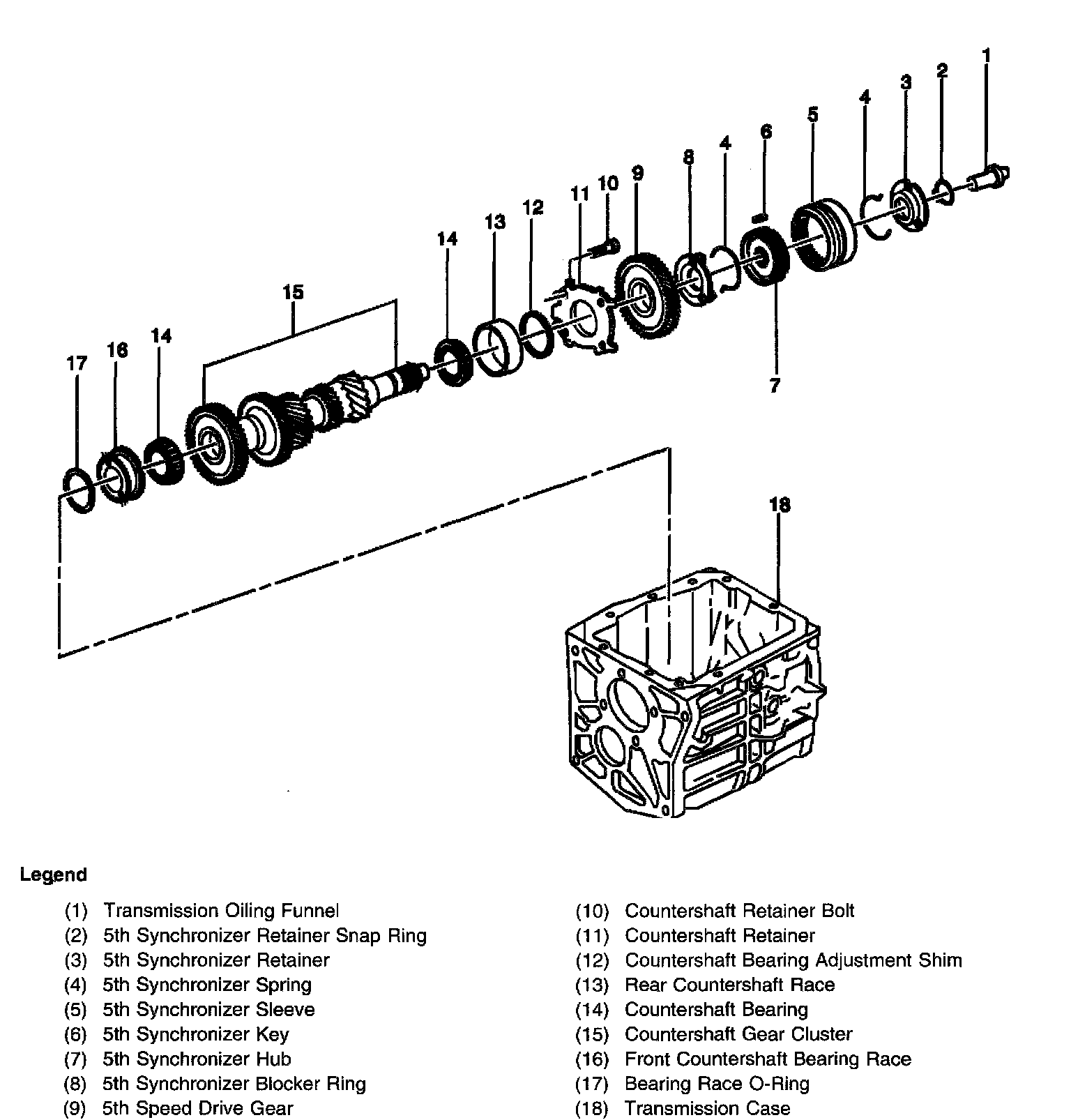

Transmission Case (1 of 3)

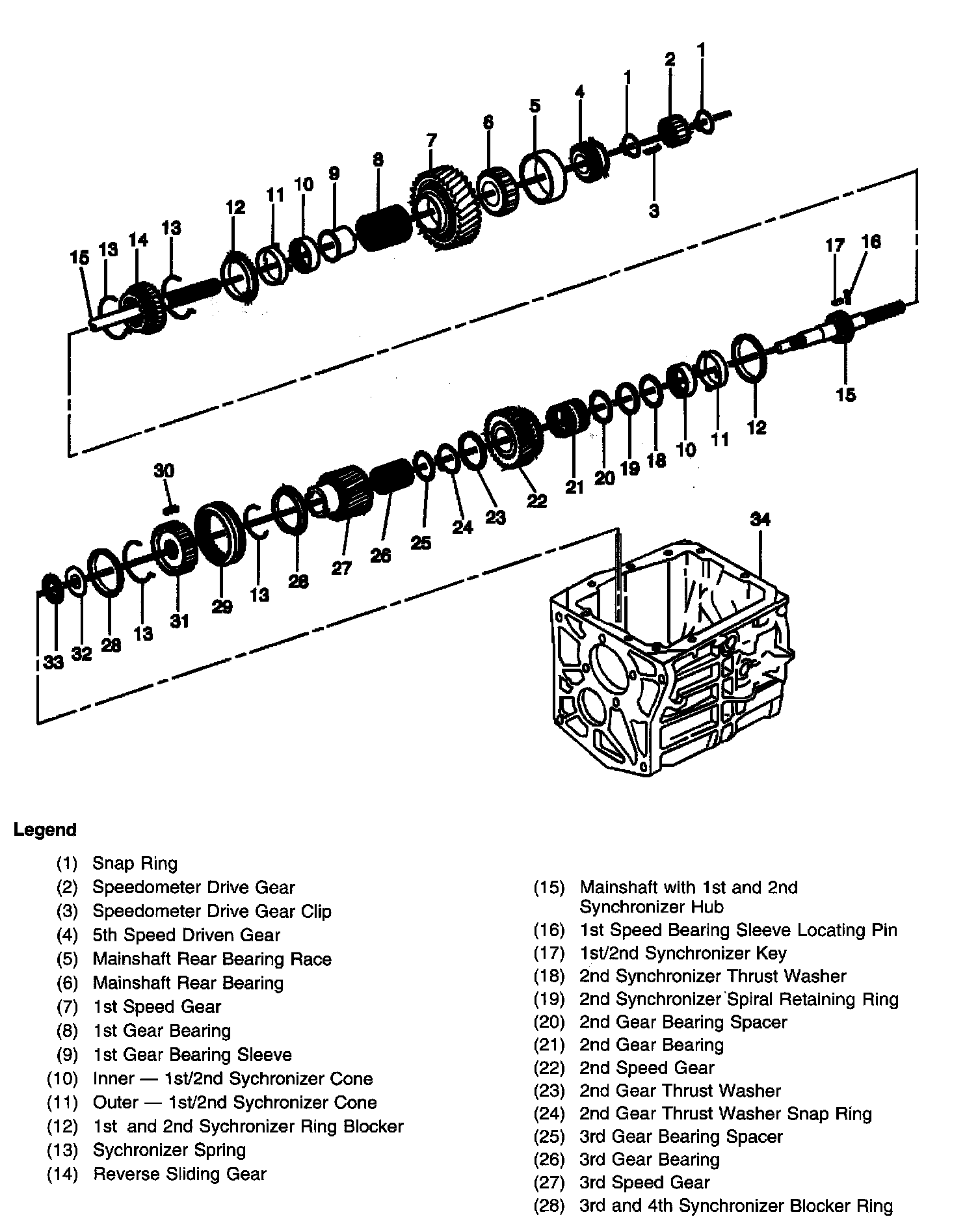

Transmission Case (2 of 3)

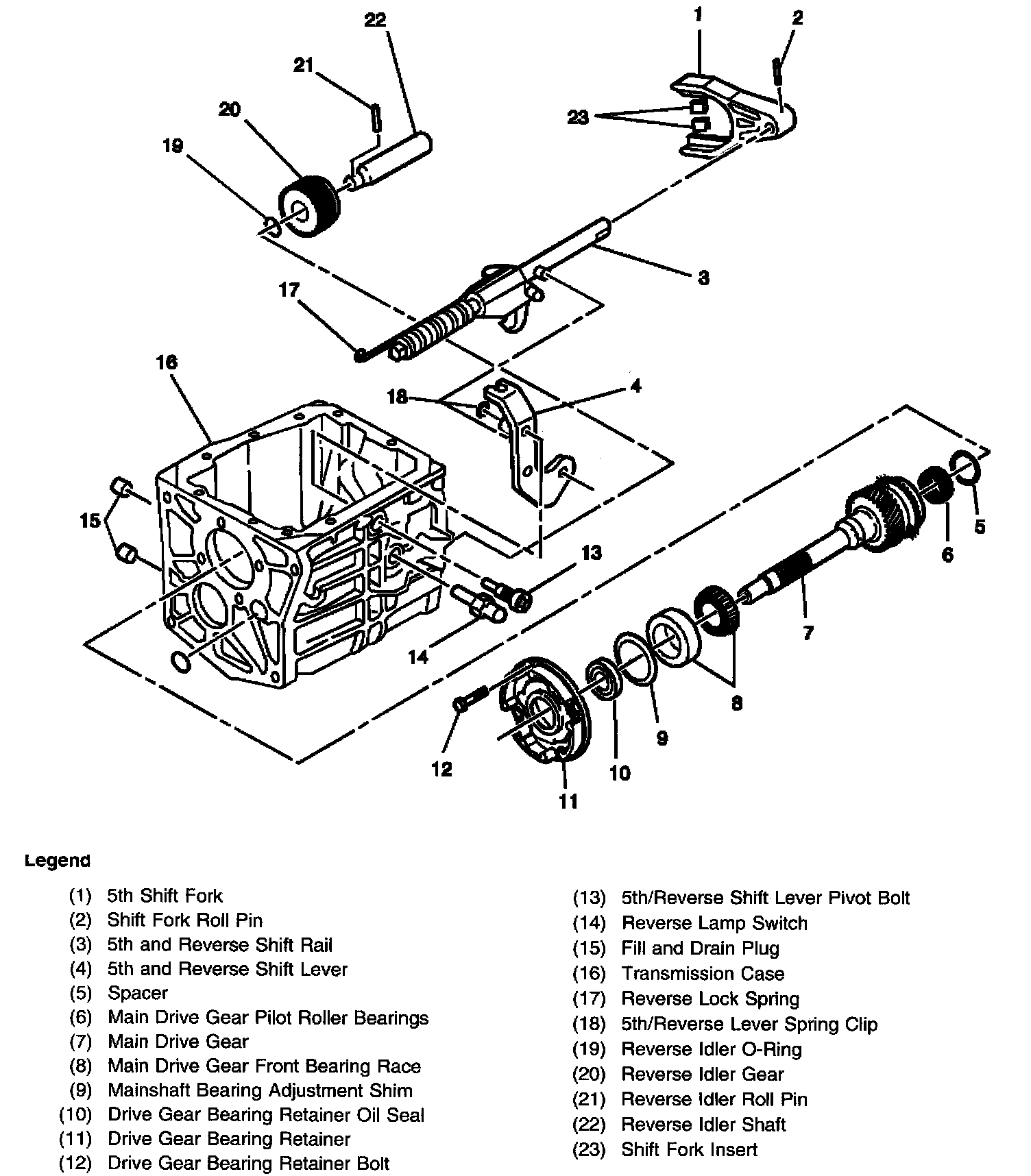

Transmission Case (3 of 3)

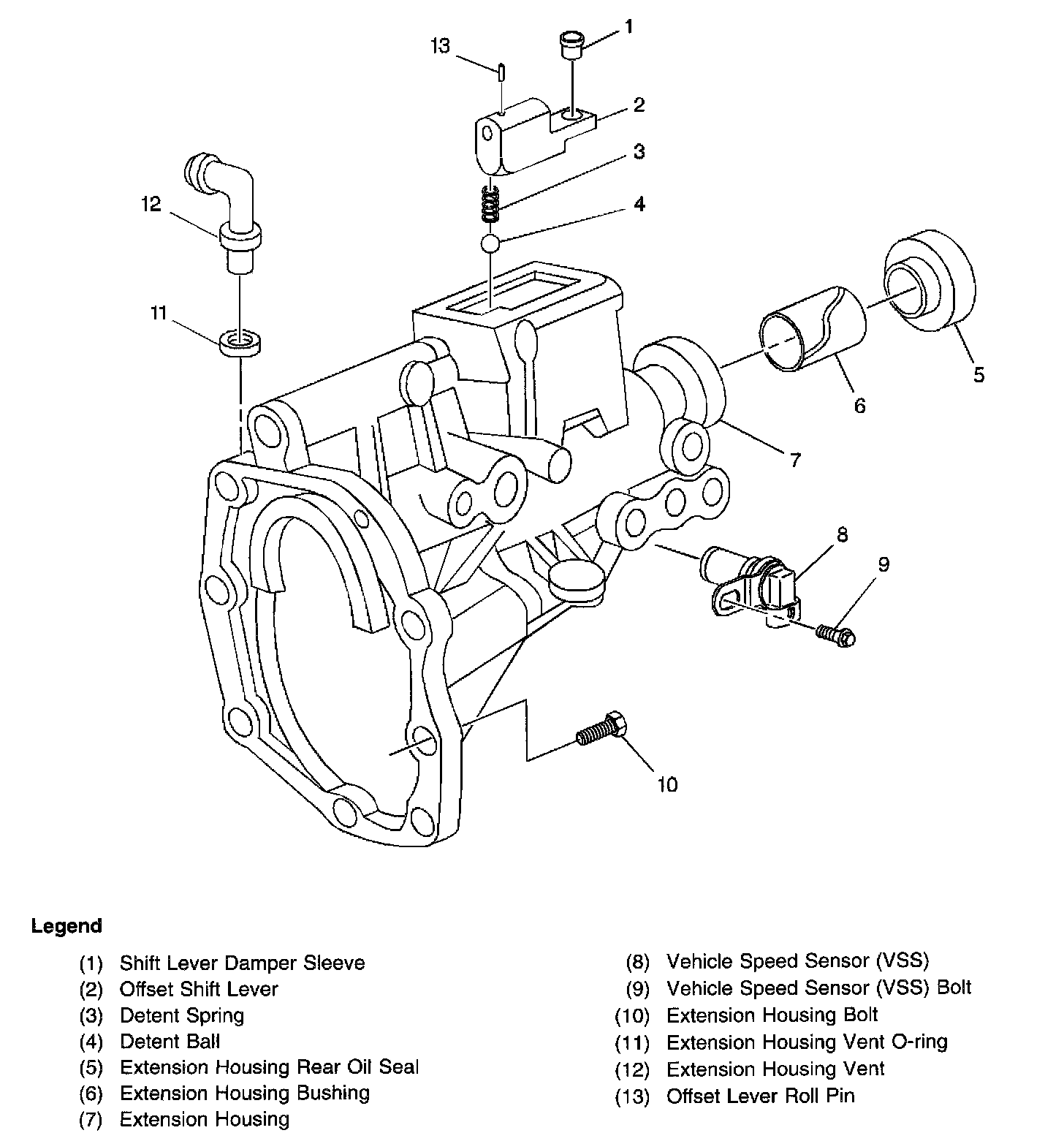

Extension Housing
