Electronic Brake Control Module (EBCM)
Electronic Brake Control Module
(
EBCM
)

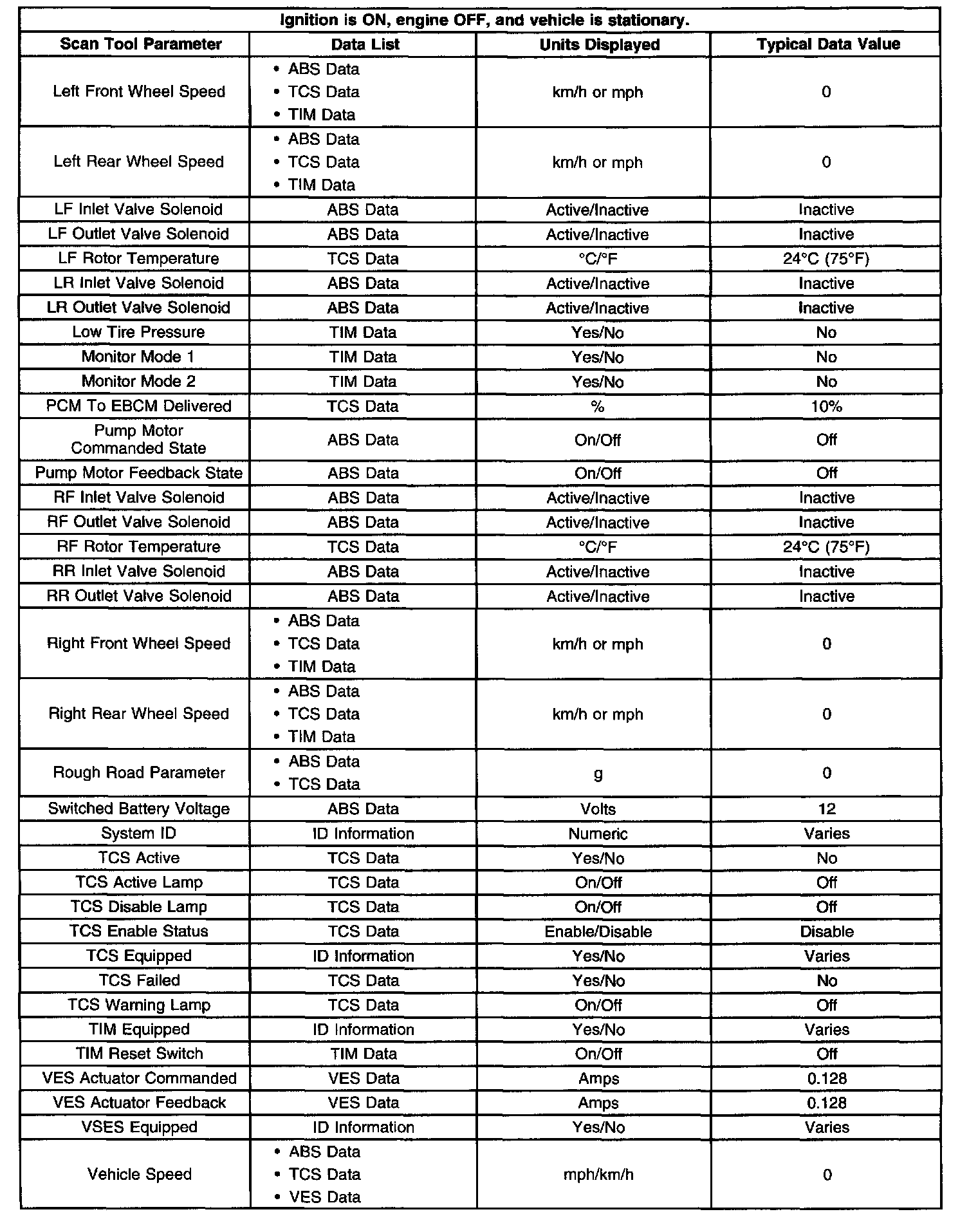

Part 1 of 2

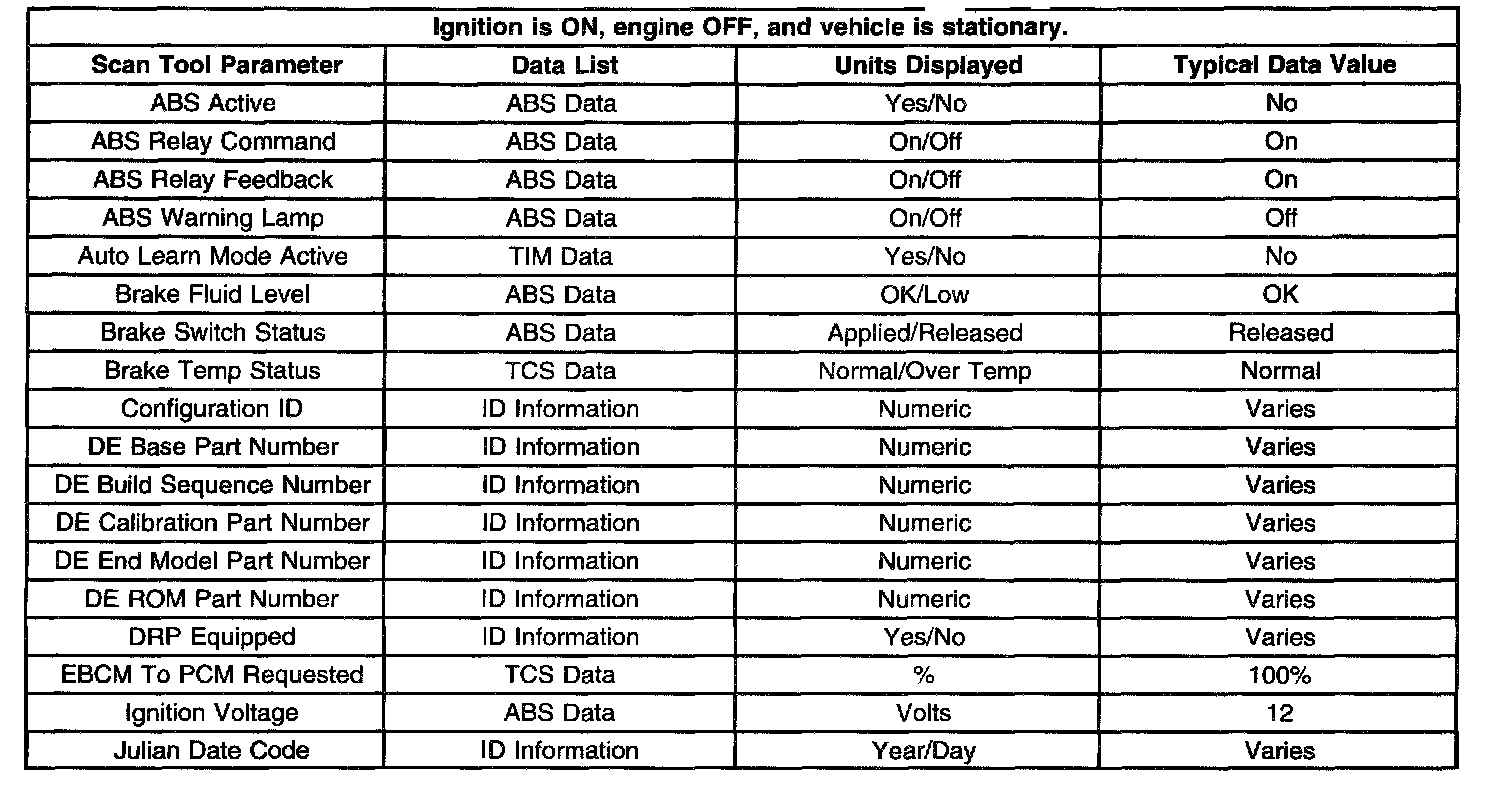

Part 2 of 2
