STOPLAMP Switch

  1. Disconnect the stoplamp switch electrical connector. Press the brake pedal. Loosen the locknut from the stoplamp switch (4). See Fig 1 .
  2. Use the following procedure to adjust the stoplamp switch (4):
    1. Pull the brake pedal all the way back and hold.
    2. Adjust the switch position so that the switch plunger is pressed by the brake pedal contact plate. Ensure that the threaded portion (2) of the switch (4) is within 0.06-0.08" (1.5-2.0 mm) from the pedal contact plate. See Fig 1 .
  3. Press the brake pedal and install the stoplamp switch locknut. Tighten the stoplamp switch locknut to 71 INCH lbs. (8 N.m). Connect the stoplamp switch electrical connector.

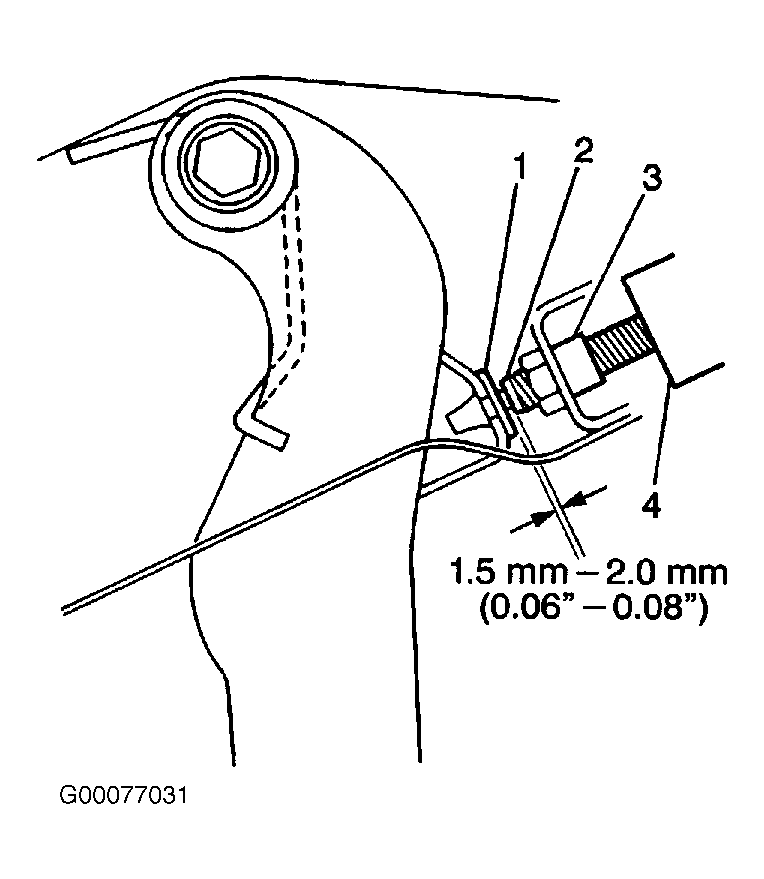

Fig 1: Adjusting Stoplamp Switch
G00077031Courtesy of GENERAL MOTORS CORP.
