Rear Window Motor/Regulator Assembly: Installation

1. Apply a multipurpose grease to all lubrication and sliding points.
2. Slide regulator arm roller (2) into window bottom channel (1). Secure regulator with 4 bolts. Tighten regulator bolts (3) to 49 INCH lbs. (5.5 N.m) and regulator bolt (4) to 43 INCH lbs. (5 N.m). See Fig 1 .
3. Install rear door window.

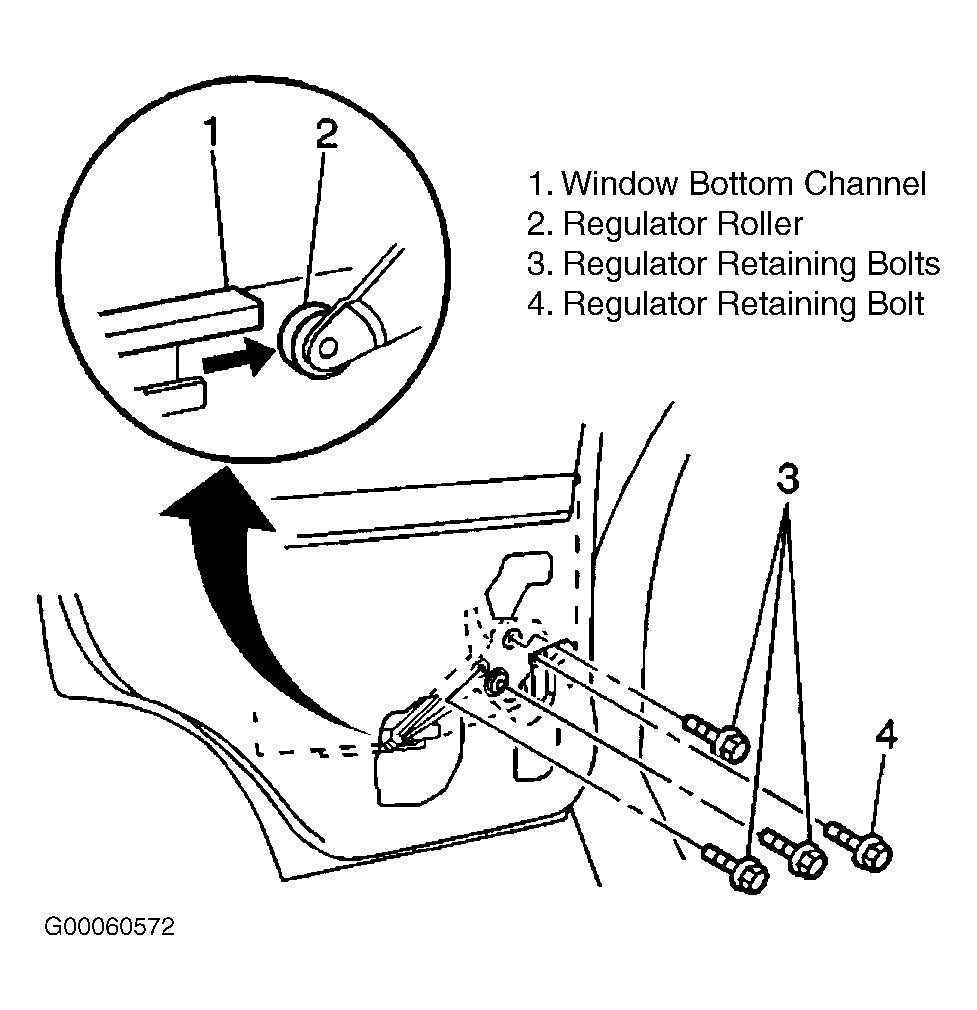

Fig 1: Installing Rear Window Regulator

Courtesy of GENERAL MOTORS CORP.
