Connector Identification

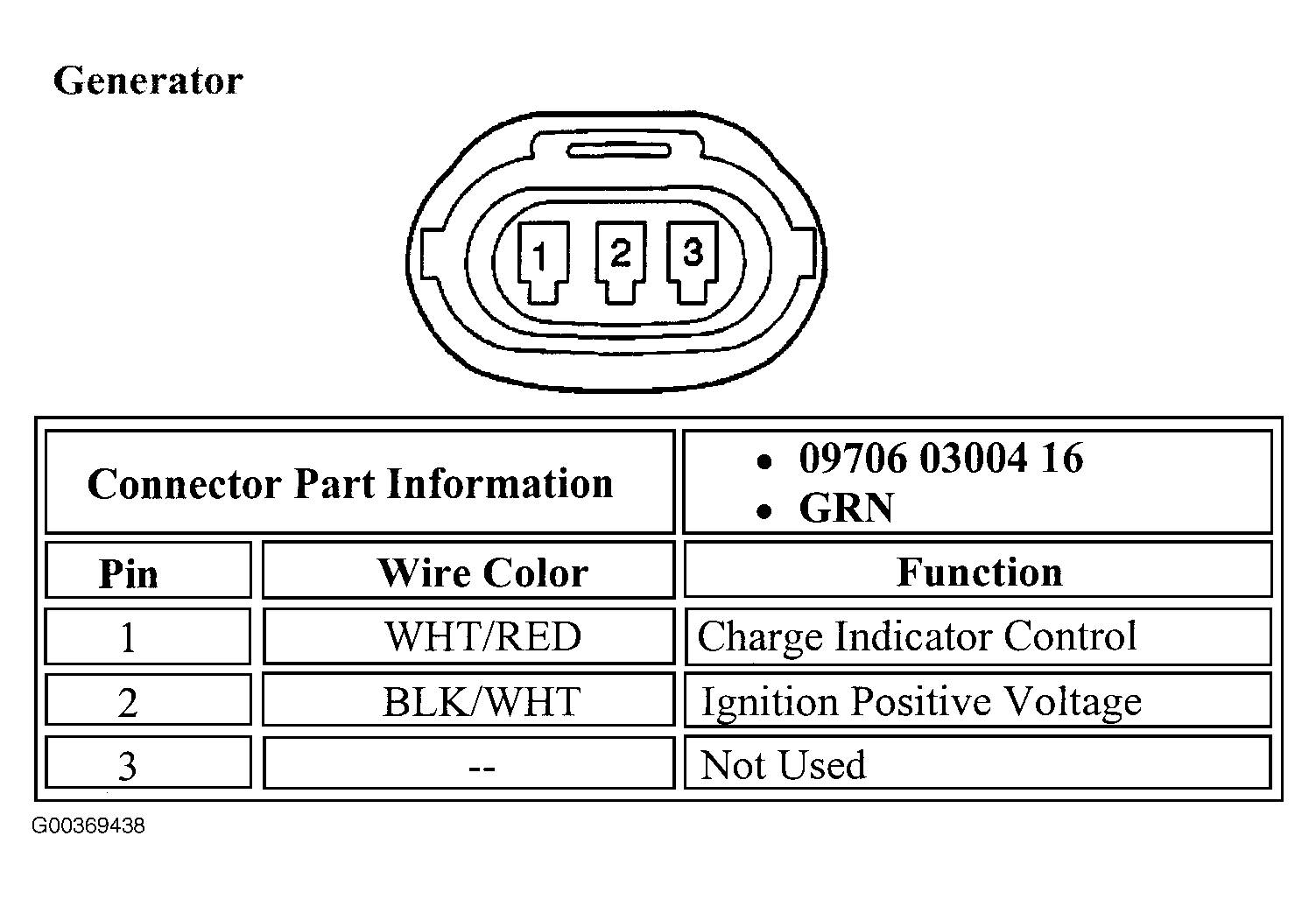

Fig 1: Identifying Generator Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
