Component Locations

Locations View:

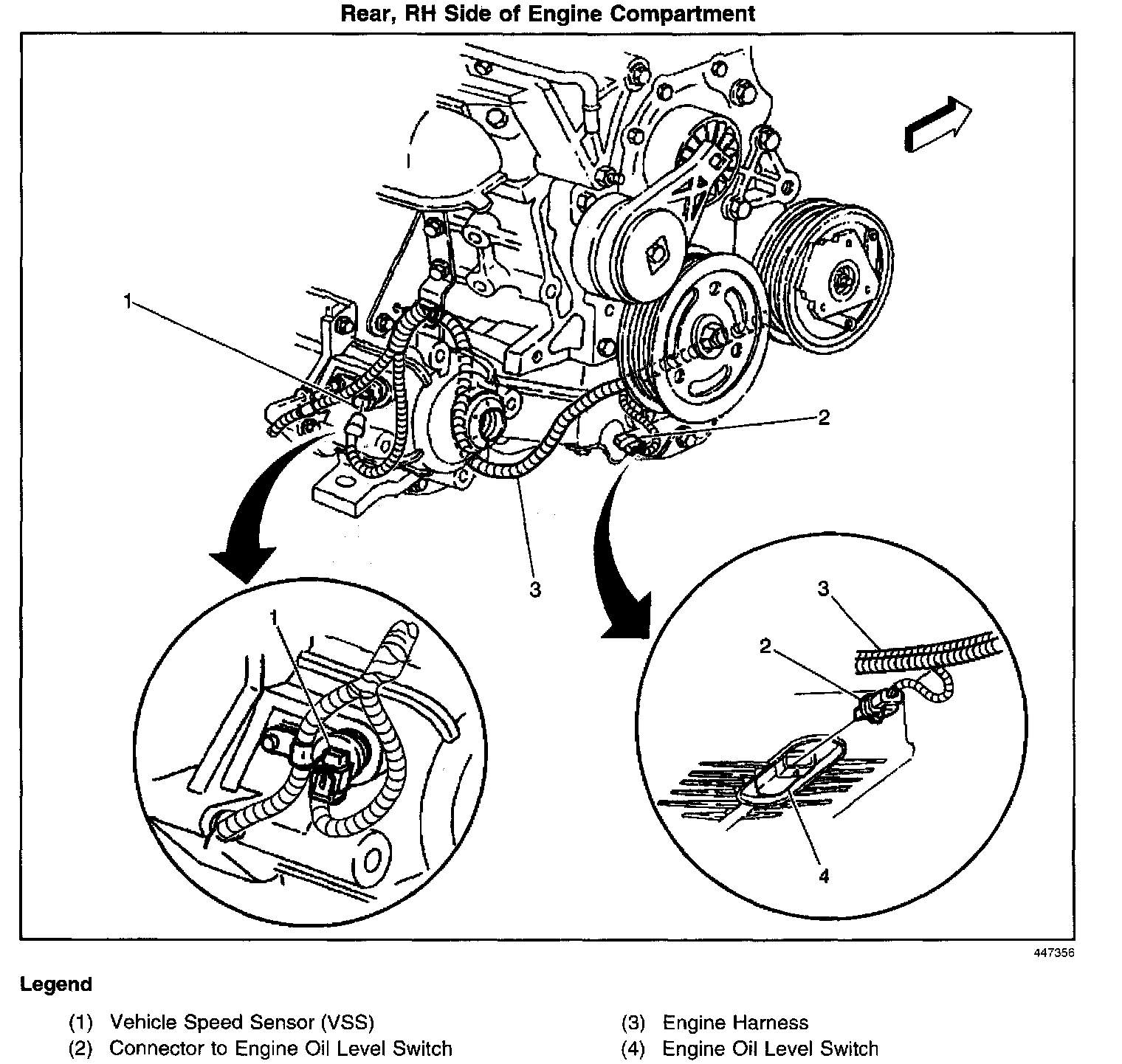

Lower right rear of the engine compartment, mounted to the right side of the transaxle
