Engine

Disassembled Views (M/L Van and G Van)

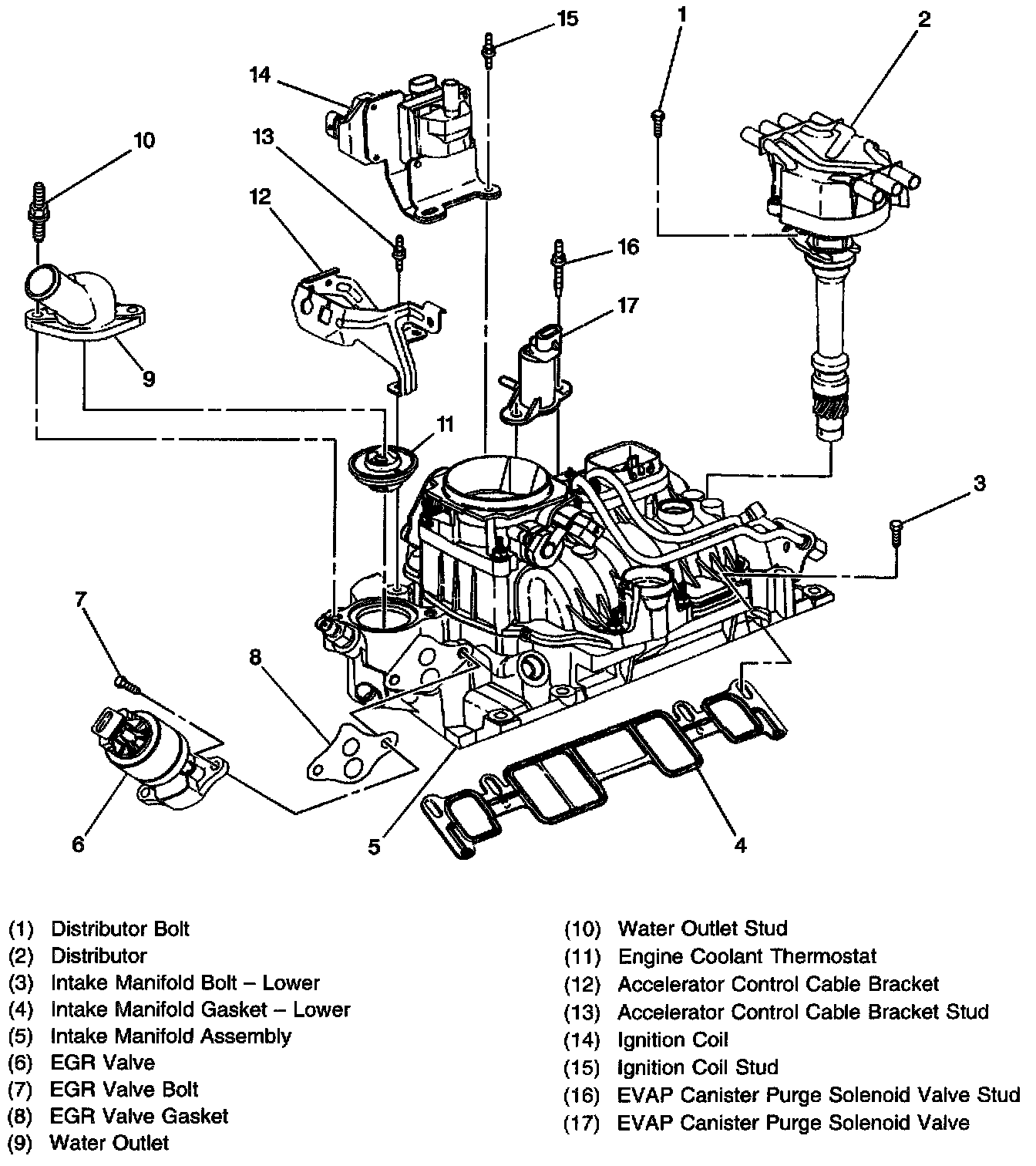

Upper and Lower Intake Manifold View

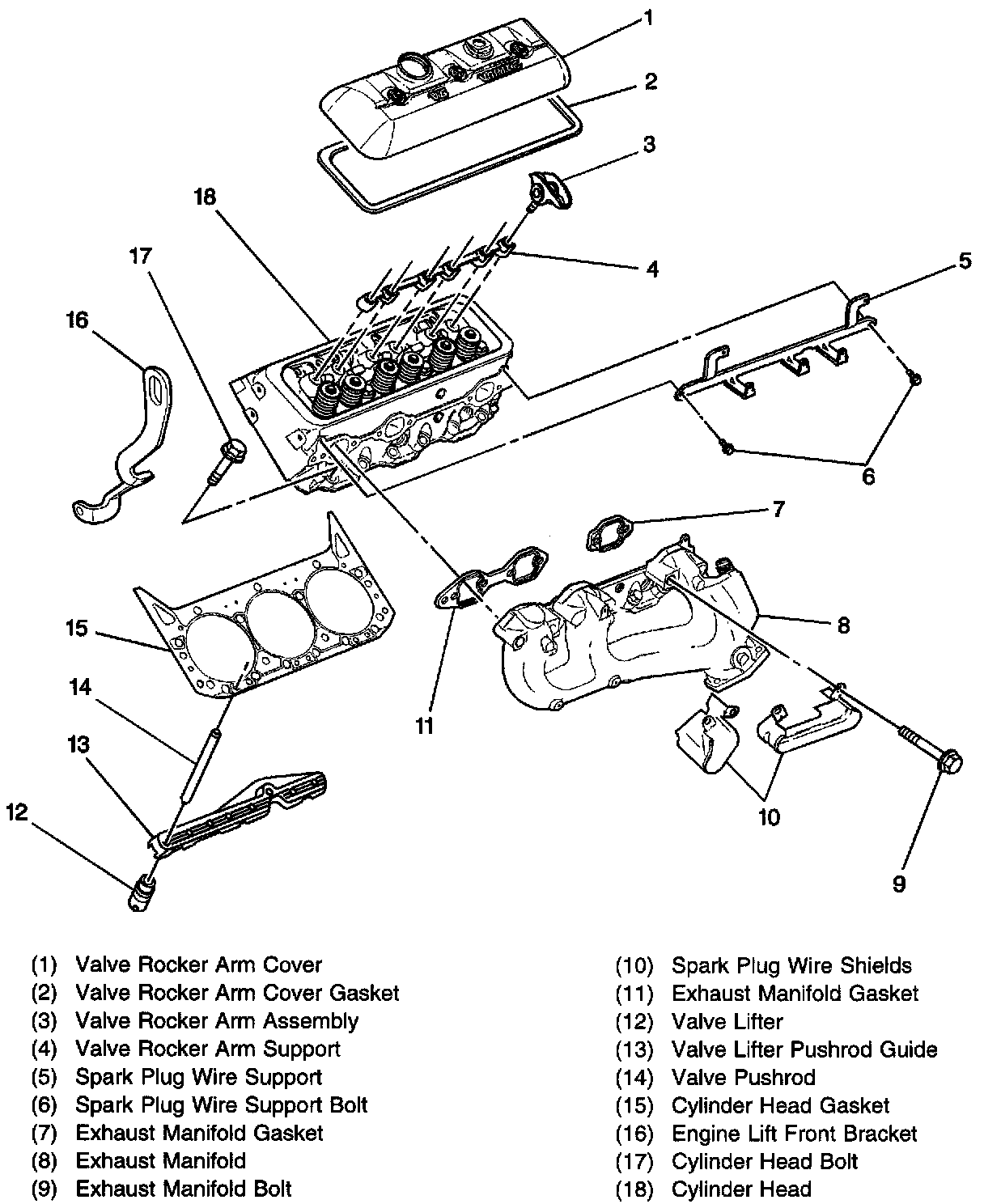

Upper Engine View 1

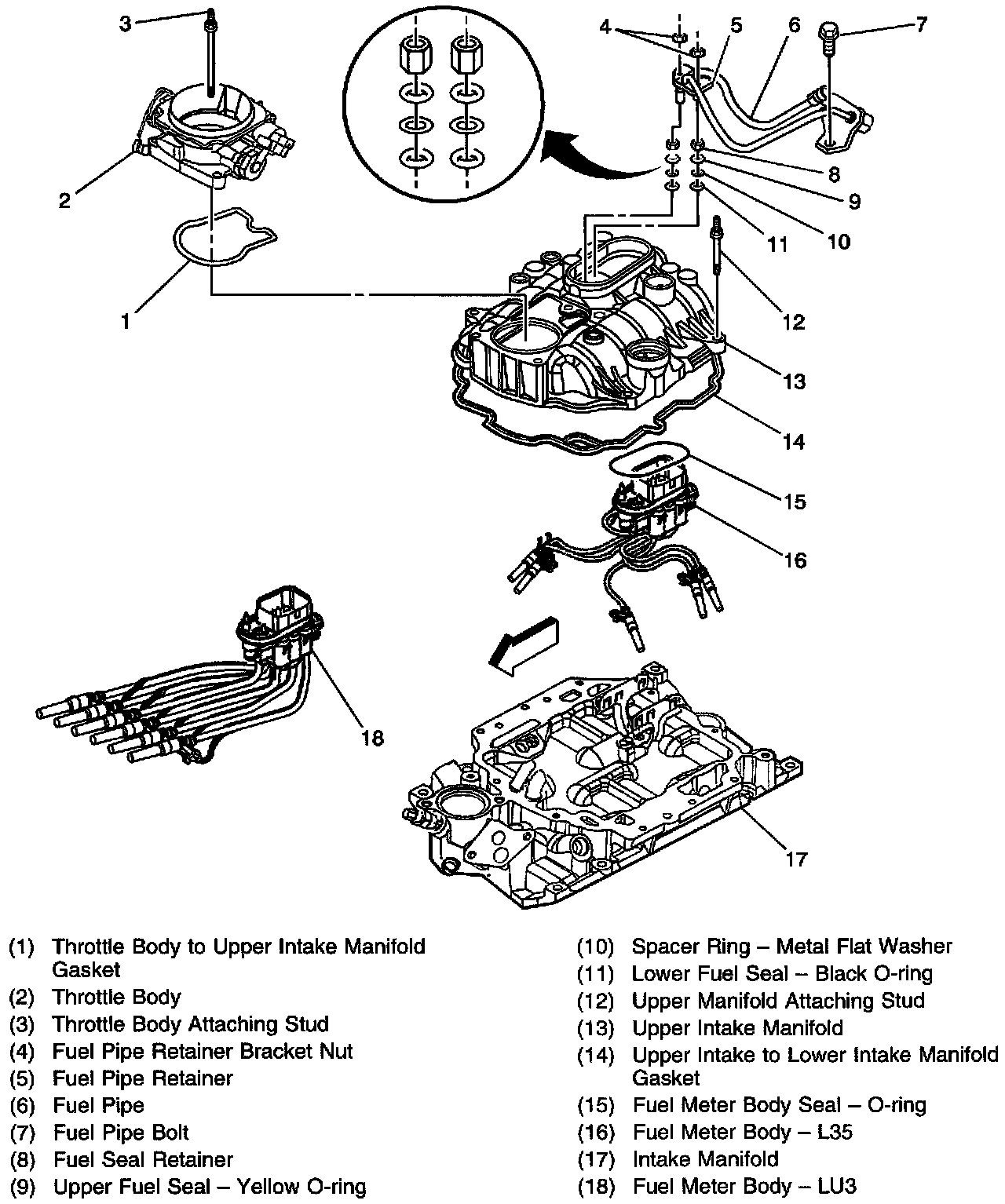

Upper Engine View 2

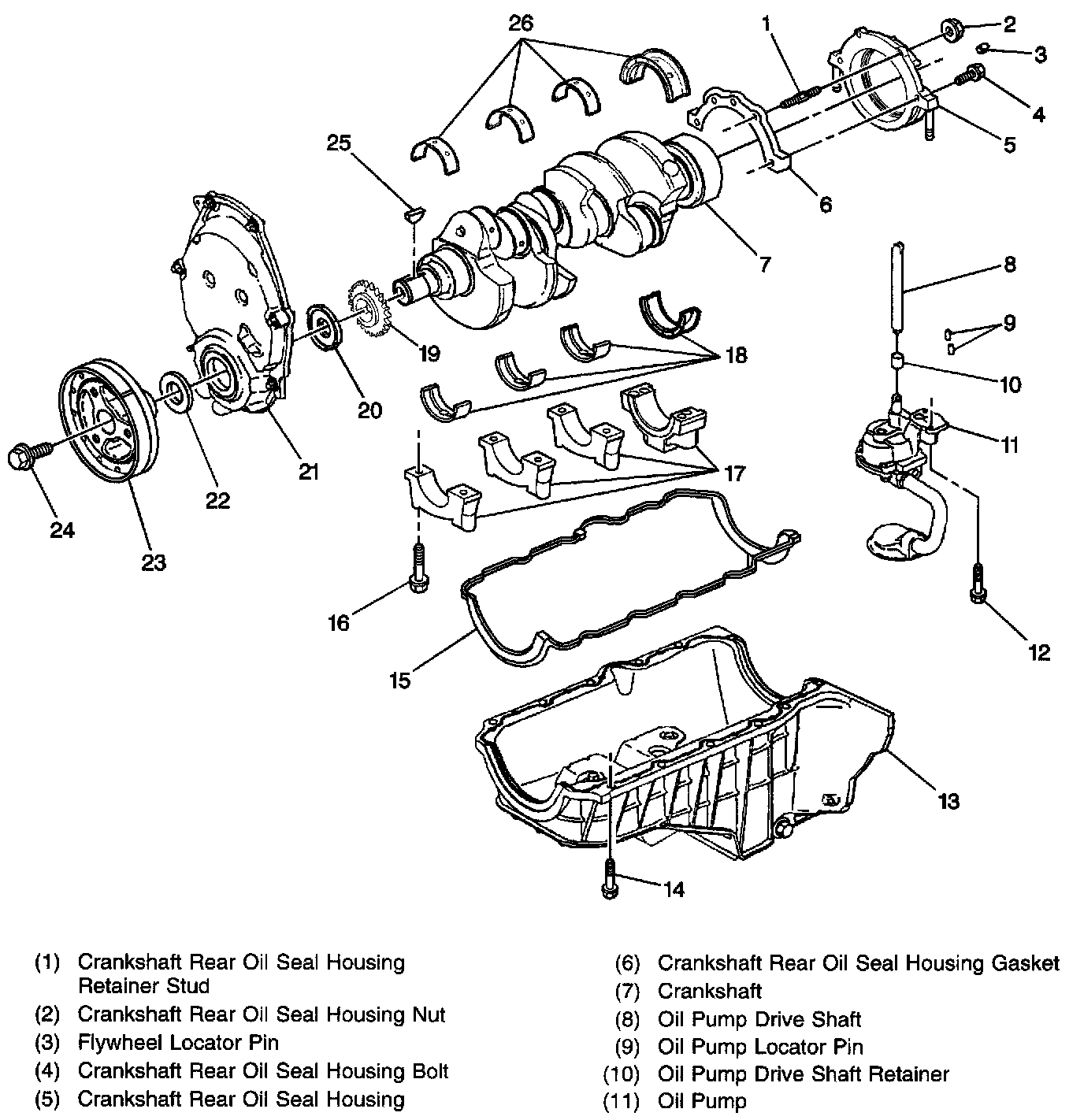

Lower Engine View 1

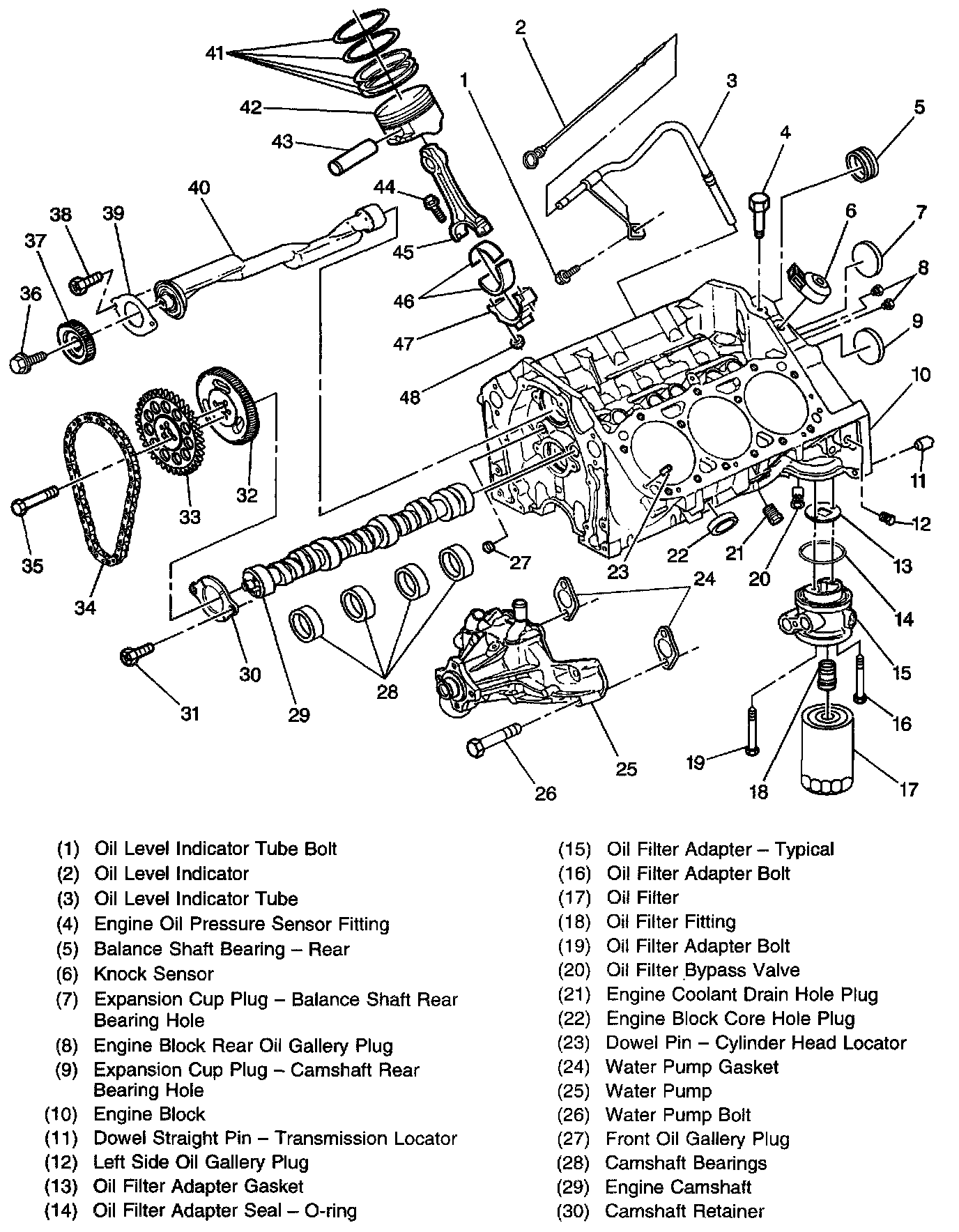

Lower Engine View 2
